Product Overview

Description

 >> Structure and principle of fuel oil from tyre pyrolysis machine

 * whole parts



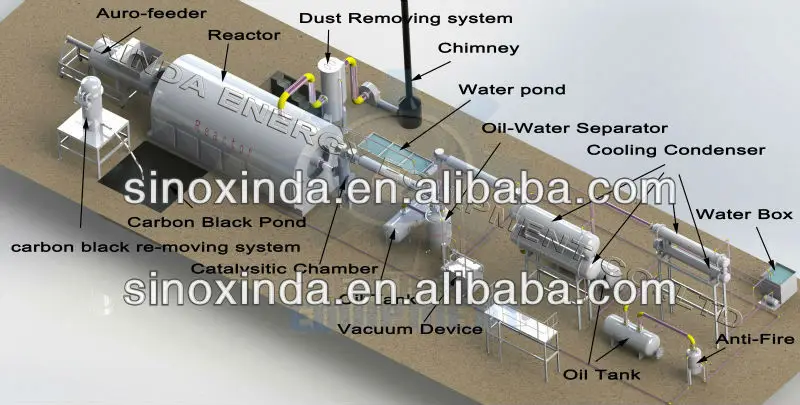

The whole pyrolysis system is composed by 16 parts,which are reactor,Insulation

layer,Desulfurization,deduster,Draft fan,Chimney,Water film cyclone,Condenser,Water tank,Cooling tower(optional),Gas recycle system,Oil tank,Gas separate,Waste gas burner,Furnace,Blower,Carbon black slag system.

The keys of pyrolysis plant are reactor and cooling system.

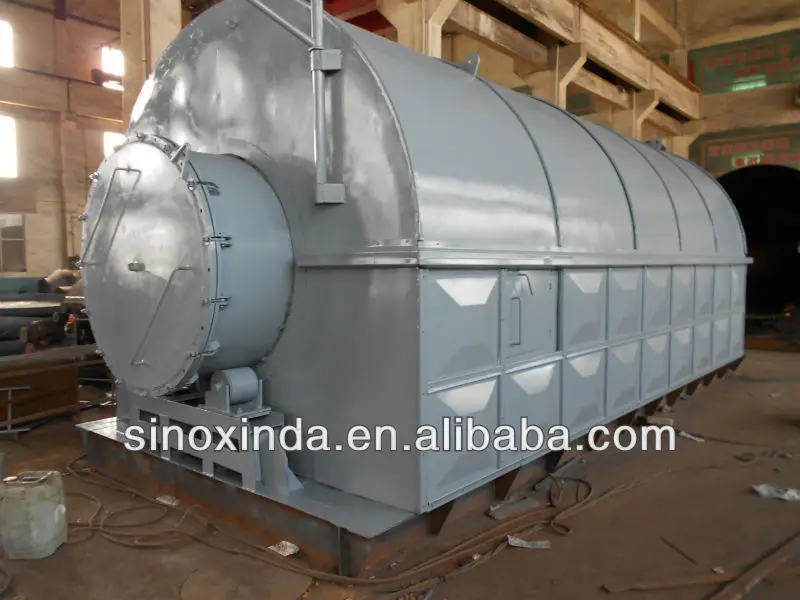

* Reactor





waste tyre oil plant Reactor directly decides the machine's safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X-rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.



>> Features of fuel oil from tyre pyrolysis machine



Main characters



1.Heating system

Reactor of used tire pyrolysis oil plant



Q345R boiler steel and the thickness is 14mm and 16mm,the thickness would be changed according the customers'requirments. The main engine use horizontal-type of 360°structure-0.8 r/min



2.Separation system

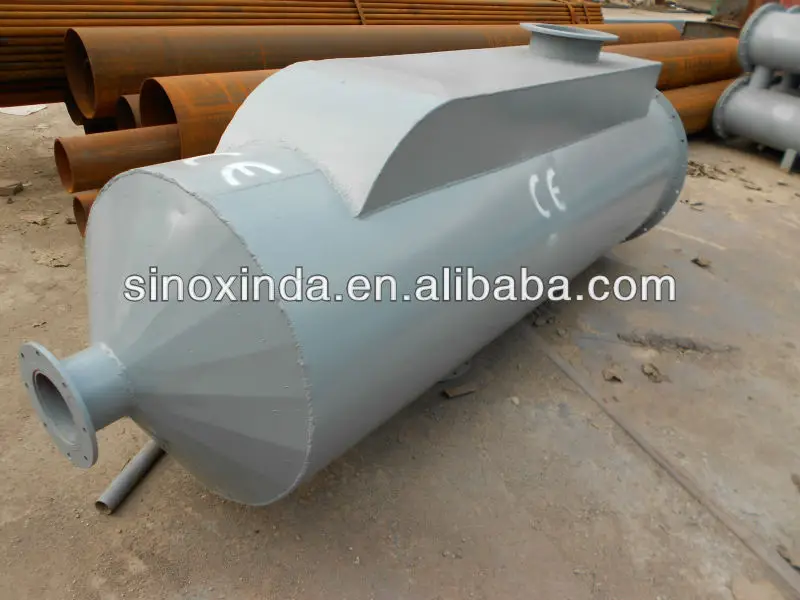

Gas separator & Depositing tank

Depart the heavy oil and impurities from the oil gas to purify the oil.

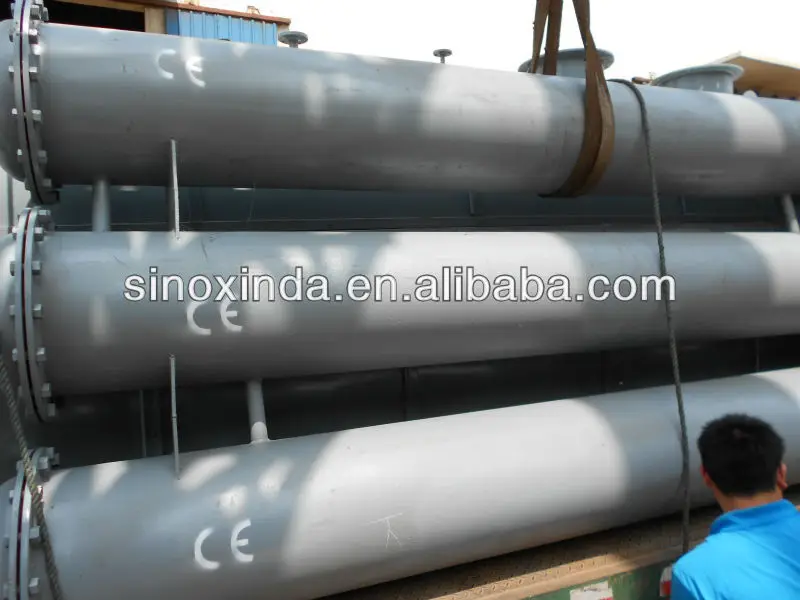

3.Condensing system



Generally speaking , for all the raw material  all  be finished  by heating to gasification and cracking, and then cooling to get oil, so they key is the relationship between the yield rate and condensation. So the best and easy way is to increase the condense area so as to  get higher yield rate.



4.Dedusting system



Desulfurization dedusting, Water film cyclone

Desulfurization dedusting:remove the sulphur(when use coal as fuel) and dust

Water purification: for the second removal.



5.Waste gas recycles system



Water seal & Spray fire gun



In the process of refining oil, when the gas is heated up to 150 , it will produce a large amount of gasCH4& C4H8 ,which cannot convert to liquid at normal temperature and normal pressure. However, these gases can be used as fuel, which is not only environment protection but also energy conservation



6.Carbon black recycles system

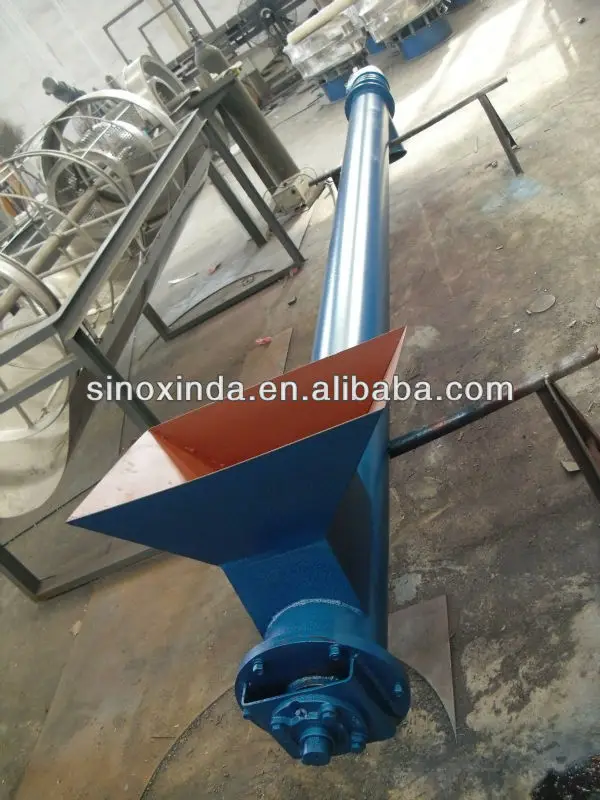

Heaving dragon screw conveyer



The solid residual will be left after the catalyst splitting from scrap plastic, approximately take up 5% to 10% of the waste tire.



Its main component is the black carbon, which can be used as raw materials in industry, as well could be mixed with the pulverized coal ash to produce the raw material of the thermal power plant, and also could be applied to the manufacturingof the pulverized coal ash brick





>> Technical Data of fuel oil from tyre pyrolysis machine

ITEM	CONTENT
equipment’s model	XD-06	XD-08	XD-10
Daily Handling capacity	6 tons	8 tons	10 tons
Door's model	Semi-open door	Semi-open door	Semi-open door
Structure Form	Horizontal type	Horizontal type	Horizontal type
Raw material	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic
Material of reactor	Q345R thickness 14mm	Q345R thickness 14mm	Q345R thickness 14mm
Main engine rotating speed	0.4R /min	0.4R /min	0.4R /min
Power	10-15KW	10-15KW	10-15KW
Cooling Mode	Water	Water	Water
Consumption of Cooling water	0.2	0.3	0.4
Heating Mode	Direct	Direct	Direct
Installation	Main engine integral installation	Main engine integral installation	Main engine integral installation
Noise dB (A)	<=85	<=85	<=85
Machine dimension(mm)	D2000*L6000	D2200*L6600	D2600*L6600
Working Mode	Intermittent	Intermittent	Intermittent

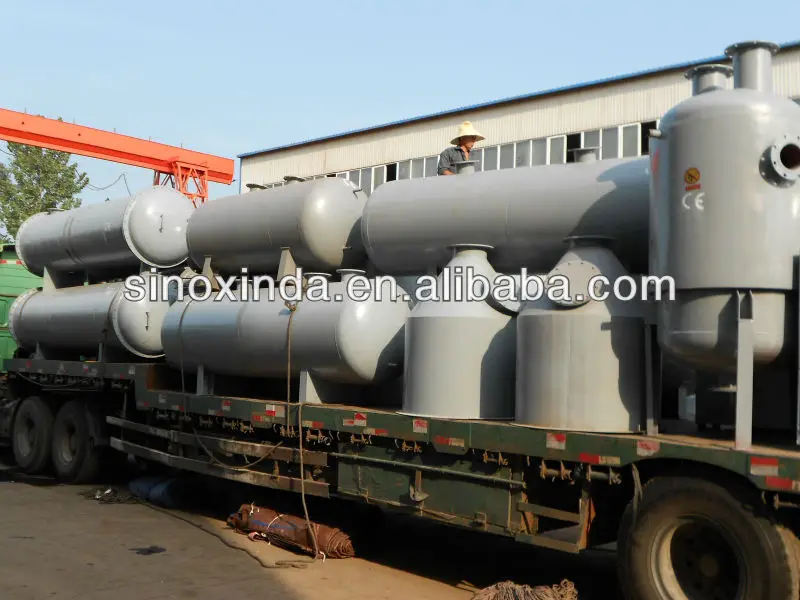

   Deliver Goods
