Main structural channel 300mm, 600×11pes heating plates, intensive pressure rollers, peumatic tension, manual election-corrected, electric belt up and down. 4 plates touch pressure plates.
8
Thin blades cutter
1set
Electric widthwise moving,5 blades 8 scorers
9
CNC straight crosscutter
1 set
Germany KEB servo controller
10

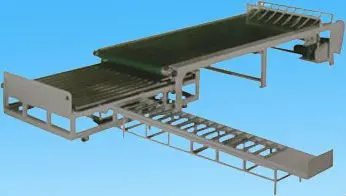

Paper feeding machine
1 unit
Two sections input, transverse output
11
Pneumatic sn steam system
1 unit
Includi
ng gas and water separator. The gas pump and the pipeline are provided by customers themselves
12
Electric and glue making system
1unit
Adopting DELIX brand. The electric wires are provided by customers themselves
Used and feature:

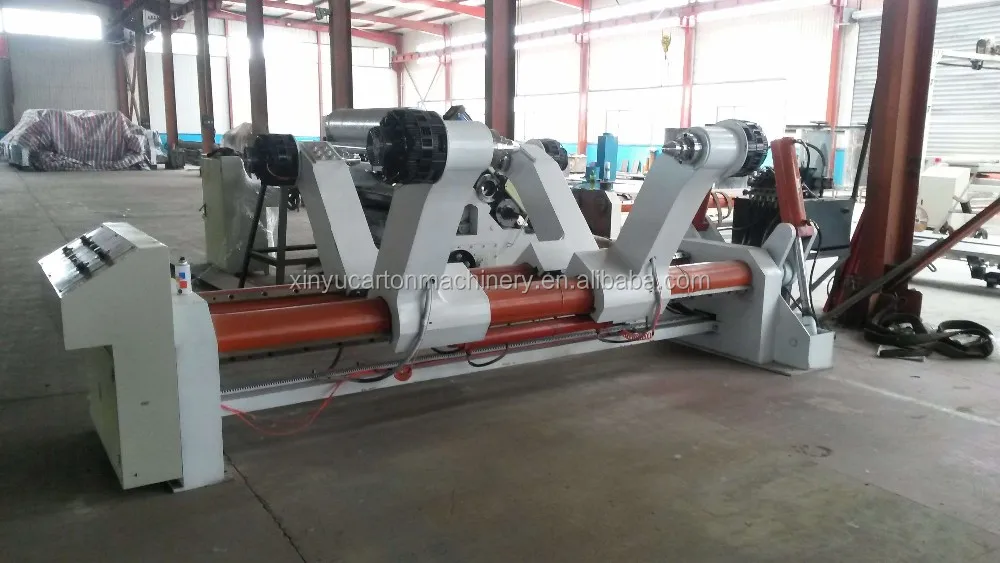

Mill roll stand
1.The sturctcure is double rotary shafts with four arms;Support two paper mill rolls on both arms at the same time.
2.Hydraulic control for paper mill roller up-down,clamp-open and centering,or motorized clamp-open and centering.
3.Web tension is controlled by pneumatic brake or manual brake; Springiness chucks are optional.
4.Effective width: 900mm-2550mm;Max paper roll diameter:1500mm
5.Max support weight:3T
Pre-Heater
1.Diameter of pre-heater roll:600mm, 800mm, 900mm, 1100mm
2.Effective width1400-2200mm
3.Electromotion heating angle adjustment .Adjustable range of 60°-270°
4.Surface of all rollers are well treated by grind and plated hard chrome ,glabrous and durable.
5.Adopt dishing seal or plat design. Insure reel paper be heated averagely.
6.Simple , duplex, triplex or quadplex preheater according to requirement.
Cut –off machine
1.Design speed:80m/min.
2.Paper cutting range:600-2600mm
3.Cutting off precision :±2.5mm
4.Effective width:1400-2200mm
5.Manual adjust the rotate speed of P derailleur in order to change the length of required cardboard.
6.There are clearance adjustment set and gear parallel set at the gear between the edge roller, thereby assure move placidly, improve precision.
7.Adopt double brace speeder , make the edge shaft run in uniform motion, the instantaneous speed of cutting off edge in working are invariables with the running speed of cardboard.
8.Drive power from main transmission ,good synchronization and high precision cutting.

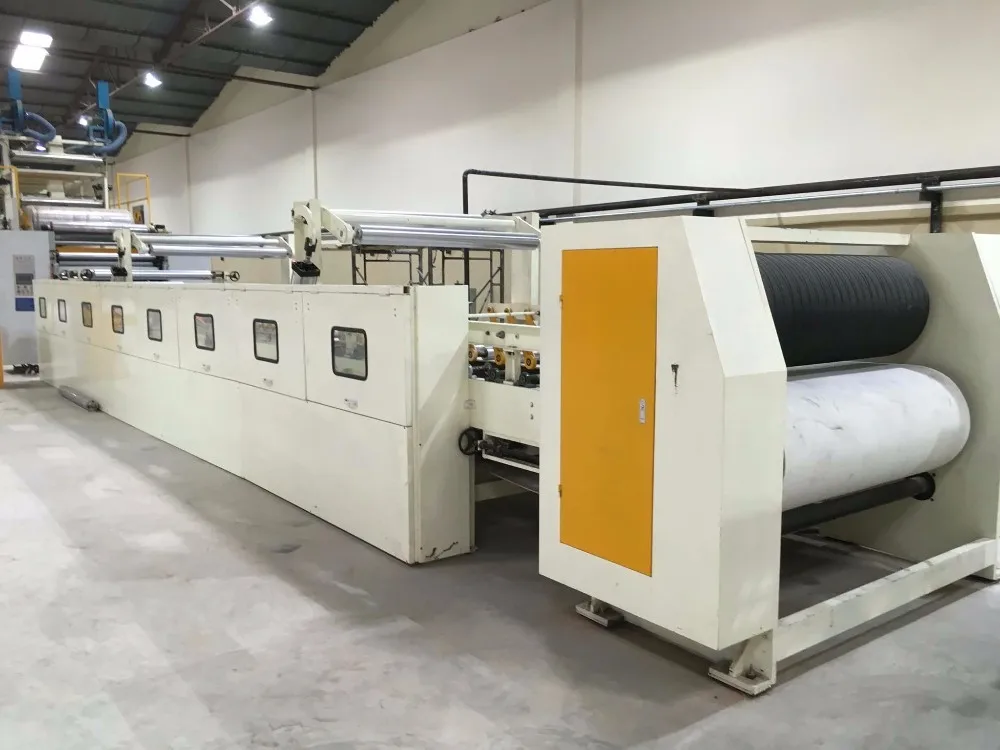

Baker and finalizing design system
1.Used and featureDesign speed:150m/min
2.Effective width:1400-2500mm hot-plate surface are whetted
3.The hot plate pressure rollers is intensive style, whole lift-lower are the electric and oil pressure controlavailable
4.Subsection press or whole pressure by pneumatic according to the requirement of cardboard ply.Benefit to cardboard agglutinate and molding.
5.The upper canvas strap was equipped automatic or manual deflection adjusting set,pneumatic strain set,the lower canvas strap was equipped strain and left-fight adjustment set.
6.Cooling and molding parts adopt intensive suspend style pressure roller design. Transmission gearis oil-immersed airproof drive or half air-proof oil-immersed drive.
7.Drive roller are wrapped wearable latex, improve the using longevity of canvas strap.
5.Matched warm-up set, this will speedup glue liquid burnted,improve conglutinant intensity.

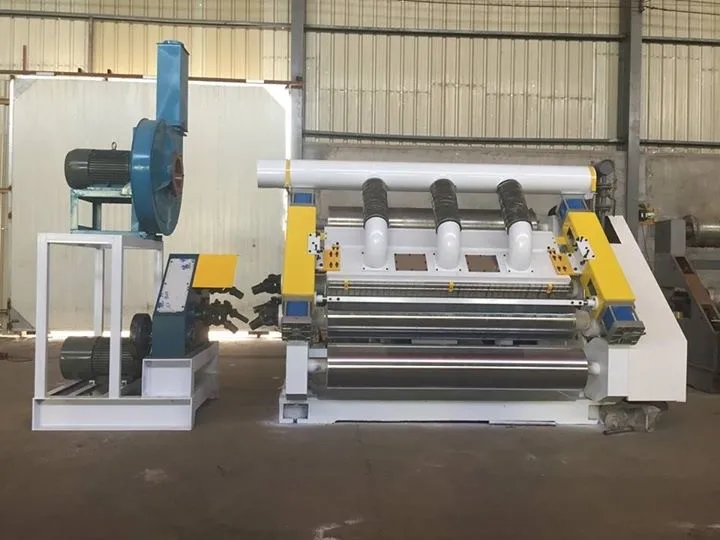

Single facer
1.Design Speed:180m/min
2.Expiry width:1400-2200mm
3.Corrugated roller:320mm-360mm
4.Vacuum adsorbable style transmitting cardboard equipment ,with wind control
5.Glue roller and upper roller are designed to groups guideway slippage load-unload, convenient and swift.
Packaging & Shipping
Our Services
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
