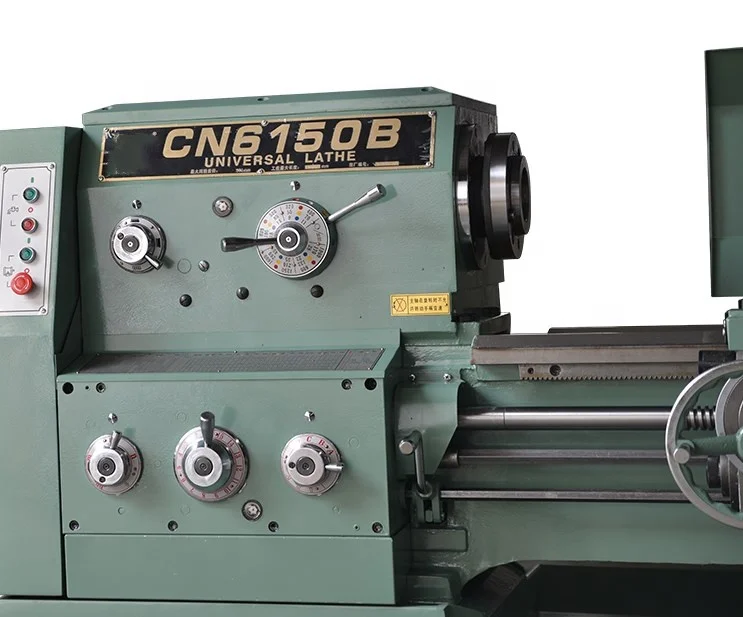

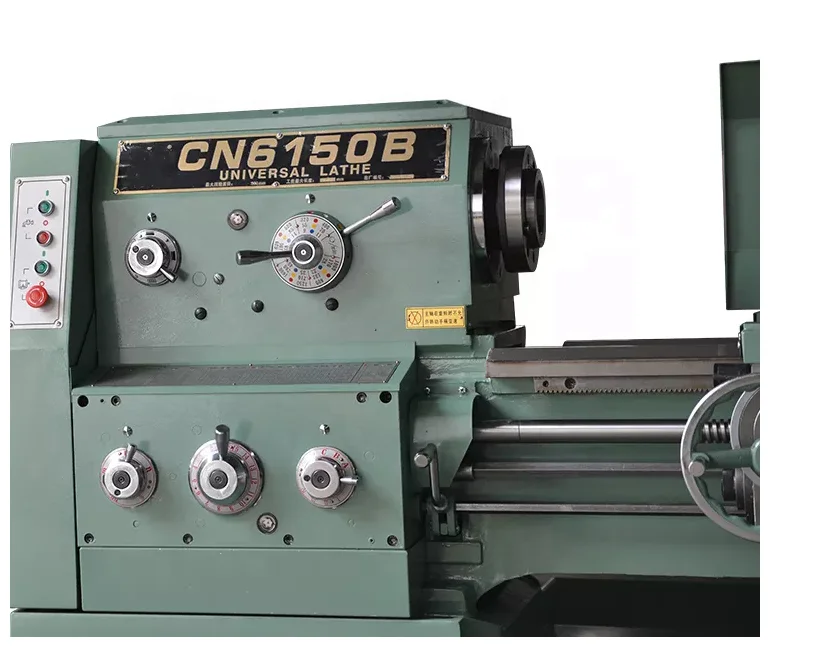

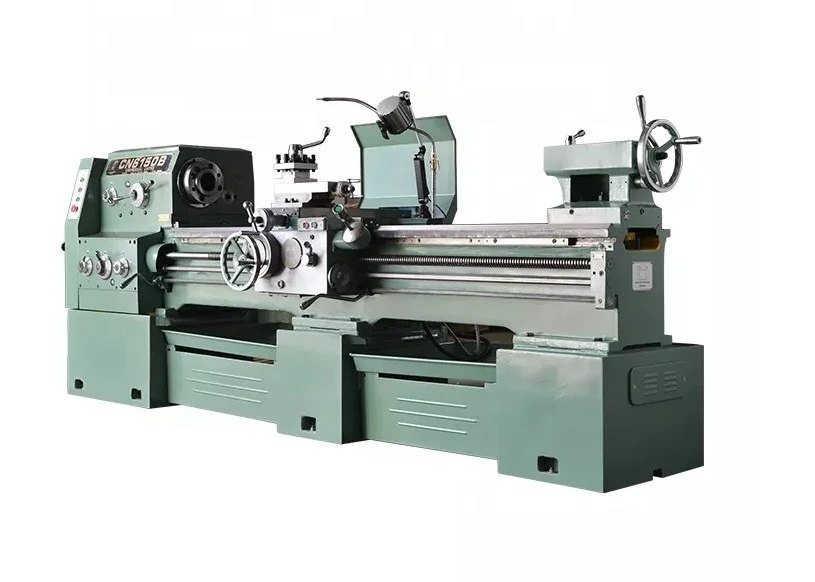

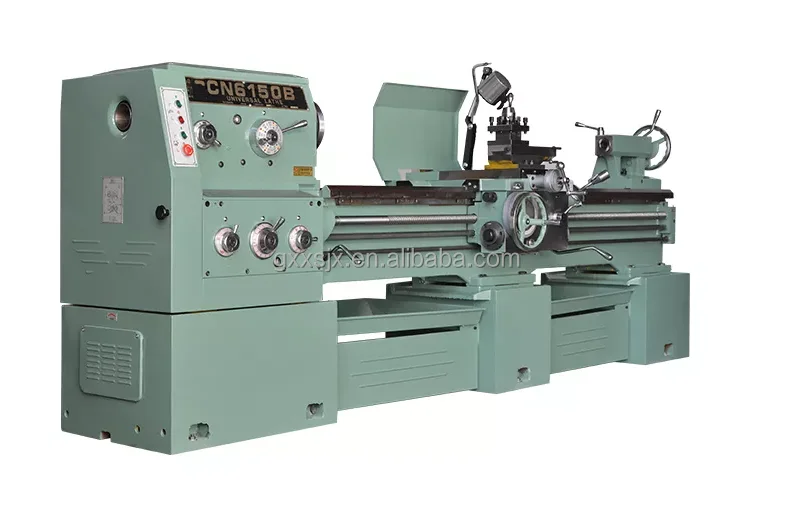

CN6150B/1000 conventional metal lathe machine

Product Overview

Description



 The machine is driven by a fast motor, longitudinal, transverse motion knife, saving processing time, the tail adopts the roller to move, the entire tailstock moving more lively.



This series of lathe with process performance is wide, suitable for general machinery manufacturing unit, shop, the tools of the trade, machinery and equipment manufacturing sector repair department and laboratory.



Specification

spindle bore is 82

roundness error≤0.01mm

surface roughness(Ra)≤25μm

pitch error≤0.06mm

Rail span :390mm



Model		CN6150B
specifications	Height of spindle centers	250mm
	Max swing diameter over bed	500mm
	Max length of workpiece	1000mm
	max. travel of tool slide(longitudinal )	1000mm
	Max swing dia of workpiece	300mm
	Max.swing over gap	710mm
	Valid length of gap	240mm
	Diameter of the bar	80

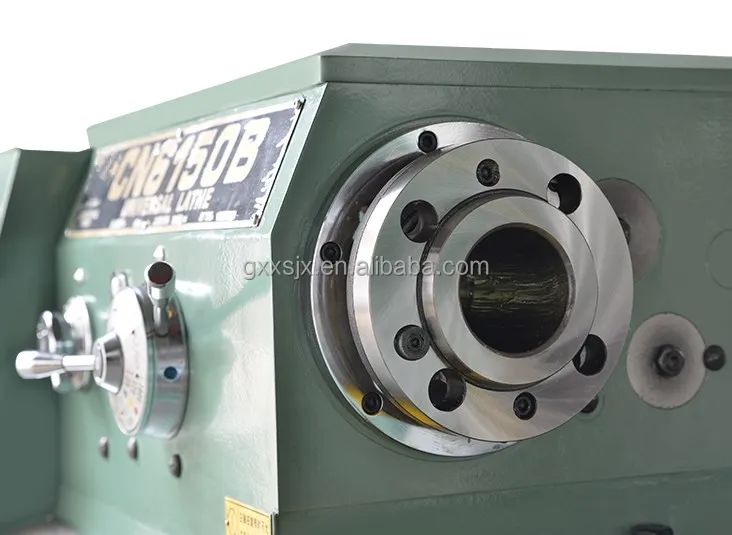

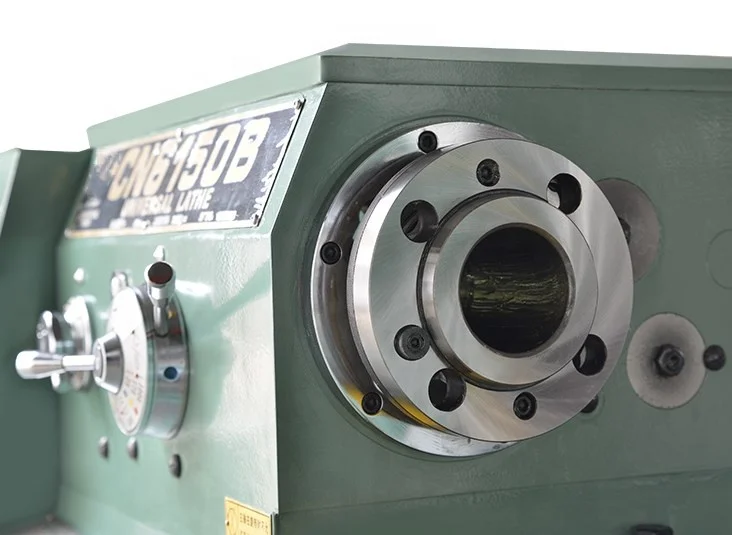

spindle	Spindle bore	82
	Taper	90/1:2
	speed50Hz	9`1600r/min
Tool post	Max.transversal travel of carriage	360mm
	Max.travel of top slide	145mm
	Longitudinal graduation value	1mm/format   300mm/r
	Cross graduation value	0.05mm/format    5mm/r
	tool post graduation value	0.05mm/format    5mm/r
	tool rest rotating angle range	1°/lattice
	Distance from spindle center line to the tool supporting surface	28mm
	Section oftool shank (H×W)	25mm×25mm
	Longitudinal feeds	0.028~6.43mm/r   93species
	Cross feed	0.012~2.73mm/r   93species
tailstock	center sleeve  Morse tape	MT5
	Max.travel of tailstock barrel	150
	Max. lateral displacement	±15mm
Screw thread	Mefric	0.5~224   48 species
	Inch	72~1/8t/in 48 species
	module	0.5~112   42 species
	diametral pitch	56~1/4DP   45 species
Motor	main motor	7.5kW
	Rotary Speed of Main Motor    50Hz	1500r/min
	cooling bump motor	90W  Rapid motor250W
overall dimension(L×W×H)	center distance    1000mm	2625×1043×1275mm	2625×1077×1315mm
Net weight	center distance   1000mm	2250kg	2350kg
belt	Model of main drive belt	B-2260mm	B-2260mm





Product Package

We use plywood packge for our machine,which shall protect our machine during the shipment.





Why Choose Us?

•  We have our own factory and strong production capacity.


•  we insist on good quality and have strict quality standards


•  The hiring of experienced staff to guarantee high quality.


•  Our product can be made as per your requirement .


•  24 hour online communication for you.


•  We have more than 6 years of export experience.

FAQ

Q: What information should I let you know, if I want to get a product offer?

A: 1. the size of your work piece

    2. the CNC system you preferred if you need CNC type

    3. the work piece drawing if you have



Q: How to control the quality of production processes?

A: We have a professional quality inspectors to check on the quality of the finished product.



Q: Is it possible to visit your factory?

A: It is very convenient to visit us and all clients from around the world are highly welcomed.



Q: What’s the MOQ?

A: The MOQ is 1 set.



Q: What’s the quality assurance and service ?

A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
