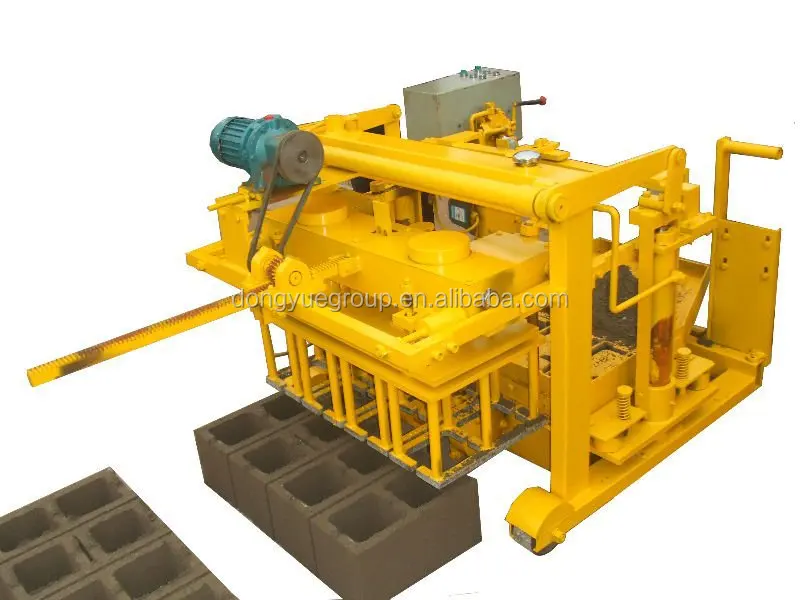

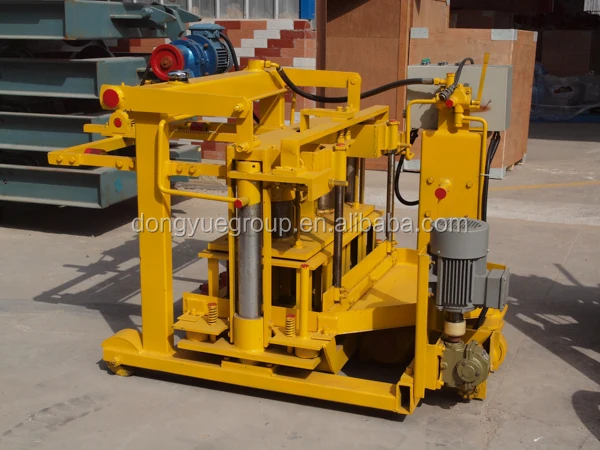

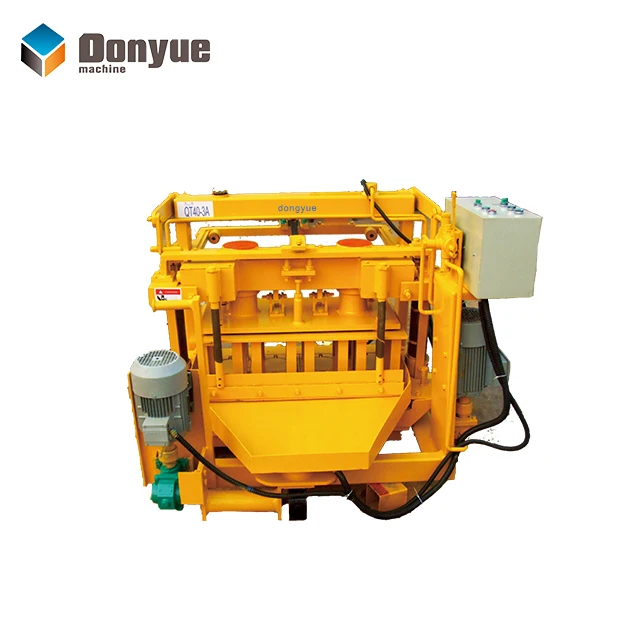

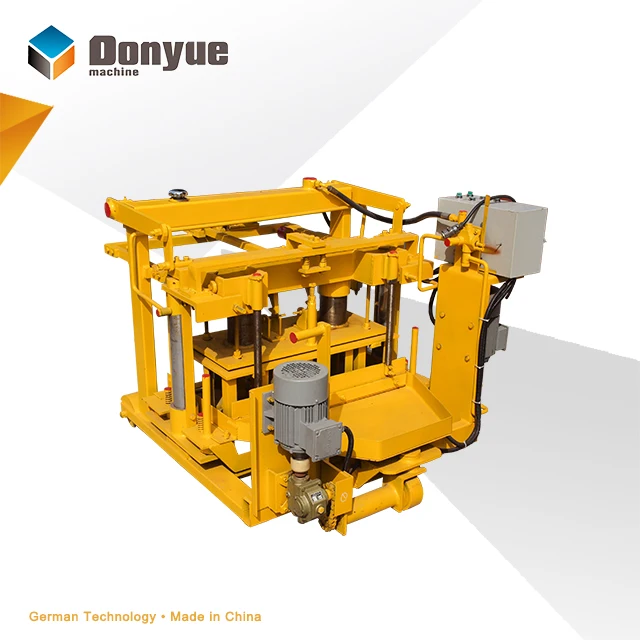

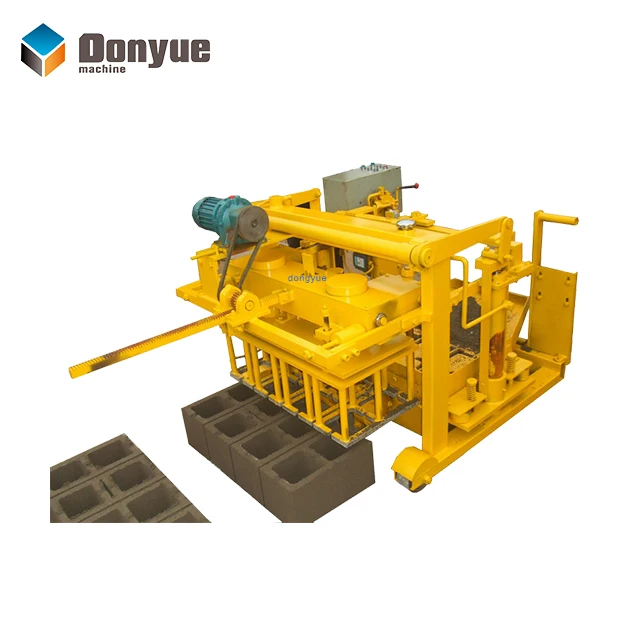

QT40 3A Concrete mobile hollow block making machine / Cement hollow brick making machine

Product Overview

Description

QT40-3A Concrete mobile hollow block making machine / cement hollow brick making machine introduce



1. QT40-3A Mobile hollow block making machine main features:
a)Mould vibration makes super vibration influence with small power .With the Hydraulic pressure helps raw material to be feeded and compacted adequately..
b)QT40-3A is small in dimension, but with low energy consumption and can be operated easily;
c)QT40-3A is highly efficient. Output is quite big. Its capacity can be compared with that of larger hydraulic machine
d)QT40-3A can walk freely on concrete surface, both automatically and manually, also move forward or backward;
e)There is no need to install. It can work after connecting with power;
f) QT40-3A needs no pallet, which saves investment.;
g) Saving labour: Two persons are needed in all. 1 for machine operation, and the other material mixing.



2.QT40-3A Concrete mobile hollow block making machine advantage

1). QT 40-3 moving block machine advanced techniques, reasonable structures, this machine adopting mould vibration, hydraulic drive ,it can automatic moving, manual moving ,forward, backward, turn direction, this machine is of small size, higher production, easy to operate, high efficiency, low maintenance.
2). High performance: this machine using high quality steel, fine workmanship , Taiwan selected hydraulic components, so the machine can producing block continually.
3). QT 40-3 moving block machine makes blocks quickly, consumer low electricity( only consumer 1/6 of electricity on the same model block machine),and the blocks produced by it is of high density and strength, precise dimensions. So selecting this machine can lower the client investments and save production costs(it no need pallets),it is the first choice for the clinet.



3. QT40-3A Concrete mobile hollow block making machine main parameters

Dimension of host machine	1610×1500×1000mm
Vibration Frequency	Max. 3000 r/m
Moulding period	25S
The size of the pallet	No need pallet
Weight of the machine	0.9 T
Voltage	380V/415/220/240v





4.QT40-3A Concrete mobile hollow block making machine production capacity

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X150X200	5	450	3600
400X200X200	4	360	2880
400X250X200	3	270	2160
