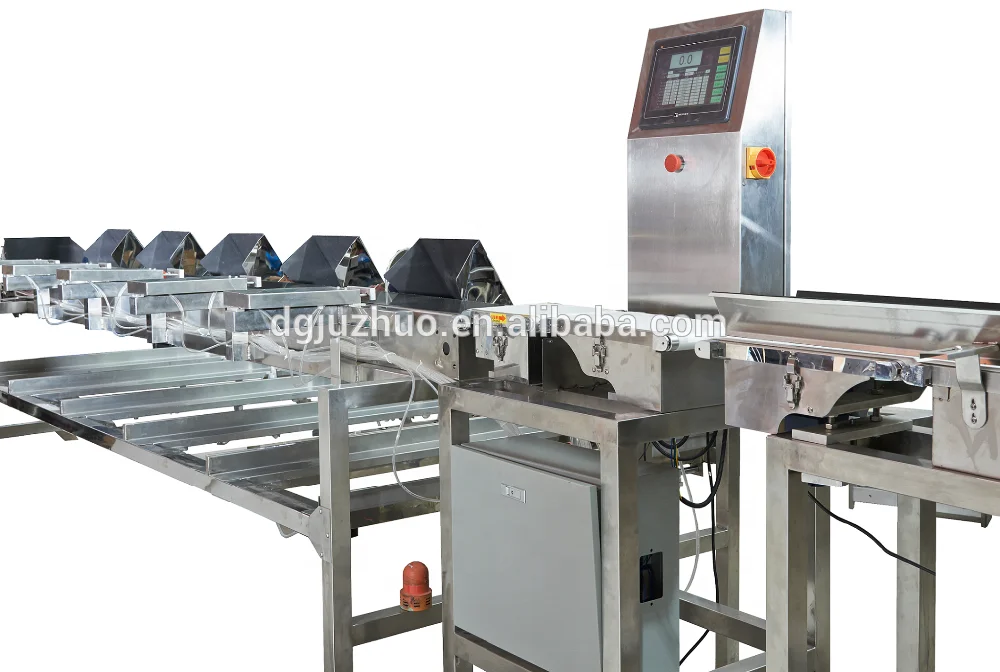

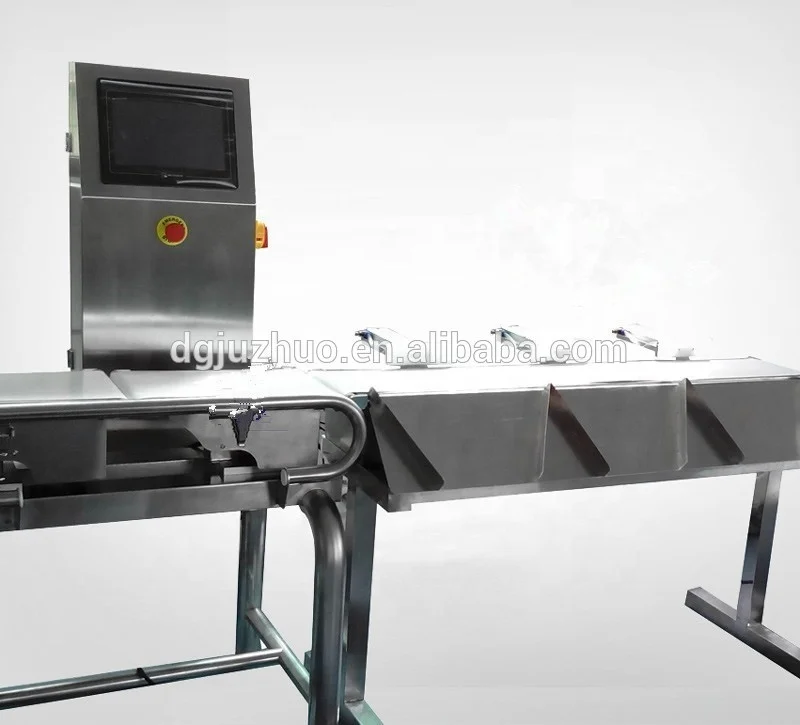

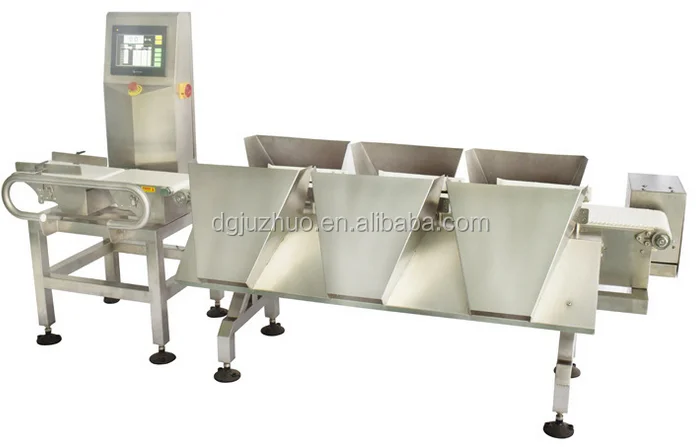

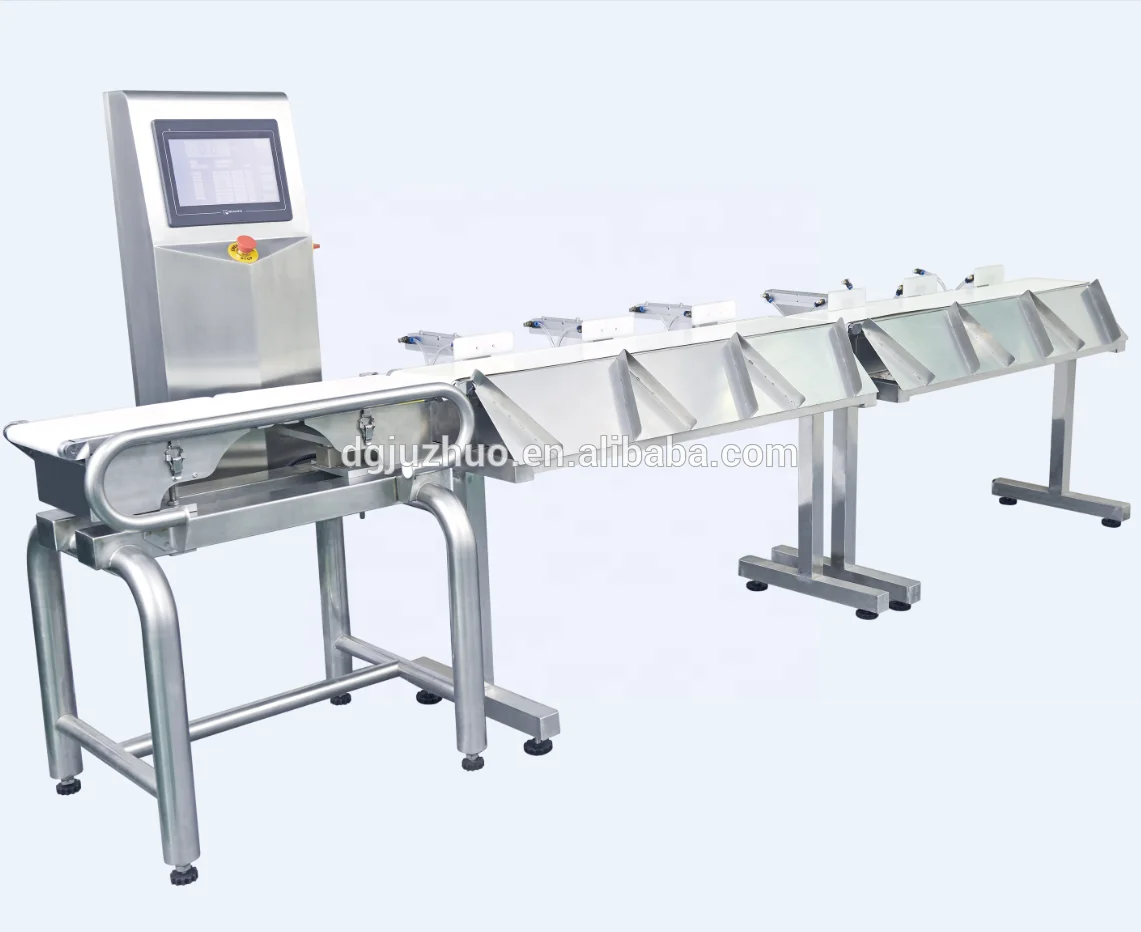

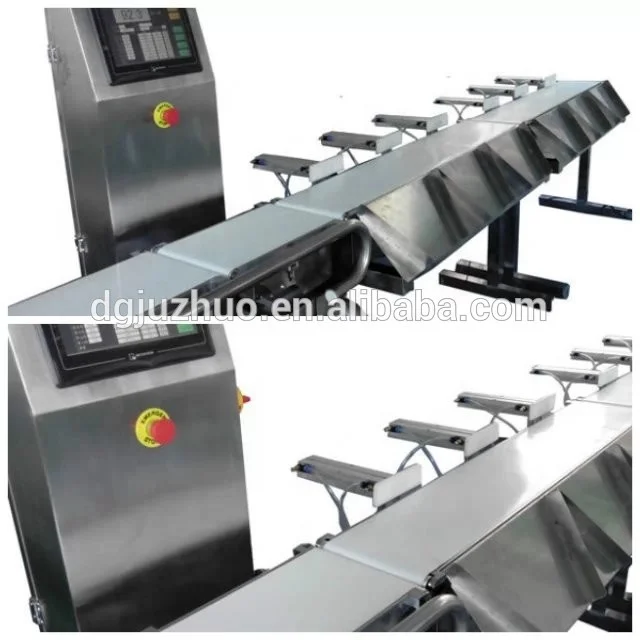

Online Milk Tea Weight sorting machine JZW 012

Product Overview

Description

Milk Tea Weight sorting machine JZW-012



Application

Weight sorting machine JZW-012 is widely used in milk tea,juice,drink,beverage etc daily necessities weight sorting packing etc, and also used in auto hydraulic accessories prcious classification,commodity weight sorting packing and many other fields

Features

•      Stainless steel 304 raw material,conform to variety of food and drug safety code standard
•        Easily disassembly and conveniently clean.
•        Apply HBM load cell ensure high accuracy and stability (original from Germany);
•        HIgh precision imported sensor and motor with high accuracy and speed
•        Variety of commonly used products preset ; easy to edit and storage capabilities.
•        Fast switching and automatically adjust is consistent with products sorting speed
•        Color touch screen,convenient for operation
•        Input and output for external equipments to realize on-line function
•        Automatic zero tracking technology
•        U disk date storage(2~4G),with multi-function,such as,histogram,sliding average value,standard deviation,convenient end user to check and adjust production any time

Technical Parameter

Model	JZW-012
Weighing range	5~1200 grams
Conveyor speed	70m/minutes
Accuracy	±0.5g
weighing belt (length)	435mmL
Weighing belt (width)	220mm W
Mini Scale	0.1g/0.2g/0.5g/1g(customized)
Sorting speed(through put quantity)	150k/minutes
Control /operation	Touch Screen/human machine interface
conveyor height from ground to conveyor	600mm~1000mm
Power supply	AC220V (+10%)50-60Hz
Waterproof level	IP33/IP54/IP65
Standard interface	RS232.TCP/IP(Optional),StaticI/O(2*I,8*O).RS485/422(Optional)
Humidity	NON-condensing
Work Environment temperature	-5°C ~40°C
Auto rejections	arm rejection/pneumatic pusher auto rejections/air blow etc
Raw material	SUS304
Combine machine	printers,ink-jet macihne,metal detector machine etc
