Siglent SDM3055, 5 1/2 Multimeter, digital multimeter, 150rdgs/s

Product Overview

Description

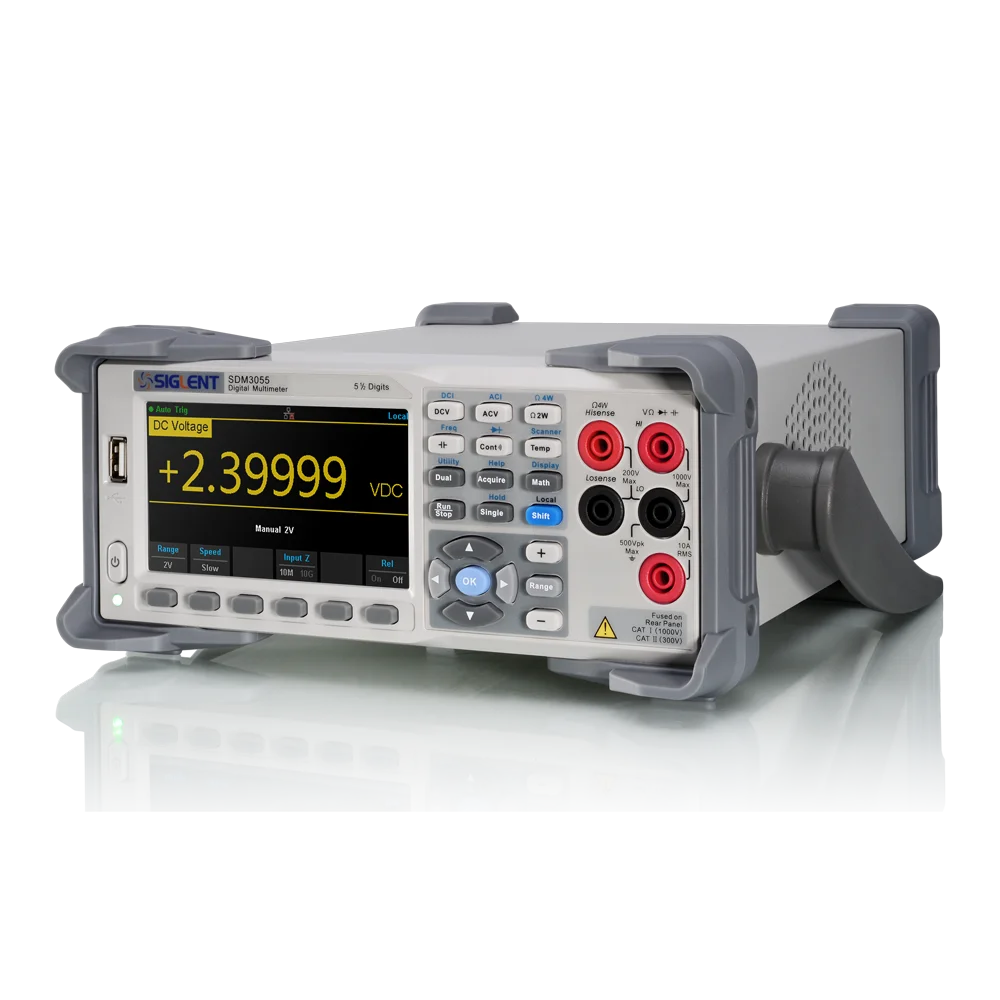

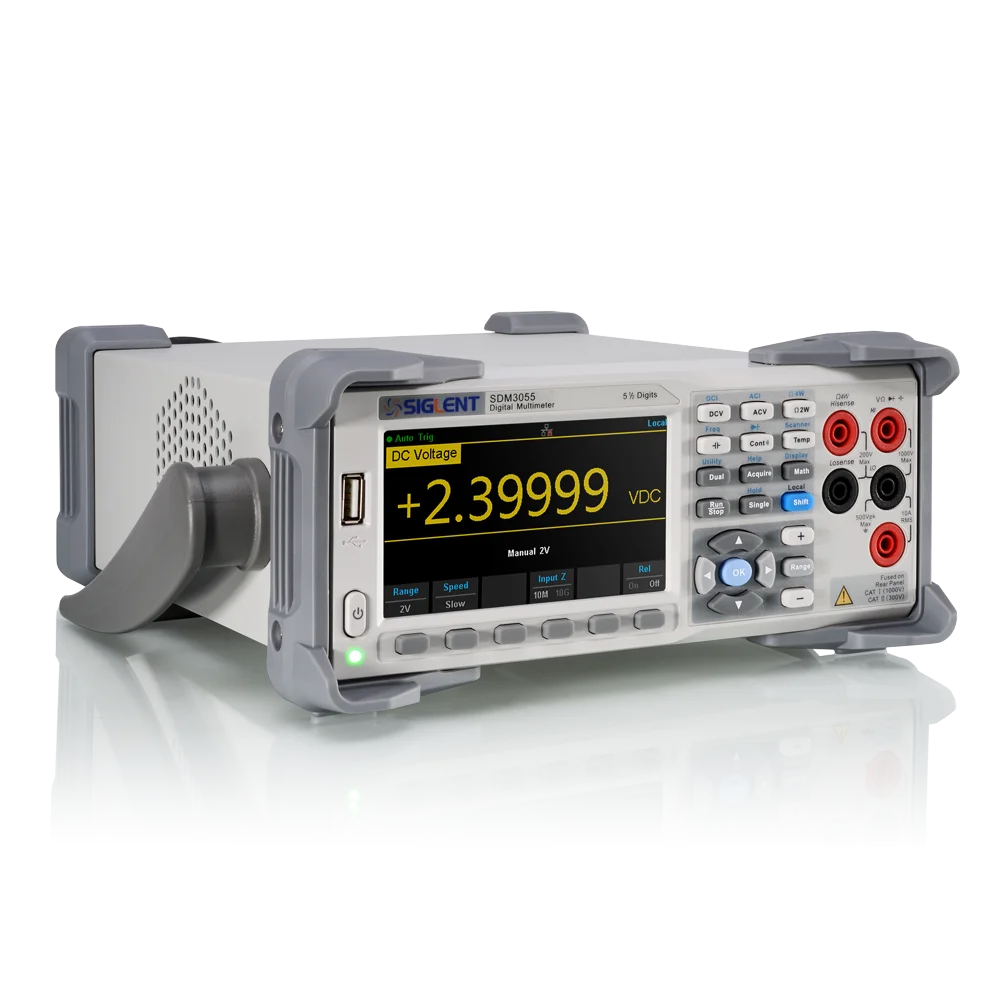

SDM3055/3055A  5 ½ digit dual-display digital multimeter



Product Overview             The new Siglent SDS3055/3055A is a new 5 ½ digit dual-display digital multimeter and features many math and statistical functions It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT-LCD screen, and is designed for   users who needs include high performance, multiple functions, and automatic measurements, is a high performance desktop multimeter.



Main Features:



• Up to 150rdgs / s measurement speed


• 1Gb Nand Flash total capacity, mass storage settings and data files, supports expandable storage to external U disk


• Built-in thermocouple cold junction compensation, supports dual-display operation


• Chinese and English menusl


• Built-in help system to facilitate information acquisition and document management


• Extensive math functions which include measuring the signal’s minimum / maximum / average / standard deviation. Also readings can be displayed in dBm, dB, Pass / Fail, relative value, histograms, trendcurves, bar graphs, etc


• Supports remote command and control, compatible with the mainstream multimeter command scripts and comes standard with PC software EASYSDM


• 4.3 inch (480 * 272) true color TFT-LCD large screen display, and comes configured for variety communication interfaces with USB Device, USB Host, LAN, GPIB (SDM3055A only) ports.



Design Features:

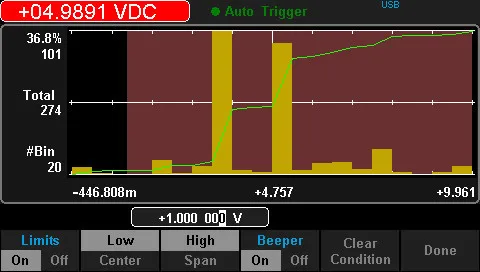

Histogram Display

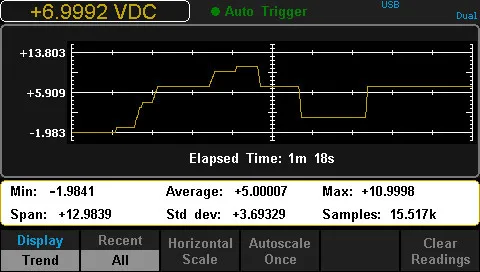

Trend Display

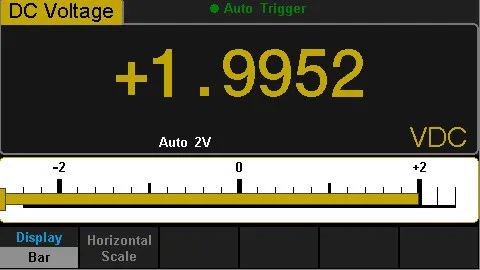

The Bar Chart Display

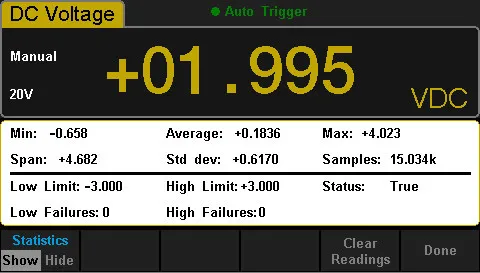

Rich Mathematical Statistical Function

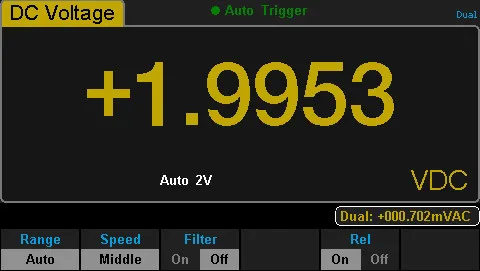

Dual Display Mode

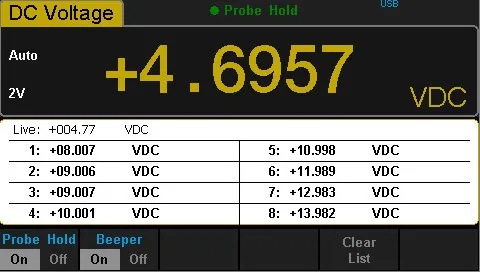

Hold Measurement Function

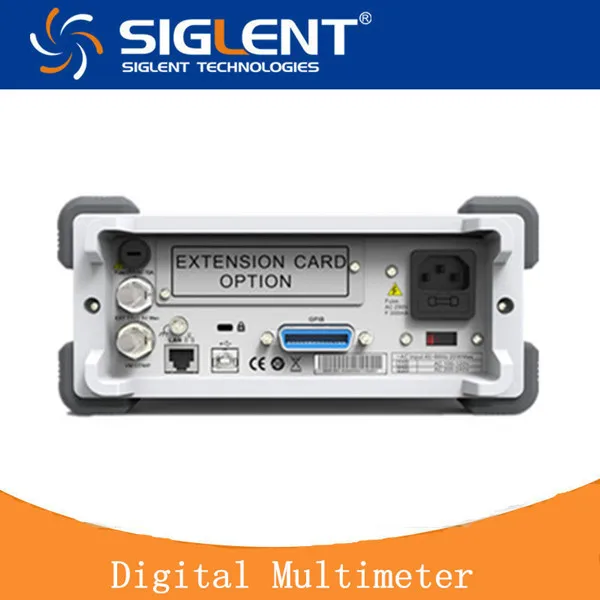

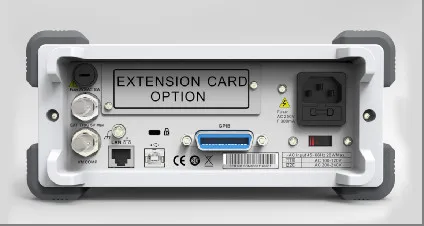

Various Interfaces

Rich peripheral interfaces: USB Host & Device, LAN, GPIB (only SDM3055A supports)



  Parameters



      The given technical specifications applicable to the following conditions: warm up for 30 minutes while the instrument is within its current calibration cycle and the unit’s self-calibration function has been performed.



Model  parameters	SDM3055	SDM3055A
DC voltage measurement	200mV,2V,20V,200V,1000V
DC current measurement	200μA,2mA,20mA,200mA,2A,10A
AC voltage measurement	True-RMS,200mV,2V,20V,200V,750V
AC current measurement	True-RMS,20mA ,200mA,2A,10A
2,4-wire resistance measurement	200Ω,2K,20K,200K,2M,10M,100MΩ
Capacitance measurement	2nF,20nF,200nF,2μF,20μF,200μF,10000μF
Connectivity Test	Range fixed 2KΩ
Diode test	range fixed 2V
Frequency measurement	20Hz ~ 1MHz
Period measurement	1μs ~ 0.05 s
Temperature measurement	support thermocouple, RTD temperature sensor     Maximum input voltage 1000V
Maximum input voltage	1000V
Configuration Interface	USB Device,USB Host,LAN	USB Device,USB Host,LAN,GPIB





Ordering Information:



Model	SDM3055	SDM3055A
Standard Accessories	A power cord designed for the instrument and authorized by local country
	One pair of leads,One pair of alligator clips
	A USB cable
	A QuickStart Guide
	A "Product Warranty Card"
	A set of computer software of EasySDM
