Product Overview
Description
10kw power inverter house inverter air conditioner inverter 12V 220V 10000W
Product Description
New functions below
Color: Black & White
1kw 2kw 3kw 4kw 5kw 6kw power inverter power charger

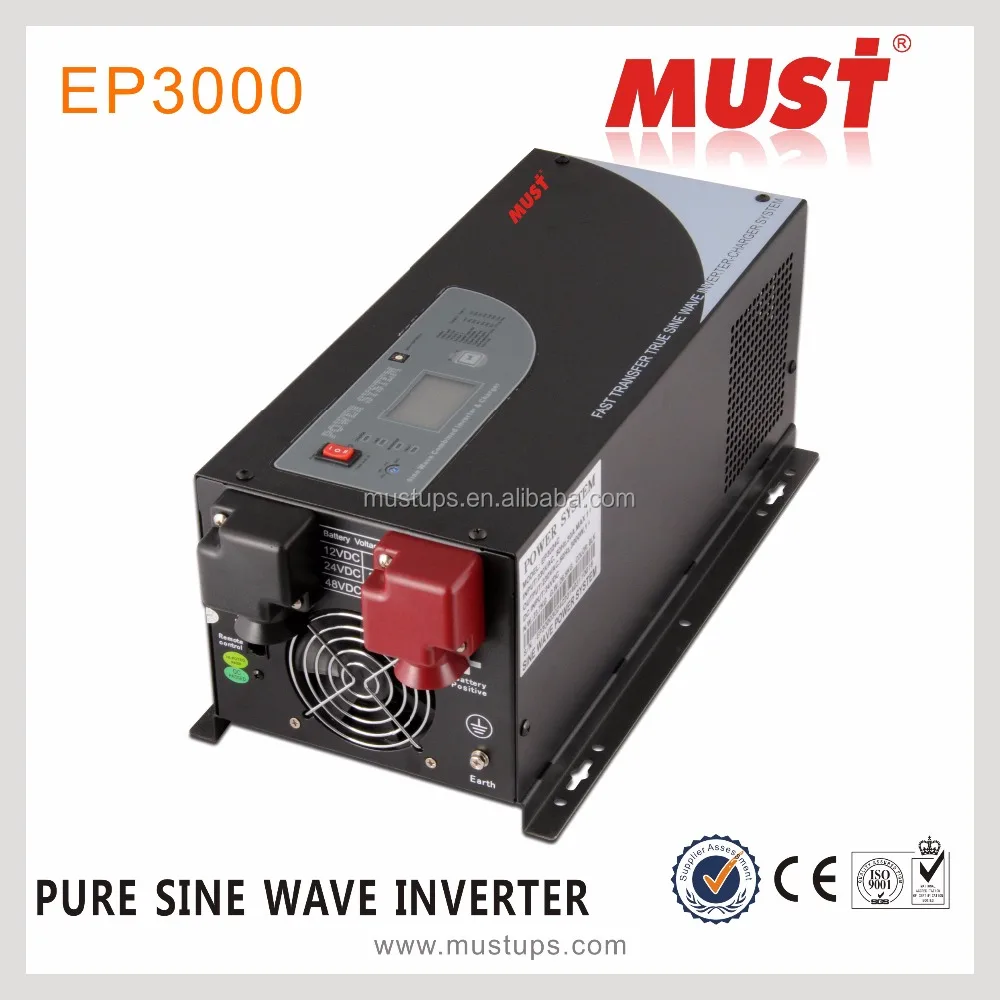

Specifications pure sine wave inverter / charger
| MODEL | HV Model | ||||||
| (EP3000) | |||||||
| EP1012 | EP1024 | EP2024 | EP3024 | EP4048 | EP5048 | EP6048 | |
| Line Mode Specifications | |||||||
| Input Voltage Waveform | Sinusoidal (utility or generator) | ||||||
| Nominal Input Voltage | 230Vac(120VAC selectable) | ||||||
| Low Line Disconnect | 184Vac±4% | ||||||
| Low Line Re-connect | 194Vac ±4% | ||||||
| High Line Disconnect | 265Vac±4% | ||||||
| High Line Re-connect | 255Vac±4% | ||||||
| Over-Load Protection(SMPSload) | Circuit breaker | ||||||
| Output Short Circuit Protection | Circuit breaker | ||||||
| Efficiency (Line Mode) | >95% | ||||||
| Transfer Switch Rating | 30A | ||||||
| Transfer Time (Ac to Dc) | 10ms (typical) | ||||||
| Transfer Time (Dc to Ac) | 10ms (typical) | ||||||
| Pass through without Battery | Yes | ||||||
| Max Bypass Overload Current | 30A | ||||||
| Invert Mode Specifications | |||||||
| Output Voltage Waveform | Pure Sine wave | ||||||
| Rated Output Power (VA) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | |
| Rated Output Power (W) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | |
| Power Factor | 1.0 | ||||||
| Nominal Output Voltage (V) | 230Vac | ||||||
| Nominal Output Frequency (Hz) | 50Hz ± 0.3Hz | ||||||
| Auto tracking Main Frequency(Hz) | Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz | ||||||
| Output Voltage Regulation | ±10% rms | ||||||
| Nominal Efficiency | >80% | ||||||
| Bypass Breaker Size | 30A | 30A | 35A | 50A | |||
| Nominal DC Input Voltage | 12V | 24V | 24V | 24V | 48V | 48V | |
| Min DC start voltage | 10V/20V/40V | ||||||
| Power saver | Load ≤25W (Enabled on “P/S auto” setting of Remote control) | ||||||
| Charge Mode Specifications | |||||||
| Nominal Input Voltage | 230Vac | ||||||
| Input Voltage Range | 196~243Vac | ||||||
| Nominal Output Voltage | According to the battery type | ||||||
| Nominal Charge Current | 35A | 35A | 65A | 45A | 35A | 40A | 50A |
| Charge Current Regulation | ± 5Adc | ||||||
| Battery initial voltage | 0 –15.7 Vdc (can operate with 0V battery) | ||||||
| Charger Short Circuit Protection | Circuit breaker | ||||||
| Over Charge Protection | Bat. V ≥ 15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s | ||||||

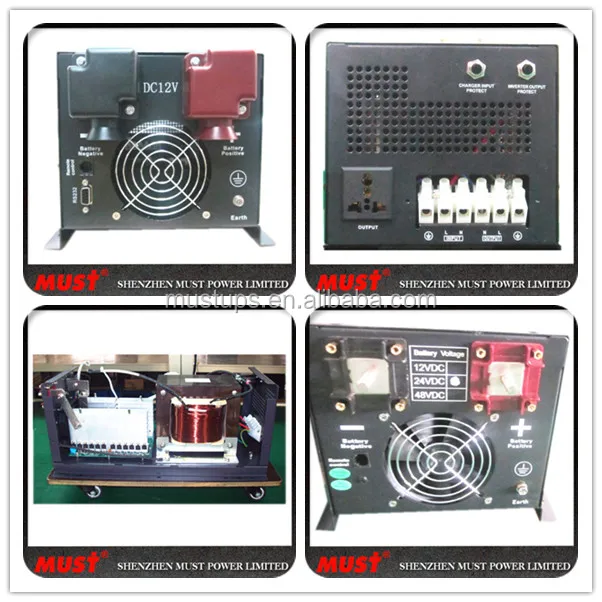

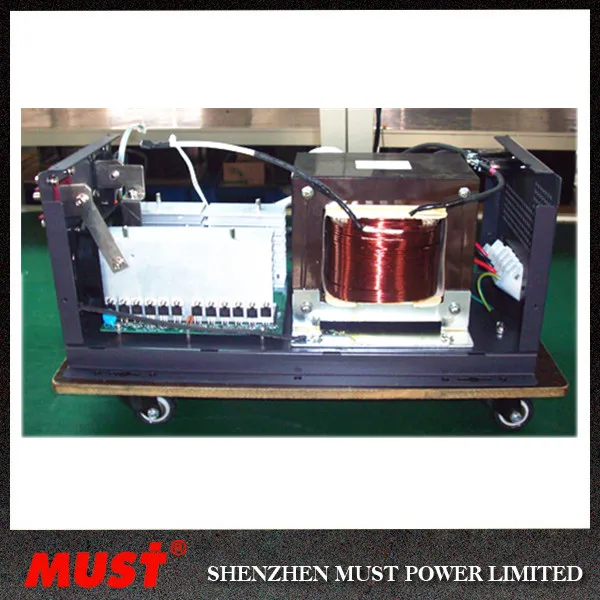

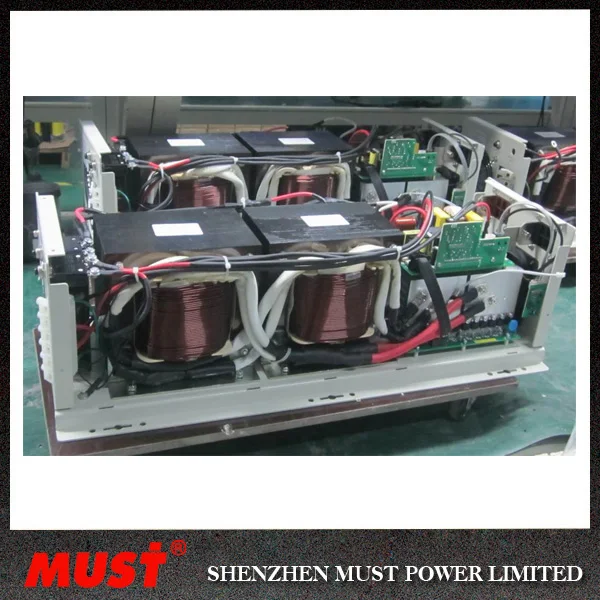

Pure Copper Transformer. High Efficiency

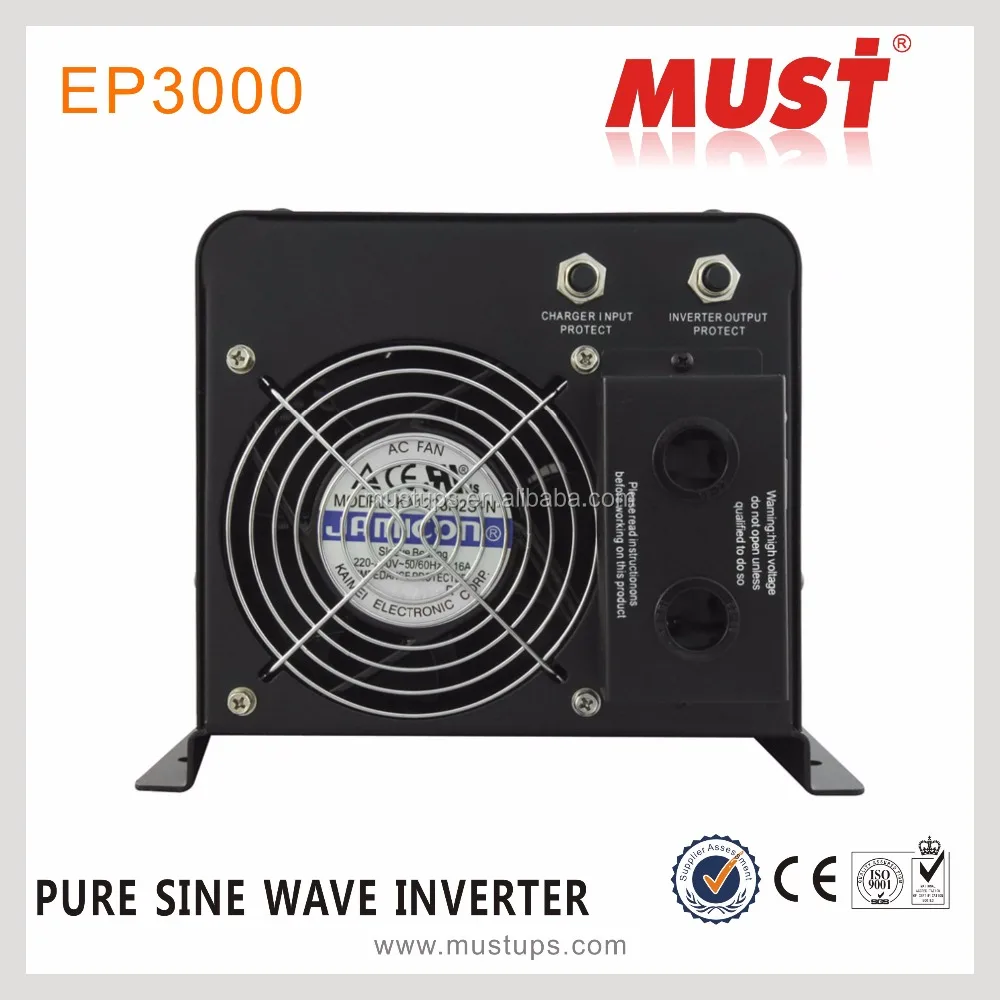

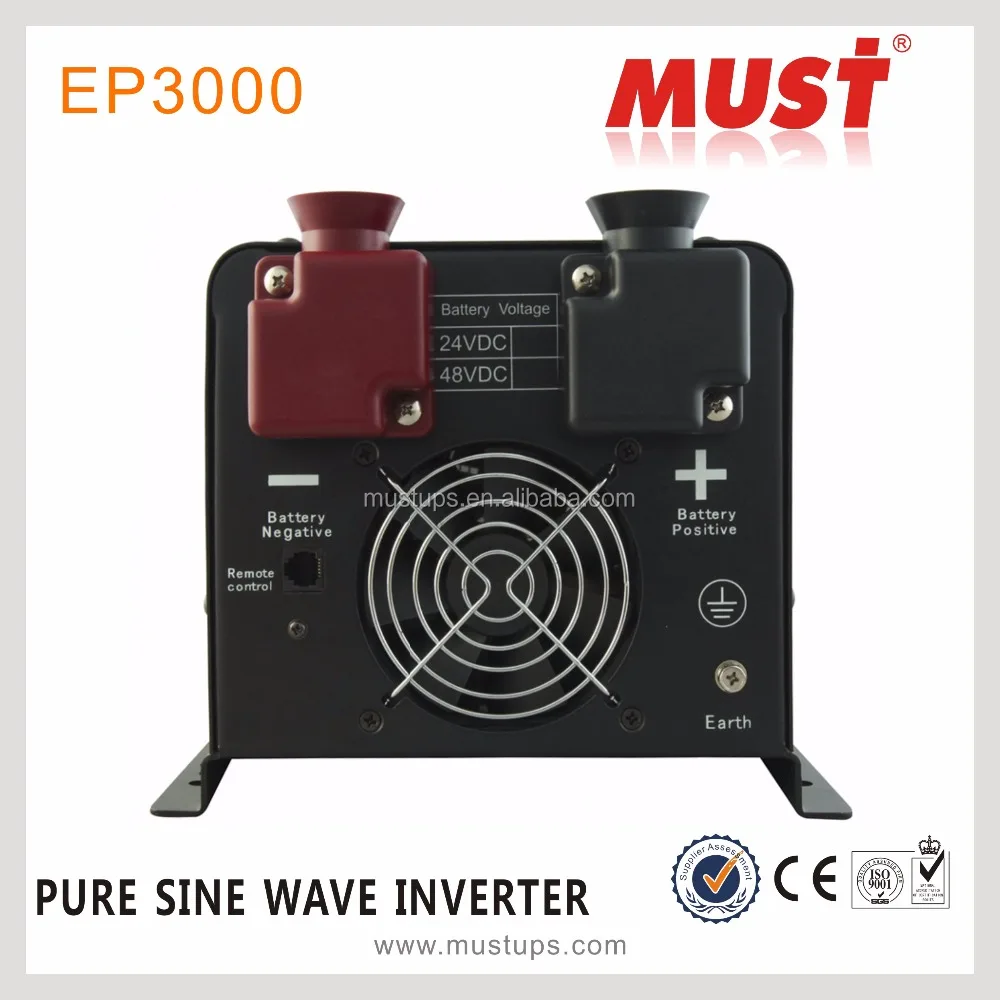

Plug, Socket, Fans etc

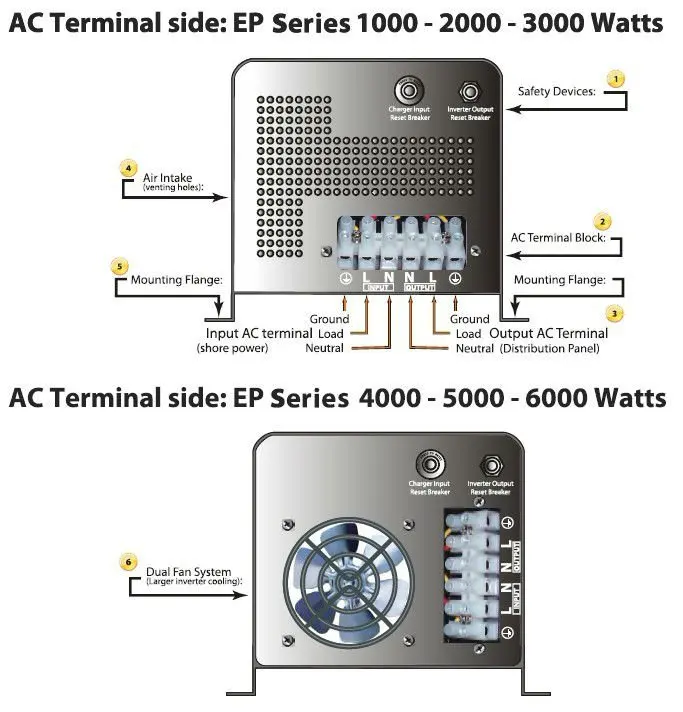

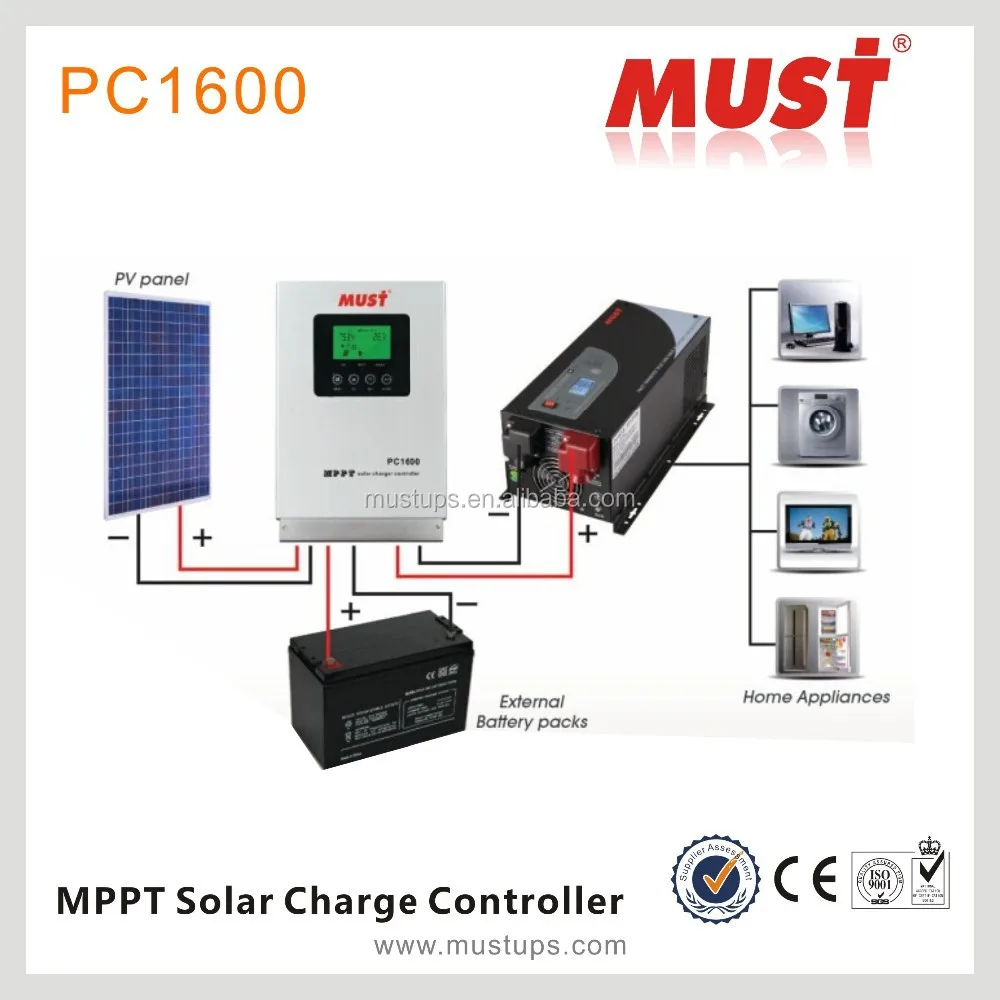

How To Connect??

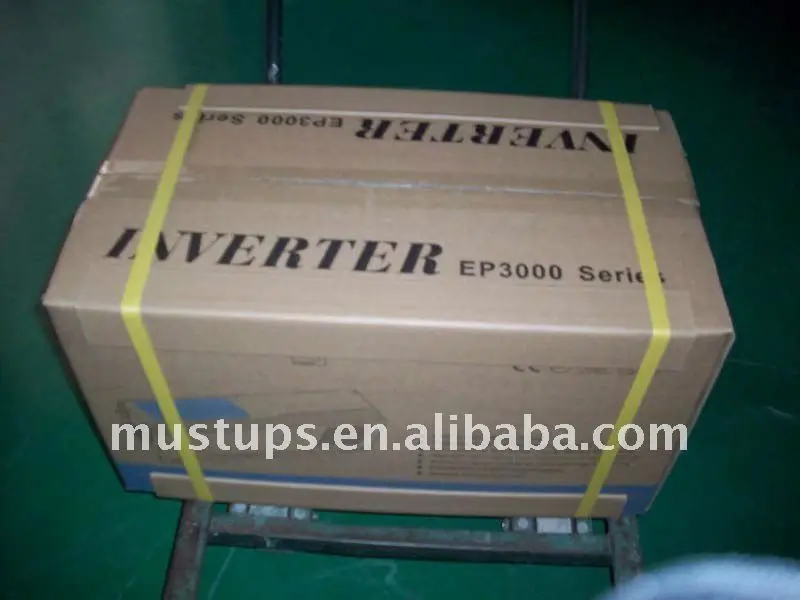

Packaging & Shipping
Company Information
Our comprehensive product lines include: Power inverter, Solar inverter, Solar charge controller, Solar battery, Solar power Pack and some other related Solar products.Most of products from Mustups applied with ISO, CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc.
Our Services
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
3. Delivery time: 7 workdays for sample orde
