Wired Metal Rolling Garage Door Magnetic Contact Door Sensor Wireless Rolling Door Contact
- Category: >>>
- Supplier: Shenzhen Homelux Intelligent Technology Co. Ltd.
Share on (60050977120):
Product Overview
Description

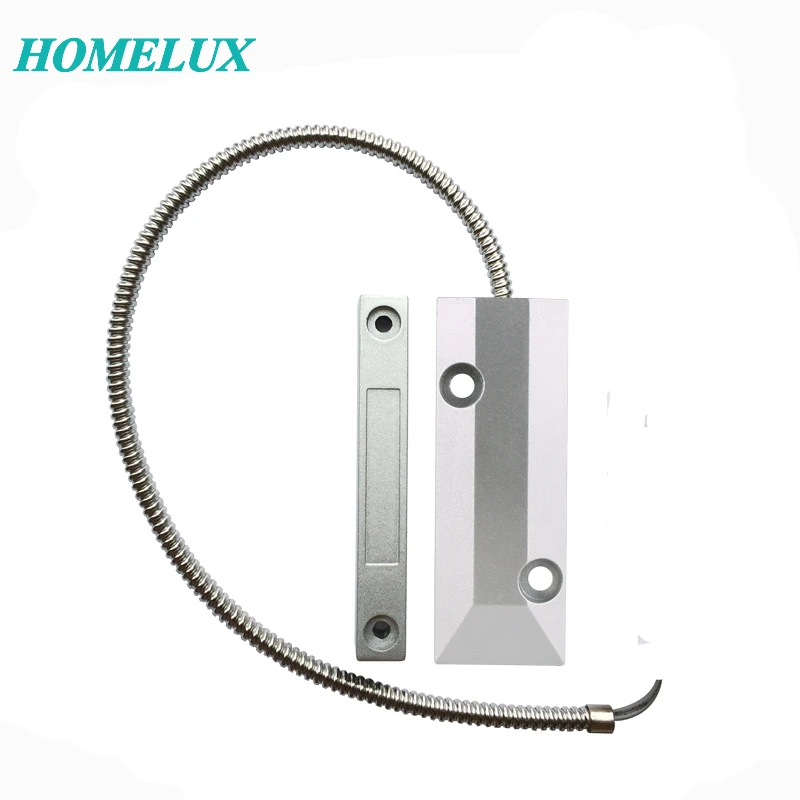

Wired Metal Rolling Garage Door Magnetic Contact Door Sensor Wireless Rolling Door Contact
Product Description
Specification:

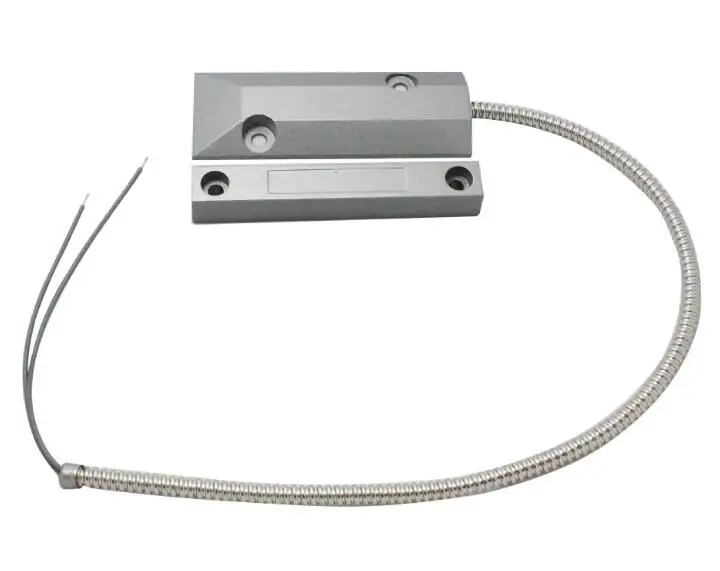

Model | MC-55 |
Size | 106*38*10mm (switch) 106*16*16mm(magnet) |
Housing | Metal(Alloy-Al ),grey |
Leads | 1007UL22AWG530mm with 380mm stainless steel cable |
Gap | 20-30mm, 25-30 available |
Output | N.C./ N.O. available |
Inner packing | 1sets/PE |
Outer packing | 50sets/carton |
Gross weight | 60kg |
Remarks | 4 screws including |
Certificate
Related products
| MC-31 | MC-33 | MC-36 |
| 1.Operating distance: 16mm±5mm | 1.Operating distance: 18mm±5mm | 1.Operating distance: 40mm±10mm |
| 2.Switch withstood-voltage: 100VDC | 2.Switch withstood-voltage: 100VDC | 2.Switch withstood-voltage: 100VDC |
| 3.Load current: 500mA | 3.Load current: 500mA | 3.Load current: 500mA |
| 4.Life time: 1,000,000 times | 4.Life time: 1,000,000 times | 4.Life time: 1,000,000times |
| 5.Switch output: NC | 5.Switch output: NC | 5.Switch output: NC |
| 6.Applies to non-steel back door or window | 6.Applies to non-steel door or window | 6.Colour: white and brown are available |
| 7.Applies to non-steel door or window | ||
| MC-38 | MC-31B | MC-44 |
| 1.Operating distance: 18mm±5mm | 1.Operating distance: 16mm±5mm | 1.Operating distance:20mm±10mm |
| 2.Switch withstood-voltage: 100VDC | 2,Switch withstood-voltage: 100VDC | 2.withstood-voltage 100VDC |
| 3.Load current: 500mA | 3.Load current: 500mA | 3.Load current 500mA |
| 3.Life time: 1,000,000 times | 4.Life time: 1,000,000 times | 4.Life time 1,000,000 times |
| 4.Switch output: NC | 5.Switch output: NC | 5.Switch output: N.C.N.O. |
| 5.Applies to non-steel back door or window | 6.Applies to non-steel back door or window | 6.Applies to non-steel door or window |
Wired Metal Rolling Garage Door Magnetic Contact Door Sensor Wireless Rolling Door Contact
Packaging & Shipping
1) Payment: Western Union, T/T, Money Cash
2) Shipping: DHL, UPS, EMS, and other courier available as required.
3) Delivery time: 7-15 days after your full payment.
Our Services
* Professional experience and ability to accept and fulfill ODM/OEM orders.
* Answer your enquiries, questions and emails in 24 hours
* Direct control on material, testing, quality, lead time ect.
* Flexible Payment terms ranged at different quantity
* One year warranty life for all detectors sold out from Homelux.
