10000 btu DC horizontal vertical compressor battery driven for auto bus ambulance vehicles AC parts accessories

Product Overview

Description

Description:



R134a refrigerant air conditioner compressor  is designed for micro, small refrigeration equipment, especially outdoor portable refrigeration equipment, telecommunication base station refrigeration equipment.



1. Refrigerant: R134a

2. Power specification: DC 12/24/48/72/312V

3. Refrigerating Capacity: 2890-9758 Btu/h







Performance Parameters:





R134a&R1234yf DC 12V                      H:Horizontal Type  V:Vertical Type
Model	(cc/rev) Displacement	(W) Capacity	(W) Input Power	(A) Current	COP (W/W)	(rpm) Rated Speed	(rpm) Speed Range	(mm) Height	Test Conditions	Form
JVB075Z12	7.5	850	340	27.5	2.50	3300	2500~3700	218	A	V
HB075Z12	7.5	850	340	27.5	2.50	3300	2500~3700	145	A	H
JVSB116Z12	11.6	1800	635	53	2.80	4000	900~4000	248	A	V
JFSB116Z12	11.6	1800	635	53	2.80	4000	900~4000	145	A	H
JVSB150Z12	15.0	2100	725	60	2.9	3600	900~4000	248	A	V
JFSB150Z12	15.0	2100	725	60	2.9	3600	900~4000	145	A	H
R134aR1234yf DC 24V                        H:Horizontal Type  V:Vertical Type
Model	(cc/rev) Displacement	(W) Capacity	(W) Input Power	(A) Current	COP (W/W)	(rpm) Rated Speed	(rpm) Speed Range	(mm) Height	Test Conditions	Form
JVB075Z24	7.5	850	300	12.5	2.83	3300	2500~4000	218	A	V
HB075Z24	7.5	850	300	12.5	2.83	3300	2500~4000	145	A	H
JVB132Z24	13.2	1965	595	25	3.30	3600	1800~4500	220	A	V
JFB132Z24	13.2	1965	595	25	3.30	3600	1800~4500	145	A	H
JVSB150Z24	15.0	2100	656	27.5	3.20	3600	900~4500	265	A	V
JFSB150Z24	15.0	2100	656	27.5	3.20	3600	900~4500	145	A	H
JVSB180Z24	18.0	2070	646	26.9	3.20	3000	900~3600	265	A	V
JFSB180Z24	18.0	2070	646	26.9	3.20	3000	900~3600	145	A	H
R134aR1234yf DC 48V                     H:Horizontal Type  V:Vertical Type
Model	(cc/rev) Displacement	(W) Capacity	(W) Input Power	(A) Current	COP (W/W)	(rpm) Rated Speed	(rpm) Speed Range	(mm) Height	Test Conditions	Form
JVSB150Z48	15.0	2100	636	13.5	3.30	3600	900~4500	246	A	V
JFSB150Z48	15.0	2100	636	13.5	3.30	3600	900~4500	150	A	H
JVSB180Z48	18.0	2500	785	16.0	3.30	3600	900~4500	241	A	V
JFSB180Z48	18.0	2500	785	16.0	3.30	3600	900~4500	150	A	H



Test Condition	Evaporating Temp.	Condensing Temp.	Suction Temp.	Liquid Temp.
A	7.2℃	54.4℃	35℃	46.1℃
B	-6.7℃	54.4℃	35℃	46.1℃
C	-23.3℃	54.4℃	18.3℃	32.2℃



Application:







used in micro, small refrigeration equipment, especially outdoor portable refrigeration equipment, telecommunication base station refrigeration equipment area, such as:



• truck air conditioner


• dc air conditioner


• electric vehicle air conditioner


• special vehicle air conditioner (Police vehicle, Fire truck, etc.)


• vessel air conditioner


• heat pump air conditioner

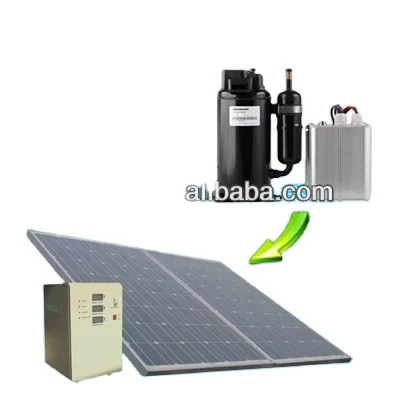

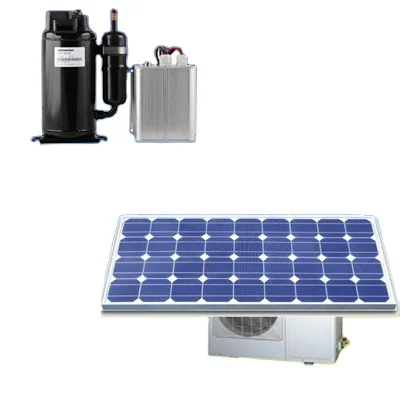

• solar air conditioner


• telecom-shelter air conditioner, etc.
