Super metal heat pipe solar water heater separated with pressurized tank
- Category: Solar Water Heaters >>>
- Supplier: Haining Sunray Solar Energy Co. Ltd.
Share on (60051146805):
Product Overview
Description
Product Description

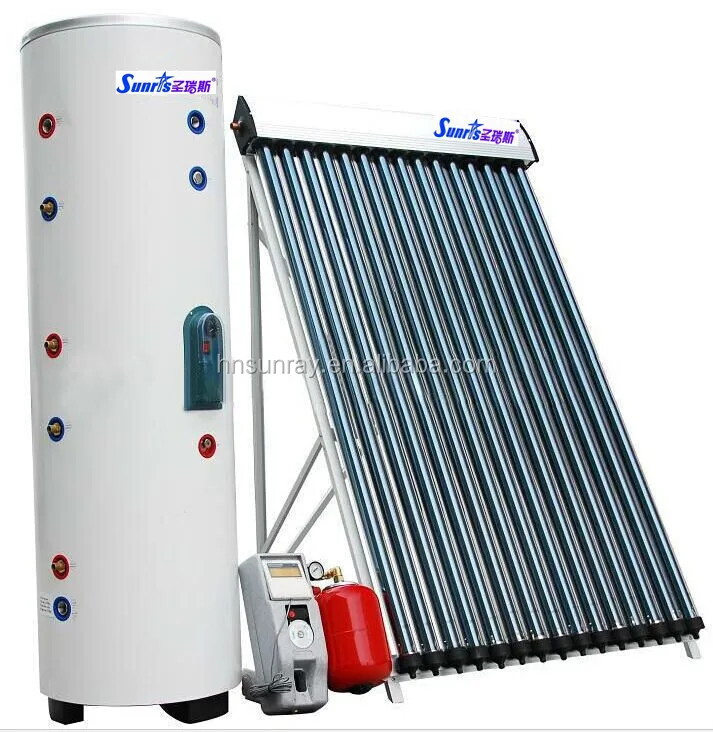

Super metal heat pipe solar water heater separated with pressurized tank
|
Descripition |
Separate pressurized solar water heaters |
|
Material of out manifold |
0.55mm thickness color steel/ fluorine carbon steel |
|
Material of inner tank |
Food grade 1.2-2.0 mm thickness SUS304 stainless steel |
|
Tank insulating layer |
45mm 45kg/m³ high-density polyurethane foamed |
|
Inlet and outlet hole |
Male G3/4 |
|
Max pressure |
0.6 Mpa |
|
Solar collector tube |
3.3 Borosilicate glass with N/Al coating |
|
Thickness of glass tube |
1.6mm |
|
Vacuum tube tightness |
P≤ 0.005 Pa |
|
Absorption |
as=0.93-0.96(AM1.5) |
|
Emission ratio |
ε h=0.04-0.06(80C± 5C) |
|
Idle sunning property parameters |
Y=220~260m2. C/KW |
|
Average heat loss coefficient |
ULT=0.6~0.7W/(m2. C) |
|
Bracket: |
1.2-2.0mm thickness aluminum alloy/ stainless steel |
|
Welding: |
Argon arc welding |
|
Fastening pieces: |
Made of stainless steel screw |
Feature:
1. The split solar water heater is composed by heat collector, storage tank, controller, working station
and installation parts.
2. Collector separates with storage tank. The tank can be put in any place of the house. And the collector
can be put on the inclined root or flat place.
3. Module design, arbitrary combination, harmony with the building perfectly.
4. Intelligent control and automatic operation.
5. Anti-freeze. No water inside the tubes when it works. The system controller has the anti-freezing function
is that the temperature circulation will operate while it reaches the fixed temperature.
6. Multi-function: bathing, washing, domestic heating etc.
7. Work at anytime and enjoyable.
Working principle:
The collector absorbs solar energy and transmits it to the water tank through circulation. When the
temperature of the collector reaches the set value, the controller starts the circulation pump automatically
Solar split pressurized technology is an international up-to-date application technology of the solar water
heater at present. Installation of a split pressurized water heater has become the latest trend in European
and American countries. It has become the main trend to use the solar energy.
Sunrise split solar system-------a private hot water reservoir is specially design to the villa. It has safe natural
hot source that hot source that can be provided continuous hot water supply for the villa daily using. Its
collector harmonize with the villa appearance.
