Brushless touch free car wash machine for car wash station

Product Overview

Description

Brushless touch free car wash





DAW200ST Touchless car wash machine is qualified to wash and spray foam, water and wax automatically, which covers small space and operates easily; there is no need for customer to concern the car paint destroyed by the brush since it is brushless. The dual-swing-arm spraying system ensures the easy and complete full-scope cleaning.



Main Futures:

1. The machine is controlled by intelligent CUP.

2. Swing arm move in 360 round, can clean any where of cars.

3. Cover a small area, saving space and easy to operation.

4. Bottom wash and high pressure water gun are as optional.





Technical Data:



Model		DA- W200ST
Parameter	Machine Size	L3950mm×W3800mm× H2690mm
	Assembling range	L6300mm×W4500
	Wash type	car, jeep, coach below 10 seats
	Washable car size	L5200mm×W2300mm×H2300mm
	Washing ways	Water wash, shampoo wash and wax wash
	Washing time	2 roll over 1minute 20 seconds (without hand wipe-time)
Cost consumption	Water consumption	120L/set
	Power consumption	0.15kwh/car
	Shampoo consumption	7ml/car
	Wax consumption	12ml/car
	Total electrical capacity	7.5KW
Installation	Power required	AC380V50Hz volume 15KVA
	Water required	Pipe diameter DN25 flow≥100L/min
	Air supply	Pressure0.75~0.9Mpa/flow≥0.1m³/min
	Surface roughness	error≤10mm



Photos:



Foam:

High Pressure car wash:

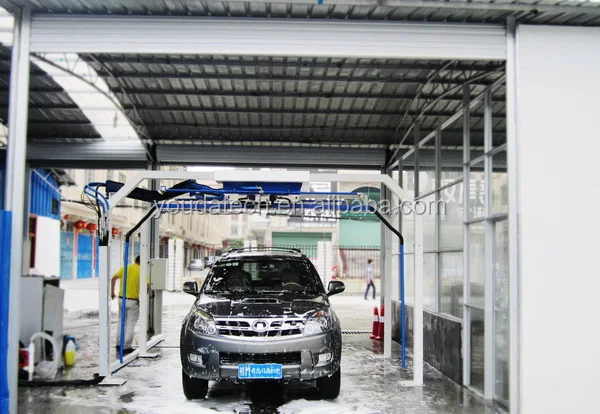

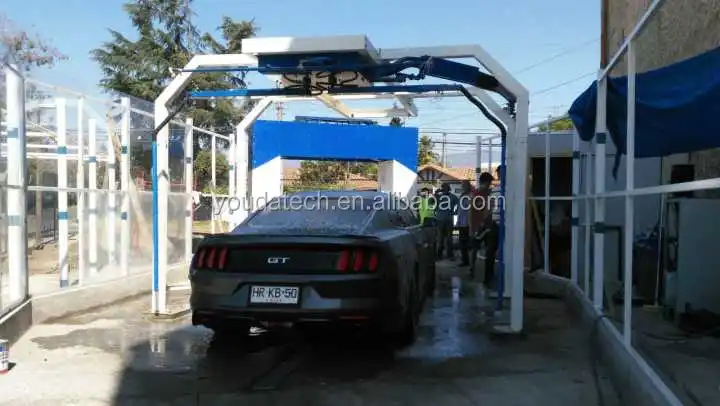

Popular used in the workshop:
