Tiger Rig oilfield JC70D drawworks for drilling rig
You can get what you see !

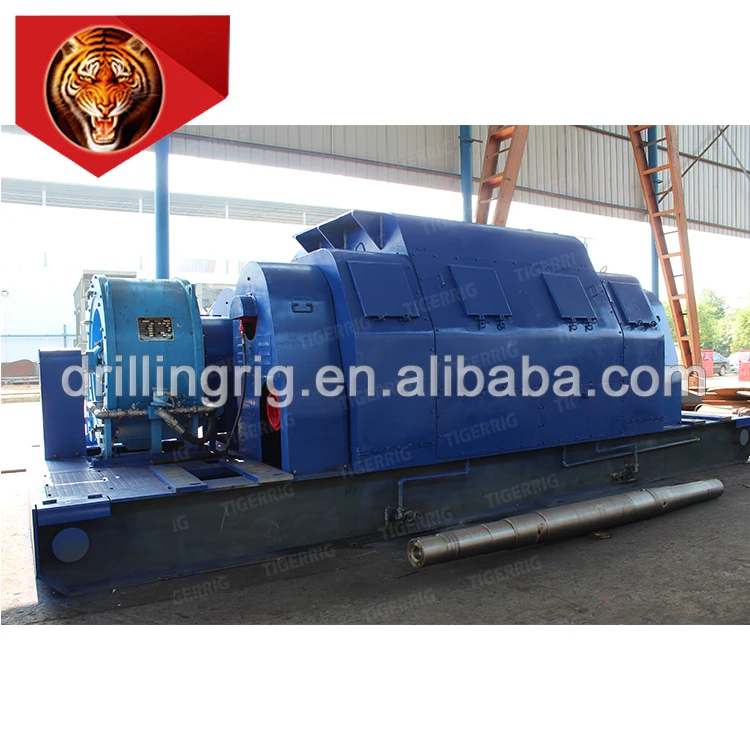

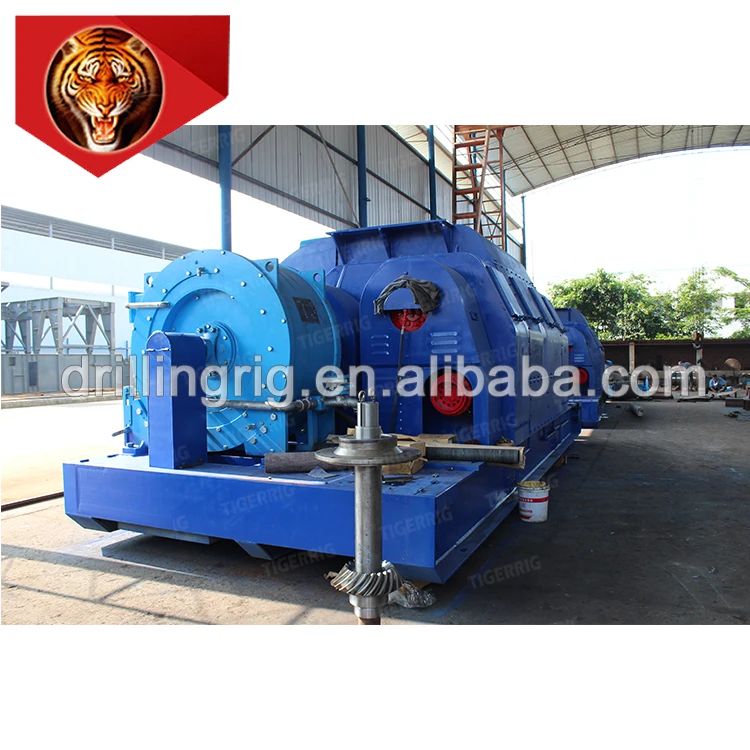

Product Pictures
AC VF drawworks features
- All bearings are roller bearing, all shaft material are alloy steel.
- The drum is grooved.
- Automatic feeding device
- The main brake is hydraulic disk brake, water-cooled or air-cooled.
- The auxiliary brake is dynamic brake.
- Single-shaft drawworks
- Dual stage gear reducer transmission, manual gear change
- The gear is oil-lubricated
Specification
Specifications
|
Model |
JC40D |
JC50D |
JC70D |
JC90D |
|
|
Nominal drill depth m |
114mm drill pipe |
2500-4000 |
3500-5000 |
4500-7000 |
6000-9000 |
|
127mm drill pipe |
2000-3200 |
2800-4500 |
4000-6000 |
5000-8000 |
|
|
Power rating kW (hp) |
735 (1000 ) |
1100 (1500 ) |
1470 (2000 ) |
2210 (3000 ) |
|
|
Qty. of motor x power rating kW (hp) |
2 ×438(537)/ 1 ×800(1072) |
2 ×800(1072) |
2 ×800(1072) |
3 ×800(1072) |
|
|
Motor rated speed r/min |
880/970 |
970 |
970 |
970 |
|
|
Drill line dia. mm(in) |
32 (1 1/4 ) |
35 (1 3/8 ) |
38 (1 1/2 ) |
45 (1 3/4 ) |
|
|
Max. fastline pull kN |
275 |
340 |
485 |
630 |
|
|
Drum size (Dia. x width) mm(in) |
640×1139 (25 1/4 ×44 7/8 ) |
685×1138 (27 ×44 7/8 ) |
770×1361 (30 ×53 1/2) |
914×1556 (36 ×61 1/4) |
|
|
Brake disc size (Dia. x width) mm(in) |
1500×40 (59 ×1 1/2 ) |
1600×76 (63 ×3 ) |
1600×76 (63 ×3) |
1600×76 (63 ×3 ) |
|
|
Sand drum size (Dia. x width) mm(in) |
356×1245 (14 ×49 ) |
356×1245 (14×49 ) |
356×1245 (14 ×49 ) |
356×1448 (14 ×57 ) |
|
|
Sand drum capacity (14.5 drill line) m(ft) |
4000 (13120 ) |
5000 (16400 ) |
6400 (21000 ) |
7500 (24600 ) |
|
|
Auxiliary brake |
DS40 |
DS50 |
DS70 |
DS90 |
|
|
Dimension (L x W x H) mm |
6600×3716×2990 |
6800×4537×2998 |
7670×4585×3197 |
7874×5486×2997 |
|
|
Weight kg |
40000 |
48000 |
61000 |
70000 |
|
what we manufacture is as same as HH , not any different ! All drawworks supply to the first -class oil conpanies worldwide.
Quality than you can imagine~!
Cost-Effective
Cost-effective:
As the price compete, many company would use poor materials, such as poor seals, low quality square parts,use Casting instead of forging to drop the cost. So please never compare the price only. for us, we always insist high quality first, we hope can do long-term business with you, So we always use better materials to ensure the high quality, be honest and Fine workmanship always to customers and do long term business.
------------------------------------------------------------------------------------------------------------------------------
Warrantee:
1. All of our machines give 1 year warranty.
2. The cost of engineer installation is 300 USD/day; we are responsible for the cost of engineer’s transportation to your country.
Customer is responsible for the cost of engineer’s meals, accommodation, and security. If you don’t need this, we cut this cost from offer list, please tell us in advance.
3. Within guarantee period, we supply free after service. After guarantee period, we supply square parts in 20% discount.
