Universal Medical Oxygen Suction Regulator With Flowmeter Regulator
- Category: >>>
- Supplier: Wenzhou Chiefstone C&T Co. Ltd.
Share on (60051455623):
Product Overview
Description
Product Description

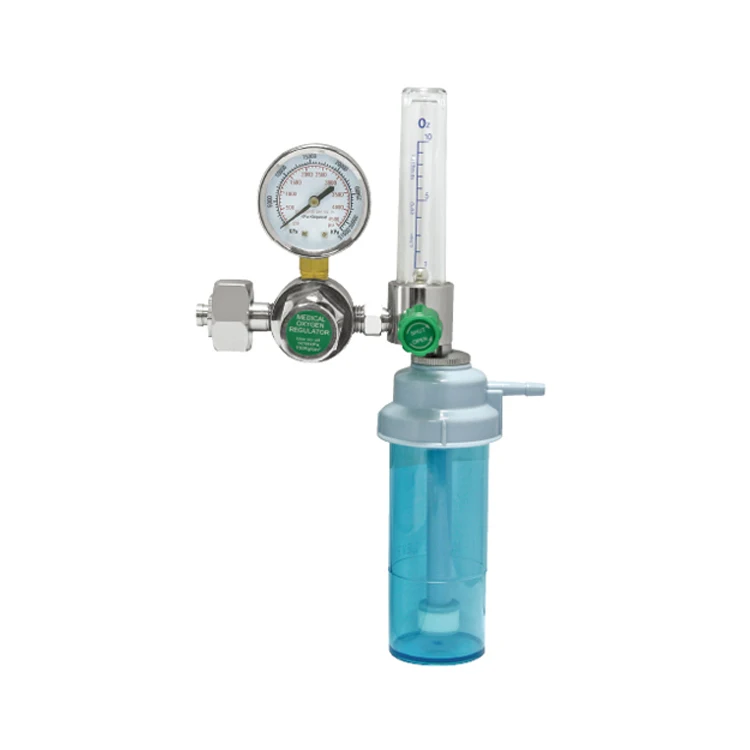

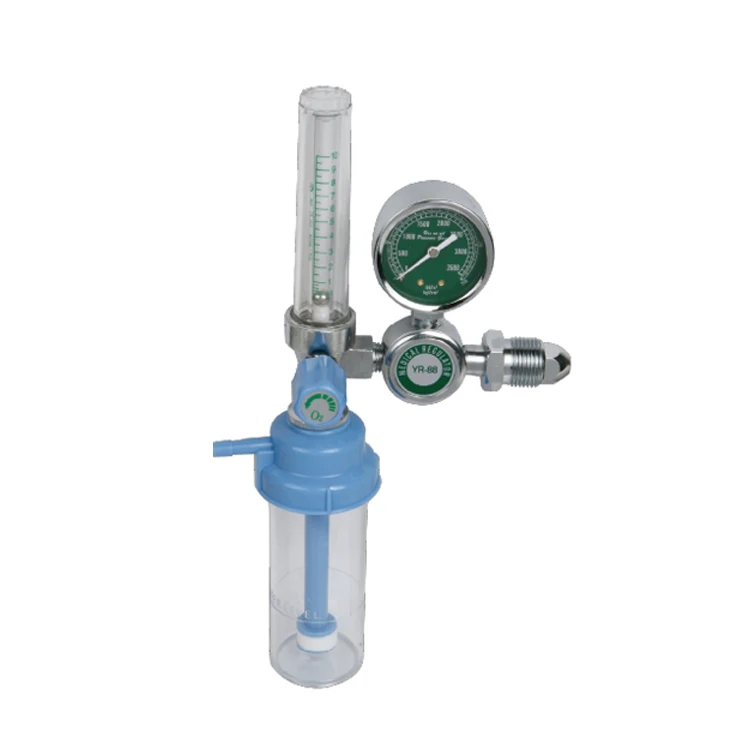

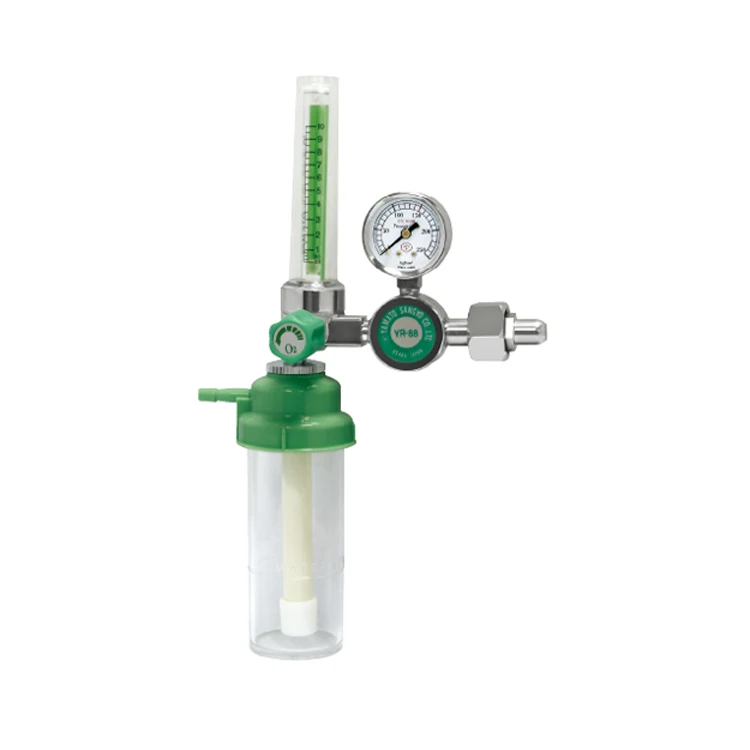

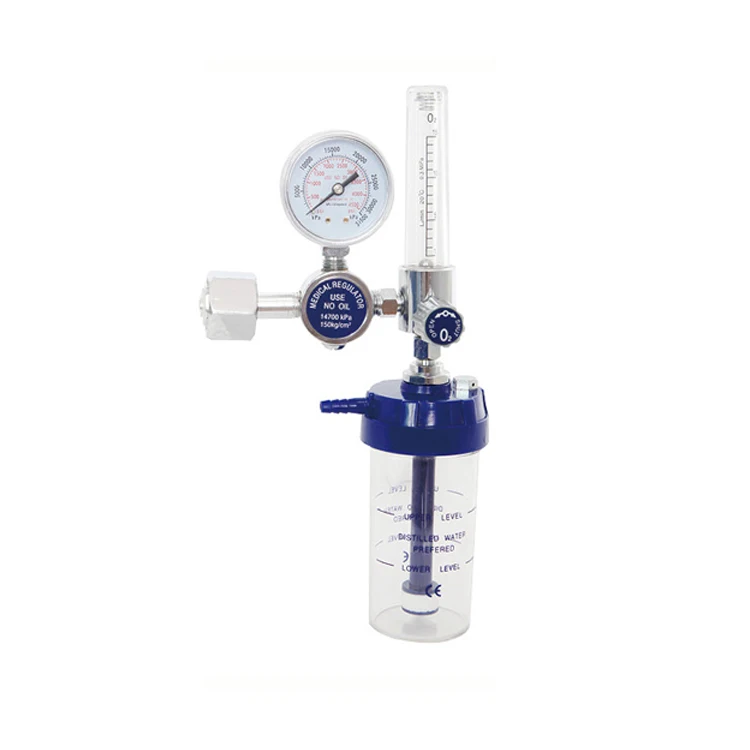

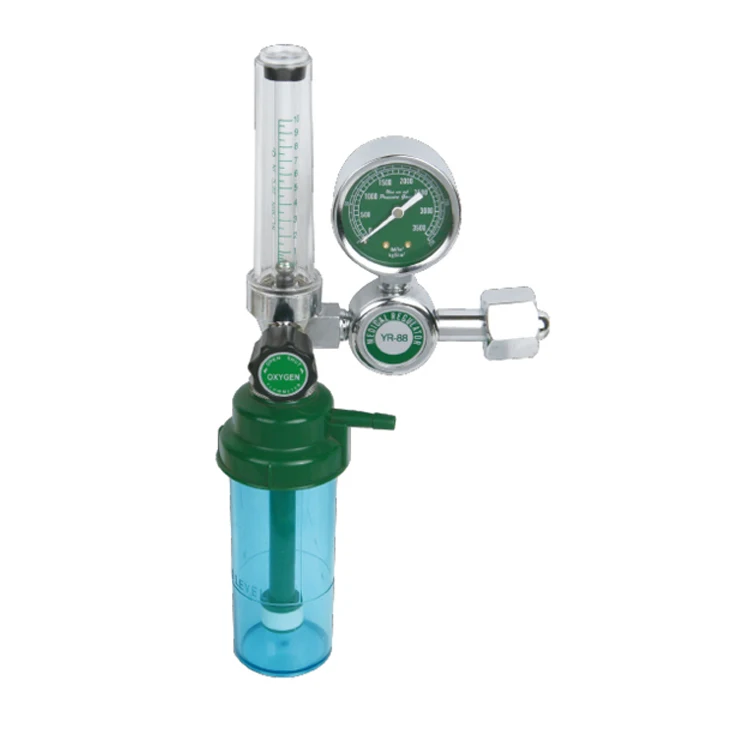

Universal Medical Oxygen Suction Regulator With Flowmeter
1.YC-88 is O2 inhaler for medical use. It is suitable for hospital, clinic, household and emergence use.
2.Chrome-plated body makes it easy to clean
3.preset outlet pressure for regulator is 3.5kg.s.
5.Flowrator provides explicate and precise reading of outlet flow-rate under pressure at 3.5kg
6.Gas is more agree to inhale after humidification.
7.Front cover of gauge, tube of flowrator ang humidification cup is made of high grade shatter proof PC
8.External relief valve ensuresafety in use
2.Chrome-plated body makes it easy to clean
3.preset outlet pressure for regulator is 3.5kg.s.
5.Flowrator provides explicate and precise reading of outlet flow-rate under pressure at 3.5kg
6.Gas is more agree to inhale after humidification.
7.Front cover of gauge, tube of flowrator ang humidification cup is made of high grade shatter proof PC
8.External relief valve ensuresafety in use
Technical data
Input Pressure: 15MpaOutput Pressure: 0.2-0.3 Mpa
Automitic Discharge Pressure Of The Safety Valve: 0.35 ±0.05 Mpa
The Range of FLow : 1-15L/Min
Cylnder connecting nut: G5/8 right hand (according to the need can be customized)
Diaphragm Pressure relief structure
Flow adjusting knob : adjust flow easily ,shut off the flow without oxygen output.
Tide change galss(bottle): 140ml,immerses disinfection,can be 130°C high temperature disinfection,bottles have water level indicator.
Automitic Discharge Pressure Of The Safety Valve: 0.35 ±0.05 Mpa
The Range of FLow : 1-15L/Min
Cylnder connecting nut: G5/8 right hand (according to the need can be customized)
Diaphragm Pressure relief structure
Flow adjusting knob : adjust flow easily ,shut off the flow without oxygen output.
Tide change galss(bottle): 140ml,immerses disinfection,can be 130°C high temperature disinfection,bottles have water level indicator.
Model Number | Gas Service | Metering range (L/MIN) | Accuracy | Entrace Pressure (Mpa) | Exit Pressure (Mpa) | Entrance connection screw thread | Output connection screw thread |
YC-88-2 | OXYGEN | 1-10 1-15 | Grade 4 | 12 Mpa 15 Mpa | 0.2 -0.3 Mpa | G5/8-14 RH CGA540-RH G3/4-14-RH | 8 mm |
YC-88-3 | OXYGEN | 0-15 Lt/min | 250 Bar | 3.5 Bar | |||
YC-88-4 | |||||||
YC-88-5 | |||||||
YC-88-6 | |||||||
YC-88-7 |
