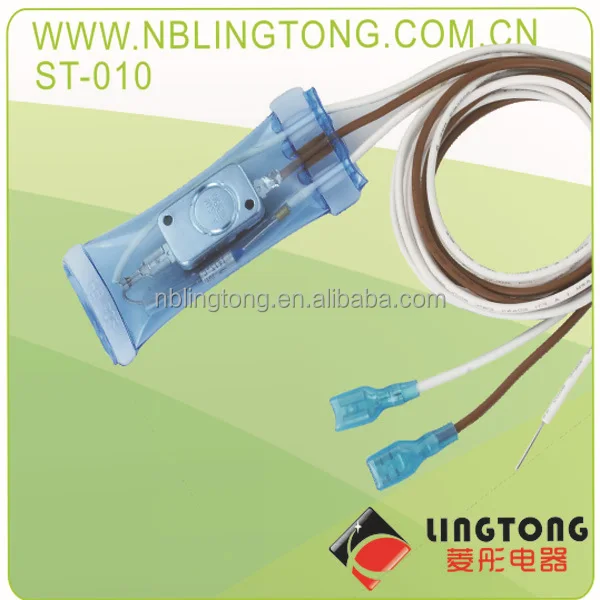

REFRIGERATOR DEFROST THERMOSTAT
- Category: >>>
- Supplier: Ningbo Lingtong Electric Appliance Co. Ltd.
Share on (60051614686):
Product Overview
Description
SAMSUNG REFRIGERATOR DEFROST THERMOSTAT
Specification
ltem NO | ST-010 |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Base material | bakelite |
Electric rating | 250V 5A |
Action temperature range | -30°C~90°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
FUSE | 72 C Degree |
Open | 12 C Degree |
Close | -5 C Degree |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum ambient temperature | 90°C |
Diameter of bimetal disc | F12.7mm(1/2″) |
Line | Color: Customized Length: Customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
