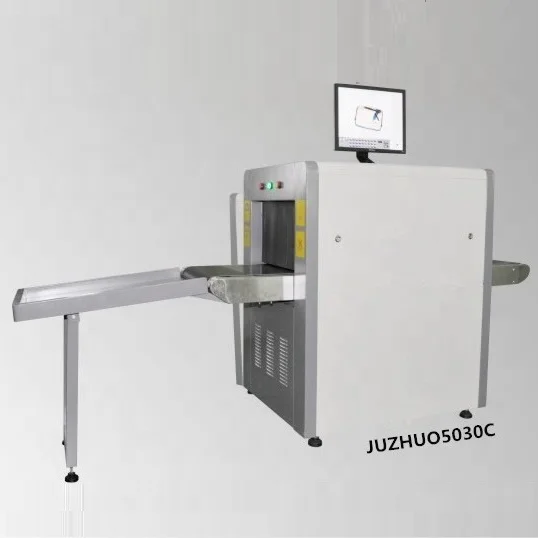

X ray scanner for baggage for school & shopping mall JUZHUO5030C

Product Overview

Description

X ray scanner for baggage for school & shopping mall JUZHUO5030C



FEATURE

1.Alarm by sounds & light::Alarm by sounds and light when conform to condition.

2.Network interface:Could be connect local area network and support multi-terminal check baggage at same times

3,Safety ray:Transmit ray under automatic control, avoids the miss

4,Image monitoring for user-friendly:The monitor use  fold, rotary system, operators adjusts the monitor 5,position willfully according to own need, reduces wearily

6,Simple operation by mouse:Without keyboard and work table, control by mouse, save space

7,Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment 8,automatic security close-down, does not need complex many steps, is simpler

9.Eagle-eye:Could be expediently observing enlargement area

10,Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.

TECHNICAL DATA

Tunnel Size:                    500(W)×300(H)mm

Conveyor Speed:                 0.22m/s

Conveyor Max Load:              20 kg

Single inspection dosage           < 1.5µGy

Wire Resolution:                 0.1mm metal line

Steel Penetration:                 32MM armor plate

Film Safety:                     For ISO 1600

Maximum leakage radiation        <0.3µGY/H

X-RAY GENERATOR

Orientation:        Vertically Upward

Tube Current:     0.4~1.2MA(adjustable)

Anode Voltage:   100~160 KV(adjustable)

Angle:                  80°

Generator cooling/working periods       Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM

1. X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
2. MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY
3. COLOR QUALITY: 24 BIT REAL COLORS
4. EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT
5. SUPER IMAGE ENHANCEMENT:   IMAGE DETAIL IS MORE DISTINCT
6. HIGH PENETRATE STRENGTH DISPLAY:   INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY
7. LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY
8. MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT
9. BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE
10. IMAGE RECURRENCE:  DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM
11. IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR
12. IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS

MULTI-ENERGY FUNCTION

1, MULTI-ENERGY COLOR:

DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN



2,HIGH ENERGY/LOW ENERCY:

SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC



3,AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES:

HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.



4,AUDIBLE & VISIBLE ALARM:

GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION

OPERATING ENVIRONMENT

1,Storage Temperature:             -20ºC to 60ºC

2,Operating Temperature:           0ºC to 45ºC

3,Relative Humidity:               20 to 95% non-condensing

4,System Power:                  220 VAC (±10%) 50±3HZ

5,Power wastage:                1.0 KW (Max)

6,Noise:                        <65DB
