2015 the best investment opportunities waste tyre recycling oil plant

Product Overview

Description



	Items	Contents
1	Equipment type	XD/06	XD/08	XD/10
2	Raw material	tires/Plastic/rubber	tires/Plastic/rubbrt	tires/Plastic/rubber
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24 hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7~3 ton	3.6~4 ton	4.5~5 ton
6	Operating pressure	Normal	Normal	Normal
7	Material of reactor	Q345R/Q245R	Q345R/Q245R	Q345R/Q245R
8	Thickness of reactor	14mm/16mm	14mm/16mm	14mm/16mm
9	Rotate speed of reactor	0.8turn/minute	0.8turn/minute	0.8 turn/minute
10	Total power	20KW/H	20KW/H	20KW/H
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
13	Noise	≤85	≤85	≤85
14	Size of Reactor(D×L)	2000mm×6000mm	2200mm×6600mm	2600mm×6600mm
15	Working form	Intermittent operation	Intermittent operation	Intermittent operation
16	Delivery time	20days	20days	20days
17	Weight	18~22T	20~25T	25~30T



 Brief profile of our company



     XINDA Company is a perfect company which is specialized in developing, manufacturing, distributing

and providing rubber,plastic,waste tyre recycling oil equipments . Our company was founded in 1997,

now has become the brand leader of the Industry of waste tyre/plastic/rubber pyrolysis.We believe in

that 16 years' experience will let us know it is not easy to won the creditworthiness and trust of our cutomers.

We will give you our best pre sales service and after sales service, give you our best quality-controled

equipment, give you a very profitable plant and give you our priceless treasurable experience in this line.

      If you are want to join us, please contact with us right away. By the way, our machine has been sold

to more than 50 countries,such as India,Pakistan, Brunei, Sri Lanka, Iran, Bulgaria, Korea, Malaysia,

Huangary, South Africa, USA etc.No matter which countries are you from, we welcome you to visit our

factory or assist you arranging a visit in you own country.



Description for waste tyre,rubber,plastic pyrolysis plant







a. Put material to reactor manually or by auto feeder, close the loading door and start heating.



b. Pyrolysis is start when you heating the reactor. Control temperature by control box and energy volume.



c. The oil-gas will go through catalysis chamber and cooling system and was cooled to oil, then was

    collected in oil tanks.



d. Waste smoke and dust will be cleaned in dedusting system.



e. Water water will be cleaned three times and readded to machine.



f. Waste gas will be re-burnt as fuel to heat reactor.



g. After one batch of producing, residue( most are carbon black) will be discharged

    automatically from slagging door to a pond.



h. Wires from tire can be drew out before producing by steel wire drawer. If not,

    the wire will be pulled out of  reactor after one batch of producing.



Main features of the tyre,rubber,plastic recycling machine



 Safety:



1. With an auto welding machine for the reactor, it can not only greatly improve working efficiency

     but also guarantee the quality of welding seam, thus avoid explosion caused by gas leak.



2. Professional heating treatment and x-ray detection chamber are especially for welding



3. Vacuum system will prevent oil gas from going back to reactor and causing accident.



4. Professional thermometer, pressure gauge and safety valve.



5. It is dangerous to burn exhaust gas(C1 to C4) without any safety measures. In our process,

     it is transferred first through the safety device and a safety burning air muzzle.

     Before burning, we should ensure the safety of production.



 Environment friendly:



1.Well water de-dusting system can avoid black smoke.



2.The exhaust gas will be recycled for heating reactor, no gas pollution



3.Every junction of the reactor is in good sealing situation with professional sealing material.



 Long service life:



1.Material: Q245R special steel plate ,thickness 14mm.



2.Welding: Automatic welding machine with heating treatment and x-ray detection will prolong

    the service life of reactor to the max.



3.The service life of the reactor will be 8 -10 years



 Energy saving:



1. Well sealing for heating system , no gas leak and saving fuel.



2. The exhaust gas will be recycled for reactor heating .

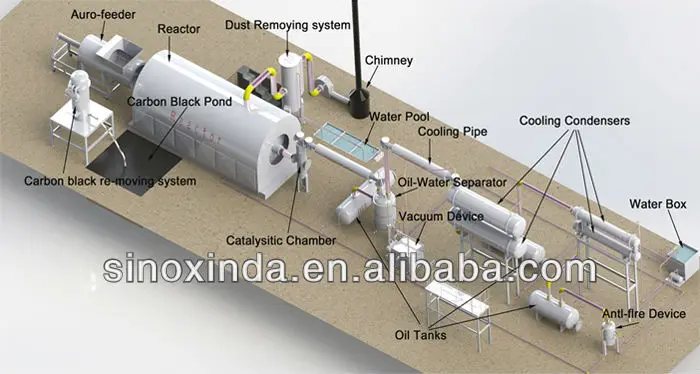

Main new technologies of XD-20 tire pyrolysis plant



a. Auto feeding machine, it use the 60t high liquid pressure,so can feed all kinds of materials, even the

    whole tire.For Its special making material,it can be operated in high temperature maxing to 350 celcius.



b. Totaly sealed for the using of auto-welding and x-ray detection in the whole making process. Zero

    polution and Zero emissions  will be realized in the pyrolysis process very easily.



c. There are three crude oil tank,the first will be filled in the heavy oil, and the other two tank will be filled

    with the liaght oil, so it will reduce the occurrence of jams and prolong the life of machine.



d. There are some cooling pipes and two cooling condensers to prolong the oil gas cooling time, to

    ensure the amount of produce of crude oil.



e. Micro negative pressure device is connected with the oil water separator,when the pressure up to a

    certain degree, it can reduce the pressure very soon. When you opening the door of reactor, the

   device can ensure that there is no gas leak.



f. Anti-back fire device is one of our special design, it can recycle the tail gas, so it will be more

   energy-saving. And it will cool the tail gas to avoid the blast of the burning of tail gas(C1 to C4)



g. Carbon black removal machine takes the principle of vacuum, it will take the carbon black from the

    slagging pit automatically,and then you can bag the carbon very conviniently.



The fuel of the tyre recycling machine







Final produtions of the tyre recycling machine





A. The Usage of Final production FUEL OIL



   Fuel oil from waste tyre are used in below industries:

• Power plant factory
• Glass factory
• Cement factory
• Ceramic factory
• Aluminum factory
• Boiler factory
• Central heating factory
• Painting factory

B. The Usage of Final production CARBON BLACK



     Carbon black from waste tires are used in below industries:

• Electric cable jacketing
• Conveyor ban
• Hose and doormat
• Black nylon bag
• Rubber additive
• Automatic spare parts
• Heat isolation
• Black colorant in rubber materials
• Plastic pipes
• Industries rubber products
• Fire fighting

C. Steel wire from waste tyre can be resale to steel factory



The specific rate of different raw materials



Raw material	Big tyres	Car tyres	Bicycles & motorcycle tyres
Oil yield	45%-55%	40%	30%-35%
Steel wire	15%-20%	10%-15%	5%-10%
Carbon black	30%	45%	45%
Waste gas	5%-10%	5%-10%	5%-10%



 Our comoany/certificates/customers











Guarantee and our service

• Our professsional Lab can provide you the relevant  testing services for the exact output rate of your raw materials.
• One year gurantee for the whole machine.
• We will sent our engineers for installation and teaching buyers' workers skills on operation and maintenance as the requirement of buyers.
• We can supply the layout of the machine according to buyers' sepecific information.
• Our company can provide accessories in the cost price when some damage caused by users.
• After finishing the purchasing process, we will give you more suggestions for improvement at any time.
