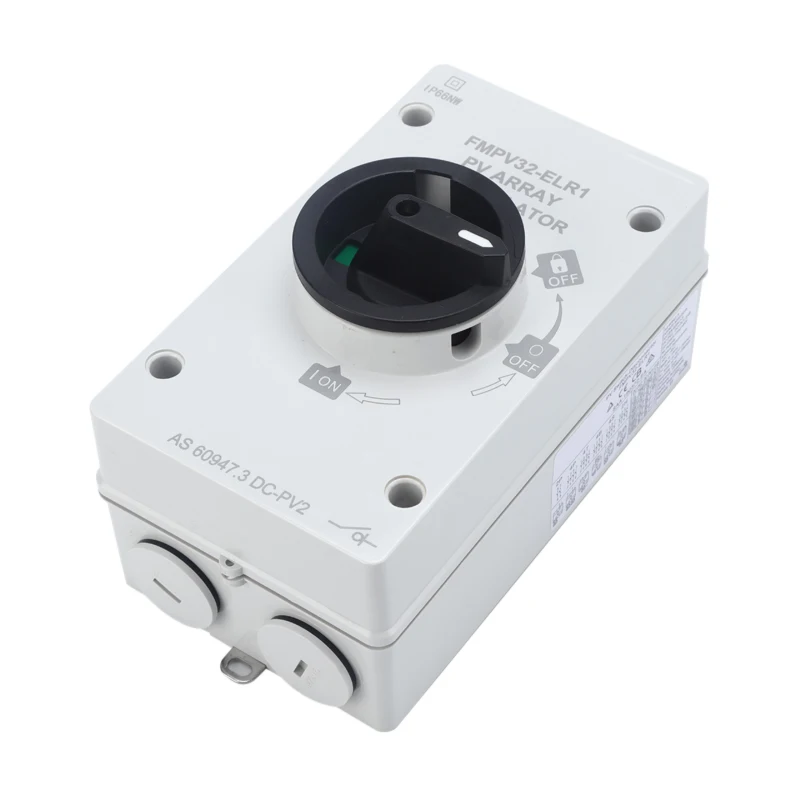

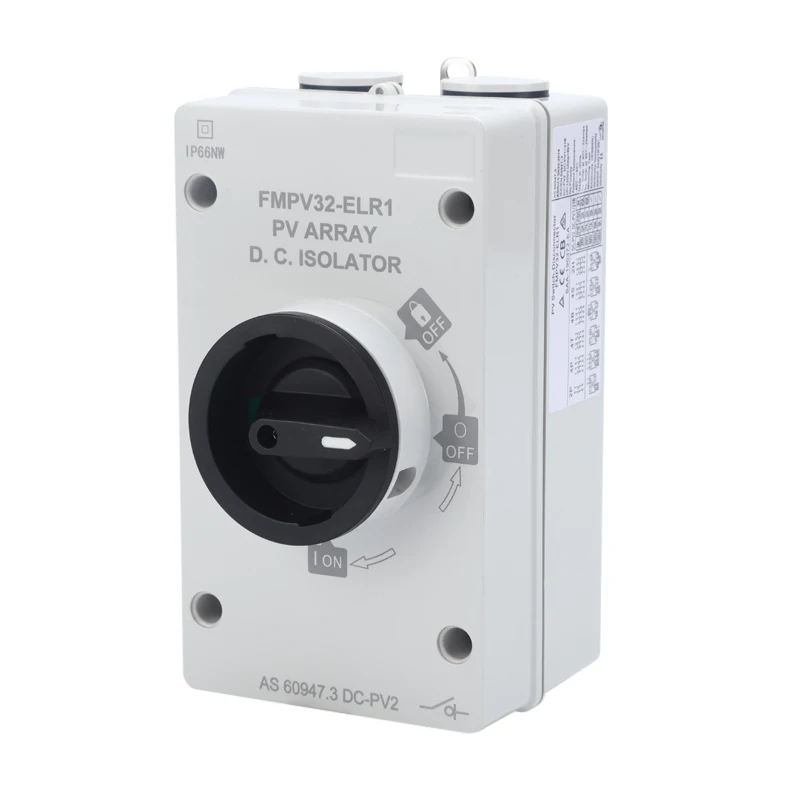

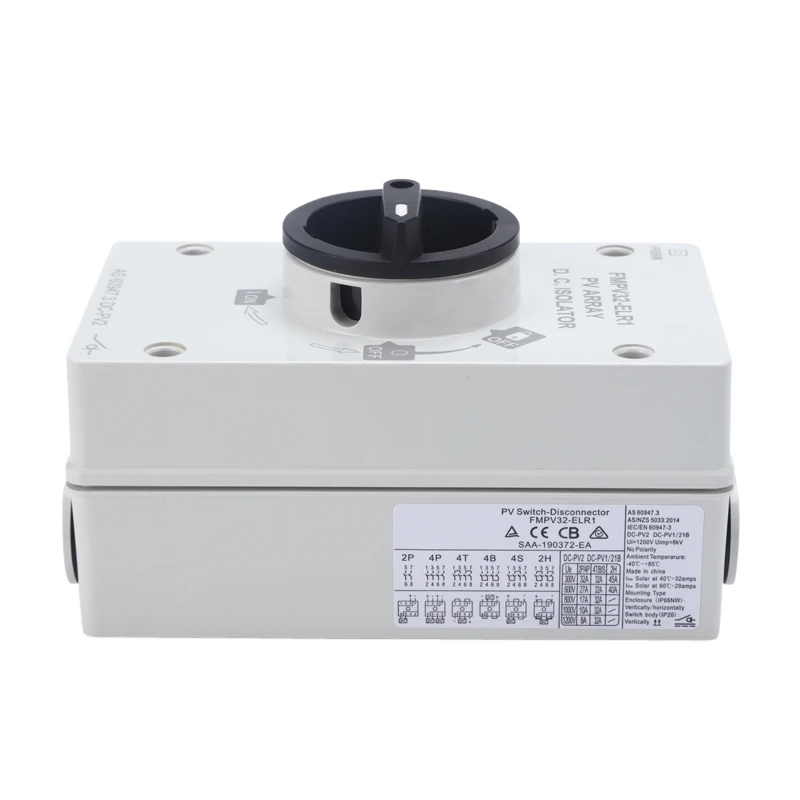

IP66NW PV2 1200V DC Solar Switch Disconnector

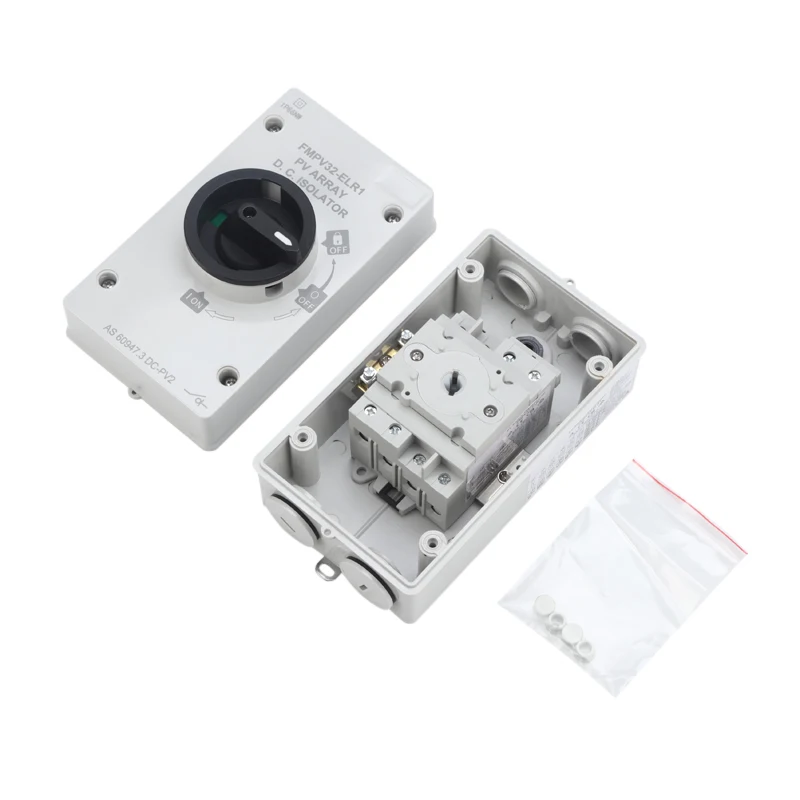

The FMPV-ELR1 series DC Isolator switch in plastic enclosure is applied to 1-20 KW residential or commercial photovoltaic system, placed between photovoltage modules and inverters. Arcing time is less than 8ms, that keeps solar system much safer. To ensure its stability and long service life, our products are made by components with optimum quality. Max voltage is up to 1200VDC. It holds a safe lead among similar products.

Key Features

IP66NW rated enclosure, UV Resistant

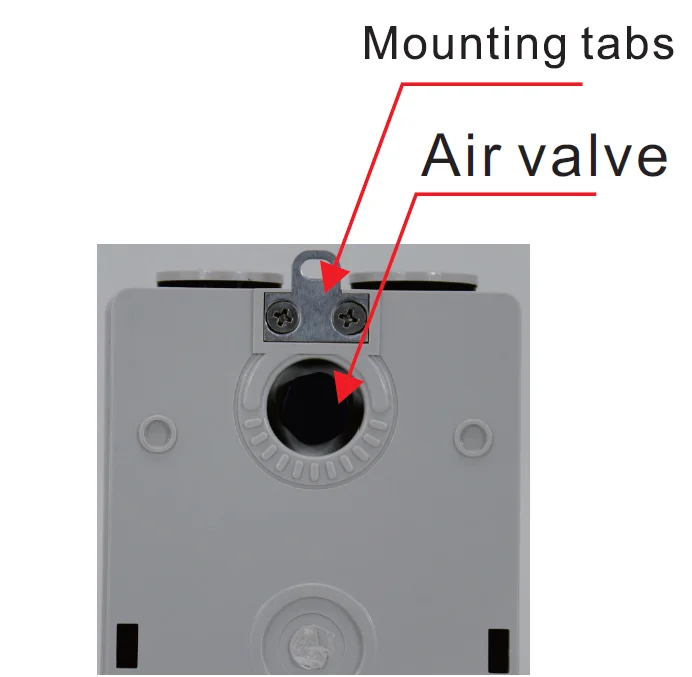

IP66 air valve helps air flowing and reducing temperature

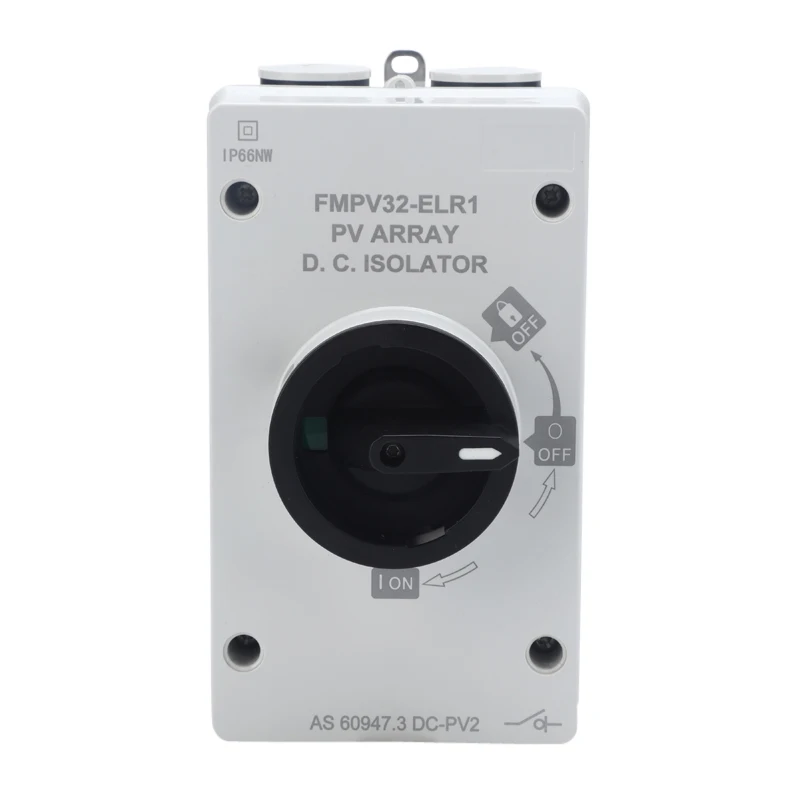

The handle can be padlocked in the "OFF" position

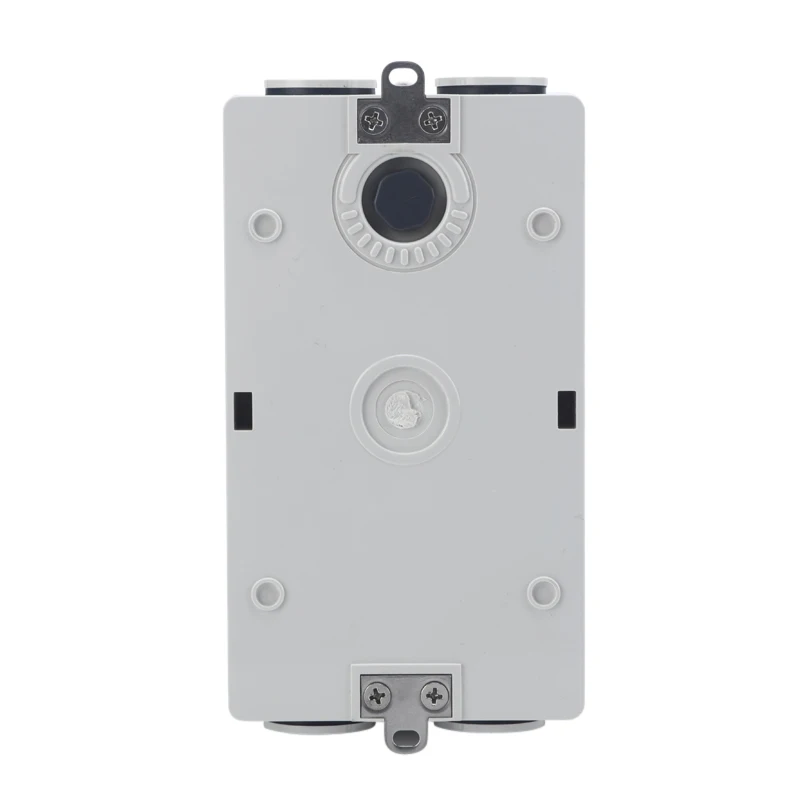

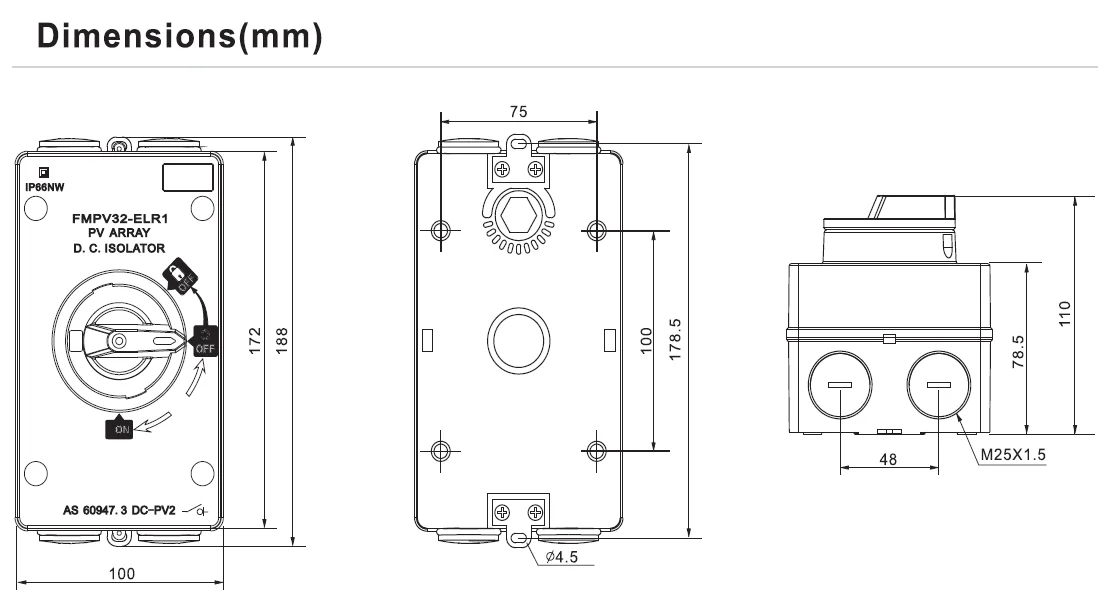

2 x mounting tabs, 4 x M25 threaded holes

Multi Connector plugs with adaptor or cable gland can be selected for convenient connection and space saving

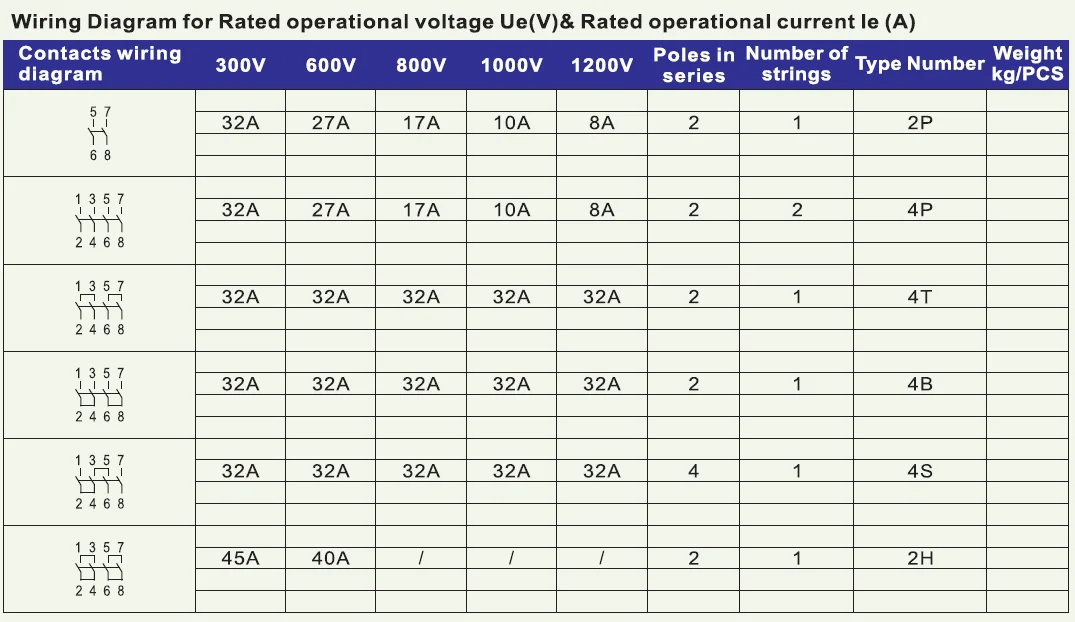

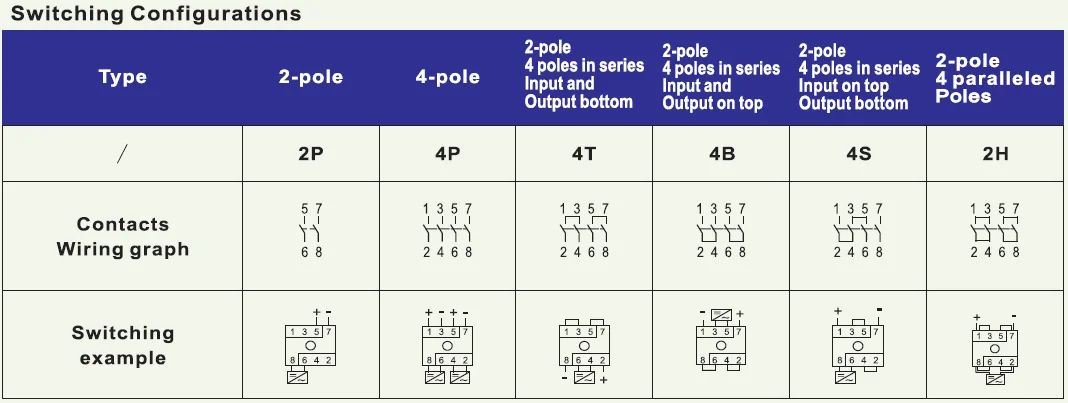

2 Pole, 4 Poles are viable ( Single / Double String)

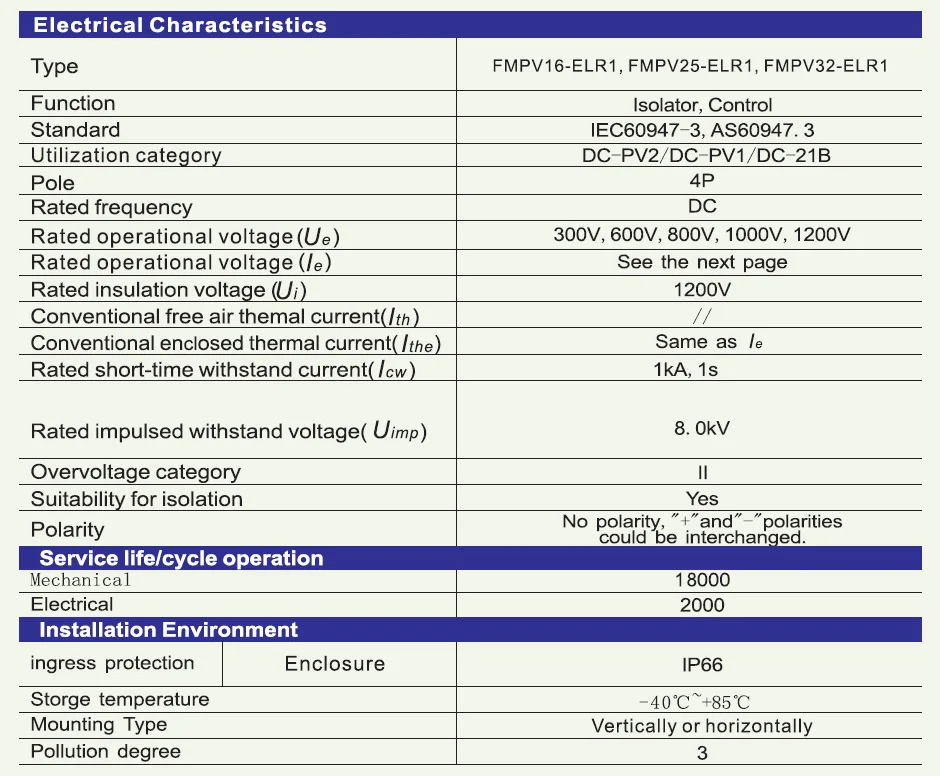

Standard: IEC60947-3, AS60947.3

DC-PV2, DC-PV1, DC-21B

16A,25A & 32A all rated up to 1200V DC.
