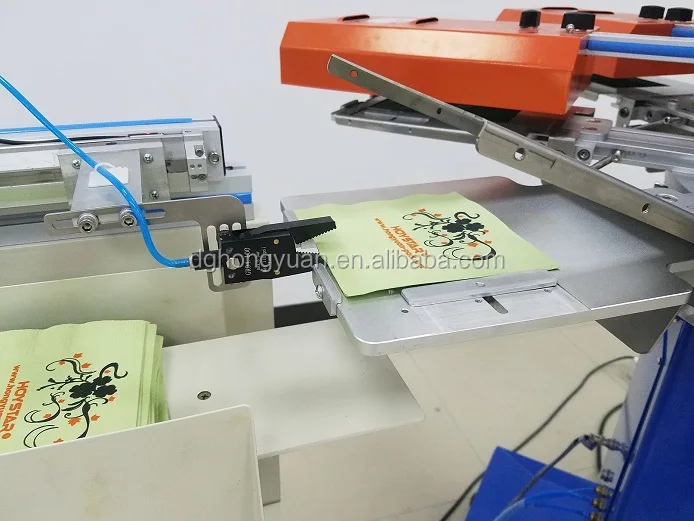

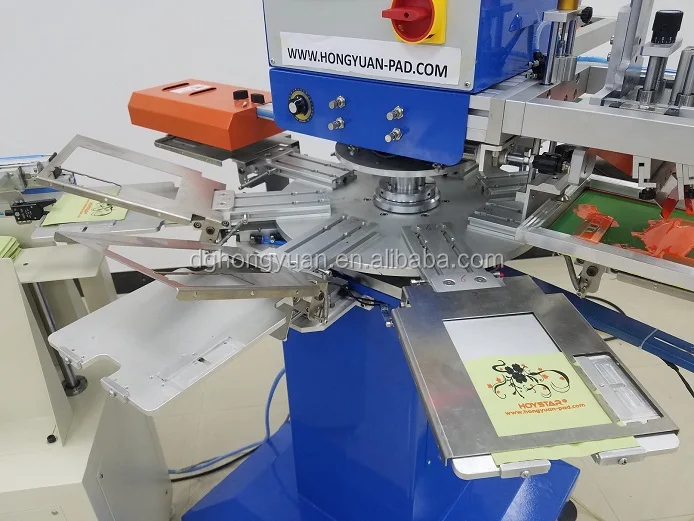

screen printing machine for printing on napkin with the rapidtag

printing process

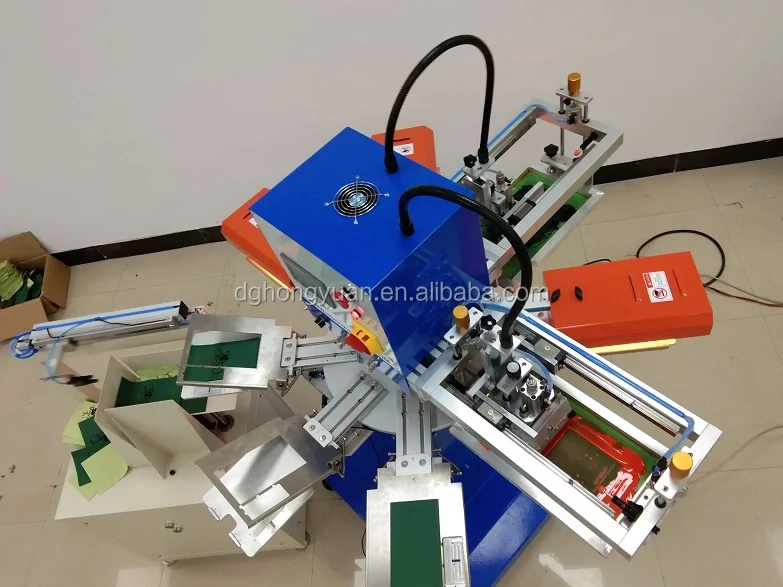

This high rapid screen printing machine is specially designed for printing Napkins automatic screen printing machine,its printing process like below

load the Napkin on the machine by hand---auto printing 1 color--auto drying--auto print 2 color--auto drying--auto unloading-auto products collection.

why so many people prefer this machine to print napkin?it have many new function.

1.Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate
2. Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control

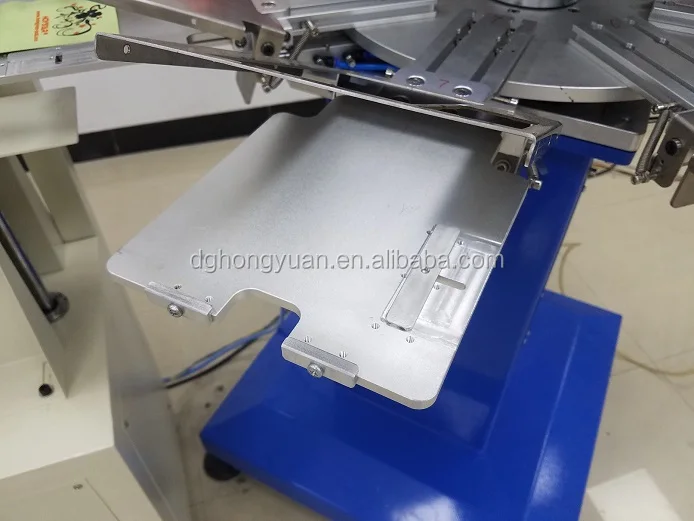

3. The rotate worktable adopts electric control,CHINT AC contractor, Taiwan FOTEK photo-switch
4. Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing
5. High quality infrared lamps,it can be up to 1500-2000 hours
6. It has “No product,No print" function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable
7. It has total 8 pcs of work station,2 pcs of printing work stations,3 pcs of drying systems and 3 pcs of load/discharging work stations
8. The 2 printing head can be controlled independently
9. Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand.
10.Machine surface is metallic paint ,beautiful and dignified

Technical parameter:

1.Max.printing area:130*100mm
2.Printing speed: 1200PCS/Hr
3.Power:4.5KW
4.Machine size:1500*1400*1650mm
5.Weight: 260kgs
6.Workstaion: 8 pieces
7.Drying system: 3pieces
8.Print colors: 2 colors
