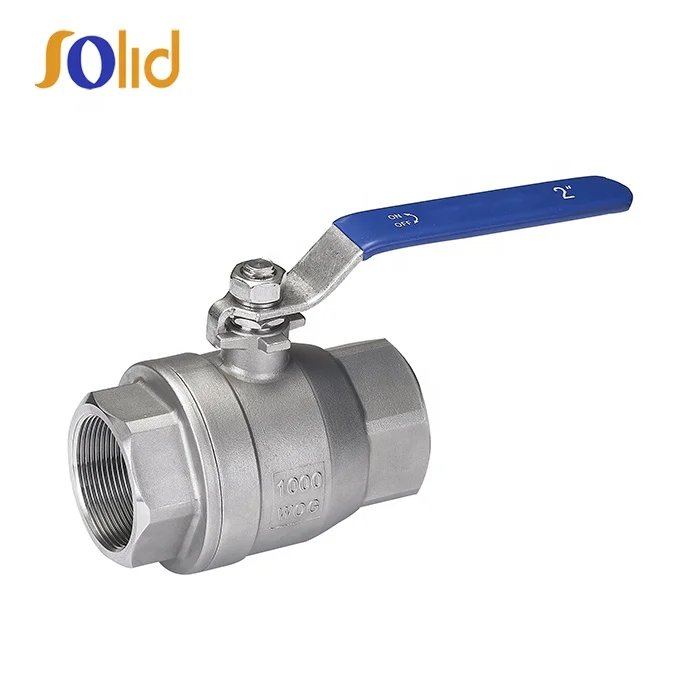

Stainless Steel 316 CF8M 1000 WOG 2PC Female Thread Ball Valve With Handle Lock
- Category: >>>
- Supplier: Shanxi Solid Industrial Co. Ltd.Shanxi Ltd.
Share on (60052780934):
Product Overview
Description
Stainless Steel 316 CF8M 1000 WOG 2PC Female Thread Ball Valve With Handle Lock
Product Description
1)Material: Stainless steel
2)Nominal Diameter:6~50mm
3)Application: Petroleum, chemical industry, metallurgy, light industry, papermaking, power plant and refrigeration.
4) Compact structure, beautiful Appearance, easy to use,high quality.
Main Dimensions
SIZE | 1/4” | 3/8:” | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” | 21/2” | 3” | 4” |
D | 11.6 | 12.5 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
L | 55 | 55 | 65 | 75 | 88 | 102 | 110 | 122 | 162 | 189 | 260 |
H | 50 | 50 | 60 | 64 | 71 | 72 | 86 | 96 | 130 | 148 | 180 |
E | 103 | 103 | 103 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 295 |
MAIN PARTS AND MATERIALS | |||
NO. | PART NAME | MATERIAL | QTY |
1 | CPA | CF8/CF8M | 1 |
2 | JIONT GASKET | PTFE | 1 |
3 | BODY | CF8/CF8M | 1 |
4 | BALL | 304/316 | 1 |
5 | STEM | 304/316 | 1 |
6 | JIONT RING | PTFE | 2 |
7 | THTUST WASHET | PTFE | 1 |
8 | STEM PACKING | 304/316 | 1 |
9 | GLAND NUT | 304/316 | 1 |
10 | STEM WASHER | 304/316 | 1 |
11 | STEM NUT | 304/316 | 1 |
12 | HANDLE COVER | 304/316 | 1 |
13 | HANDLE COVER | PLASTIC | 1 |

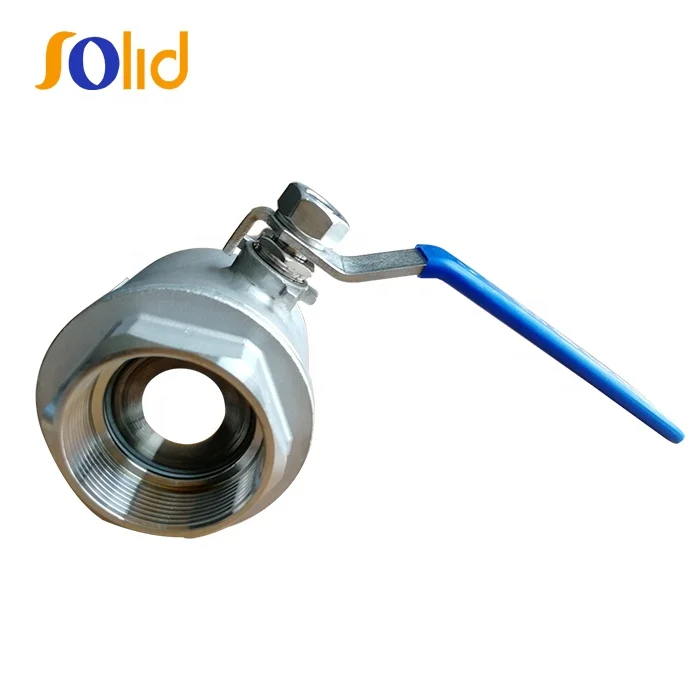

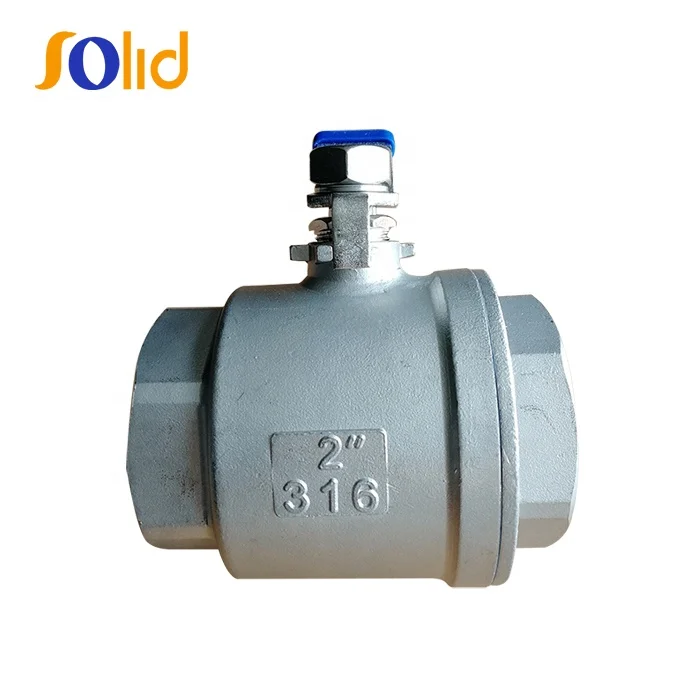

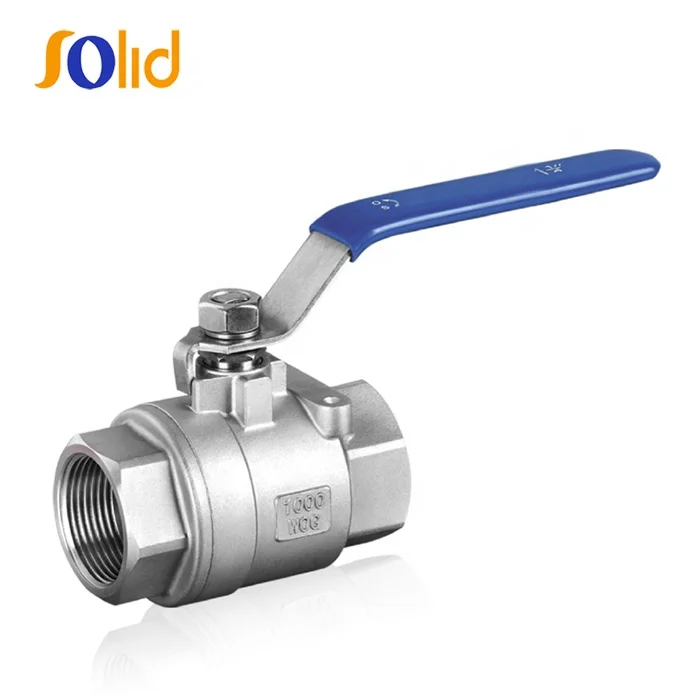

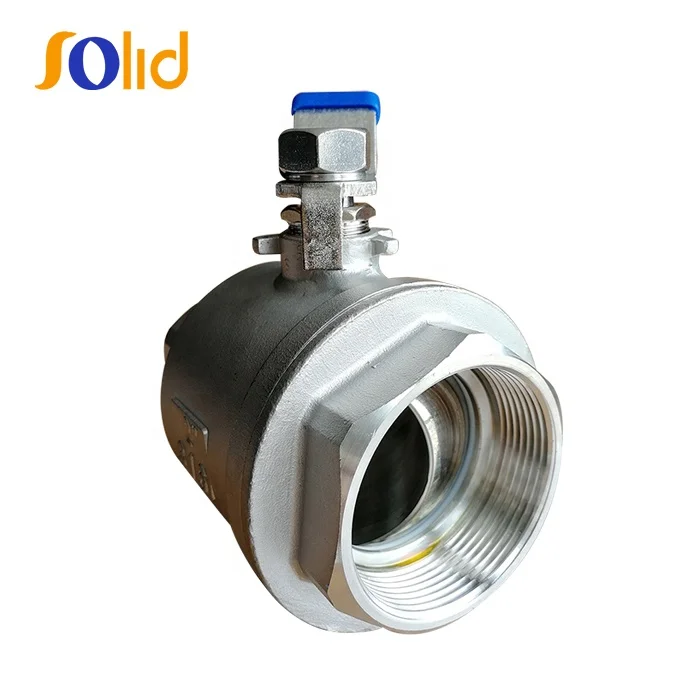

Detailed Images
