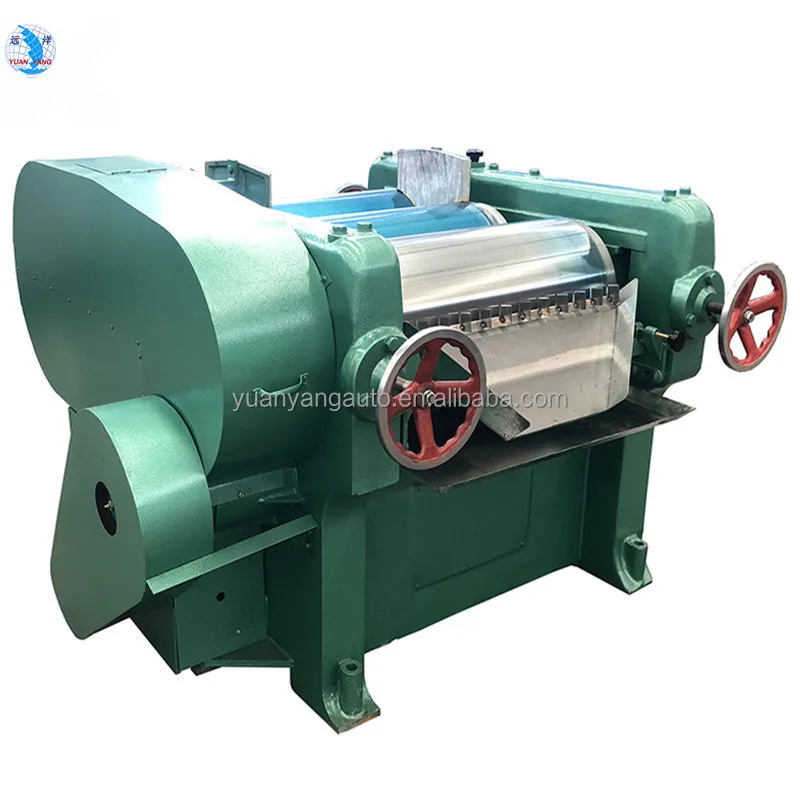

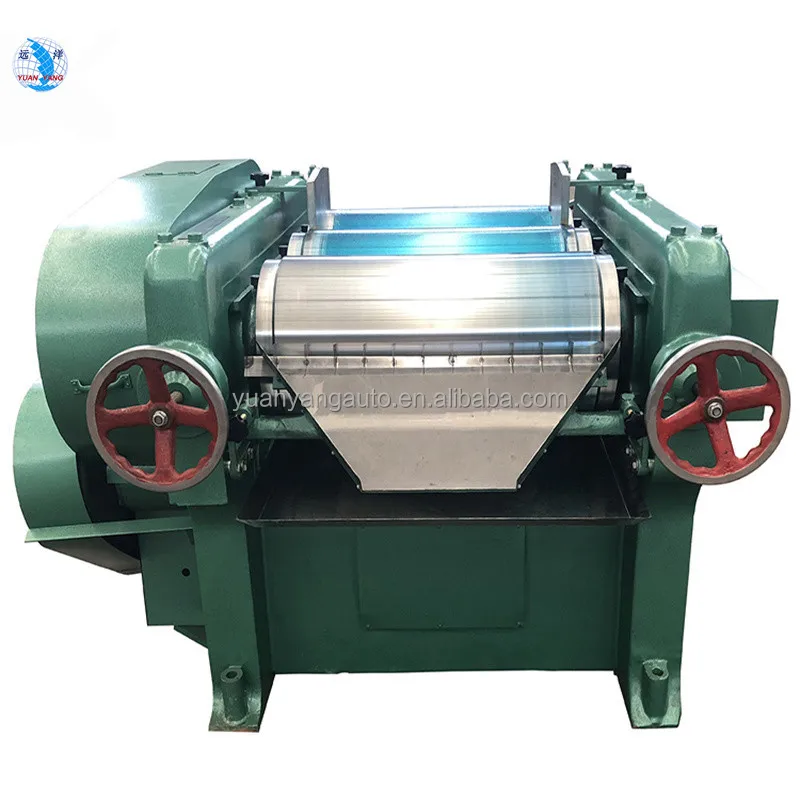

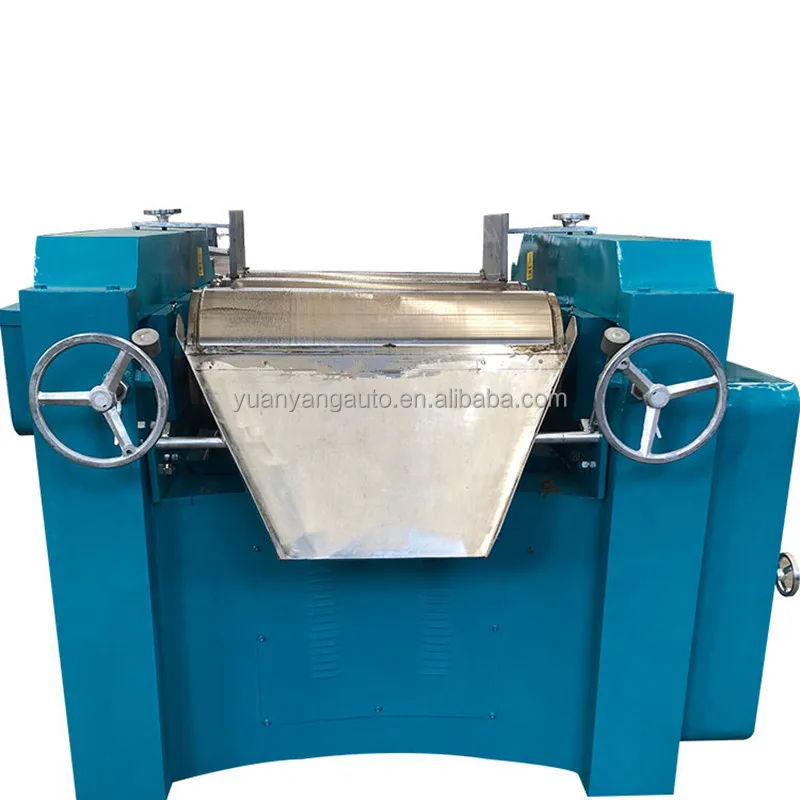

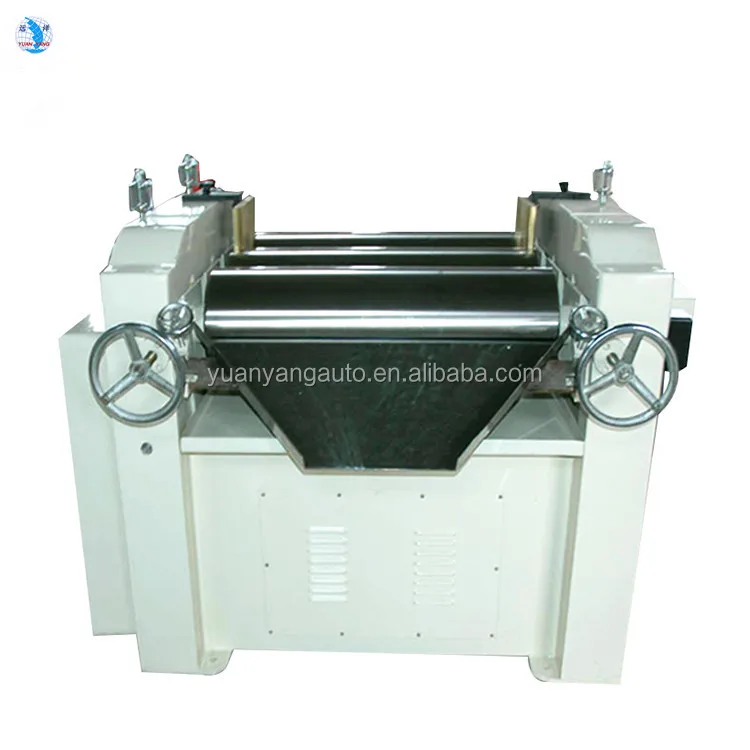

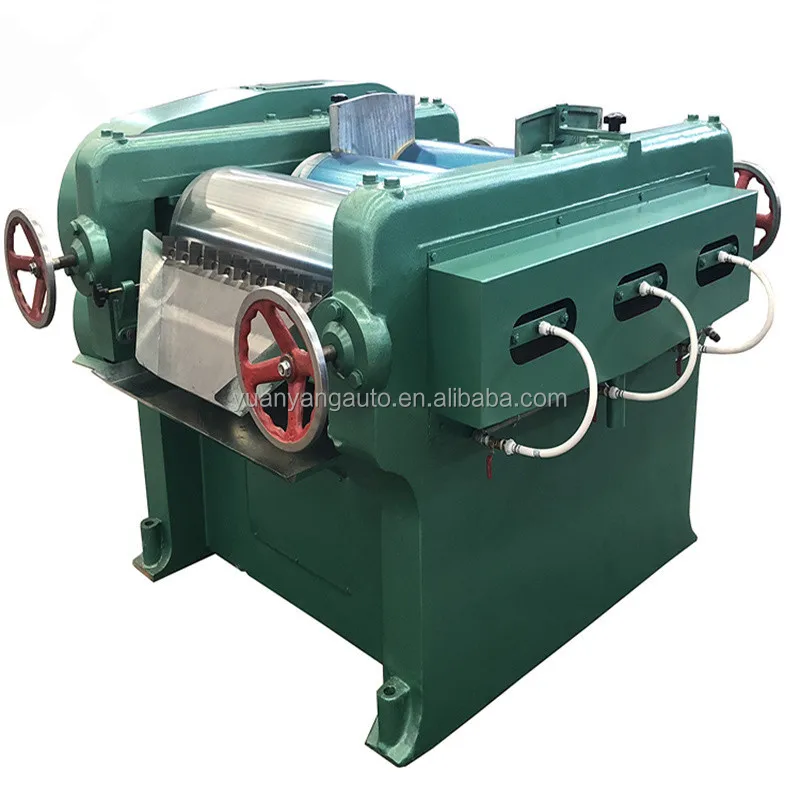

Oil paint Grinding Triple Roll mill Three 3 roller Machine for Offset ink/Lipstic/Soap/Plastic/Ceramic/Rubber/Pigment paste

Product Overview

Description

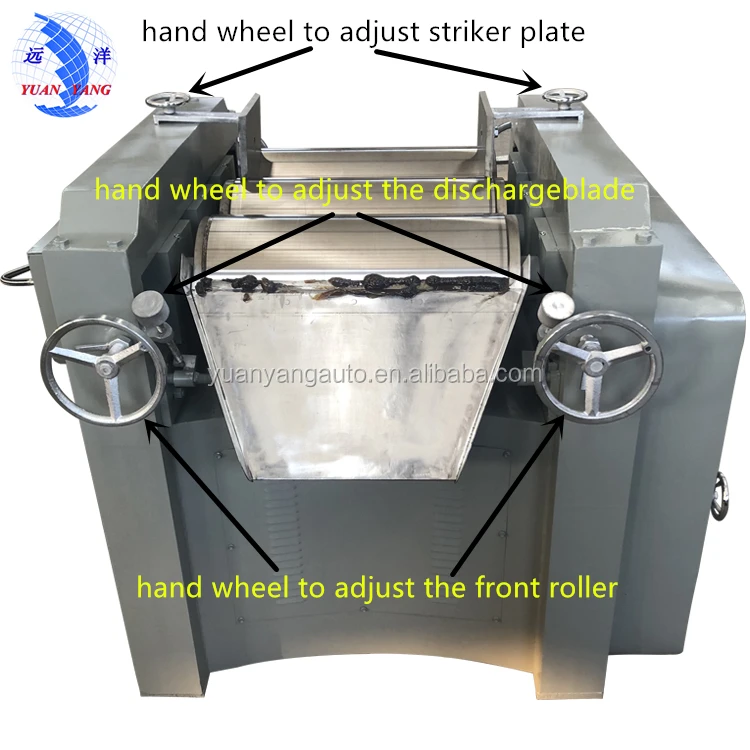

Description: Three roll Mill is an ideal and effective grinding and dispersing equipment for high viscosity product. Three rollers are mounted on an iron frame, rollers are hollow that can be cooled by water. Material was added between the middle and rear rollers. Due to the three rollers rotating in different direction ( speed increases from back to front ), generate a good grinding effect. After grinding, material is scraped by scraper in front of the front roller.



Structure: Mainly composed of 3 parts: Grinding part, Driving system and Frame part

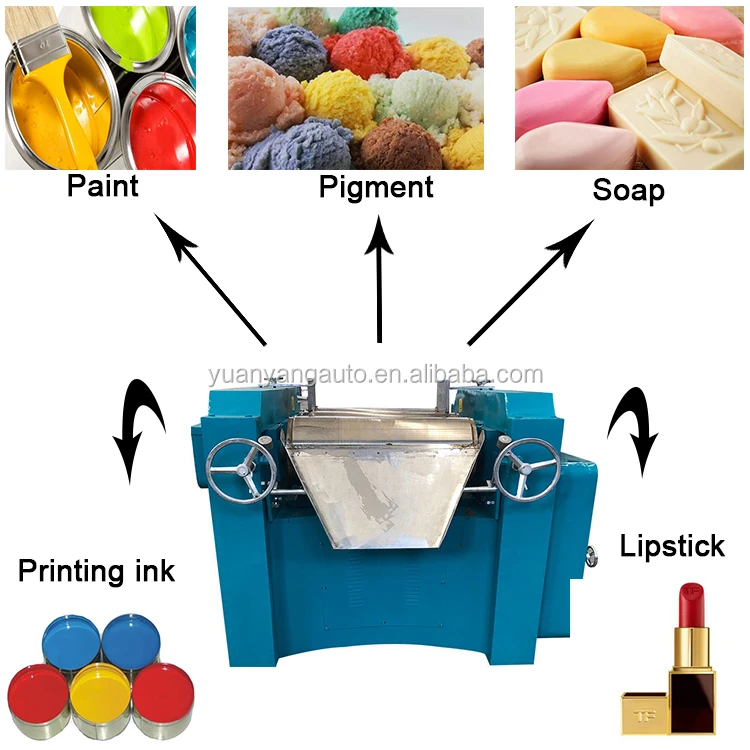

Application: Widely used in various of Paint, Ink, Pigment, Plastic, Cosmetic, Soap, Ceramics, Rubber, and other liquid and paste materials grinding

Model: S65 (1-10 kg/hour), S150(10-50kg/hour), S260 ( 100-200 kg/hour), S315 (200-300 kg/hour), S405 (300-400 kg/hour)  & S405L ( 400-500 kg/hour).

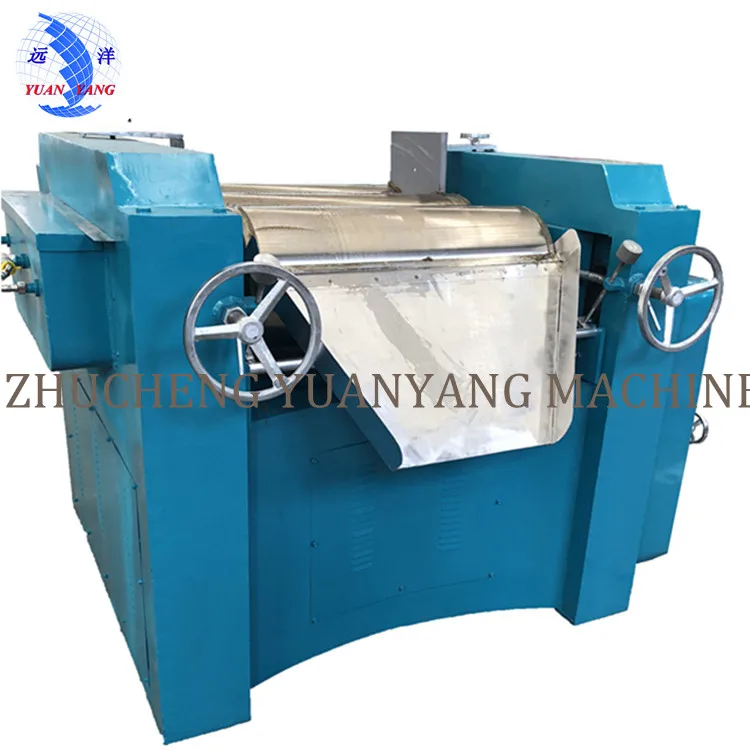

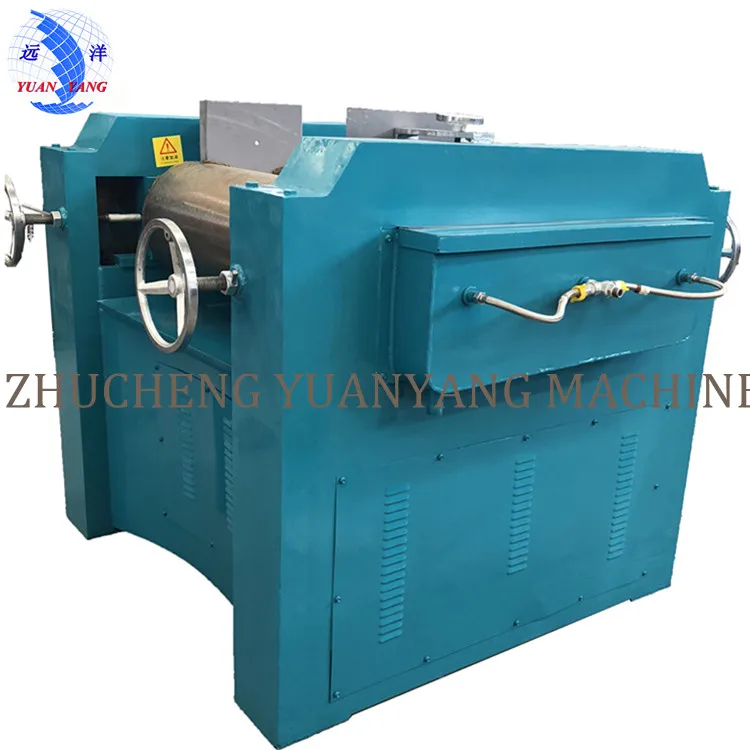

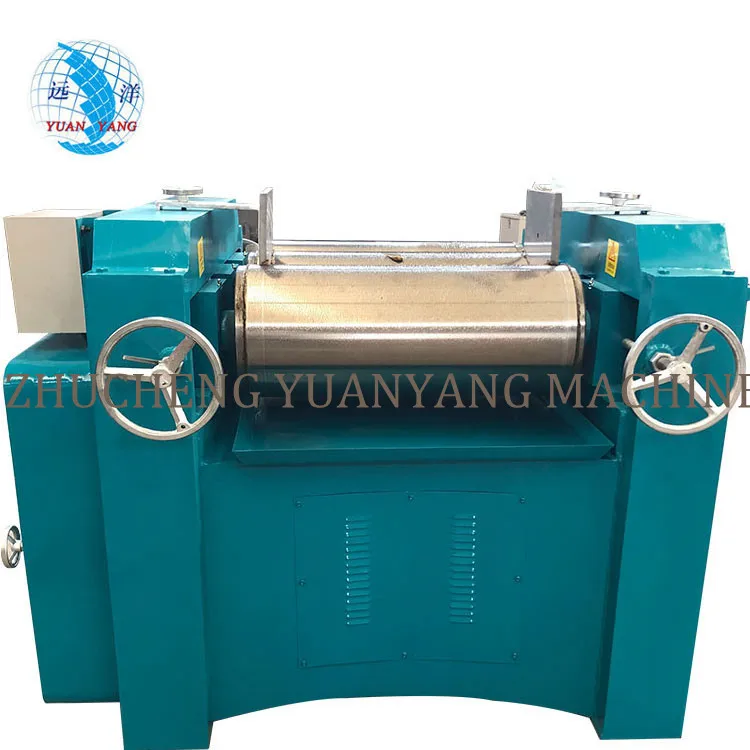

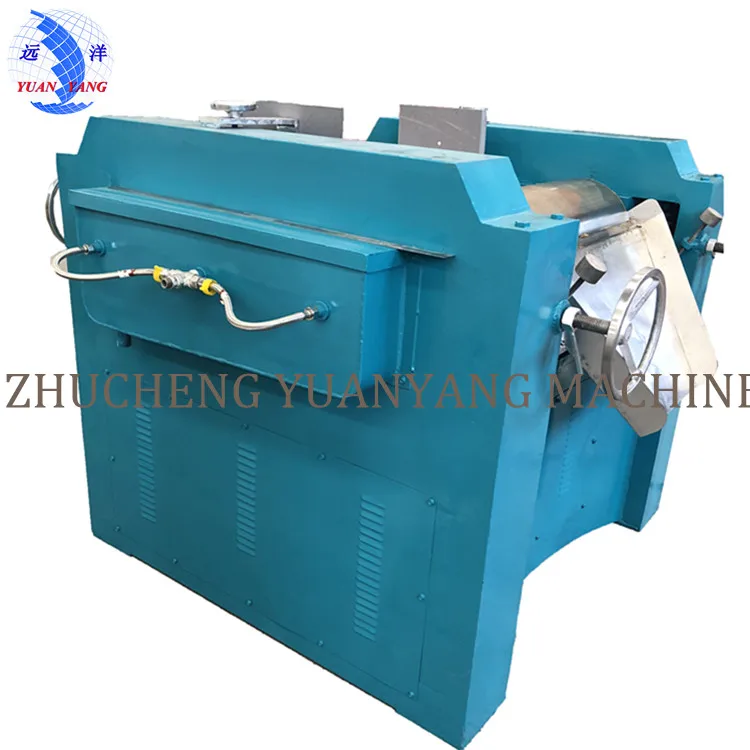

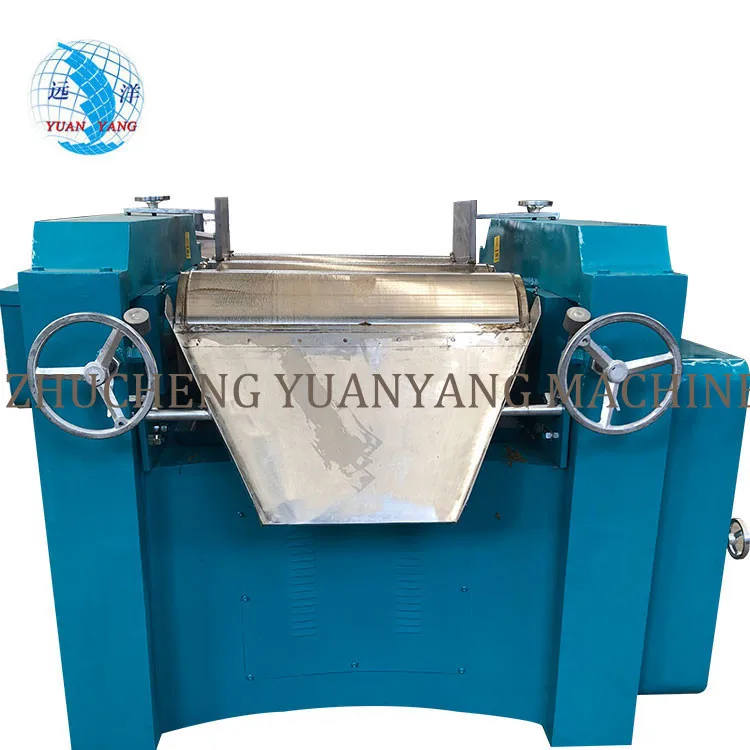

Model	S315
Roller Diameter	315 mm
Roller working face Length	760 mm
Rotation speed	Fast roller = 155 RPM
	Middle roller = 55 RPM
	Slow roller =19 RPM
Electric motor	11 KW

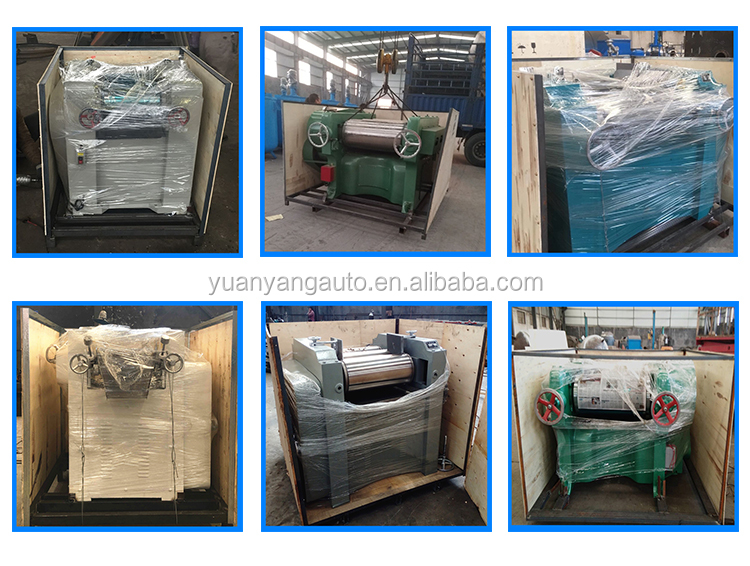

Kind of Package	packed in plywood case























We, Zhucheng Yuanyang Trading Co.,Ltd was founded in 1996, specialized in chemical machinery’s R&D and manufacturing more than 20 years, have rich experience and professional manufacturing, sales and technical team.



Company started to do export business from 2008, with reliable quality, reasonable price and stable after-sales service, we accumulated a majority of customers from all over the world, and won good reputation in the meanwhile.















l We provide stable Pre-sales, In-sales and After-sales service.



l Our goal is let customers get more benefit, so we always consider and do everything, standing in customer’s point of view.



l Our aim is providing customers the cost-effective machinery: Under the same quality, we are committed to give customers a more reasonable price; For same price, we fight for higher quality.



l Our task is let customer happy to buy and using without worries: Under the increasingly competitive environment, we pay more attention to the product’s quality than the price.



l We sincerely welcome all the customers: No matter facing middlemen or end users, we all treat equally and provide positive pre-sales service and stable after-sales service, hope to service more customers.





Q: What’s the payment terms?

A:It’s optional based on customer’s convenience: T/T, LC, Western union, or Trade assurance order from Alibaba.



Q:How long the delivery time?

A:20-30 days for normal and standard type machine; 25-50 days for customized machine.



Q:Is after-sales service available?

A:Yes, we have stable after-sales service including 12 months warranty upon machine’s arrival, and lifetime maintenance advice.
