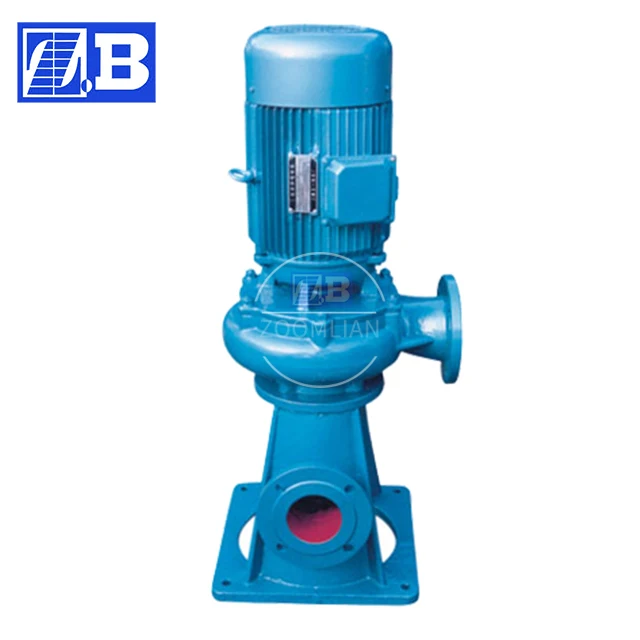

WL Vertical Sewage Pump/Ebara Vertical Raw Sewage Pump

WL vertical sewage pump

Product description:

WL Vertical Sewage Pump/Ebara Vertical Raw Sewage Pump is the new type product developed on the basis of combination of foreign advanced technology and domestic water pump features, which has remarkable features of energy-saving, anti-winding, anti-blocking, automatic installation and automatic control. WL Vertical Sewage Pump/Ebara Vertical Raw Sewage Pump has a unique effect in the case of transporting solid particles and long fibers litter.
The pump, applying a unique impeller structure and new mechanical seal, can effectively transport solids particles and long fibers. Compared with the conventional one, the impeller of this pump applying single channel or dual channel form, which is similar to a pipe section of the same size, has a very good over-current resistance and can be put into operation without vibration.

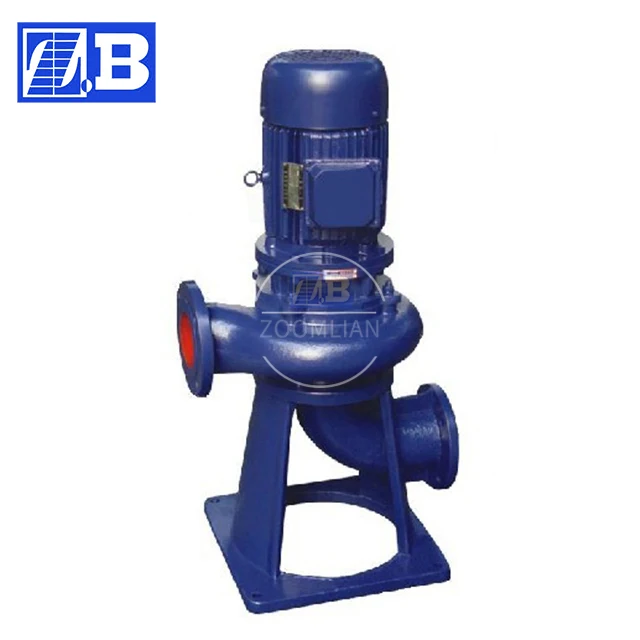

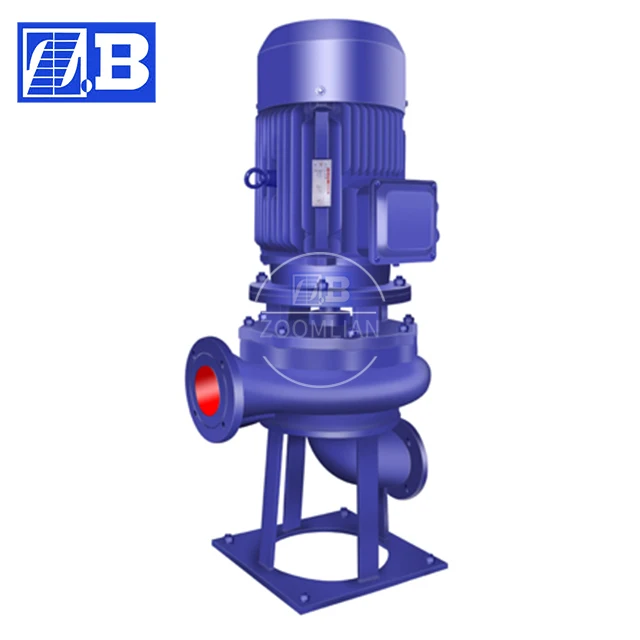

Structure chart:

Technical data:

Structure: single stage                                   Material: cast iron

Flow: up to 4500 m³/h                             Head: up to 45 m

Application:

Urban sewage treatment, mining, rural biogas digesters, irrigation and other industries

Model description:

100 LW P 100–15–7.5

100 ------------------- Outlet diameter 100 mm

LW ------------------- Non-clogging vertical sewage pump

P ---------------------- * P stainless steel

                                  * B explosion proof

100 ------------------- Flow 100m³/h

15 -------------------- Head 15 m

7.5 ------------------- Motor power 7.5 kW
