Factory direct sale large electromagnetic custom magnets lifter for steel bar lifting
- Category: >>>
- Supplier: Zhuzhou HVR Magnetics Co. Ltd.
Share on (60054305515):
Product Overview
Description
Product Overview

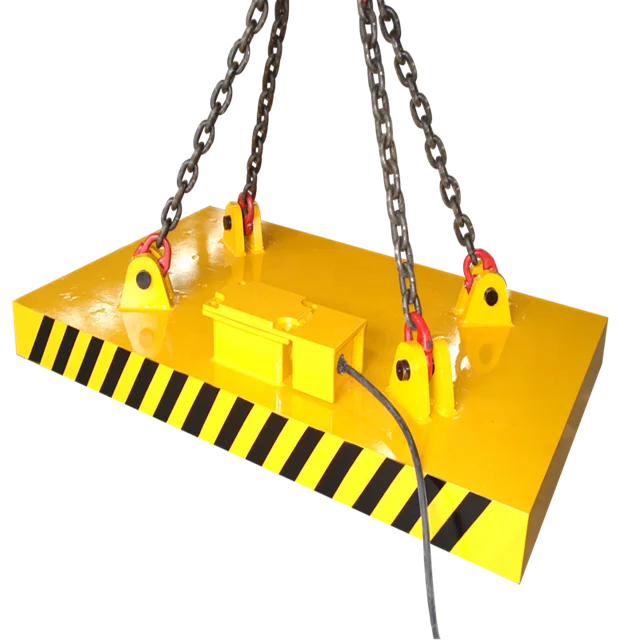

Large electromagnetic custom magnets lifter for steel round bar lifting
HT series large electromagnetic custom magnets lifter for steel round bar lifting
During the lifting handling process, the traditional steel plate may often cause personal injury and equipment damage accidents because of the spreader problems. The research and development of Electric permanent magnet spreader has successfully solved such safety problems. After the full power of magnetization, even if outage, it won’t demagnetization, minimal energy consumption, low operating costs, Power consumption is only 5% of the electromagnet, and is equipped with special control box, remote control, convenient and quick! Electric permanent magnet spreader is currently the world's safest steel plate lifting handling hook!
During the lifting handling process, the traditional steel plate may often cause personal injury and equipment damage accidents because of the spreader problems. The research and development of Electric permanent magnet spreader has successfully solved such safety problems. After the full power of magnetization, even if outage, it won’t demagnetization, minimal energy consumption, low operating costs, Power consumption is only 5% of the electromagnet, and is equipped with special control box, remote control, convenient and quick! Electric permanent magnet spreader is currently the world's safest steel plate lifting handling hook!
FEATURES AT A GLANCE
Minimum Consumption of Energy
It takes only 0.1~2 seconds power supply for the mag and demag proces. After that, the
electric permanent magnet is completely disconnected from the controller, and the
electric permanent magnet is completely uncharged. No electric energy is needed in the
suction process.
It takes only 0.1~2 seconds power supply for the mag and demag proces. After that, the
electric permanent magnet is completely disconnected from the controller, and the
electric permanent magnet is completely uncharged. No electric energy is needed in the
suction process.
Convenient
Control Electro permanent lifting magnets can be operated / controlled at its front panel or by a wireless remote control (Optional).
DEMAG in Safe Operation
For better safety, DEMAG button and UNLOCK DEMAG button must be pressed simultaneously to demagnetize electro permanent lifting magnets and release loads.
For better safety, DEMAG button and UNLOCK DEMAG button must be pressed simultaneously to demagnetize electro permanent lifting magnets and release loads.
Landing detection function
Is the safety contact that allows the magnetization or demagnetization only when the landing detection indicator is normal.

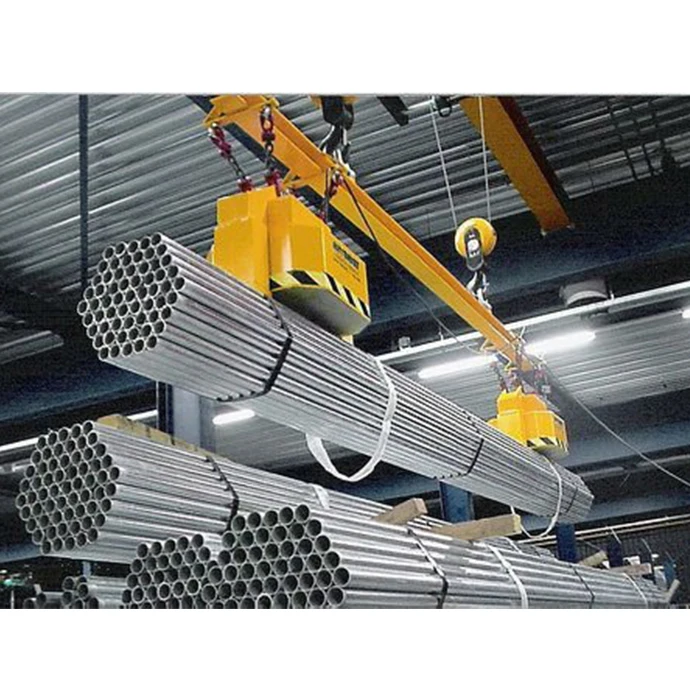

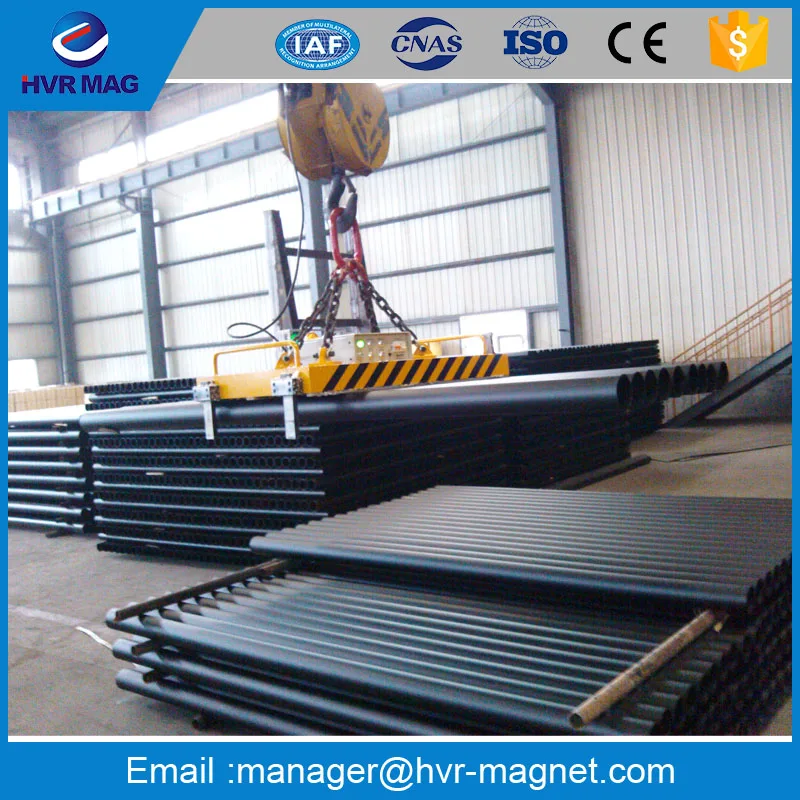

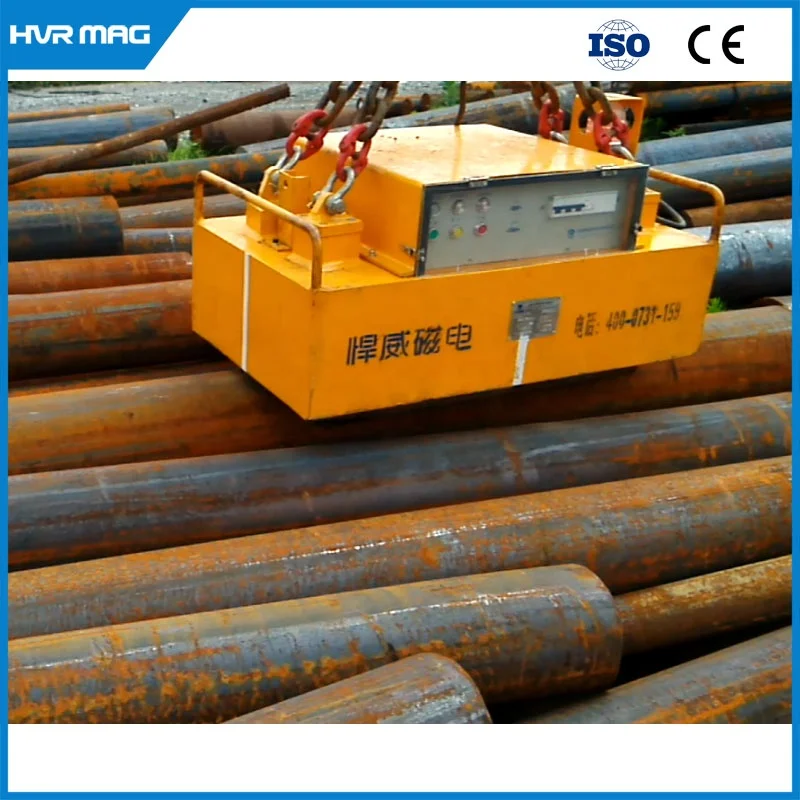

Application 1
Application 2
Application 3
Contents | Electro Permanent Magnet System | Electromagnet System |
The source of the magnetic force | From permanent magnets :NdFeB, AlNiCo | Produced by the electrical current flow |
Magnetization | Two kinds of magnetization, permanent and electromagnetic, both controlling the work load at the pole face | The electric current only controls the work load at the pole face |
Demagnetization | The interaction between the magnets removes the magnetic force controlling the work load | Isolation of the electric supply removes the magnetic force controlling the work load |
Safety | No electricity is consumed during the working period. Electricity shutdown won’t affect the operation of the magnet system or the magnetic latching of the work load. | Electricity is essential for the operation of the magnet. When in shutdown, the magnetization will stop. The work load may fall down without a battery backup supply. |
Reliability | No natural or electrical factors affect the magnet while it is operation and the reliability is quite stable. | An increase in temperature due to electric current flow or ambient temperature, may affect the operation of the magnet, and the coil or the electrical controls could open circuit or burn out. It is not as reliable. |
Maintenance | Minimum maintenance is required and the running cost is low. | The coils and battery need to be tested periodically and the cost can be expensive. |
The Operational Cost | No electricity is consumed while operating the magnet. The total electricity consumption is 5% of the electromagnetic systems. | The electricity consumption is quite large and the cost is expensive if used for long periods of time. |
Lifting weight/ Actual Weight Comparison | High:- A 4200kg electro permanent magnet can lift 15 tons. | Low:- A 8700 kg electromagnet can lift 15 tons. |
PRODUCT SPECIFICATIONS
Art No. | Serier Code | Length(mm/in) | Dia (mm/in) | Dead weight (kg/Lbs) | Capacity (kg/Lbs) | Magnetic module | ||||||
Min. | Max. | Min. | Max. | Model | Qty | |||||||
HT-06-010 | HT-010B0102-1 | 1000/39 | 6000/236 | 114/4 | 406/16 | 564/1241 | 1000/2200 | HEPMP-640 | 8 | |||
SALES AND SERVICE NETWORK
Packing & Delivery
* Customized bracket support for all-round protection
Company Profile
About HVR MAG
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
HVR Magnetics Co., Ltd is a high-tech enterprise that mainly researches and develops electro permanent lifting magnet, magnetics quick mold change system and electro permanent magnetic chuck .We have built stable cooperation with some famous companies as ABB, BOSCH, HITACHI, FUJISTU, FOXCONN and SUMITOMO.
HVR MAG designs and manufactures electro permanent lifting magnets for a wide range of applications. Our heavy duty lifting mangnets are designed for applications such as steel plate handling, coils, strips, profiles, piples, Billets, round bar, rail and more. These magnets are commonly used in steel structure shipyard. Metal cutting workshops. Warehouses , foundries, coil and pipe distributors, and other users of applicable steel products.
Professional
30 Engineers, 20 years of working experience.
6 Invention patens.30 utility model patents. 2 appearance 38 patents.
Quality
High quality with input material inspection and final inspection.
Certification
CE&ISO 9001;:2015
TUV CE certification
Guarantee
Standard 12 months quality guarantee
Global Ping An Insurance for your working operator
Production
Modern factory with high production capacity
Service
On-site installation and online technical support are available
FAQ
Q：HVR is a Factory or Trading company?
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
A: Zhuzhou HVR Magnetics Co.,Ltd is a professional manufacturer of magnetic products over 10 years, We bring the best lifting solution for steel sheets based on our innovative technology and superior product quality.
Q: How to guarantee the quality of products.
A: 1. Any goods go through strict inspection procedures before they leave the factory.
2. There is a global product liability insurance provided by Pingan of China for our products.
Q: Where is the factory?
A: Building C-3, Gaoke Industrial park, Tianyuan district Zhuzhou,Hunan ,China
Q: How about quotation?
A: Before our exact quotation, we need confirm the usage scenario, Size, Grade, Coating, Magnetization Direction and Quantity , only when the model is confirmed can we give a quotation.
Q: What’s the electro permanent magnet?
A: Electro permanent magnet is a magnet which can be controlled by electricity. It only needs electricity when it is magnetized or demagnetized, and then it can maintain magnetism without electricity. An electropermanent magnet is a combination of a permanent magnet and an electromagnet.
Q: Why should you buy from us not from other suppliers?
A: 1. 31 R&D engineers, 20 years technology accumulation, 29 R&D patents .
2. CE & ISO 9001:2015 standard .
3. Quality controller : 14 years experiences QC technicians.
4. 24 hours online service.
