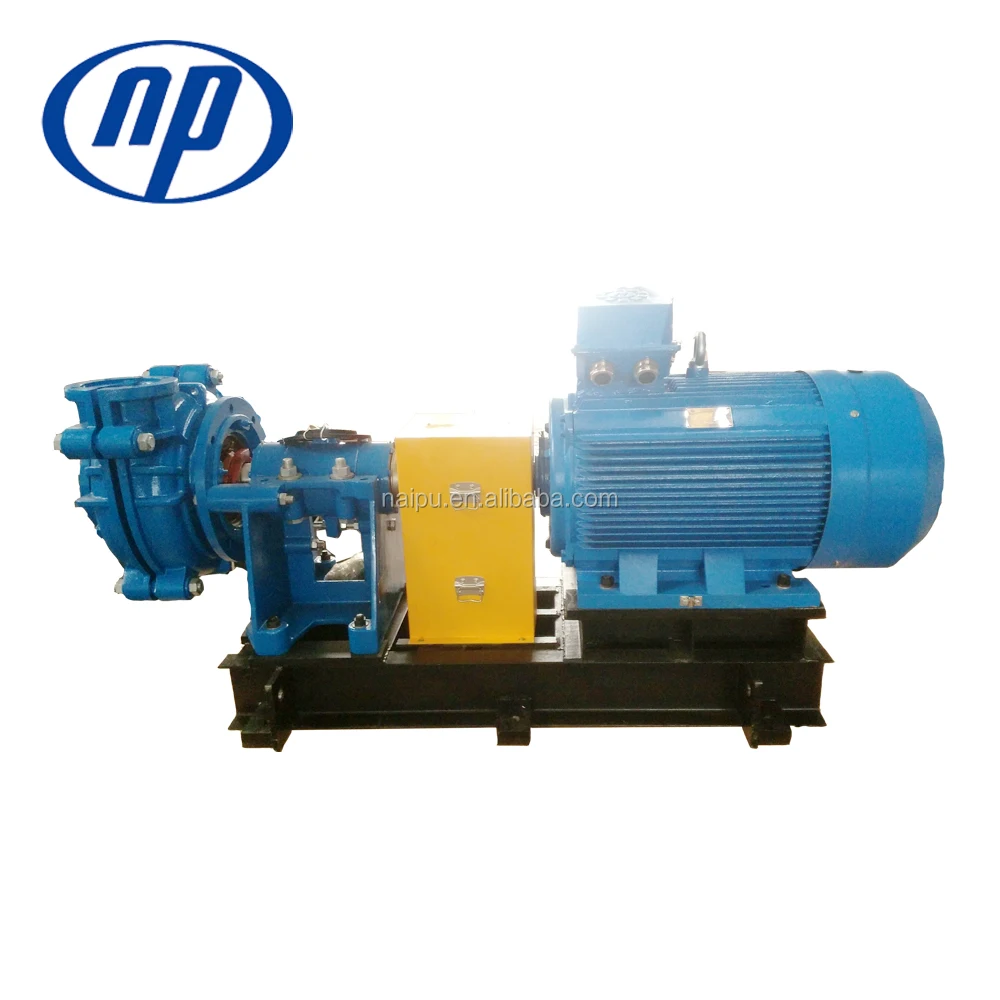

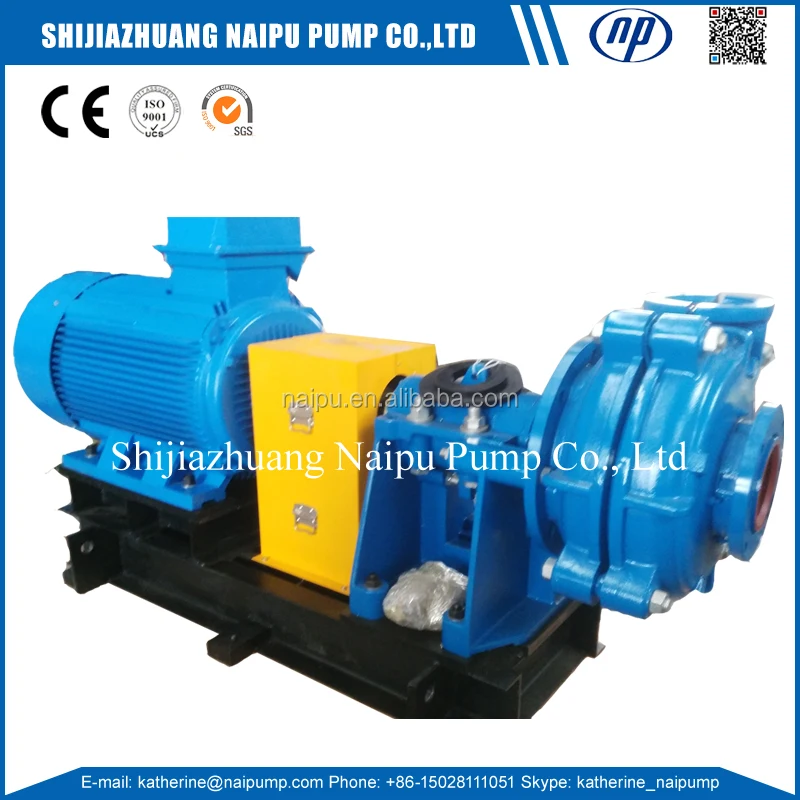

6 / 4 EE NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps
6 / 4 EE - NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps
6 / 4 EE - NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps
6 / 4 EE - NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps
6 / 4 EE - NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps
6 / 4 EE - NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps
6 / 4 EE - NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps

6 / 4 EE NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps

Share on (60054460948):


Price:

Quantity:


Product Overview

Description

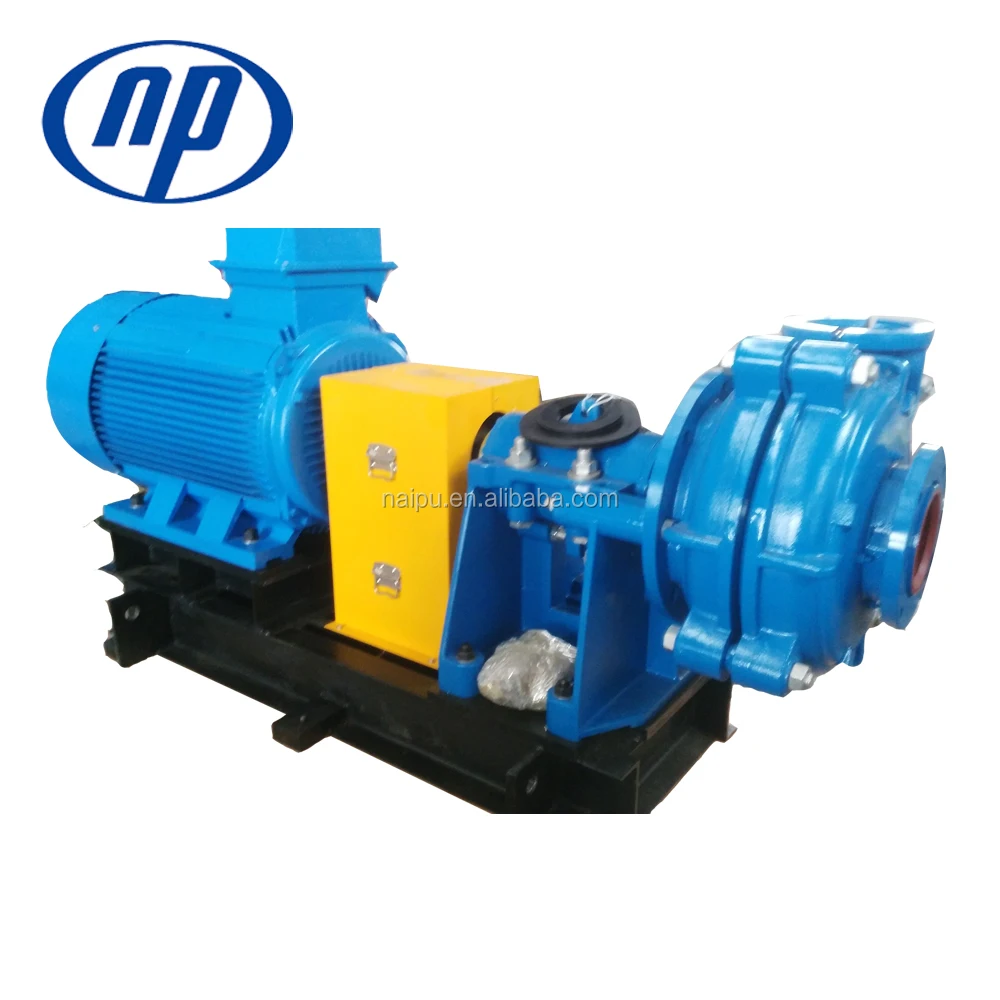

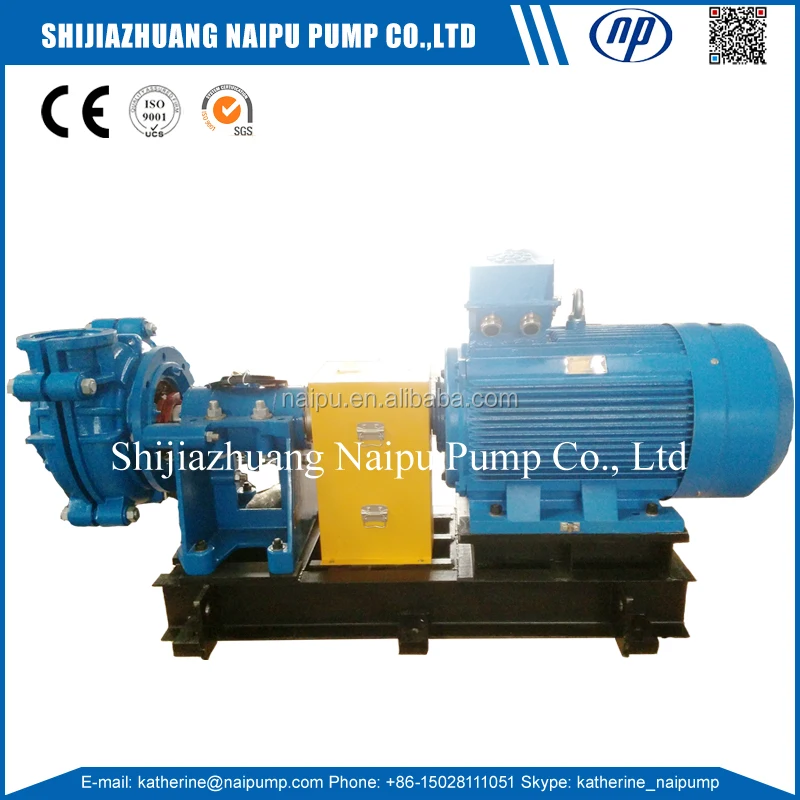

6 / 4 EE - NPAHE Frame Mounted End Suction Bare Shaft Slurry Pumps



Product Description


NPAH series slurry pump





Horizontal Slurry Pump Both metal or rubber liners and impellers, or a combination of both, are interchangeable within the same pump to facilitate use in various applications.


AH metal liners Horizontal Slurry Pump Outline dimensions are common to both metal and rubber pumps allowing interchangeability without pipeline or civils rework being necessary. Horizontal Cantilevered Slurry Pump, Metal Slurry Pump, A05 Slurry Pump.


Naipu is a specialist supplier of slurry pump to the mining and quarry industries. We stock a comprehensive range of slurry pump parts that are 100% interchangeable.
















































































































































TypeAllowable Mating Max. Power(Kw)Clear Water PerformanceImpeller
Capacity/Q m³/hrHead/mSpeed/rpmMax Efficiency/%NPSH/mNos of VaneImpeller Diameter/mm
1.5/1B-NPAH1512.6--28.86--681200--3800402--45152
2/1.5B-NPAH1532.4--726--581200--3200453.5--85184
3/2C-NPAH3039.6--86.412--641300--2700554--65214
4/3C-NPAH3086.4--1989--521000--2200714--65245
6/4E-NPAH60162--36012--56800--1550655--85365
8/6E-NPAH 300360--82810--61500--1140722--95510
10/8F-NPAH 560612--136811--61400--850714--105686
12/10ST-NPAH560936--19807--68300--8008265762
14/12ST-NPAH5601260--277213--63300--600773--105965
16/14TU-NPAH12001368--306011--63250--550794--1051067
18/16TU-NPAH12002520--540013--57200--400855--105 1370




Detailed Images

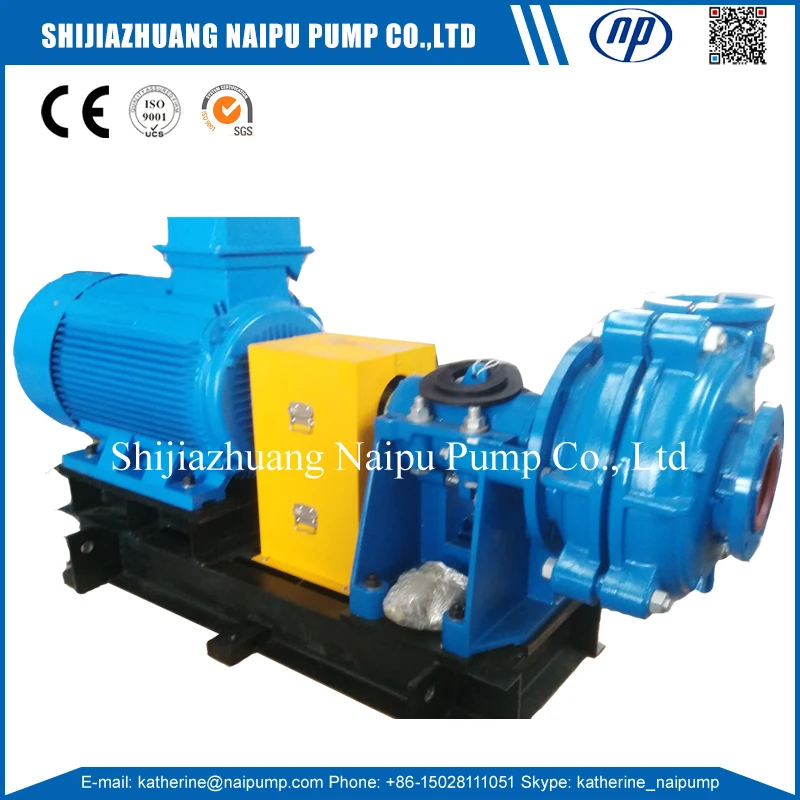

Warman Slurry Pump.jpgHorizontal Slurry Pump.jpg

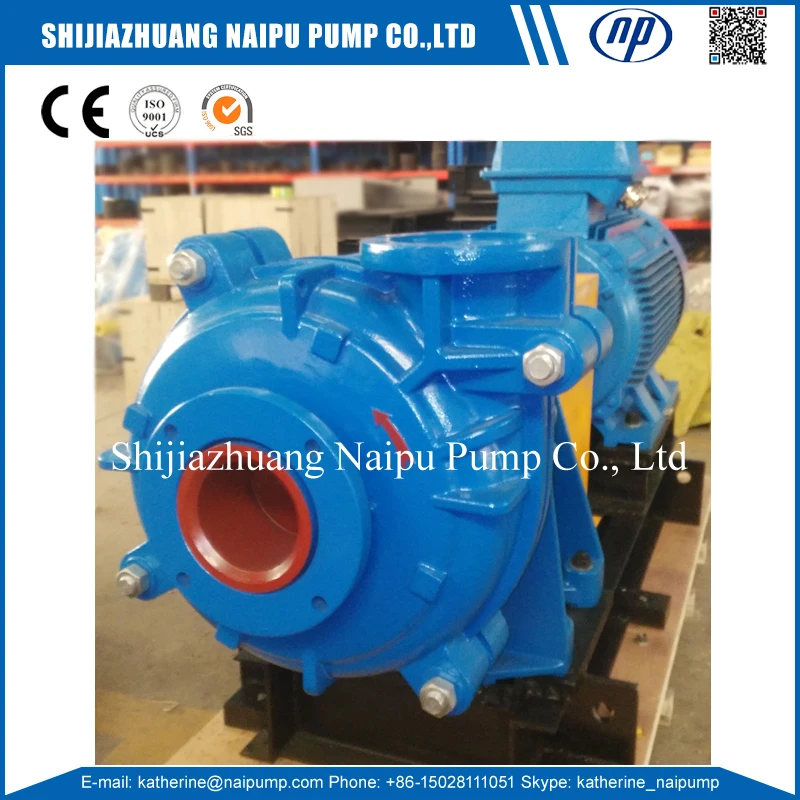

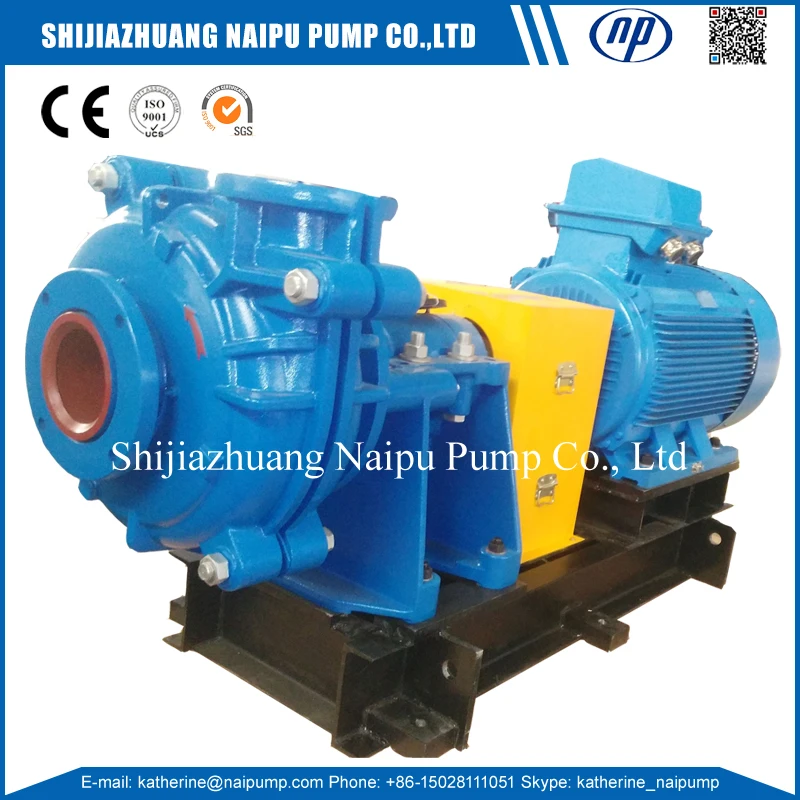

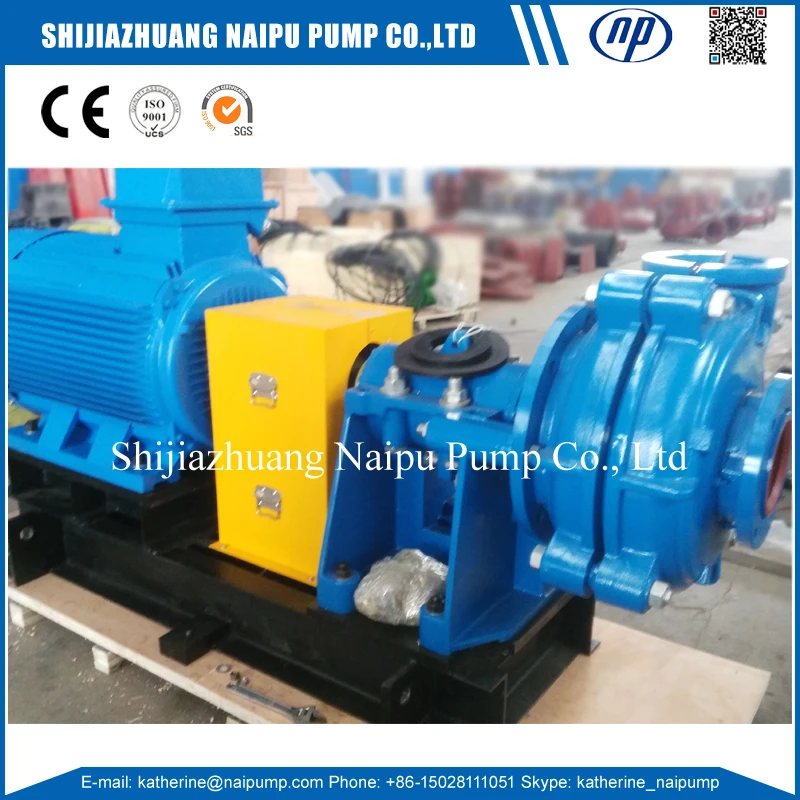

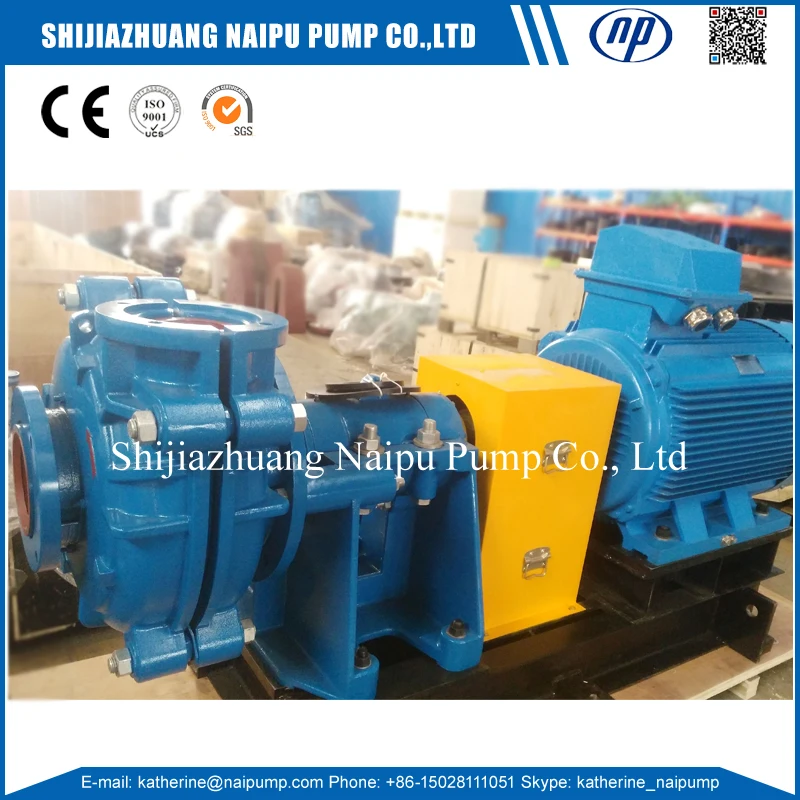

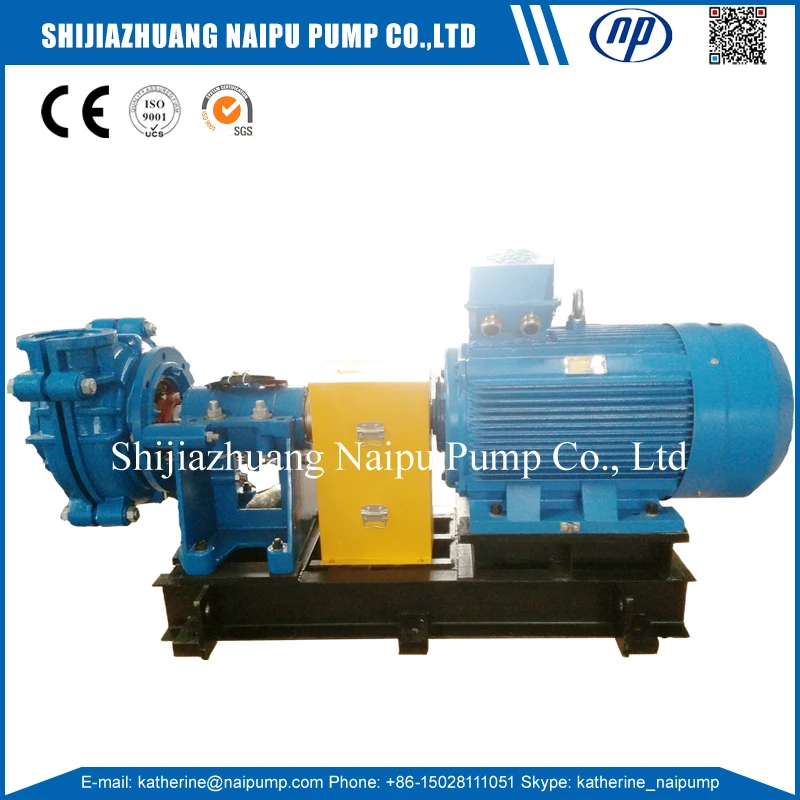

A05 Slurry Pump.jpgCentrifugal Slurry Pump.jpgCr30 Slurry Pump.jpgHigh Chrome Pump.jpg6-4EEAHE Slurry Pump.jpg





Pump Construction


6/4 EE- NP- AHE Slurry Pump Construction

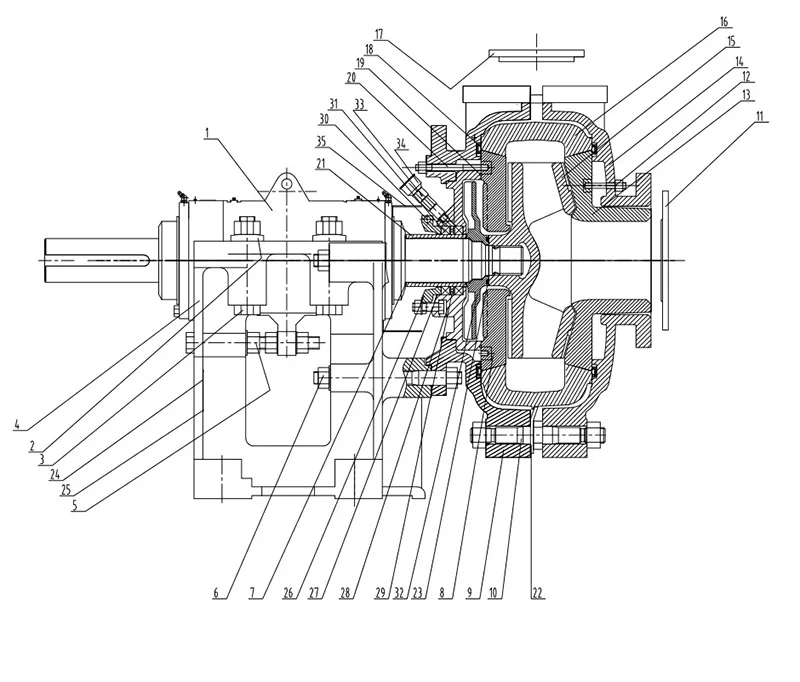

6-4 EE-AHE Pump Assebly Drawing


Slurry Pump Main part number at the drawing

















































































































No.Parts NamePart Code  Material
1Impeller E4147EPHi Chrome A05, A61
2Volute Liner E4110EPHi Chrome A05
3Thoat Bush  E4083EPHi Chrome A05
4Frame Plate Liner LnsertE4041EPHi Chrome A05
5Frame Plate Liner Insert GasketE122Rubber
6Intake JointE4060Rubber
7Discharge Joint RingE4132XLPRubber
8Volute Liner  SealE4124Rubber
9O Ring  E109NBR Rubber
10Impeller - O Ring F064NBR Rubber
11Shaft Sleeve E0753Cr13
12Bearing assemblyEE005M
13Frame PlateE4032QT500
14Cover PlateE4013QT500
15Bearing Housing E004MG01/HT200
16BaseE003MG01/HT200
17Shaft E073M45#




Related Products


Naipu pump produce many kinds of centrifugal slurry pump. Such as, horizontal slurry pump, vertical slurry pump, sand gravel pump, froth slurry pump etc.

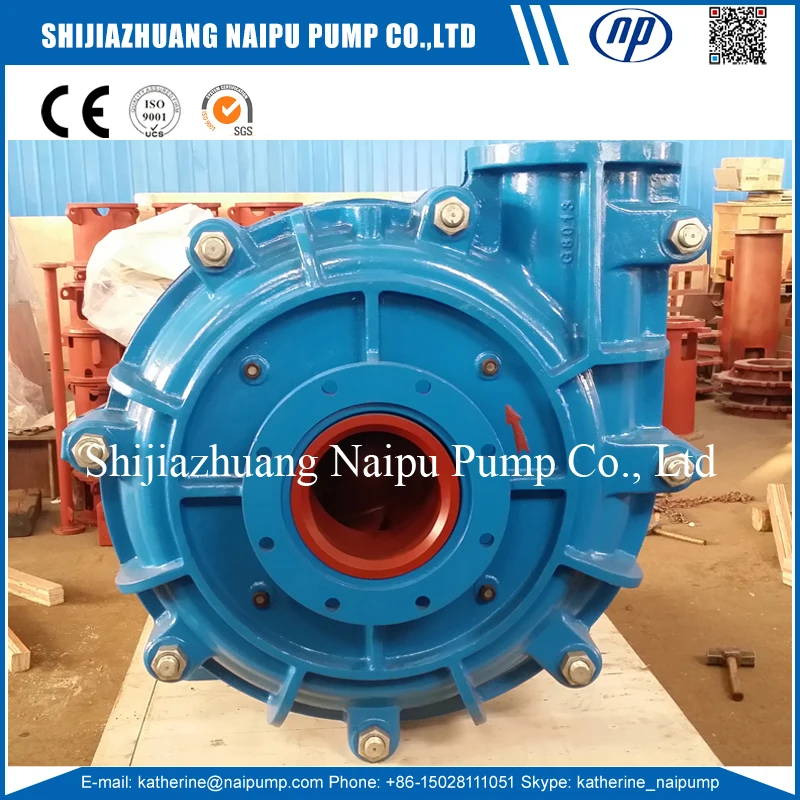

10-8 slurry pump 9.jpg2-1.5B-AH-CV-Pump
10x8 AH Slurry Pump2x1.5 Small Slurry Pump
6x4 AH Slurry Pump.jpgA05 pump for sale
6x4 A05 Slurry Pump14x12 AH Slurry Pump

slurry pump.jpg





Certifications


CE, SGS, ISO9001 Certification





Pump Certifications.jpg





Buyer Feedback

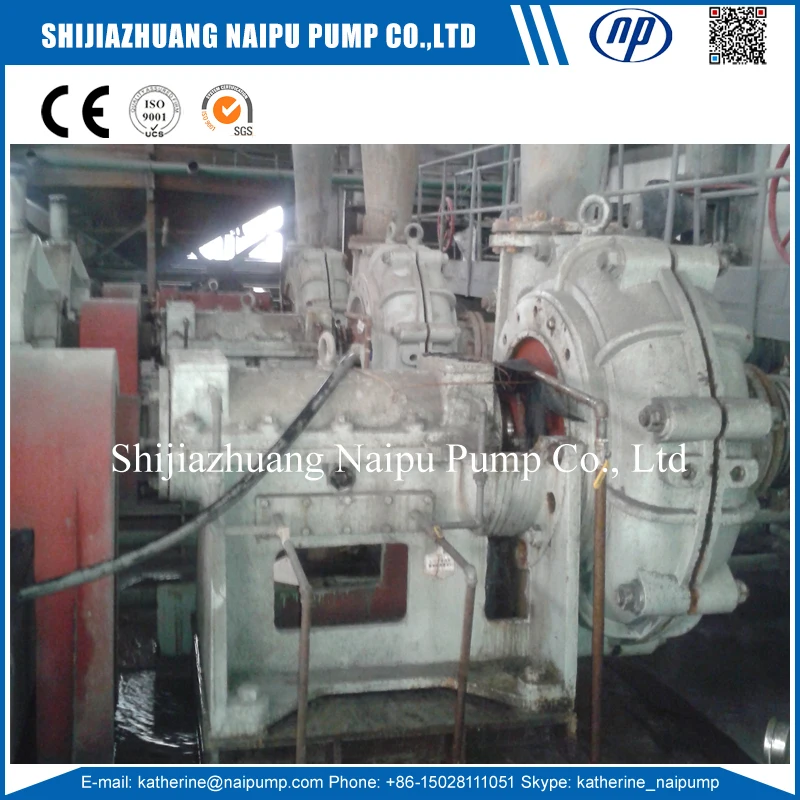

 AH Pump Applications
