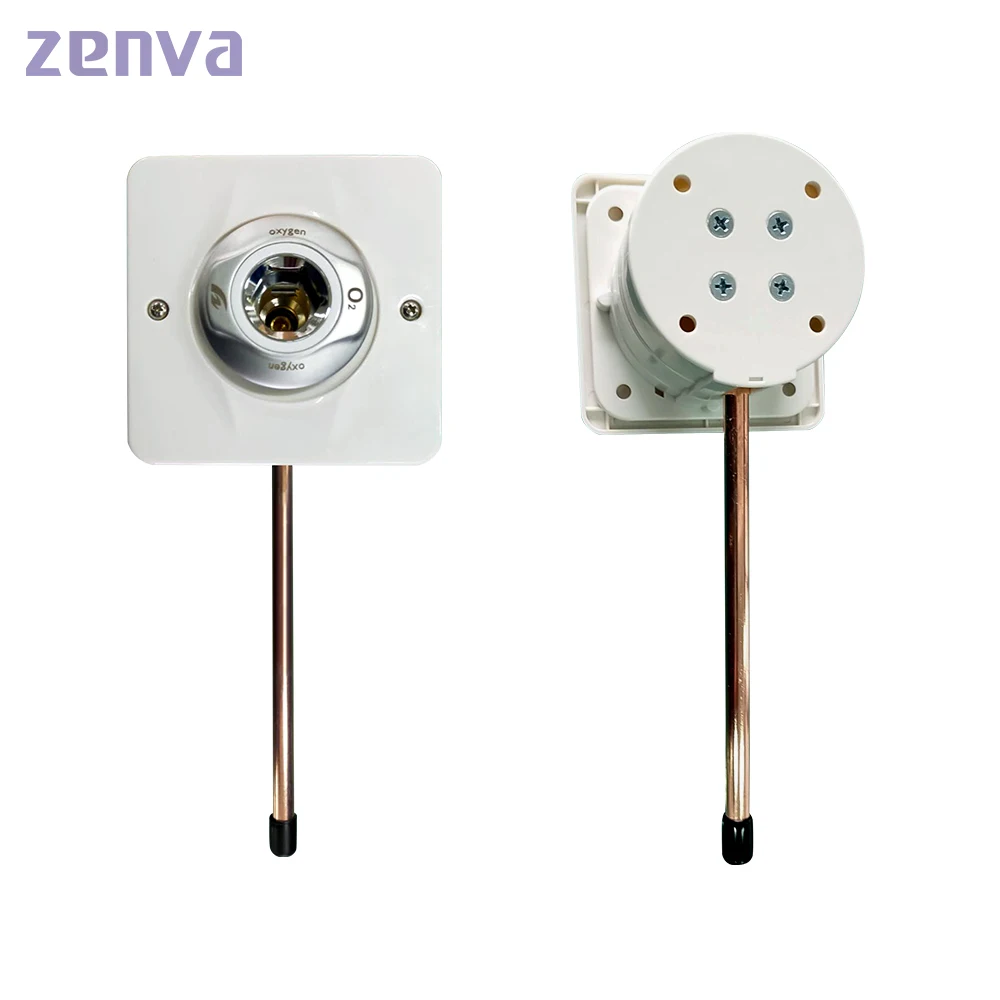

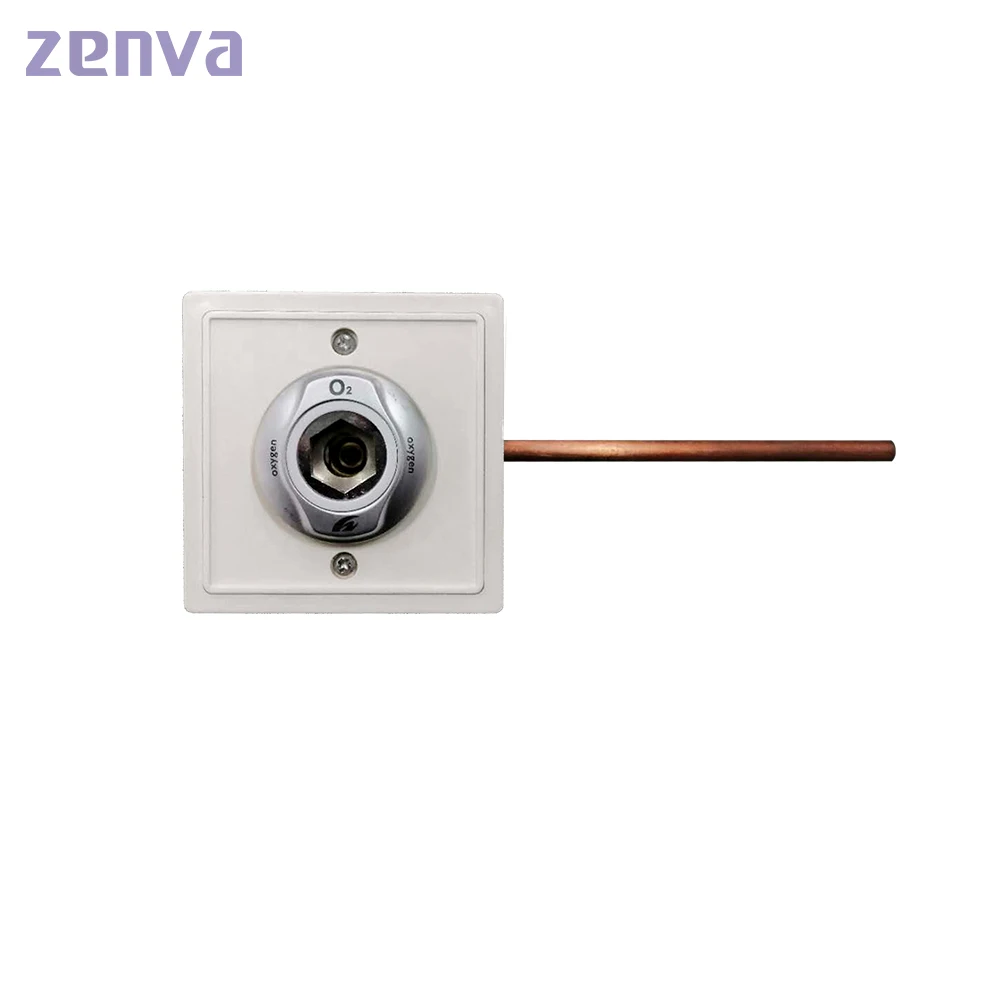

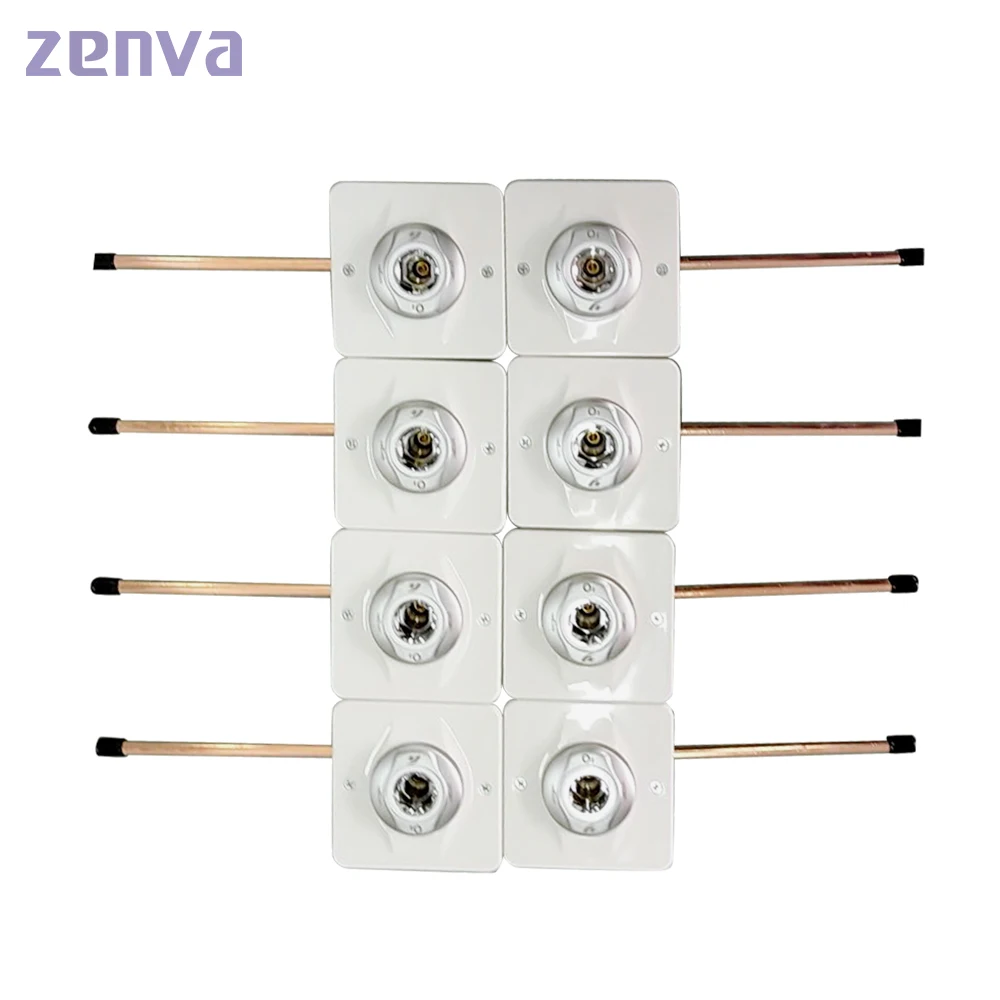

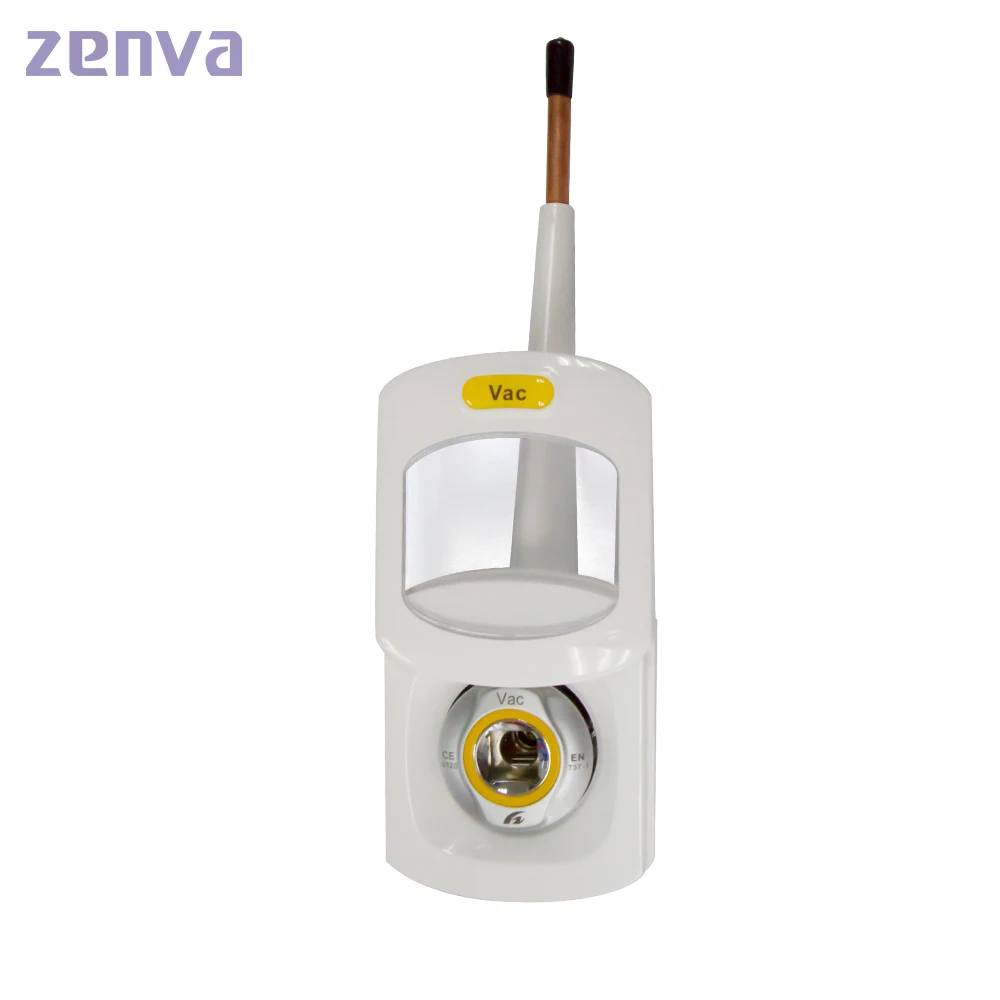

BS Medical Gas Outlet

Product Overview

Description

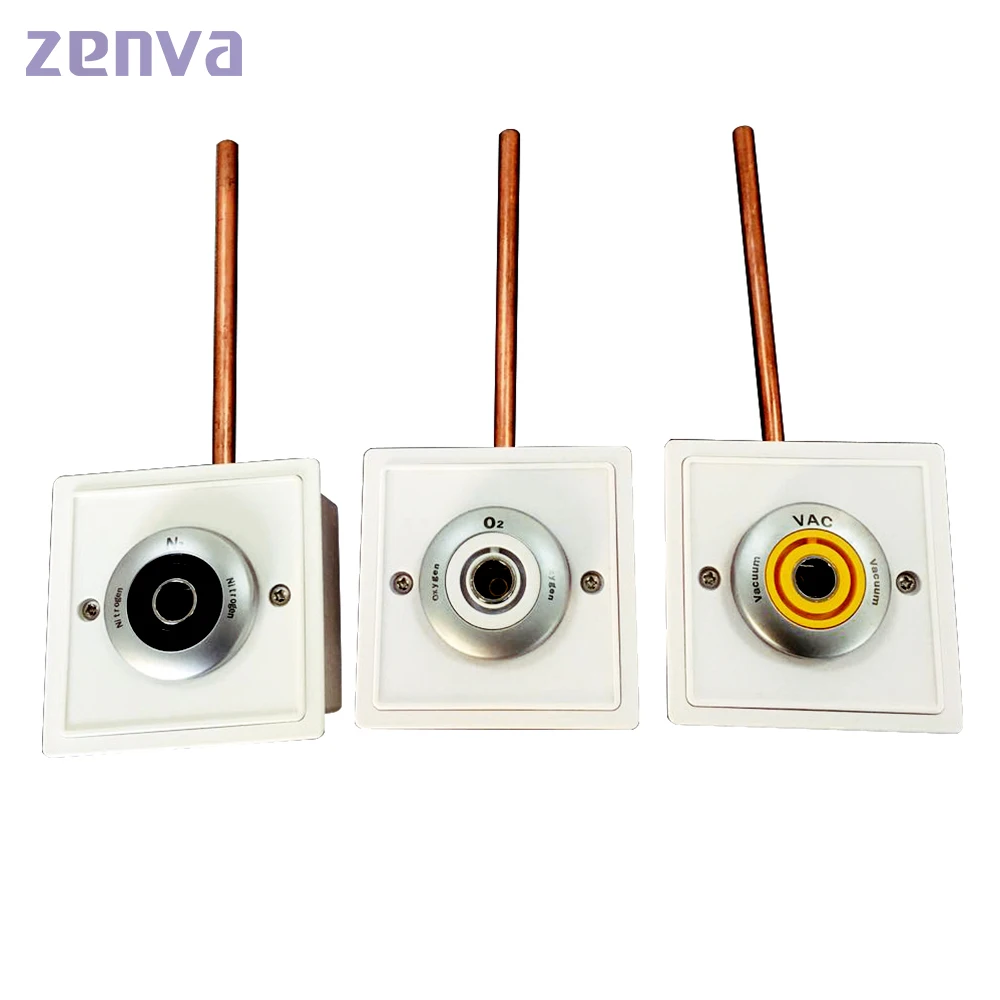

Different Medical Gas Outlets



Application:Used to obtain various gases (including negative) from the central gas supply system piping in the medical equipment

Can be divided into:

German

British

French

Japanese

American

And other type.

While supporting plug selected in line with the relevant standards

Structure and Function



Terminal consists of two parts: one is back-end base (various gases are different), two is front-end interface (the interface of different colors and shapes, with anti mistakenly inserted function), inside the back-end base with a non-return of maintenance valve. Maintenance valve can be screwed into threaded portion of the base. Then can cut off the gas supply after screwing terminal, enabling maintenance functions with gas



Technical Parameters

Type of construction: Galvanized pearl all-metal structure, with a stop-off-pass three-position, by pressing the button to unlock all metal; single-hand operation; maintenance valve can be manually turned off.

Installation:Wall concealed installation; surface mount; bed head unit installation; medical ceing pendant and medical bridge pendant installation

Color logo: Follow the ISO 32 standard colors or neutral colors design
