Factory produce energy soft drink manufacturer
- Category: >>>
- Supplier: Zhangjiagang Sheenstar Technology Co. Ltd.
Share on (60054590436):
Product Overview
Description
Product Description
Factory produce energy soft drink manufacturer
Images show:

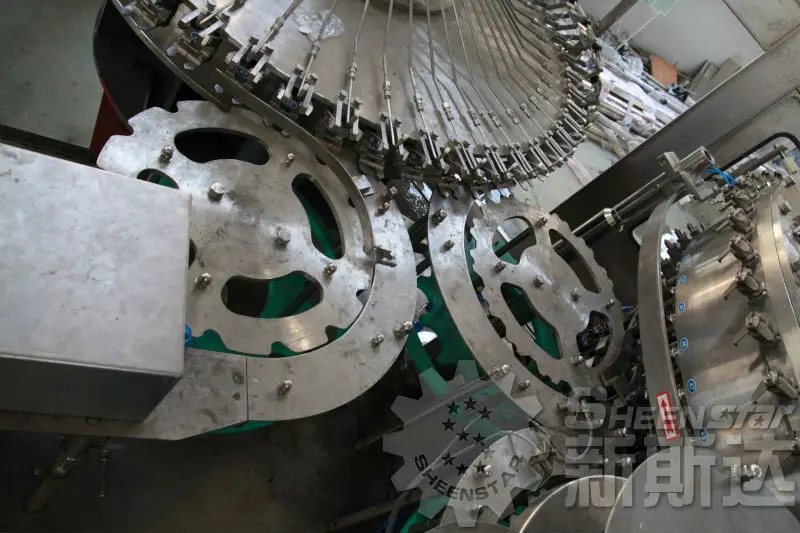

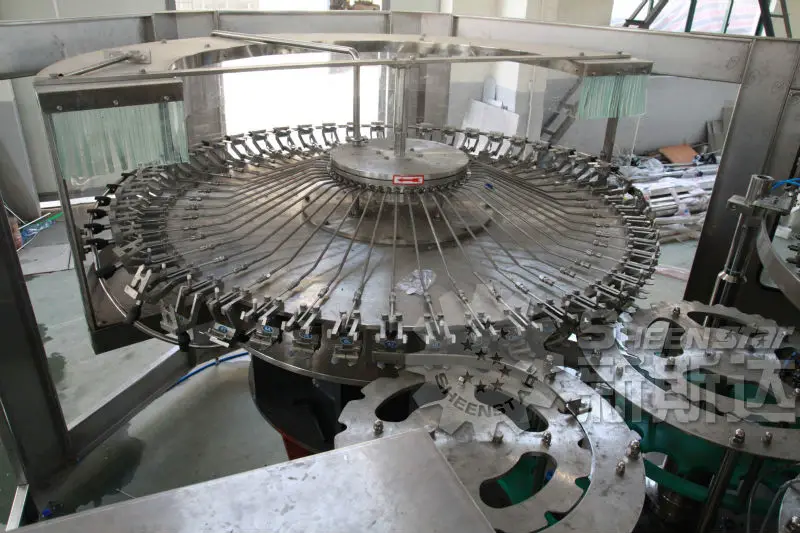

Washing part
Filling part

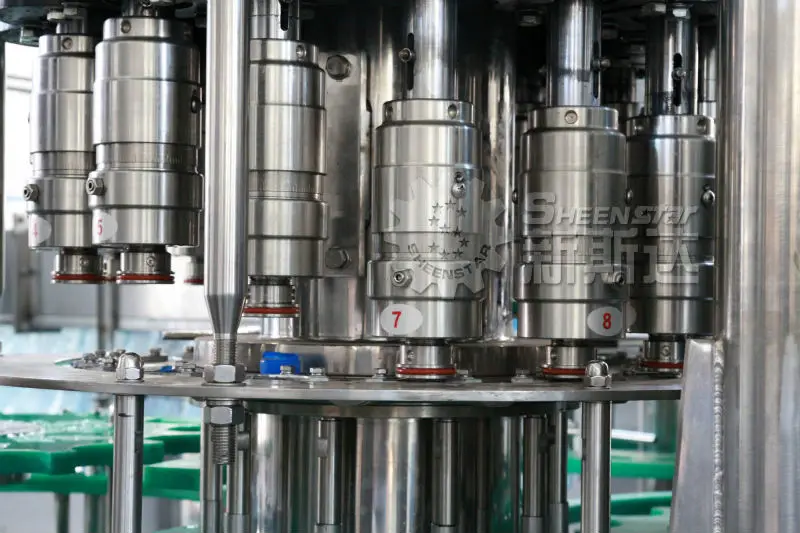

Capping part
Product Description:
(1) All parts of the filling machine touch with the material adopt high quality stainless still. Through the polishing treatment the surface become easy to clean. Sealed material is rubber or EPDM material.
(2) Using programmle controller as the central control,using pressure transmitter, electromagnetic chaos pneumatic servo measurement level to maintian the balance of filling pressure in order to ensure the stability of the liquid surface.
(3) Designed new filling valve for plastic bottle, return-air and filling tank liquid are separation to ensure the cleaning of filling materials.
(4) The filling machine adopts advanced magnetic clutch-type screw cover head, torque is adjustable. Screwing cap is safe and reliable.
Product Main Technical Data:
Model(DCGF) | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
Number of washing,filling,capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
Suited bottle specification (mm) | Φ=50-100 H=170 330-1500ML | Φ50-Φ110 H=160-340 | ||||||
Production capacity(350ML) b/h | 2000- 4000 | 4000- 6000 | 8000- 10000 | 10000-12500 | 12500 -15000 | 16000 -20000 | 20000 -24000 | 26000 -32000 |
Washing pressure (MPa) | 0.2-0.25 | 0.2-0.25 | ||||||
Filling pressure (MPa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Motor power | 1.5+0.55 +0.12 | 2.2+0.55 +0.18 | 3+0.55 +0.18 | 5.5+0.55 +0.18 | 7.5 | 11 | 15 | 19 |
Overall dimensions (L×W×H) mm | 2300×1600 ×2500 | 2600×1920 ×2550 | 3100×2200 ×2800 | 3850×3000 ×2850 | 4850×3800 ×2750 | 5750×3550 ×2750 | 6500×5500 ×2750 | 7680×6640 ×2650 |
Weight kg | 2800 | 3650 | 4800 | 6800 | 8650 | 10500 | 12800 | |
Company Information
- Zhangjiagang sheenstar Technology Co., Ltd. has been in beverage packing machinery industry for many years.The company has got the ISO9001,CE,SGS certification.
- sheenstar provides complete beverage production solutions, such as bottled drinking water,5 gallon barreled water, fruit juice, gas drinks, soy milk, wine and other complete production lines, including of water treatment, beverage pre-treatment system, injection molding machine, Filling machine, labeling machine, shrink packing machine, and other machines which are suitable for plastic bottles, glass bottles,cans etc.
- sheenstar provides suitable machine according to customer's requirement.And has rich experience in Southeast Asia, the Middle East, Africa, Europe, America and Oceania.
- Welcome to SHEENSTAR,Leyu town,Zhangjiagang City, China
- Let us share development and success.
working
Packaging & Shipping
Advantages
Certifications
FAQ
Q: Are you a factory or a trading company?
A: We are a manufacture,our factory is at Leyu Town,Zhangjiagang city which is near shanghai and wuxi.
Q: Does your company and products Through the authentication?
A: Yes,we have through famouse certification,ISO,CE,SGS,BV
Q: How long I can get the machine?
A: Accoring to the machine,usually less than 40 days
Q: How can i give you the money?
A: Up to you,T/T,L/C,western union and others will be ok
Q: How can i use the machine
A: The engineer will install the machine for you,and train your employee,also We will give you the user's guide
ANY OTHER QUESTIONS CONTACT WITH US PLEASE.
CLICK"SEND" TO GET WHAT YOU WANT
