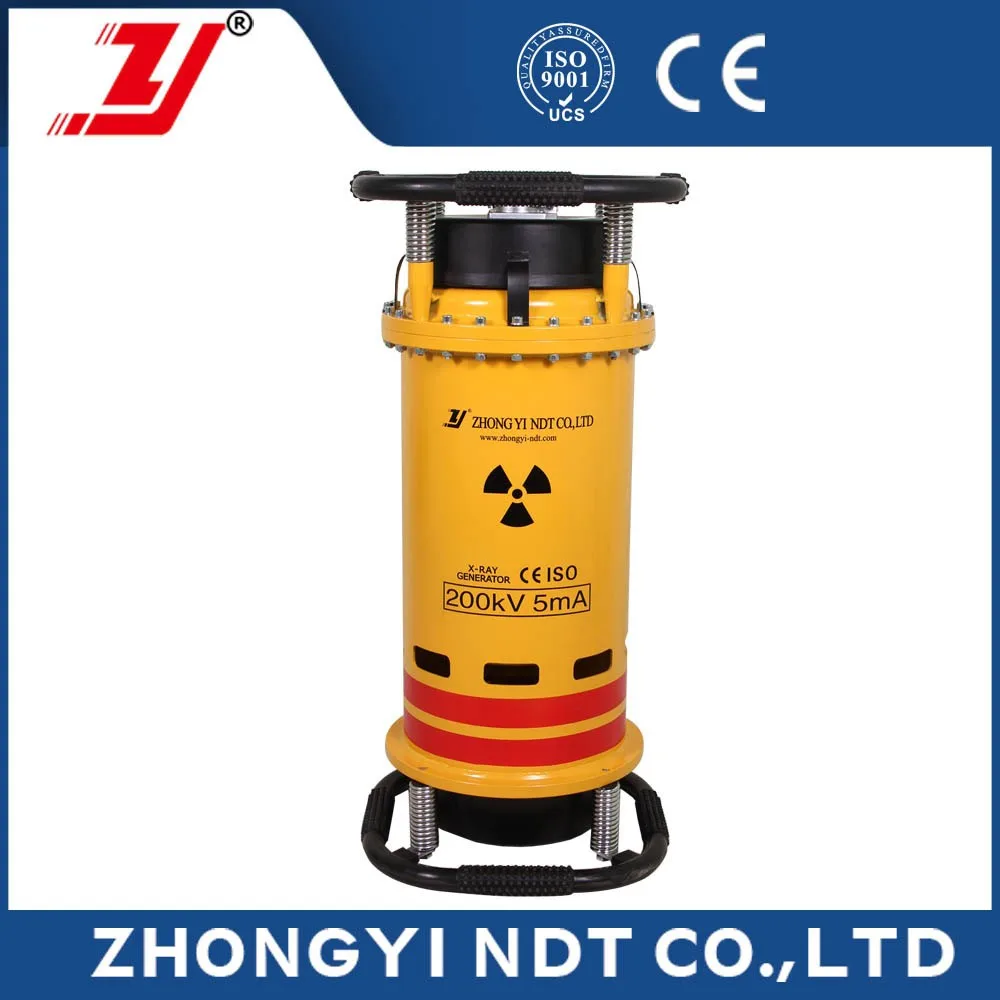

XXGH 2005 NDT Portable Industrial X ray Flaw Detector

Product Overview

Description

ndt portable industrial x-ray flaw detector





Introduction



Our ndt portable industrial x-ray flaw detector is a tool for welding line inspection, or defect inspection. NDT portable industrial x-ray flaw detector is widely used in pipeline joint inspection, boiler inspection, ship-building inspection and so on.



XXGH-2005 model is a panoramic ceramic tube machine.It can test annular welding joint. It is popular for its good quality and perfect performance.



Our ndt portable industrial x-ray flaw detector, after over 10 years improving, is very welcomed by users in different countries. Many users prefer our ndt portable industrial x-ray flaw detector because of its good quality but competitive price compared with some European machines.

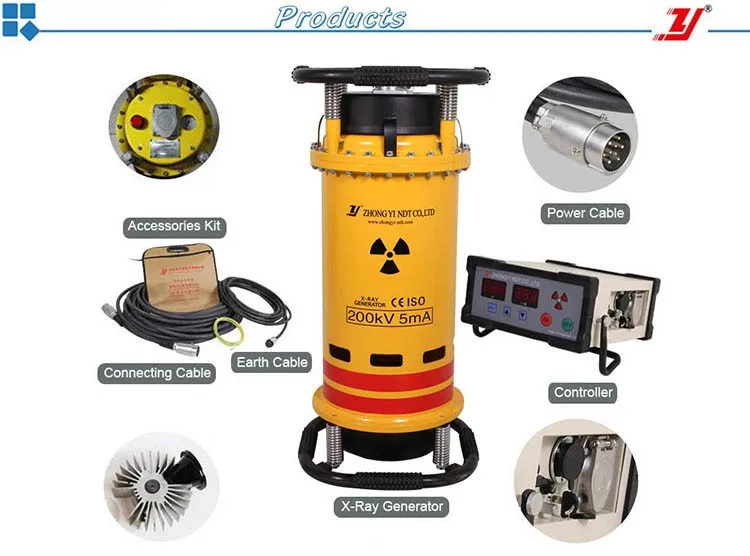

x-ray generator



1.Adopt high temperature installation technology to improve 30% heat radiation. The aluminium radiator has features as high stretch, high density and high purity.

2.Small volume, light weight ,easy to take and simplicity of operation.

3.More safe and reliable design of SF6 gas insulator, grounded-anode.

4.Strictly followed with 1:1 working/ resting radio, eliminating the disoperation.

5.The HV coils made by imported enamel wire are applied in the x-ray generator, so as to make the quality of the complete equipment improved a great deal.



controller

  ndt portable industrial x-ray flaw detector

1.It can still work by applying special design of high frequency technology what can avoid the interference by power grid change.

2.All the signal wires in the controller are imported from South Korea to make sure the controller’s quality.

3.We are using highpower electronic components,such as capacitance and power module with wide capability to greatly ensure the quality of the products.

4.Apply the isolation technology of low voltage and high voltage to ensure the controller working stablely.

5.Posses the reliable “time-delayed” function, suitable to operate in the open field.

6.It has functions of troubleshooting automatically and pressure indication to guarantee the stability of working.



Parameters



ndt portable industrial x-ray flaw detector



ndt portable industrial x-ray flaw detector Model	XXGH-2005
Tube	ceramic tube
Beam angle	panoramic 360°x30°
Tube voltage	80-200kv
Tube current	5mA
Capacity	>2.5
Focus size	1.0 x 2.0mm
Max. penetration	A3 steel 26mm
X-ray generator size	270x 270x 570mm
X-ray generator weight	20kg
Power supply	AC220V±10%,50HZ
Controller size	367x320x164mm
Controller weight	13kg
Insulating material	SF6 gas
Cooling way	air fan cooling



Warranty: 12 months.

Delivery: within 5 working days.

Package: wooden case.

















Zhongyi NDT Testing X-ray Flaw Detector/X-ray Generator
Model	Tube Voltage (KV)	Capacity (KW)	Focus Size (mm)	Max. Penetrate (mm)
XXQ-1005	40-100	>1.0	1.0*1.0	8
XXQ-1605	60-160	>1.5	1.5*1.5	20
XXQ-2005	80-200	>2.0	1.5*1.5	29
XXQ-2505	130-250	>2.5	2.0*2.0	39
XXQ-3005	150-300	>3.0	2.5*2.5	49
XXQ-3505	250-350	>3.5	2.5*2.5	59
XXH-1605	60-160	>1.5	1.0*2.0	18
XXH-2005	80-200	>2.0	1.0*2.4	26
XXH-2505	130-250	>2.5	1.0*2.4	36
XXH-3005	150-300	>3.0	1.0*3.4	46
XXH-3505	250-350	>3.5	1.0*3.4	56
XXHA-1005	40-100	>1.0	1.0*2.0	4
XXHA-1605	60-160	>1.5	1.0*2.5	15
XXHA-2005	80-200	>2.0	1.0*2.5	24
XXHA-2505	130-250	>2.5	1.0*2.5	34
XXHA-3005	150-300	>3.0	1.0*3.5	40
XXHA-3505	250-350	>3.5	1.0*3.5	50
XXG-1605	60-160	>1.5	1.5*1.5	20
XXG-2005	80-200	>2.0	1.5*1.5	29
XXG-2505	130-250	>2.5	2.0*2.0	39
XXG-3005	150-300	>3.0	2.5*2.5	49
XXG-3505	250-350	>3.5	2.5*2.5	70
