Hydraulic machine equipment for making presswood compressed mouled molding wood pallet
Company Information
Xiamen Chans Wood & Machinery Co.,Ltd. Specializes in waste wood and plant fiber recycling. The founder Mr. Chen Guoshu has been long-time dealt with artificial board, especially for waste wood and plant fiber, in which aspect he has systematically studied and also got great achievements that he designed the presswood pallet production line successfully. Hi-qualified end product is derived from advanced production technologies and quality production equipments. With the two unique advantages, we are confident that we can go far in the field of presswood pallet... ...
Product Description
Hydraulic machine equipment for making presswood compressed mouled molding wood pallet
1.Hot press equipments
2.Pallet feet make with best quality
3.High density
4.ISO,BV
The Material of Hydraulic machine equipment for making presswood compressed mouled molding wood pallet
Wood shavings/Wood wool/Wood sawdust/waste wood
The final products of Hydraulic machine equipment for making presswood compressed mouled molding wood pallet
Features and advantages of Hydraulic machine equipment for making presswood compressed mouled molding wood pallet
1.One time shaped.
2.Material is cheap and common. waste wood can be as a material.
3.Final products can be kept in water within 24 hours.
4.After high temperature and pressure, the pallet is fumigation-free, inspect-free in export.
5.Mold working life is around 10 years.
6.Easy operation and long working life.
7.The installation is very convenient. Precise molding of pallets.
8.The pallet have super bearing ability.
--Dynamic load : ≥ 1000kg,
--Static load : ≥ 3000kg.
9.Standard pallet specification have 1200*1000*135mm, 1200*800*135mm, 1100*1100*135mm,1300*1000*135mm.
We also can design special mold according to your requirements.
Technical parameter
Item
Hydraulic machine equipment for making presswood pallet
Cylinder
φ650mm*1pc
Lifing cylinder
Φ90mm*2pcs
Nominal pressure
800tons
Open
1000mm
Cylinder stroke
800mm
Heating
Thermal oil or steam
Working pressure
25Mpa
Frame thickness
50mm
Weight
20tons
Power
22kw
Control
PLC
Hydraulic pump
ycy63piston
Working area
1300*1620mm
Overall
2250*1250*3800mm(excludes oil tank)
Hydraulic machine equipment for making presswood pallet introduction
Pallet line includes dryer,crusher machine,screw conveyor,Glue blender machine, Pallet making machine,unloader.

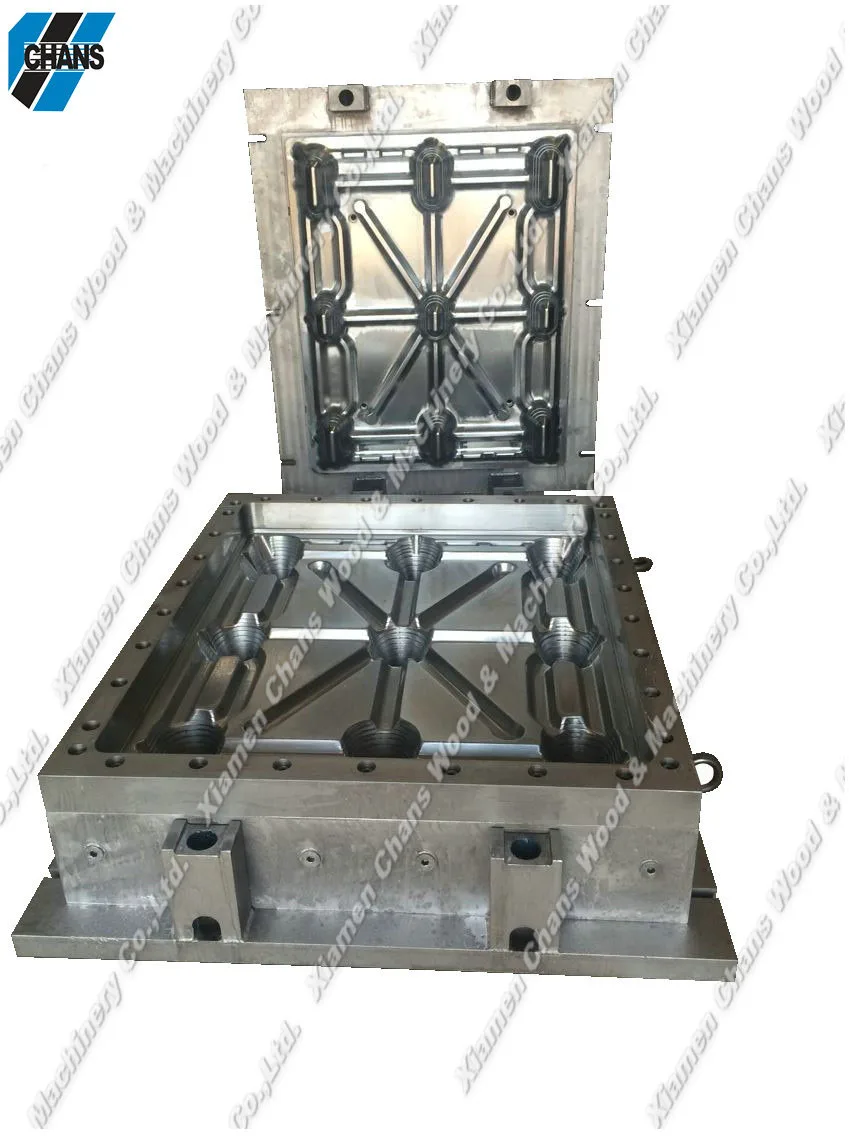

Pictures of press wood pallet molds
Test of presswood pallets
Packaging & Shipping
Seaworthy package
Our Services
Engineers available to service machinery overseas.
