25 years original manufacturer briquette charcoal making machine

Product Overview

Description

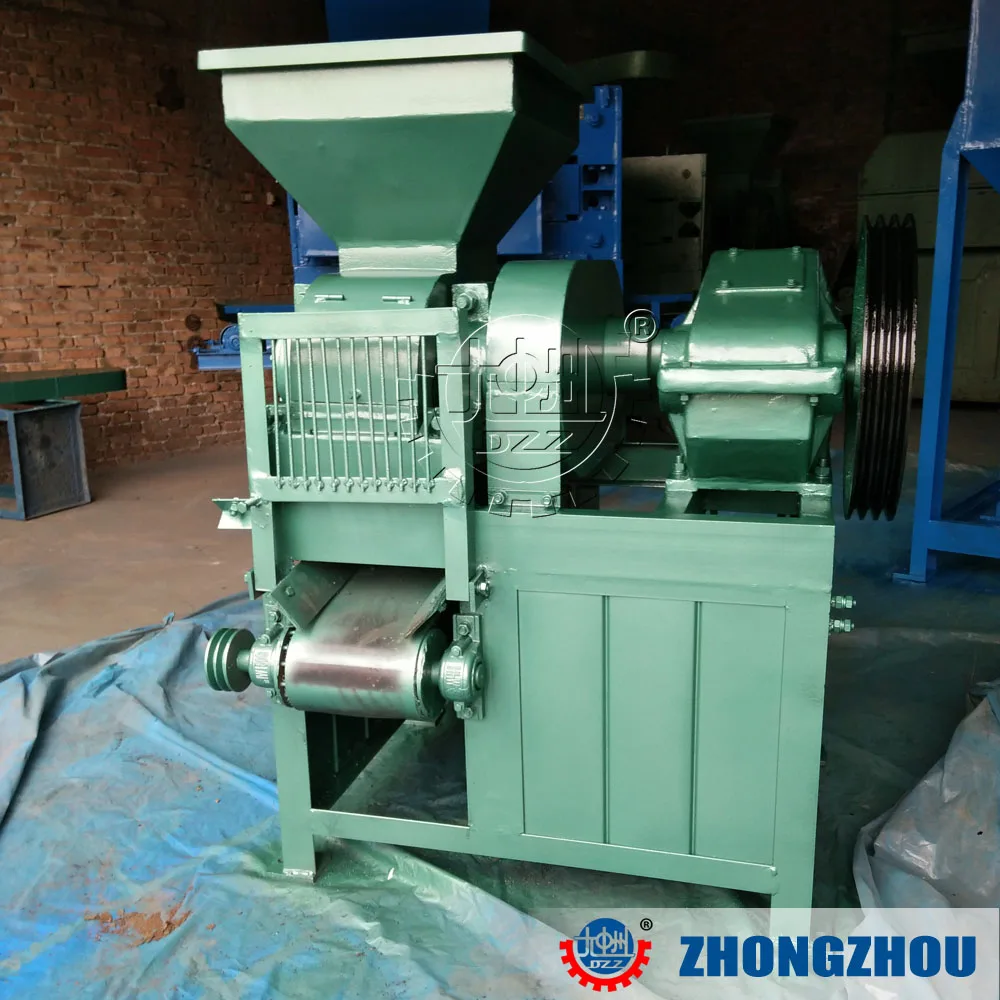

25 years original briquette charcoal making machine

Pillow or Round Shape briquette charcoal making machine



1. Material type: coal fines, coke fines, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, cast iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder,ferrosilicon powder, and phospho gypsum powder, nickel alloy, blast furnace ash, converter dust, coal gangue, Kaolin clay, MgO, NPK, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc.

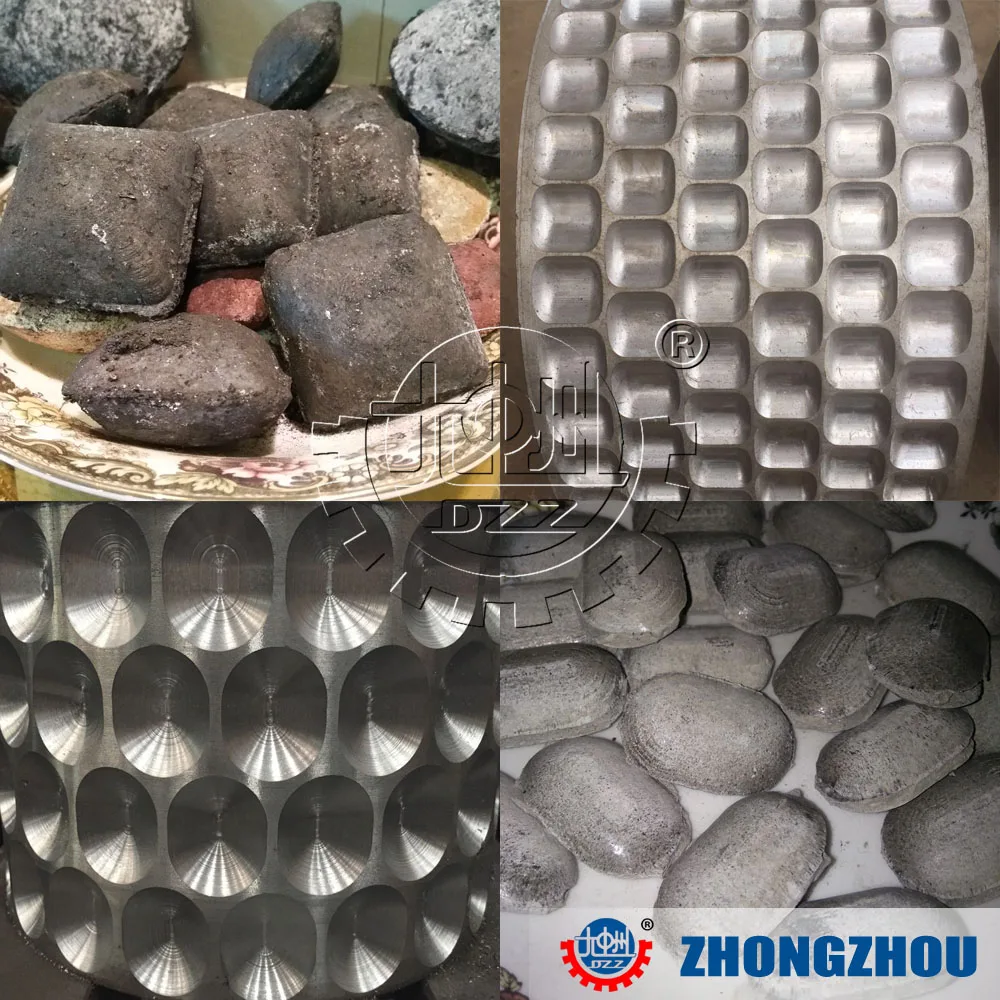

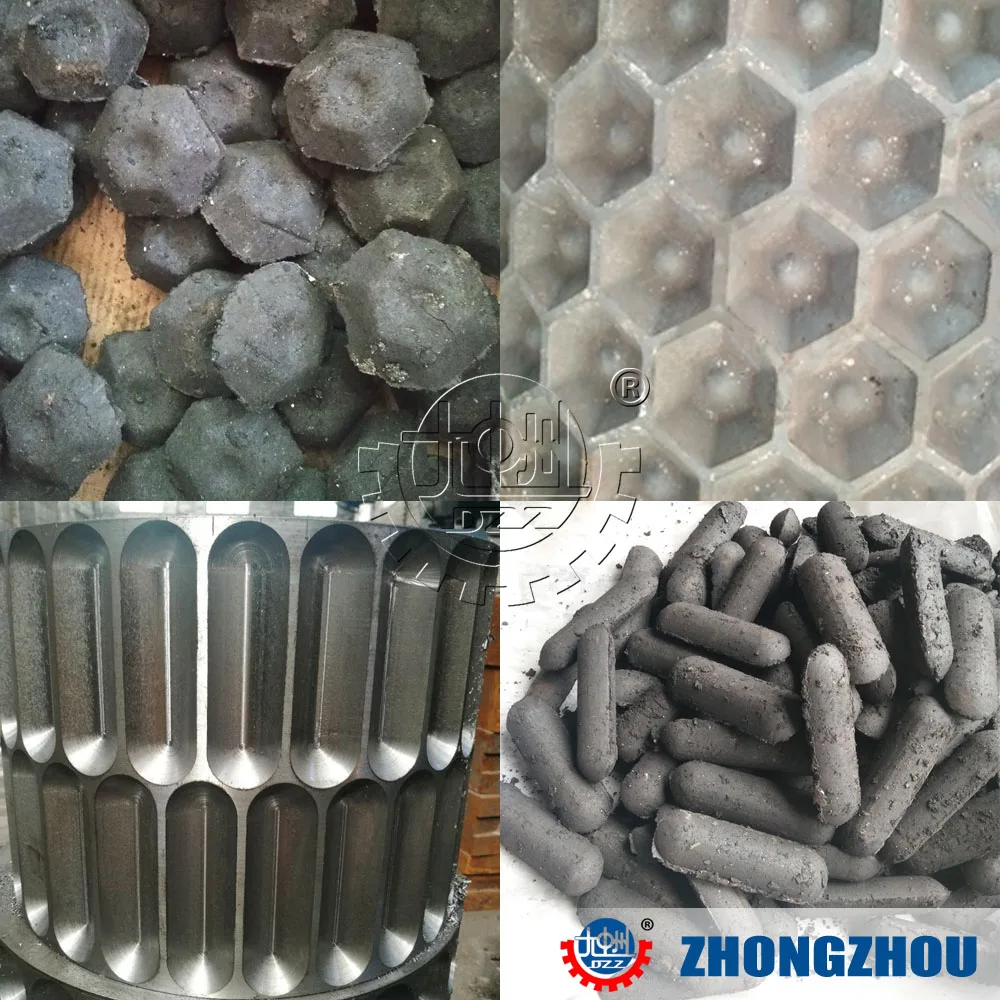

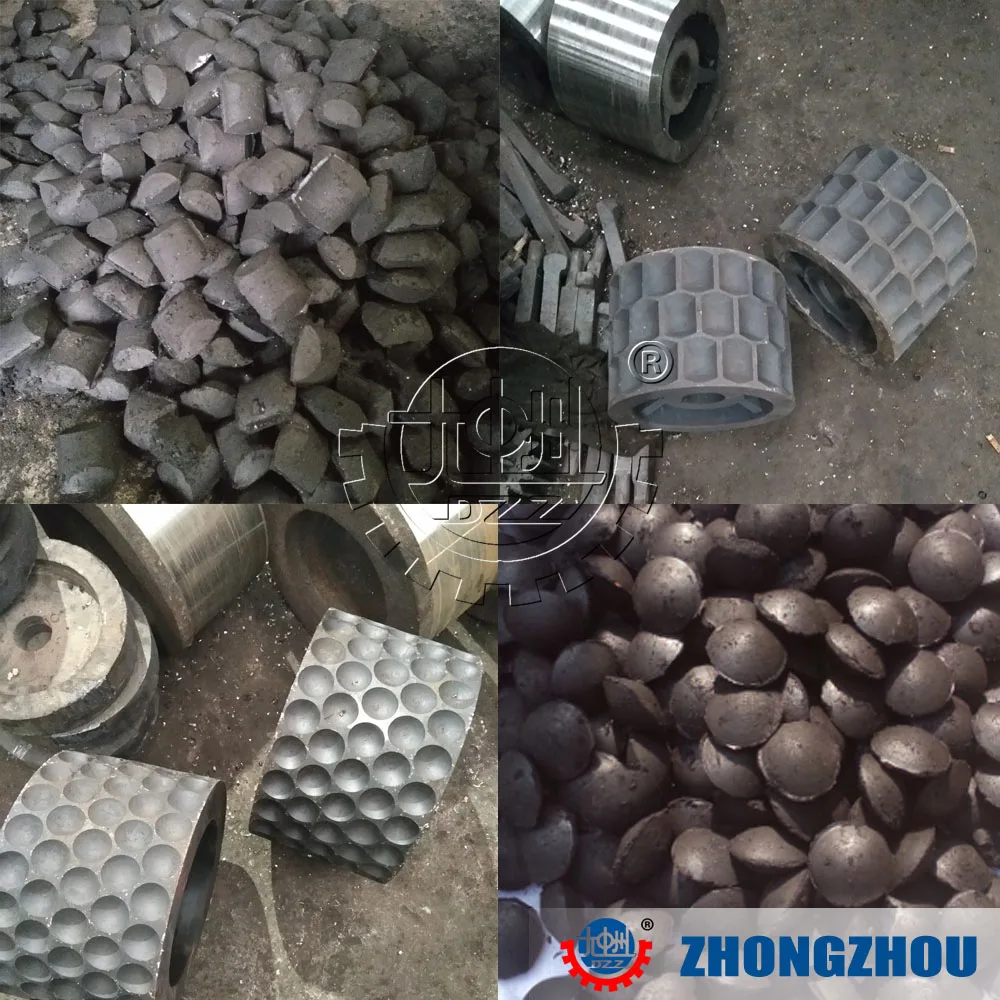

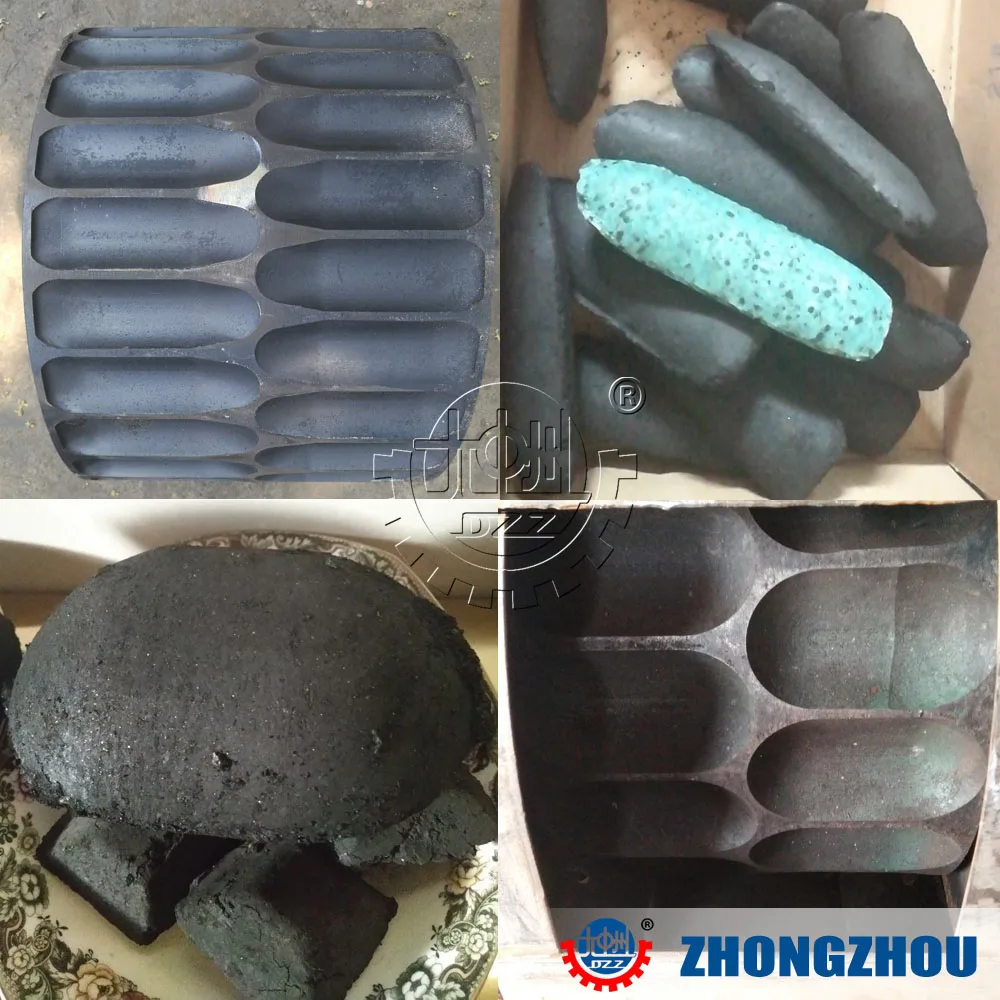

2. Final briquettes shape: These briquettes can be designed of oval shape, egg shape, pillow shape etc.

3. Application: This machine is widely used in coal industry, metallurgy industry, chemical industry etc.





Briquette charcoal making machine structures:

Our factory specialized in designing and manufacturing briquette press ball machine, iron powder ball press.and mineral powder ball press.The annual output of this series equipment on industrial type coal egg and all kinds of metallurgy powder cold pelleting press of is 2-40tons/h.



If it is powder materials and need to press ,we should use mineral powder briquette charcoal making machine.

Such as coal,coke,a variety of black,metal slag,iron oxide skin and dust ash,sludge,refractories,etc.Mineral powder briquette making machine is use the raw material directly after crushing without adding water.



After years of industrial experience improvement and comparing with other similar products,It now hold the distinctive specification of high rate ball making,low powder consumption compact structure and easy maintenance,etc.





Briquette charcoal making machine machine using range:

Briquette coal production; all kinds of metallurgy cold-pellet production.



Any metallurgical industry wastes materials, accessories take on the furnace, all require briquette charcoal making machine.For example: dust ash, pond mud, Oxidation leather, steel slag, aluminum ash, slag, silico-manganese etc.



1. Rotary Dryer on coal briquettes production line
Rotary dryer is widely used to dry humidity granularity materials in the industries of mineral dressing, building material, metallurgy and chemical, coal mine, etc. Wide supply scope and simple operation are the main features of it, materials should be dried to 3-10% water content that meet the demands of briquetting.
2. Two Stage Crusher on coal briquettes production line
Two stage crusher is designed and optimized in accordance with international latest crushing technology. It can crush all kinds of hard ore/metallurgy materials such as limestone, clinker, coal,coke,manganese, silica, iron ore, zinc oxide etc minerals in the metallurgy, mining, chemical industry. Its humidity of raw materials can be reach to 40%,the feeding size reach to 400mm, after crushing, the particle not more than 3mm to meet briquetting.
3. Hopper silo coal briquettes production line

This is an automatic proportioning feeder which is used together with next mixer. It can automatically perform feed proportioning procedure according to the proportion setup pf customers so that improve working efficiency. That is composed of feeding unit, proportioning unit, electronic control system, etc.
4. Horizontal Two-shaft Mixer on coal briquettes production line
The horizontal two- shaft mixer mix materials continuously and uniformly. During the mixing, to add water and binder (liquid binder or powderd binder is considered by user's formula),controlling moisture in 8-15%,then the blended materials continuously go into briquettes machine for briquetting by belt conveyor,
5. Briquettes machine coal briquettes production line
Zhongzhou briquettes machine is a new patented type of briquetting machine, easy to operate, high pressure, work stably, energy conservantion, environmental friendly, easy for user to remove and install, mould can be produced in accordance with customer's requirements, the final briquettes has high hardness, high density, espcially the thermal intensity is high.
6. Vertical Dryer on coal briquettes production line
This is the professional equipment for drying briquettes, no matter coal briquettes, mineral briquettes,metallurgy briquettes, all can be dried by this vertical dryer, the moisture content of briquettes can be reduced to 3%, cause of briquettes came from briquettes machine with 12% water content, using a drying equipment is necessary for a large scale project. Vertical dryer has the advantages of continuous production, small occupation area, low energy consumption, less parts, low failure, high yield, it is a customer preferred drying equipment.
7. Belt Conveyor on coal briquettes production line
This belt conveyor transfers material into every equipment, make the whole production line work continuously and automatically. It works under the temperature situation ranging from -20℃ to +40℃, the transferred material should be lower than 50℃.
8. Electric control cabinet on coal briquettes production line
Its main role is for the all motors' start and stop control in the whole production line, under the special requirement it's also able to control the position of the motor and the speed, fault detection and fault diagnosis can be carried out when the motor is in fault, which is very convenient and quick.



Main technical parameters

Should you want to get more information of our product from our side,please do feel free to contact me.
