Hotsale Shenzhen Factory SEWO Automatic Electronic Intelligent Card Door Entry Access Control Building Management System
- Category: Access Control Card Readers >>>
- Supplier: Shenzhen Sewo Science & Technology Co. Ltd.
Share on (60055832619):
Product Overview
Description
Product Description
Hotsale Shenzhen Factory SEWO Automatic Electronic Intelligent Card Door Entry Access Control Building Management System
Brief Introduce
1.Multi opening modes, advanced password opening, card +password opening, legal card opening , button , four opening modes, more safe and convenient.
2. It can run offline, when it’s offline, it can read card normally and record the card information. When it’s online, all the information can be collected by the manage computer.
3. It has protection measures when the power is cut off, over current, over voltage, short circuit, polarity reversed etc.
4. With ability of magnetic input, it can detect the state of the door
5.With write card and store the password information, it is detected the validity when card is read.
6. offline data storage time: more than ten years
7. offline data storage time: more than ten years
8. professional anti-static and anti-interference design
9. outstanding quality, and waterproof totally
2. It can run offline, when it’s offline, it can read card normally and record the card information. When it’s online, all the information can be collected by the manage computer.
3. It has protection measures when the power is cut off, over current, over voltage, short circuit, polarity reversed etc.
4. With ability of magnetic input, it can detect the state of the door
5.With write card and store the password information, it is detected the validity when card is read.
6. offline data storage time: more than ten years
7. offline data storage time: more than ten years
8. professional anti-static and anti-interference design
9. outstanding quality, and waterproof totally
Advantage of SEWO Door Access Control System
1.Alarm for long time door open, illegal break in, intimidate
2.Fire and alarm linkage
3.Compulsive open and close door at long time
4.Open door in remote distance
5.Inter block
6.Anti pass back and tail
7.Multi-card open door
8.Open long time at specified time
9.Electronic map
10.Urgency locking
11.First card unlocking
12.Unlock based on internal and external validation
13.Keypad (card & password, supper password)
2.Fire and alarm linkage
3.Compulsive open and close door at long time
4.Open door in remote distance
5.Inter block
6.Anti pass back and tail
7.Multi-card open door
8.Open long time at specified time
9.Electronic map
10.Urgency locking
11.First card unlocking
12.Unlock based on internal and external validation
13.Keypad (card & password, supper password)
Solutions
SEWO RFID Card Reader (SEWO-2002 / SEWO-2003 with keypads)
1). Model: SEWO-2002 / SEWO-2003
2). Card Type: Mifare. EM available (125khz or 13.56mhz)
3). Communication: Wiegand 26/34 output
4). Communication distance: Less than 120 meter
5). Reading distance: 3--7cm
6). Material: PVC
7). Working voltage: 12VDC
8). Reading speed: less than 0.3s
9). Size: 86 * 86 *2.0mm
10). Weight: 0.3kg
2). Card Type: Mifare. EM available (125khz or 13.56mhz)
3). Communication: Wiegand 26/34 output
4). Communication distance: Less than 120 meter
5). Reading distance: 3--7cm
6). Material: PVC
7). Working voltage: 12VDC
8). Reading speed: less than 0.3s
9). Size: 86 * 86 *2.0mm
10). Weight: 0.3kg
SEWO Magnetic Lock (SEWO-M280 /SEWO-M280-S)
The magnetic lock makes use of the principle that electricity can generate magnetism, when the electricity pass the silicon-steel plate, the lock will generate powerful magnetic force, adsorbing the iron plate so that the door is closed.
1). Model: SEWO-M280 / M280-S
2). Dimension: 250*40*45mm
3). Working Voltage: DC12V
4). Lock Cylinder Stress Intensity : 270Kg (600lbs)
5). Applicative Door Type: Wooden, glass, metal and fireproof doors
2). Dimension: 250*40*45mm
3). Working Voltage: DC12V
4). Lock Cylinder Stress Intensity : 270Kg (600lbs)
5). Applicative Door Type: Wooden, glass, metal and fireproof doors

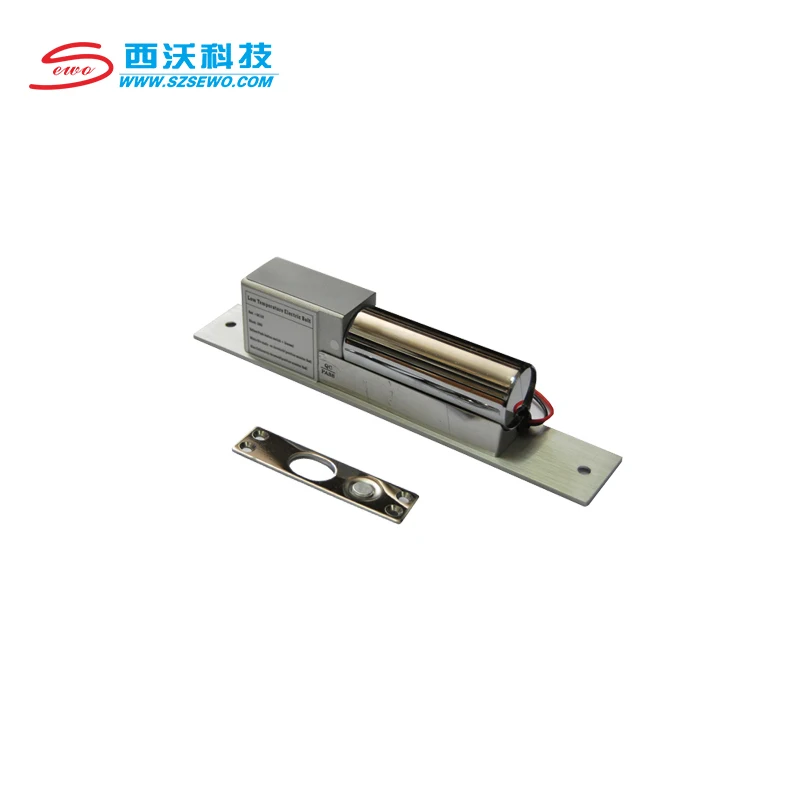

Electronic Lock
Electric mortise lock drives by the electric current, the spring bolt can stick out or retract back to achieve the open/close function, and the magnetic sheet is needed.
1). Model: SEWO-M250
2). Dimension: 205*35*41mm
2). Dimension: 205*35*41mm
3). Working Voltage: DC12V
4). Lock Cylinder Stress Intensity : 800kg
5). Applicative Door Type: Wooden, glass, metal and fireproof doors
4). Lock Cylinder Stress Intensity : 800kg
5). Applicative Door Type: Wooden, glass, metal and fireproof doors

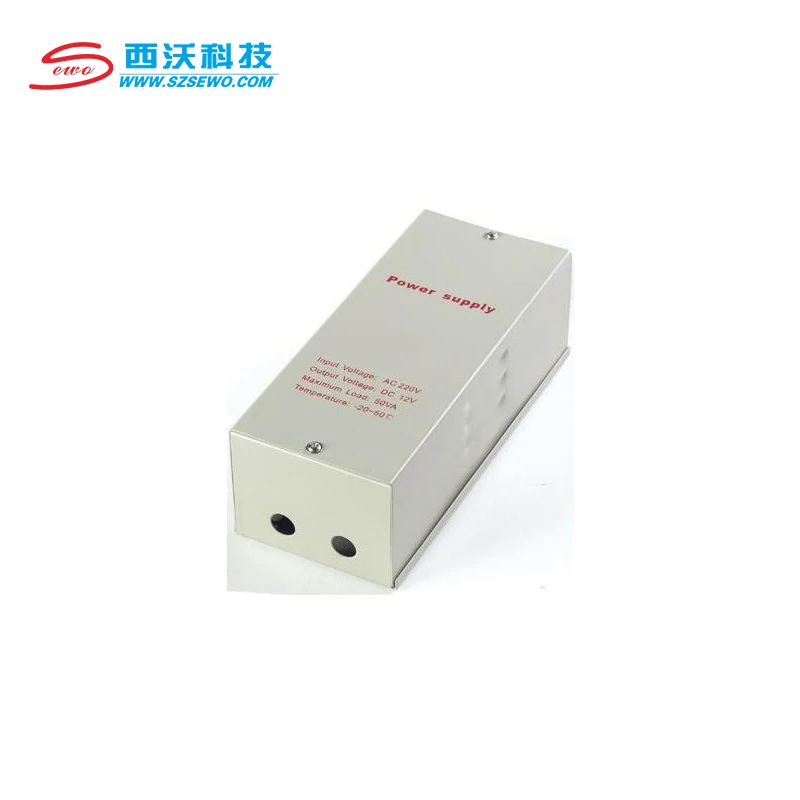

Access Control Power Supply
1) Dimensions: 180Lx78Wx65H (mm)
2).Output Contact: Access control, Electric Lock, Release Button
3).Time Relay: 0~30sec.
4).Standard Designed: Steel material, Painted
5).Protect safely: Short Circuit protection
6).Suitable For: all kinds of electric locks, NO/NC output
7).Weight:1.5KG
8).110VAC input can be customized
2).Output Contact: Access control, Electric Lock, Release Button
3).Time Relay: 0~30sec.
4).Standard Designed: Steel material, Painted
5).Protect safely: Short Circuit protection
6).Suitable For: all kinds of electric locks, NO/NC output
7).Weight:1.5KG
8).110VAC input can be customized

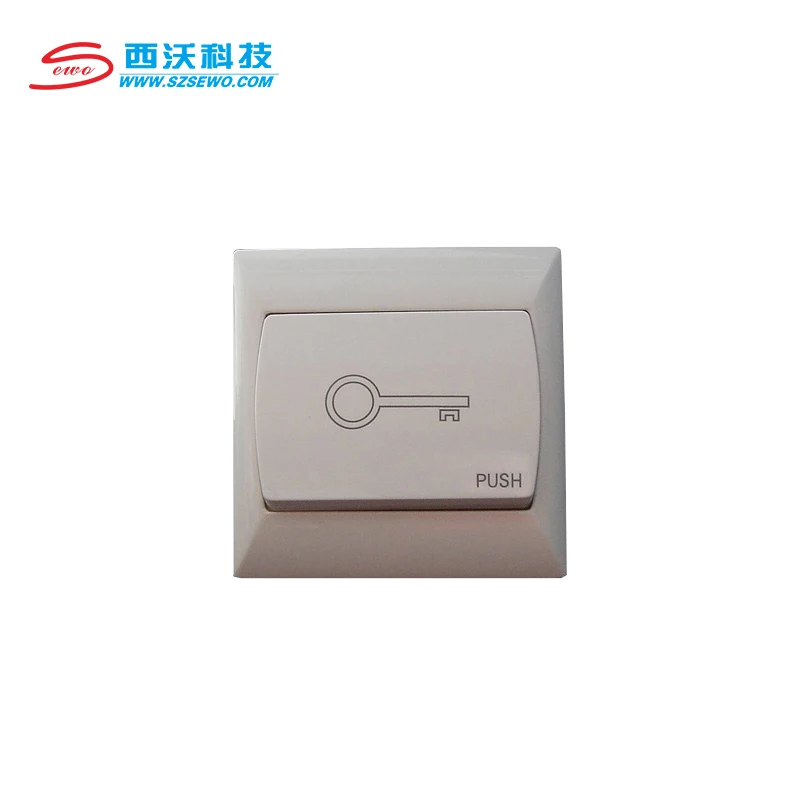

Manual Exit Button
1). Model: SEWO-M7701-1
2). Dimension: 86*86mm
3). MCBF: 1,000,000 times
4). Protection Grade: IP54
5). Maximum Electric Current: DC 36V/3A
2). Dimension: 86*86mm
3). MCBF: 1,000,000 times
4). Protection Grade: IP54
5). Maximum Electric Current: DC 36V/3A
RFID Card (support OEM)
RFID Tag (support OEM)
1). Frequency: 125khz/13.56mhz optional
2). EM card / RFID card available
3). Material: PVC for card / ABS for Keyfob
4). Size: 86 *54*0.8mm(±0.2mm)
2). EM card / RFID card available
3). Material: PVC for card / ABS for Keyfob
4). Size: 86 *54*0.8mm(±0.2mm)

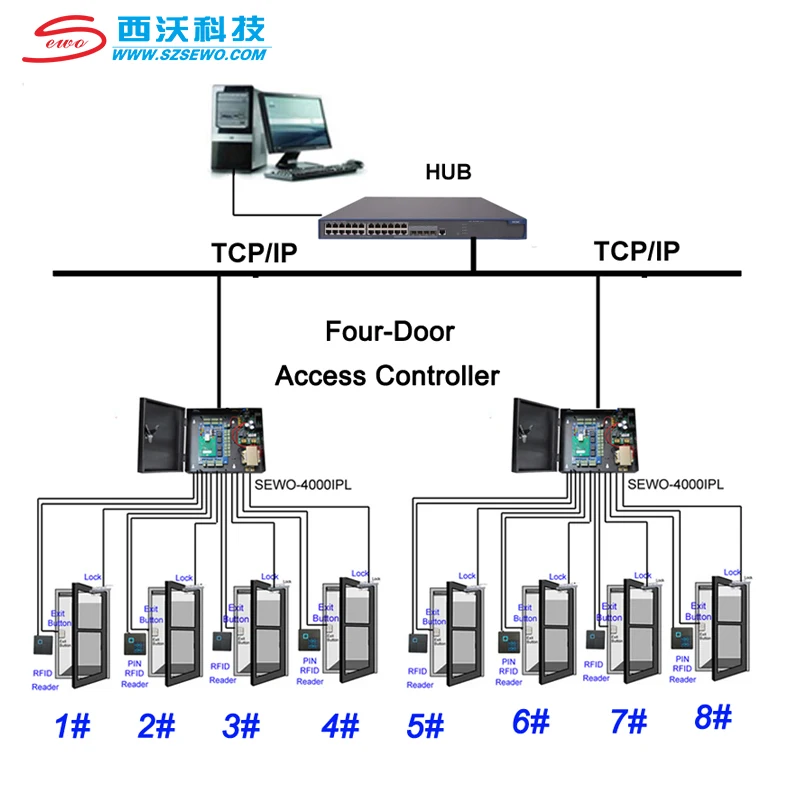

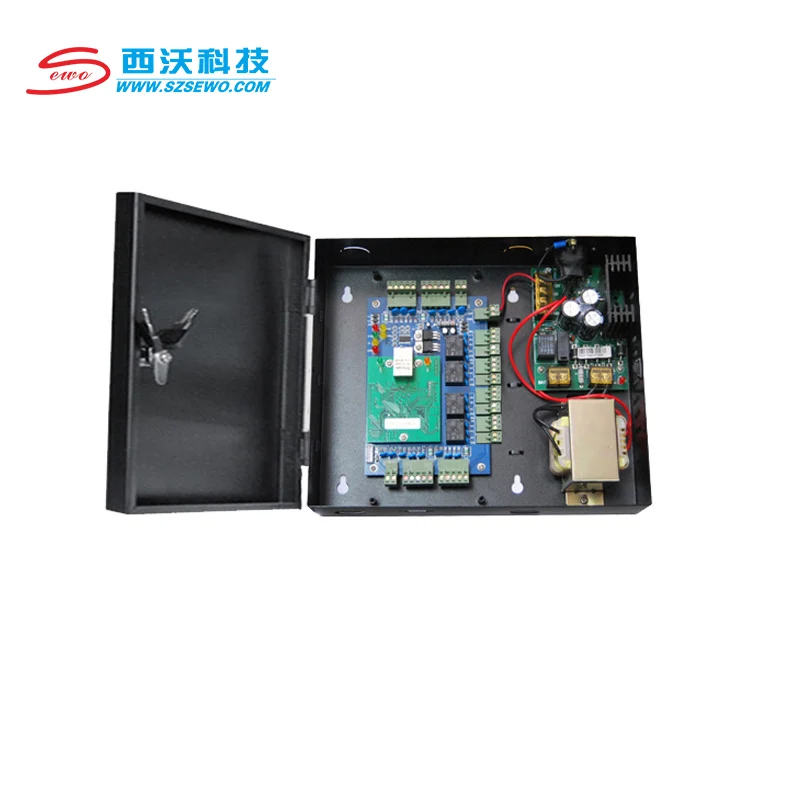

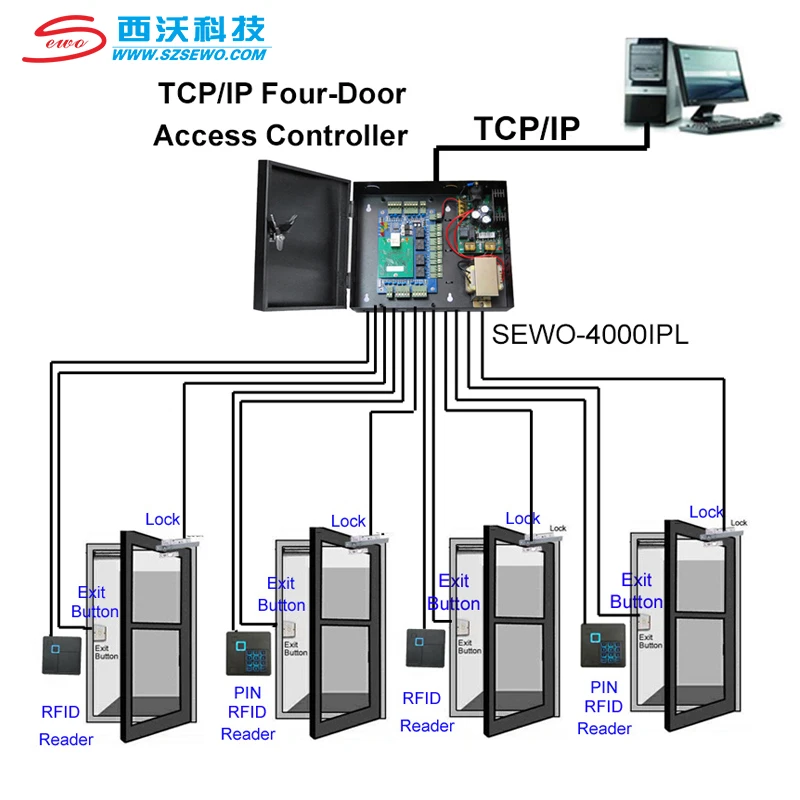

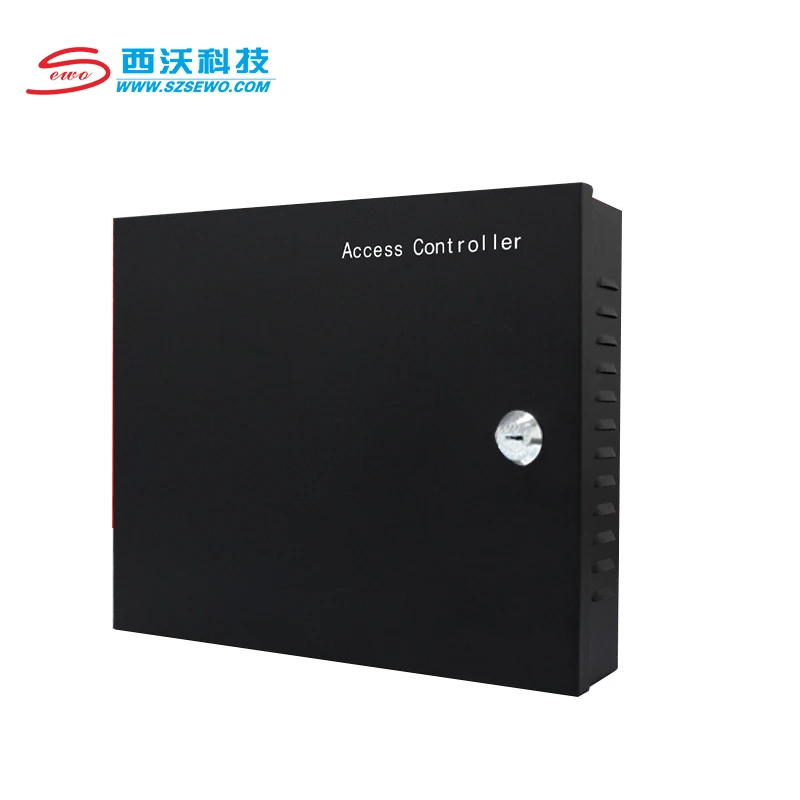

Specifications
Product Name | Single door access controller | 2--doors Access Controller | 4--doors Access Controller | ||
Model No. | SEWO-1000IPL | SEWO-2000IPL | SEWO-4000IPL | ||
Communication | TCP/IP 10M/100M | ||||
Description | Control 1 door 1 Reader In 1 Reader Out. 1 Exit Button | Control 2 doors 2 Readers In 2 Readers Out 2 Exit Buttons | Control 4 door 4 Reader In 4 Reader Out. 4 Exit Button | ||
Size of PCB | 160mm * 106mm | 160mm * 106mm | 218mm * 106mm | ||
Size of Case | 273mm * 228mm * 65mm | ||||
Power Supply | 12V DC. 4--7A | ||||
Power Consumption | Less than 100mA | ||||
Input Format of Reader | Wiegand 26 /34 (Compatible with all card reader under this protocol,welcome to contact us to get more information) | ||||
Quantity of Readers | 2pcs | 4pcs | 4pcs | ||
Door Controlled | 1pcs | 2pcs | 4pcs | ||
Door opening time extending setting | 1--600second ( adjustable ) | ||||
Max QTY of Controller | No limited | ||||
Operation Temperature | —40℃ -- 70℃ | ||||
Operation Humidity | 10-90% RH. | ||||
User Capacity | 20.000 Users | ||||
Events Capacity | 100.000 events | ||||
Max distance from Readers to Controller | 100m ( Suggestion distance to be within 80m ) | ||||
Max distance between Controllers | Base on Net Coverage area | ||||
Components | PCB board. Power Case. Power line. Software CD. Keys(2pcs) | ||||
Fire and Alarm Linkage | if without the expansion board.only has alarm on software interface.and can active the computer. if connect with expansion board.it is able to alarm hardware | ||||
Alarm for long time door open.Ilegal break in | Yes | ||||
Compulsive open and close door at long time | Yes | ||||
Remote Control open door | Yes | ||||
Inter Lock | Yes | ||||
Anti-passback | Yes | ||||
Multi Card open door | Yes | ||||
Normal open at special time | Yes | ||||
E-map | Yes | ||||
Urgency Locking | Yes | ||||
First card unlocking | Yes | ||||
Reader with Keypads (Card + PIN. ) | Yes | ||||
Company Profile
Shenzhen Sewo Science & Technology Co., Ltd.
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has also ranked among the top 10 famous brands of car parking systems and facilities in China. With nearly ten years to steady development, our R &D team has strong capacity to be committed to continuously creating high quality products and service. With the first-class production equipment, technical quality and service, we won the trust of customers and the market recognition. Our products have been well used by customers from enterprise institutions, infrastructure enterprises, government institutions, transportation enterprise, housing districts, commercial organizations,etc.
With our exquisite technology and strict quality testing system, we passed “CE” and “ ISO9001:2008” international quality assessment standards. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America.
With our belief of “Sincerity is essence of enterprise; High quality is the way of existence”, we will keep on endeavoring to make cost-effective intelligent parking system products in China. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
FAQ
1, What is the strength of your company in this industry?
Our company pays much attention to bringing and developing new technique and products since the foundation in 2003. Our brand “SEWO” has ranked among the top 10 famous brands of car parking systems and facilities in China.
2, What is the advantage products of your company?
Shenzhen Sewo Technology Ltd. Is a professional high-tech enterprise, which integrates the development, manufacturing, marketing , and service of Smart Parking Management System, Flap Barrier, Tripod Turnstile, Swing Gate, Parking Guidance System, Barrier Gate, Parking Lock, Access Control Systems and other related security products.
3, How about the quality of your product?
With our exquisite technology and strict quality testing system, we passed “CE” and “ISO9001:2008” international quality assessment standards. Our company also has won many honors,such as “China Top 10 Parking Management System Supplier”, “AAA grade quality, service and prestige enterprise in China”, and so on. Professional R&D team has strong capacity to be committed to continuously creating high quality products and service.
4, How about some customization request?
We support OEM / ODM service , more than 20 years industry experience will bring appropriate design for you, no only products, but also a smart access management solution expert.
5, Do you have agency for after-sales service?
Any question about products , you can find our sales anytime. We will provide life-time technology support. We have established many branch offices and gained much agents at home. Our sales and service network spreads all over the world. We also have extensive sales channels in Southeast Asia, the Middle East, Africa, Europe, and America. We warmly welcome customers or agents all over the world to join us to construct an intelligent , safe, convenient and harmonious society.
6, How about the delivery time?
Regular products need 5-10 working days.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
Usually the customized products need 15-20 working days, actual delivery time according to your product request.
