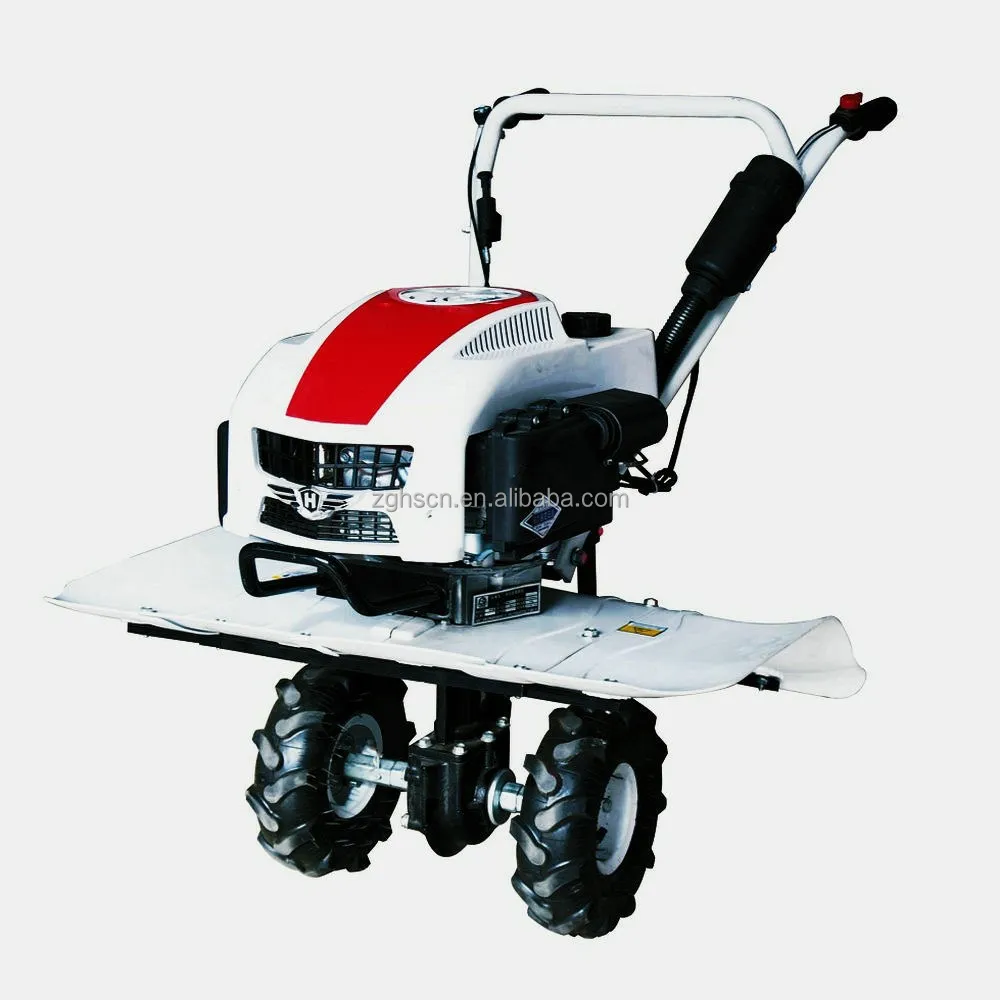

Single Cylinder Agriculture Machines Cassava Planting Ploughing Hand Tractor Small Roto Tiller Farm Cultivator Gasoline

Model

                 1WG4.1 B

Tiller

Rated Power

4.1kw/5.5hp

Starting System

Recoiling

Transmission

All Gear Driving

Clutch

Centrifugal Adhesion

Gear shifting

0,  1

Tyre size(in.)

350-4(diameter:13.8, width:2.0)

Diameter of Cutters(in.)

11.8

Speed of Cutters(rpm)

150rev/min

180re-/min

Tilling Depth(in.)

10~18cm/3.94~7.08in (adjustable)

Tilling Width(in.)

35~87cm/13.78~34.25in (adjustable)

Productivity(acre/h)

1.1-1.3

Accessories

1 set of rotary blade included

Engine

Engine Series

Gasoline  1P70FDA

Engine Type

Single Cylinder

Air-Cooled

4-stroke

Vertical shaft

Cylinder DIA*Stroke(in.)

3*2

Compression Ratio

8:1

Lubricating System

Spray Lubrication

Fuel Tank Capacity(L)

2.5

Fuel Consumption(kg/kw.h)

0.8

Spark plug gap

0.70-0.80mm

Displacement(cc)

196cc

Max. Torque(N.m/2500rpm)

11.0

Cooling System

Air Cooling

Max Power(kw/3600rpm)

4.4

Weight

Net/Gross Weight

50/55KG (110/121LBS)

Others

Package Dimension(L*W*H)

100*40*74cm/39.37*15.75*29.13in

Packages

Carton/ Plywood Case

Min. Order(sets)

20(Accept trial order)

Port

Shanghai/Qingdao

Delivery Time

2 Weeks

Payment Terms

T/T

Warranty Time

1 Years

Loading QTY

20GP

140sets

40GP

330sets

40HQ

390sets
