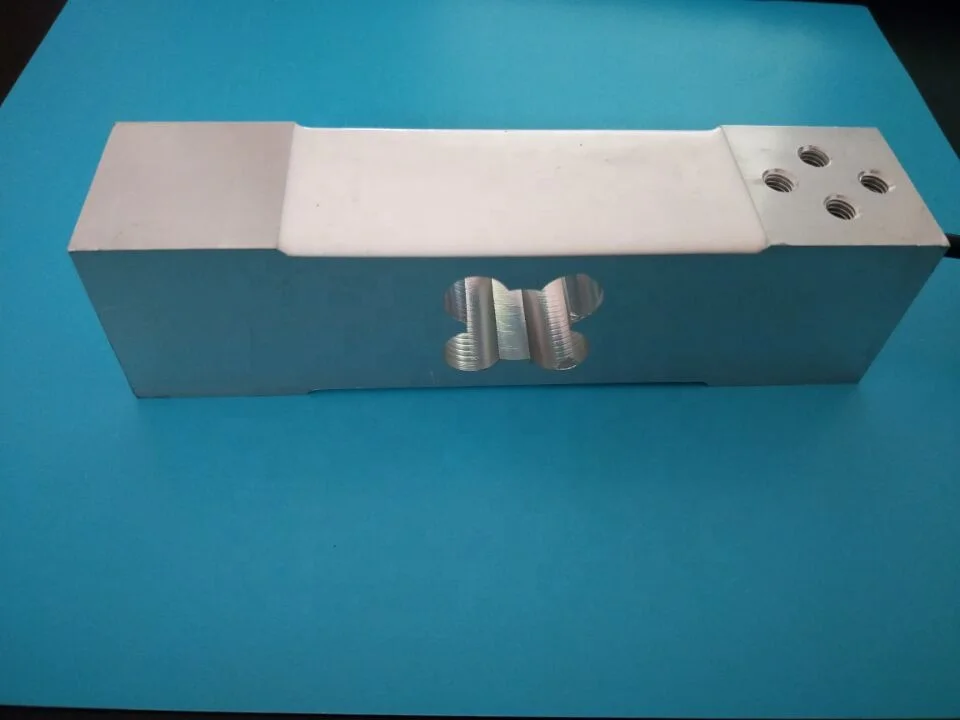

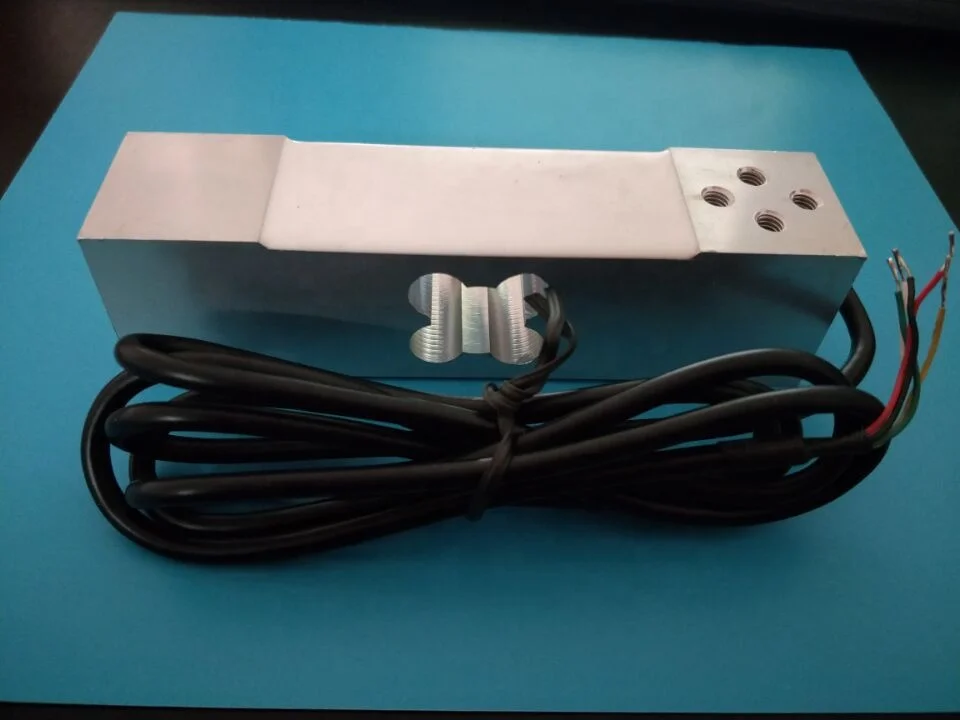

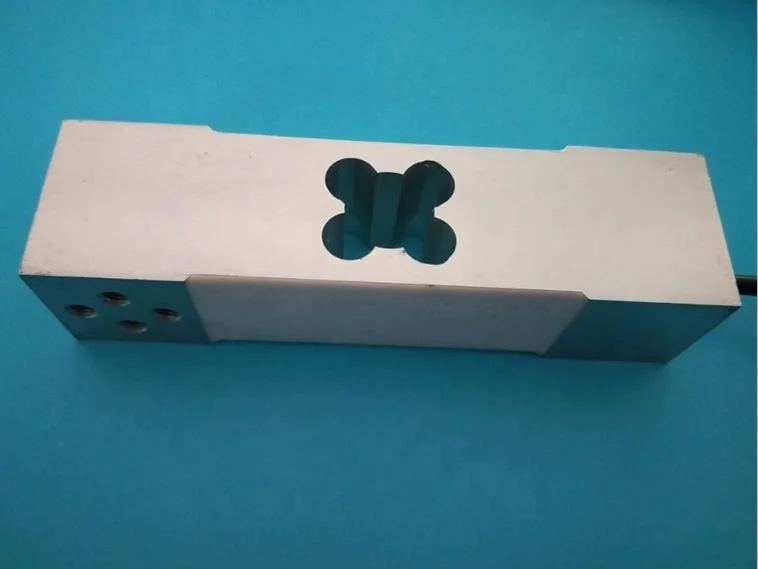

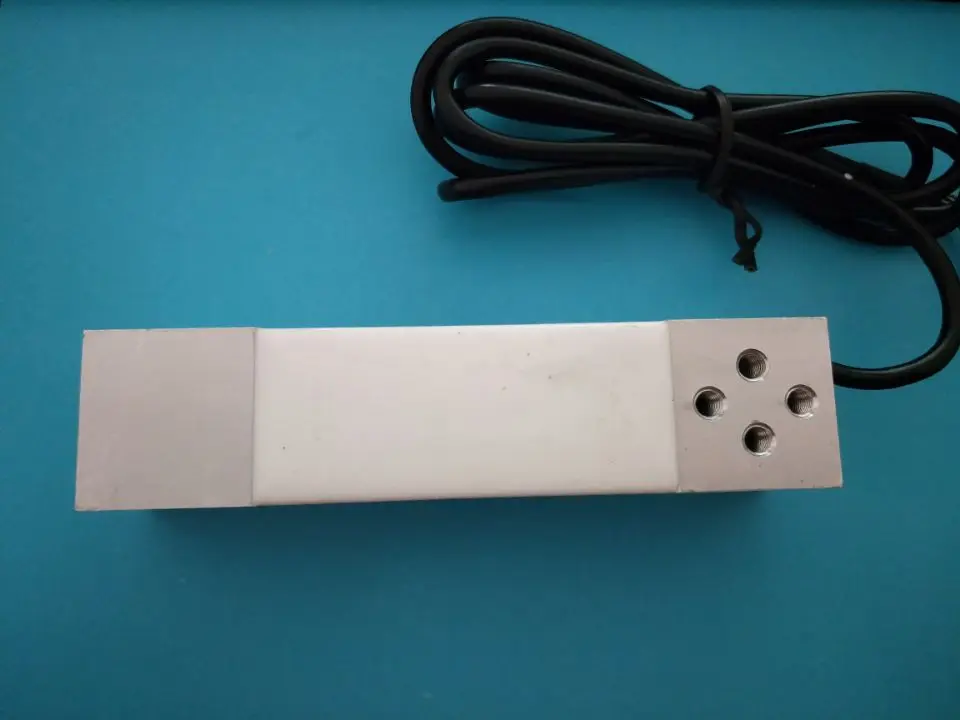

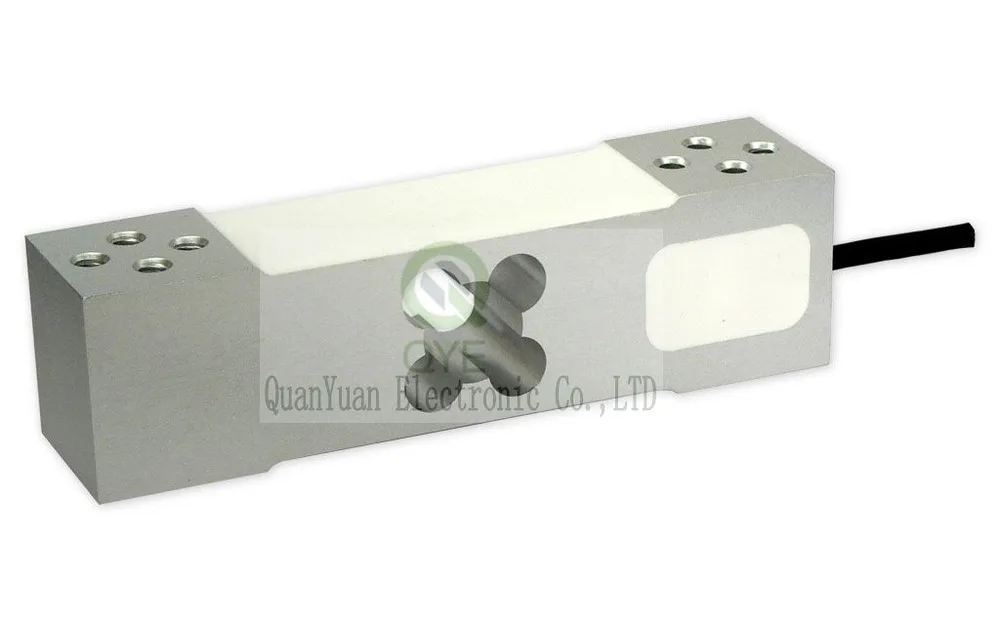

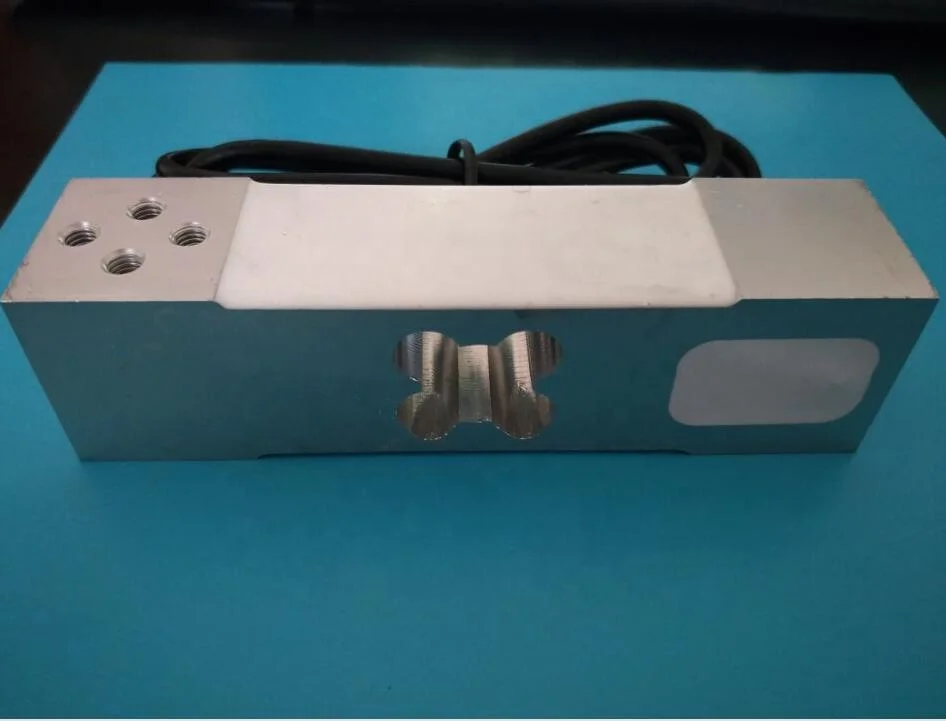

Hot Selling Aluminum Single Point Load Cell 100kg 200kg 300kg 500kg

Product Overview

Description

















Specifications:
capacity	kg	200kg 300kg 500
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1.5
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.02
input resistance	Ω	406 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	℃	-20 ~ +60
compensated temperature range	℃	-10 ~ +40
temperature coefficient of SPAN	%FS/10℃	± 0.02
temperature coefficient of ZERO	%FS/10℃	± 0.03







Excitation+ red     Excitation- black   Signal+ green   Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:1.5 m

Cable diameter :5 mm

The cable length could be chose by customer’s application.









All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.



All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.











1. OEM/ODM Services:

Our company provides OEM/ODM service and Customized products service.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

What's your requirement?

2. Quality Quarantee

We quarantee product quality for one-year starting from the date of delivery.
