Ocs S1 calibrating digital wireless crane scale

Product Overview

Description

Digital Crane Scale

Model: OCS-S1

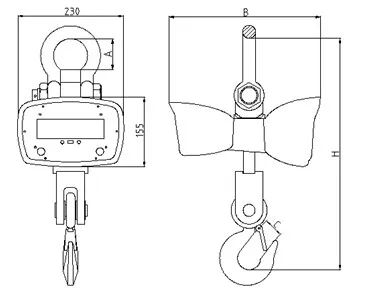

Dimensions and Specifications:

MODEL	Cap.(kg)	Resolution(kg)	A(mm)	B(mm)	C(mm)	H(mm)	N.W(kg)	G.W.(kg)
OCS-S-1	1000	0.5	80	340	30	420	12	16
OCS-S-2	2000	1	80	340	30	420	12	16
OCS-S-3	3000	1	100	340	40	600	14	19
OCS-S-5	5000	2	130	360	45	720	25	30
OCS-S-10	10000	5	145	360	60	850	40	45
OCS-S-15	15000	5	170	360	85	900	75	80
OCS-S-20	20000      20000	10	190	360	85	1000	80	85



Model: OCS-S1(crane scale OCS-S + 180 indicator) specification:

Palm-size:28x70x90mm shell with LCD display, wireless double-sided communication(can tare, zero, calibration and parameter setting). 5 digits LCD display with backlight,digit height:12mm. Many function on LCD display( battery power, TARE, ZERO, PEAK, Stable) .

USB port:  communicate with PC,Solve many laptopswithoutserial portproblem.with the Everight company’s PC host computer software, not only display weigh value and stable information on the PC , also can input company’s name, complete storage ,print query and other function.

Power supply: USB power supply, lithium batteryoptional .

Operatiing temperature:  -20°C to 60°C

Antenna: Intergral antenna

Update rate from scale: 4 times per second.

Radio Frequency:Standard 433MHz wireless module, up to 200m wireless distance,up to 32 channels available.(868MHz,2.4Ghz wireless module optional).
