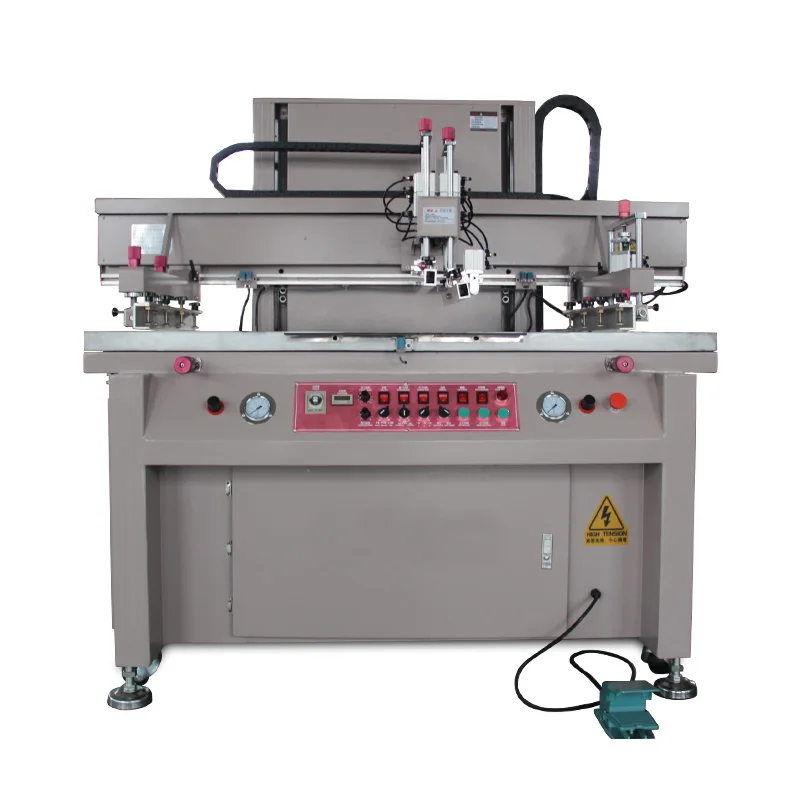

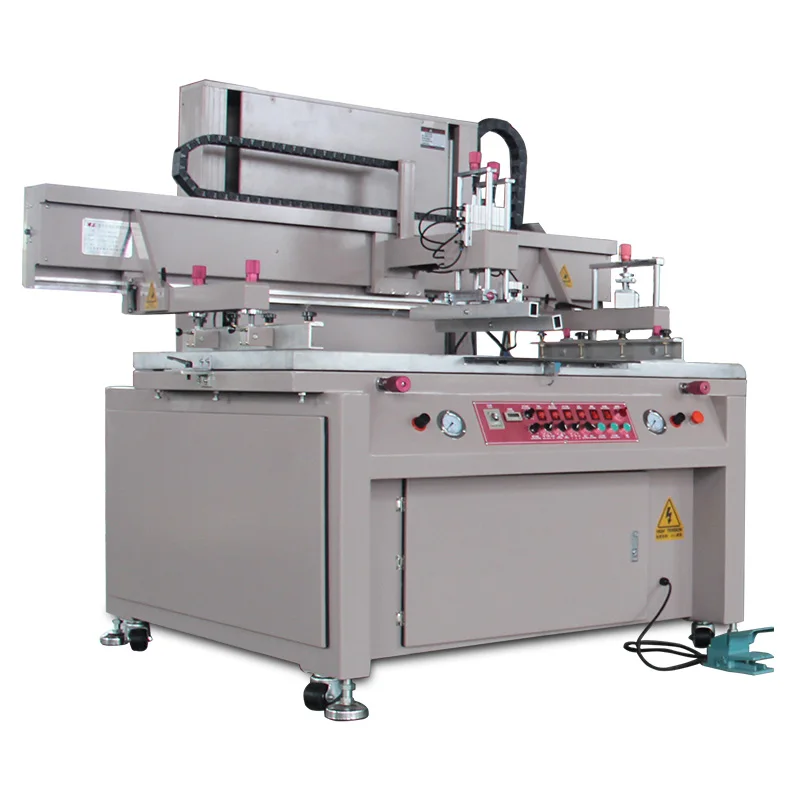

XF 6090 vertical flat pcb screen printing machine

1. Scope of application:

1)This pcb screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.

 2)Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB,PET heating transfer film, tempered glass, auto windshield, DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of  PVC ,PET,PP,PC,PE,BOPP etc all kinds of films, various of nameplate for electronic appliances, membrane switches, panels, soft circuit board, IMD,IML,FPC,rubber vulcanization,heat transfer films, non-woven fabric, color labels for cars, water labeling, ceramic decals, thermal transfer paper, leather, electrostatic film, tetoron, coated paper, adhesive sticker and so on. which have high requirement in overprinting.

 2. Feature:

1).The silk screen printing machine platform is adjustable and moveable, which make it convenient to take the material.
2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.
3).The silk screen printing machine adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.
4).silk screen printing machine blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

3. Parameters

Workshop corner

Why choose us:

1. We are the silk screen printing machine manufacturer for more than 15 years experience.
2. Screen printing machine CE certified, uses Germany FESTO pneumatic parts.
3. Experienced international sales team, skilled in international business for many years.

After-sale service:

1.one-year warranty for parts ,and provide the technical support forever.
2 .According to the requests of the consumers, the use and other aspects of technical guidance.
3.To ensure the supply of repair parts.
4. Responsible for the repair service.
5. On the product of "Three Guarantees".

Ce certification:

1. What is the silk screen printing machine?

Screen printing is a printing technique that uses a woven mesh to support an ink-blocking stencil to receive a desired image.
The attached stencil forms open areas of mesh that transfer ink or other printable materials which can be pressed through the mesh as a sharp-edged image onto a substrate. A fill blade or squeegee is moved across the screen stencil, forcing or pumping ink through the mesh openings to wet the substrate during the squeegee stroke. Basically, it is the process of using a mesh-based stencil to apply ink onto a substrate, whether it be t-shirts, posters, stickers, vinyl, wood, or other material.
2.What types of products and multicolor overprinting?
You can screen print a very wide range of substrates for regular flat surface,
including PCB, posters, stickers, vinyl, wood, glass, membrane switch,PVC,PET,PP or other material. Please noted, screen printing just for 1 color at a time. Multicolors is available, need to register colors with overprinting .

3. How does Screen Printing work?

It is simple:

- Image is exposed in a screen plate.

- The plate is flooded with ink and wiped clean, leaving ink in the image area only.

- The squeegee press the image ink permeate mesh onto article

4. Why choose silk screen printing machine?

The layer ink of screen printer is thicker, then have more third dimension.
