N Type N Male Plug to F Female Jack RF Coaxial Adapter N Male Connector for GSM DCS 3G Repeater Booster Amplifier
- Category: >>>
- Supplier: Hwatel (Beijing) Technology Co. Ltd.
Share on (60056868683):
Product Overview
Description
NJ-FK

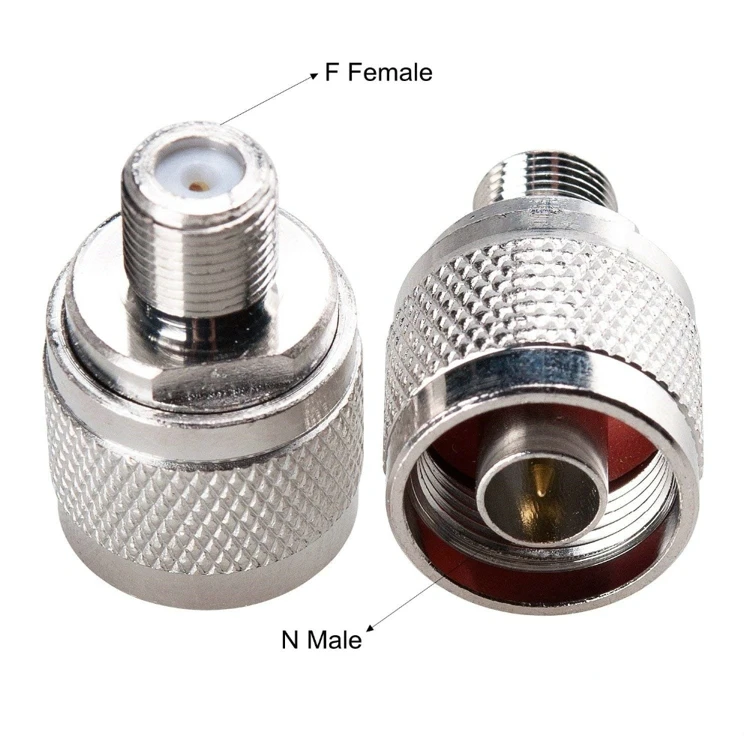

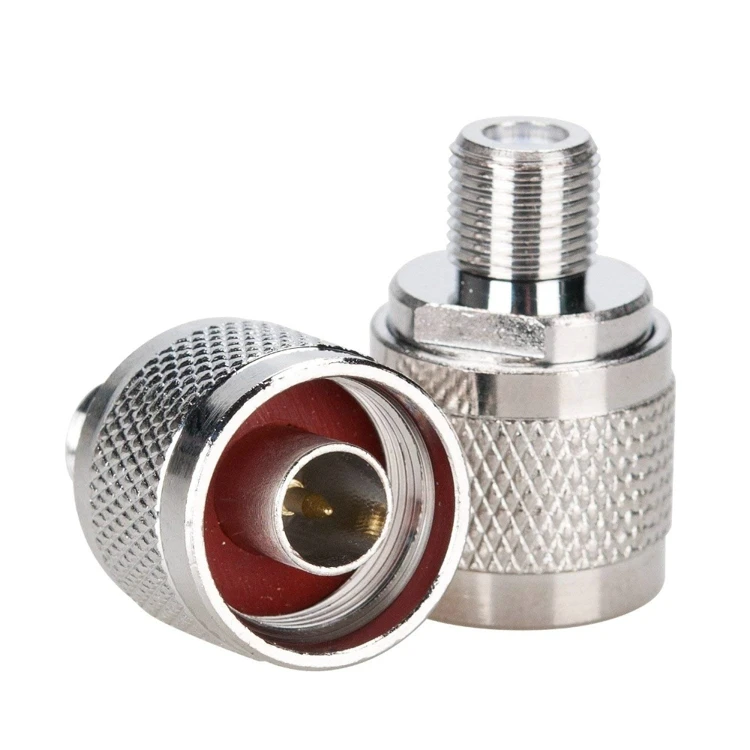

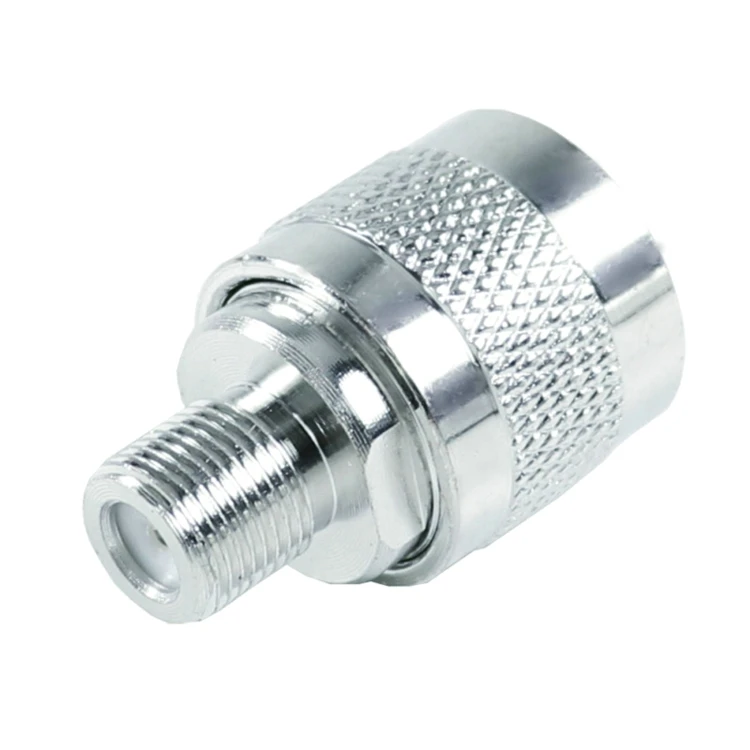

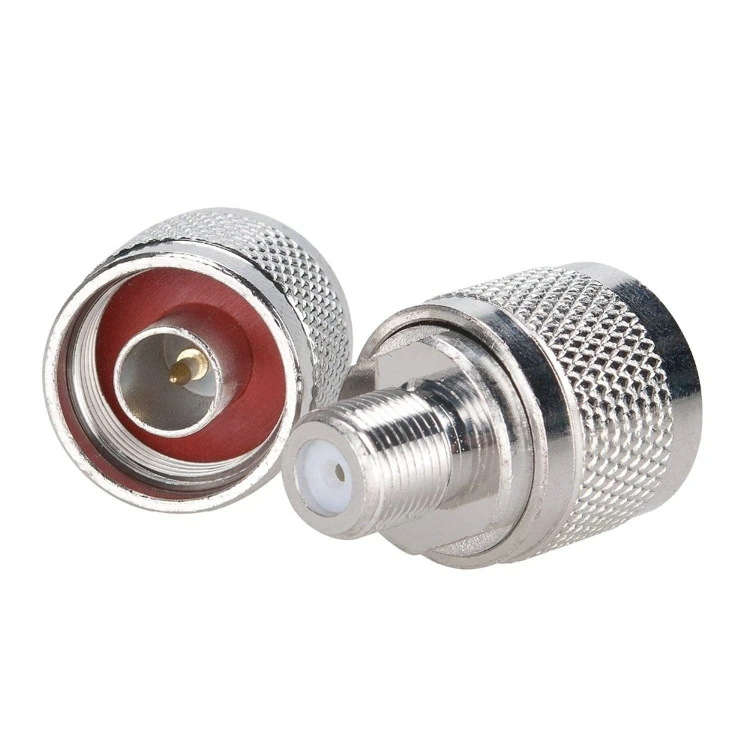

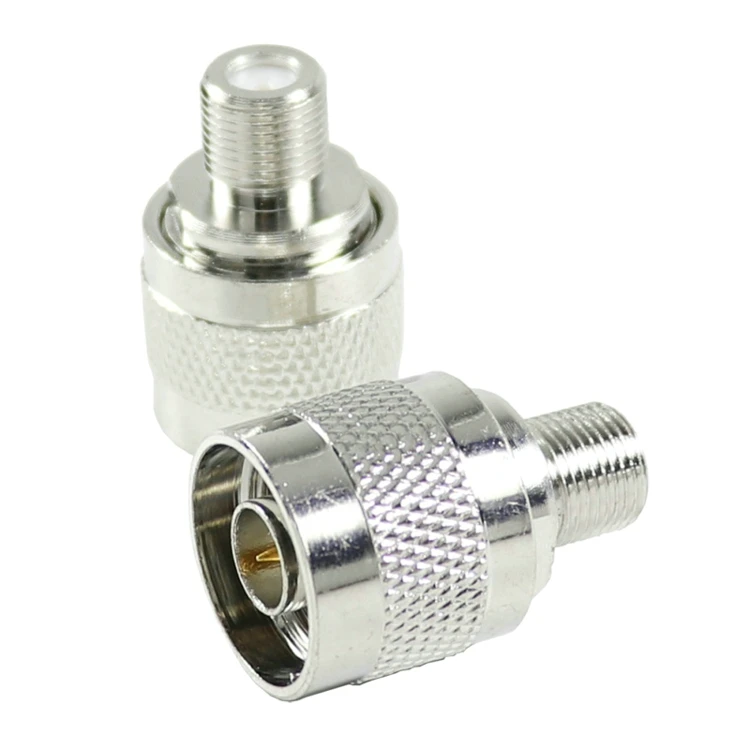

N-Type N Male Plug to F Female Jack RF Coaxial Adapter
Tech Specification
Electroni Parameter
Impedance |
| 50 Ω |
Vibration |
| 100m/s (10-500Hz), 10g |
Temperature Range |
| -55 to +155°C |
Frequency |
| DC to 11GHZ |
Working Voltage |
| 1000V r.m.s |
Withstanding Voltage |
| 2500V r.m.s |
Contact Resistance | Center contact | ≤1m Ω |
| Outer contact | ≤1m Ω |
Insertion Loss |
| ≤0.24dB @ 6GHz |
Insulation resistance |
| ≥5000 M ohm |
Center Conductor Retention Force |
| ≥0.56N |
Voltage Standing Wave Ratio | Straight | ≤1.15/6GHz |
| Right angle | ≤1.25/6GHz |
Durability(mating) |
| ≥500cycles |
MATERIAL AND PLATING
Body | Brass | Nickel plated |
Pin Contact | Brass | |
Socket Contact | Zinc Alloy Beryllium or tin bronze | |
Resilient Contact | Beryllium-copper | |
Insulator | PTFE |
|
Crimp Ferrule | Copper alloy | Nickel plated |
O-ring Sealing | 6146 silicon rubber |
|
