Мощная вращающаяся распылительная головка KZ30 для очистки резервуаров IBC
- Category: >>>
- Supplier: Cleaning Intelligent Equipment Technology (guangzhou) Co. Ltd.
Share on (60056919289):
Product Overview
Description

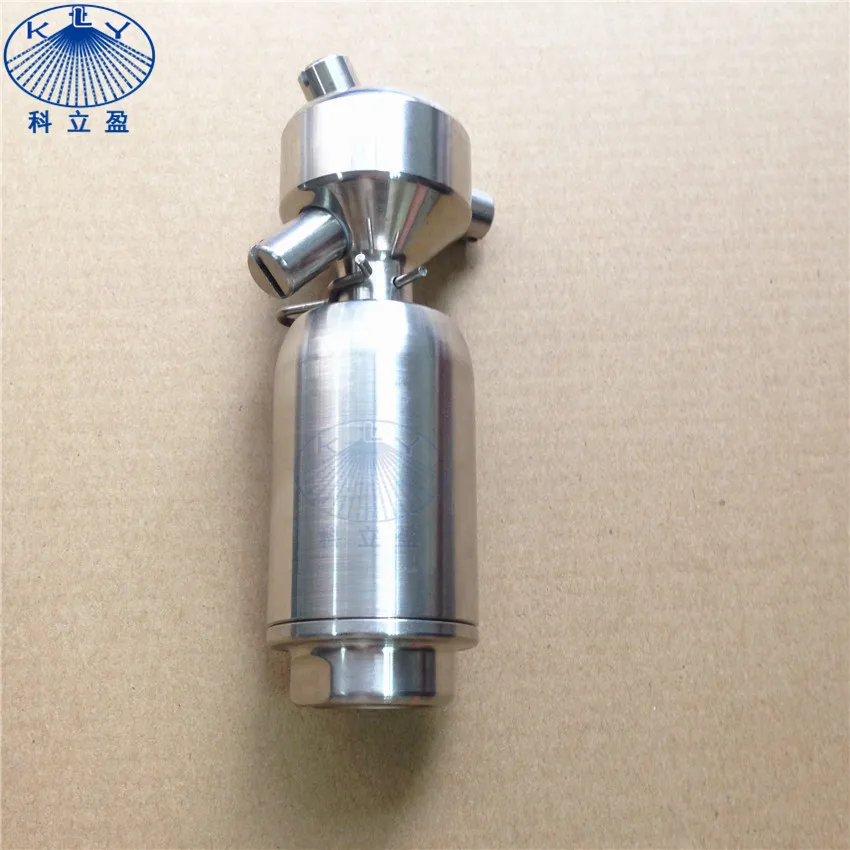

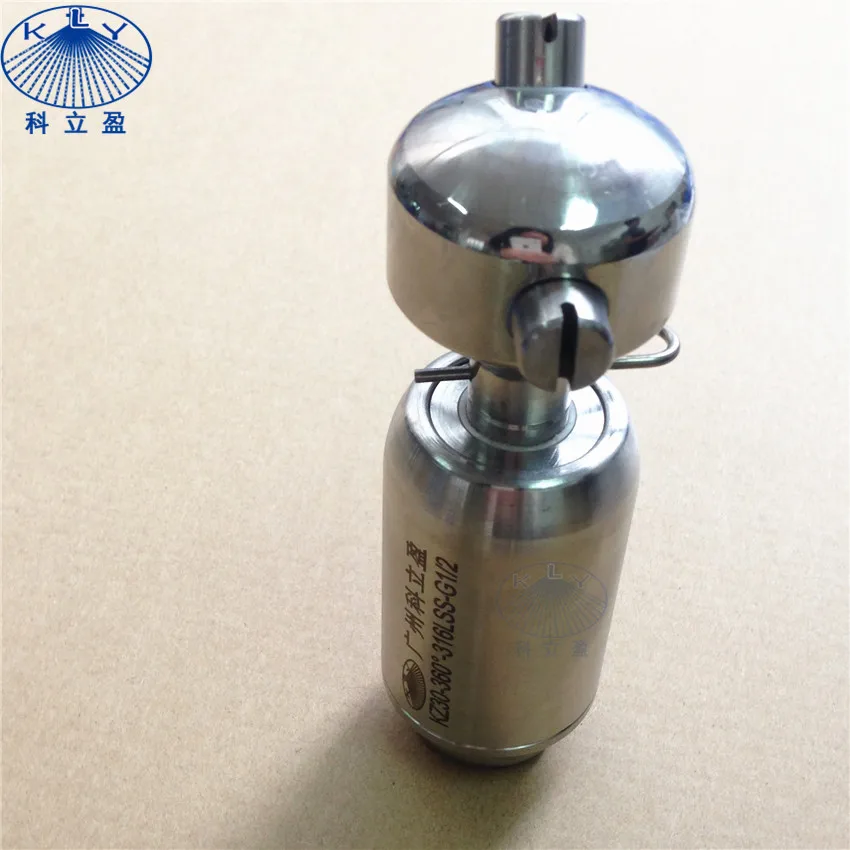

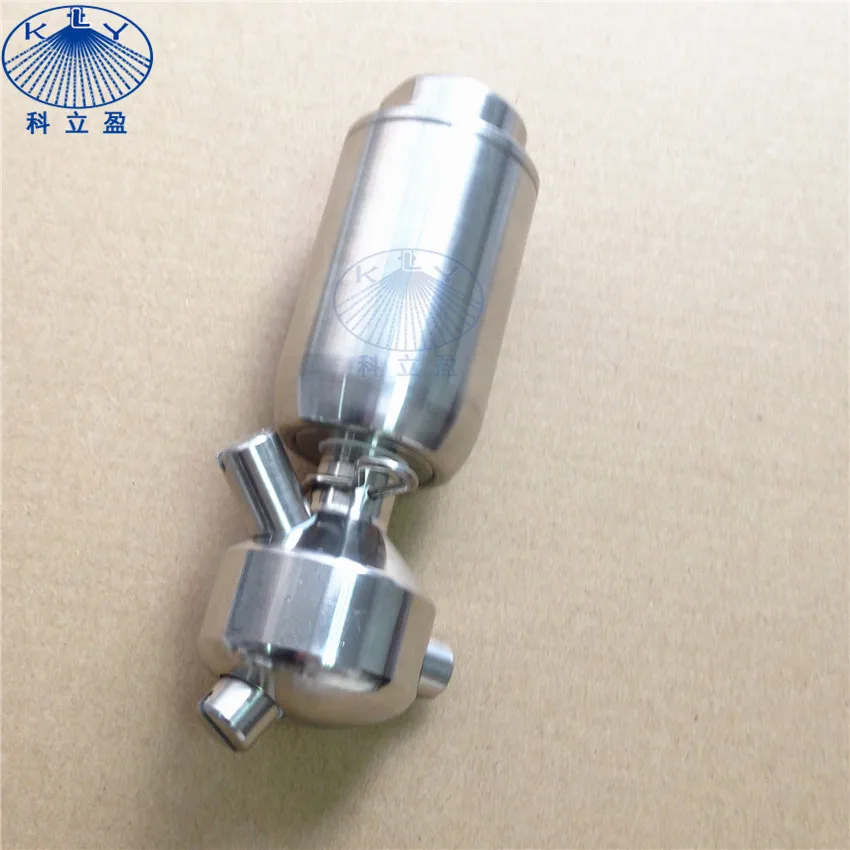

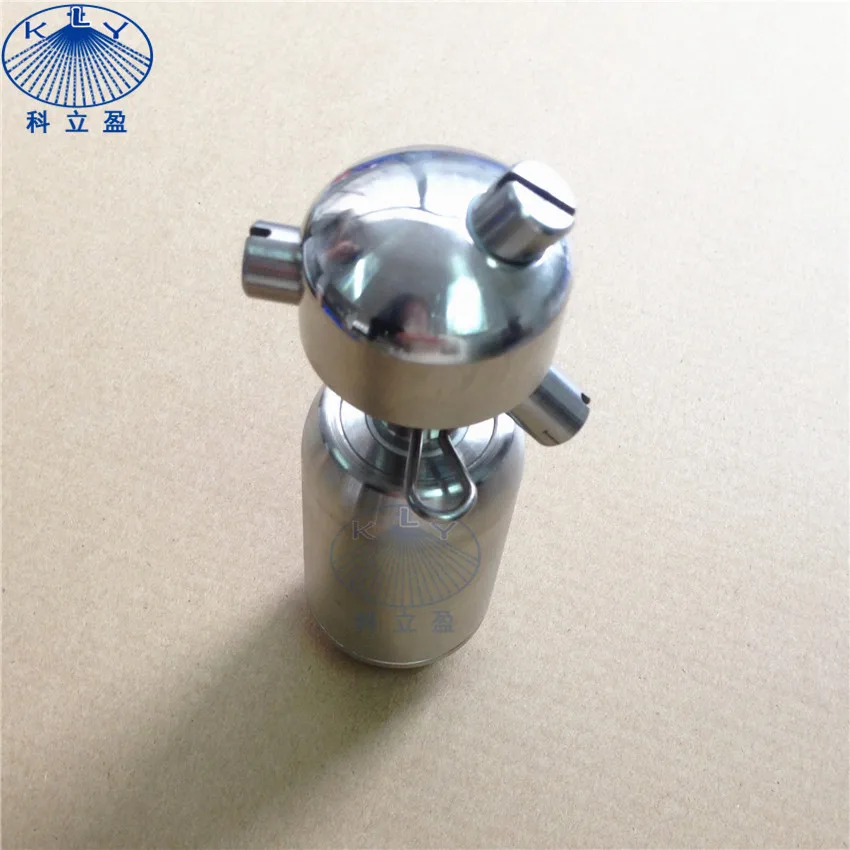

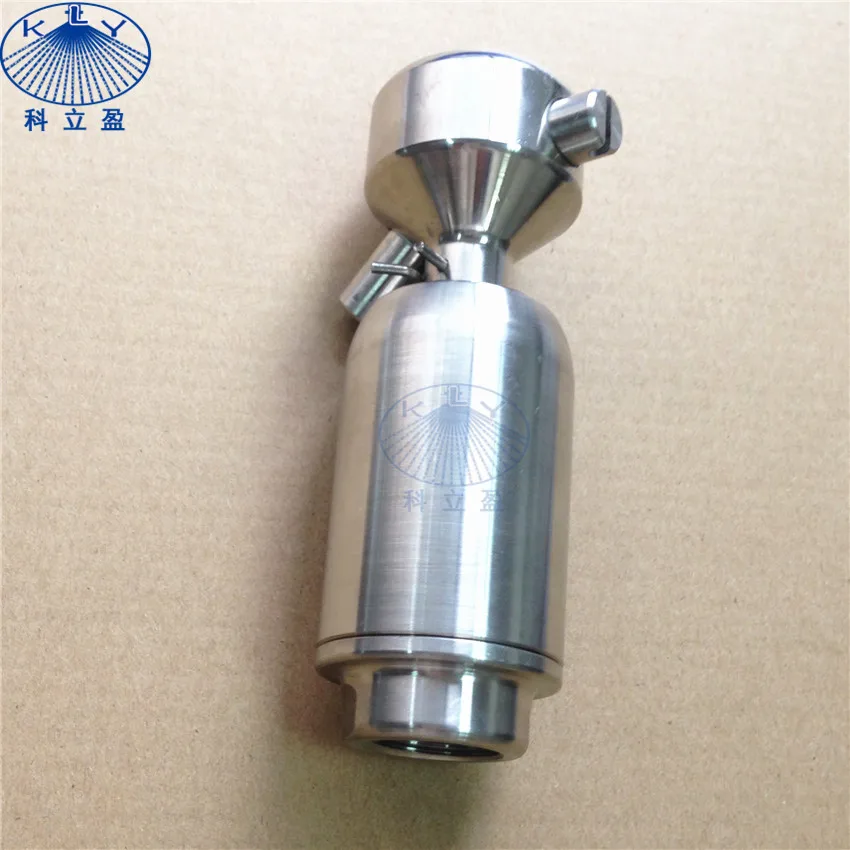

High impact rotary spray head for cleaning of IBC tanks
Model | rotary spray head for cleaning |
is_customized: | yes |
connection : | 1/2" BSPP |
Operating temperature | 95° |
Operating pressure | 3-7 bar |
Max. tank diameter | 3m |
Spay angle | 360 degree |
Material | 316L SS |
MOQ | 1pcs |
Application | rinsing and cleaning of tanks / containers |
Advantages
Controlled rotation
Pressure range up to 20 bar
Driven and lubricated by the cleaning fluid
Reliable slide bearing
Low-wear design
All materials are FDA-conform
The liquid flow powers the head by an internal turbine. Either a gear reduction or a hydraulic brake is used to control
the rotation. Hence the produced droplets are bigger and hit the tank wall with higher velocity. This rotary spray head keeps the speed of the head within its optimal range across a wider span of pressures, and the nozzles develops more powerful spray.
Applications
Efficient cleaning and rinsing of tanks or containers, for example
Chemical industry
Food industry
Beverage industry
Pharmaceutical industry
Controlled rotation
Pressure range up to 20 bar
Driven and lubricated by the cleaning fluid
Reliable slide bearing
Low-wear design
All materials are FDA-conform
The liquid flow powers the head by an internal turbine. Either a gear reduction or a hydraulic brake is used to control
the rotation. Hence the produced droplets are bigger and hit the tank wall with higher velocity. This rotary spray head keeps the speed of the head within its optimal range across a wider span of pressures, and the nozzles develops more powerful spray.
Applications
Efficient cleaning and rinsing of tanks or containers, for example
Chemical industry
Food industry
Beverage industry
Pharmaceutical industry
Application:
The new rotary spray head works very powerfully and efficiently based on the controlled rotation. Compared to conventional rotating spray nozzles,cleaning cycle time can be reduced considerably,This saves cleaning fluid, energy costs and time.

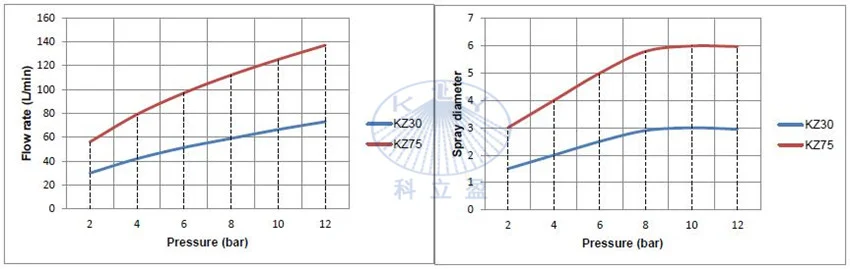

Performance data:

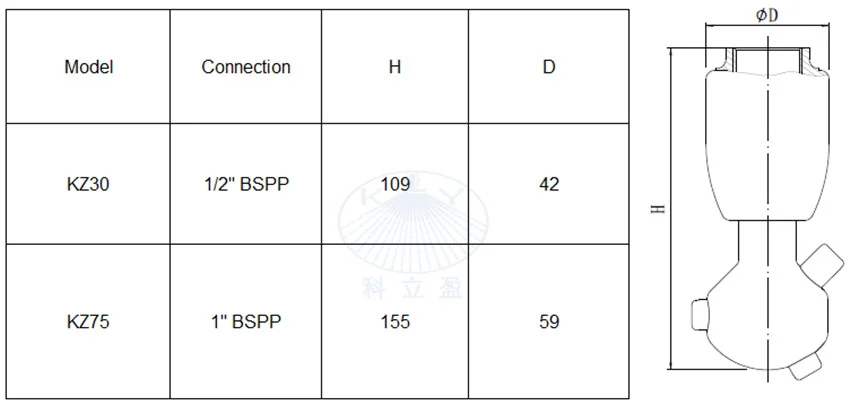

Dimensions of tank cleaning nozzle:
Cleaning process:
Cleaning effect:
Application of 3D rotary tank cleaning nozzle:
1：Can the products be customized?
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2:Is the MOQ fixed ?
For mass production orders,the MOQ cannot be lowered according to production requirements.For stock items,order quantity can be negotible.
3:How to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4:How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5:How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6: How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7:How to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2:Is the MOQ fixed ?
For mass production orders,the MOQ cannot be lowered according to production requirements.For stock items,order quantity can be negotible.
3:How to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4:How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5:How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6: How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7:How to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
