Wire Mesh Cage Type and Heavy Duty Scale metal storage container
- Category: Cargo & Storage Equipment >>>
- Supplier: Xiamen,Wuhao,Industry,&,Trade,Co.,Ltd
Share on:
Product Overview
Description
WIRE MESH CONTAINER
Product Description
High-visibility parts storage for manufacturing and warehousing. Features reinforced under carriage and support legs, fully galvanized finish and a collapsible, stackable design for efficient storage. Folds flat for space-saving storage, with front drop-gate for easy access. Dimensions available, Material Wire mesh, Foldable Yes, Flared legs allow for easy 4-high stacking.
• 1200L x 1000W x 890H mm/ 1000L x 800W x 840H mm/ 800L x 600W x 640H mm
• Rugged 2-gauge 2in x 2in wire mesh with reinforced understructure
• Many capacity available
• Flared legs allow for easy 4-high stacking
Casters options
Roller bearing swivel casters are made of high-impact polypropylene, with 2 locking casters.
Two swivel locking poly casters and two rigid poly casters
Other options
It can work with pp sheet, wood pallet, plastic pallet, a top/cover, and casters and so on.

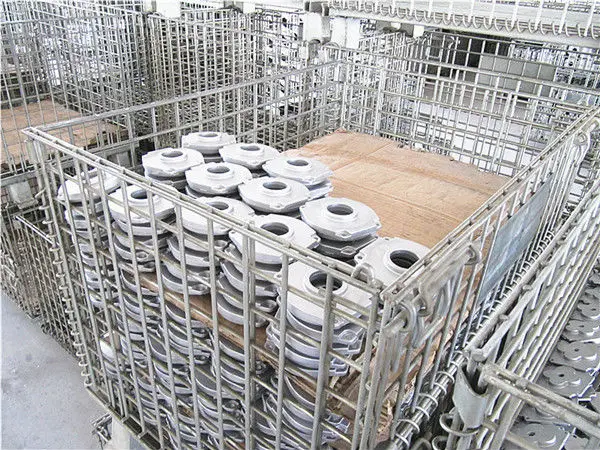

Check out the display!
Wire Container,Wire Mesh Cage Type and Heavy Duty Scale metal storage container
Collapsible and stackable
metal storage container can be stacked and storage products in order
castors and tow bar
It can work with pp sheet, wood pallet, plastic pallet, a top/cover, and casters etc.
Packaging
Specifications available and accept custom
| Item No. | External size (mm) | Internal size (mm) | Wire dia.(mm) | Mesh gauge(mm) | Load capacity(kg) | Weight ((kg)±2%) | Load Qty 20GP/40GP |
| A1-800 | 800*600*640 | 750*550*500 | 5.8 | 50*50 | 800 | 29 | 350/700 |
| A1-700 | 800*600*640 | 750*550*500 | 5.6 | 50*50 | 700 | 27.8 | 350/700 |
| A1-600 | 800*600*640 | 750*550*500 | 5.3 | 50*50 | 600 | 23 | 350/700 |
| A1-400 | 800*600*640 | 750*550*500 | 4.8 | 50*50 | 400 | 20.6 | 350/700 |
| A2-600 | 800*600*640 | 750*550*500 | 5.8 | 50*100 | 600 | 25 | 350/700 |
| A3-1000 | 800*600*640 | 750*550*500 | 6.3 | 50*50 | 1000 | 32 | 350/700 |
| B1-1200 | 1000*800*840 | 950*750*700 | 5.8 | 50*50 | 1200 | 44.8 | 220/480 |
| B1-1000 | 1000*800*840 | 950*750*700 | 5.6 | 50*50 | 1000 | 42.8 | 220/480 |
| B1-800 | 1000*800*840 | 950*750*700 | 5.3 | 50*50 | 800 | 35.2 | 220/480 |
| B1-600 | 1000*800*840 | 950*750*700 | 4.8 | 50*50 | 600 | 30.8 | 220/480 |
| B2-1000 | 1000*800*840 | 950*750*700 | 5.8 | 50*100 | 1000 | 39 | 220/480 |
| B3-1500 | 1000*800*840 | 950*750*700 | 6.3 | 50*50 | 1500 | 51 | 220/480 |
| C1-1500 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 60.8 | 150/300 |
| C1-1300 | 1200*1000*890 | 1150*950*750 | 5.6 | 50*50 | 1300 | 55.8 | 150/300 |
| C2-1000 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*100 | 1000 | 53.8 | 150/300 |
| C2-800 | 1200*1000*890 | 1150*950*750 | 5.6 | 50*100 | 800 | 48.4 | 150/300 |
| C3-2000 | 1200*1000*890 | 1150*950*750 | 6.3 | 50*50 | 2000 | 68 | 150/300 |
