Natural Fresh Fruit Juice production line/Bottling Plant

Product Overview

Description

Natural Fresh Fruit Juice production line/Bottling Plant  :

Products Introduction:

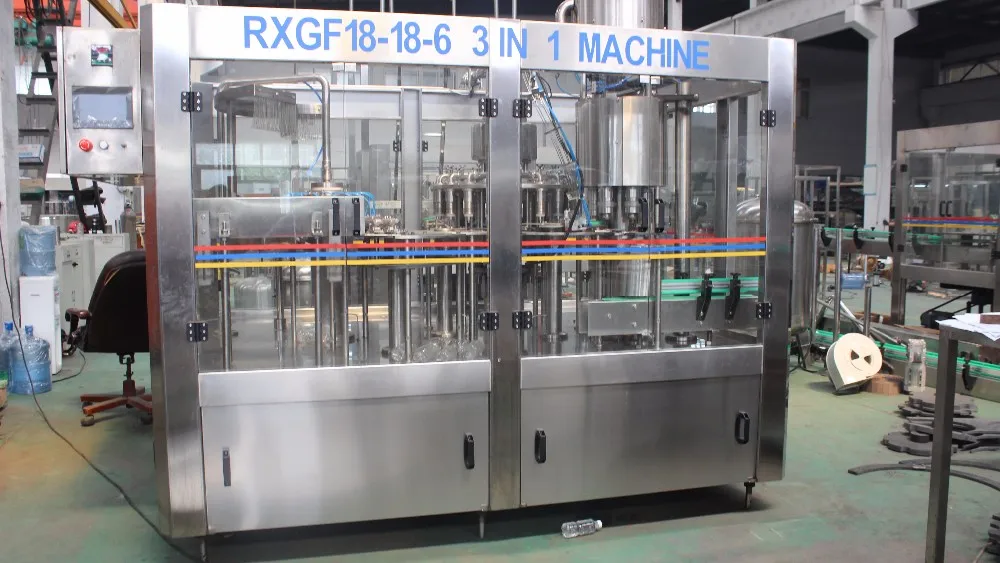

RCGF series of aseptic This juice filling machine integrates washing, filling and capping into one unit. It is used in filling hot fruit juice, tea and other beverage, if you replace some parts, it can also be used in filling normal temperature filling.







Features:

 1).The juice filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.



 2).The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.



3).It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.



4). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
5). High-speed large gravity flow valve, filling valve, filling fast, filling accurate and no liquid lose.

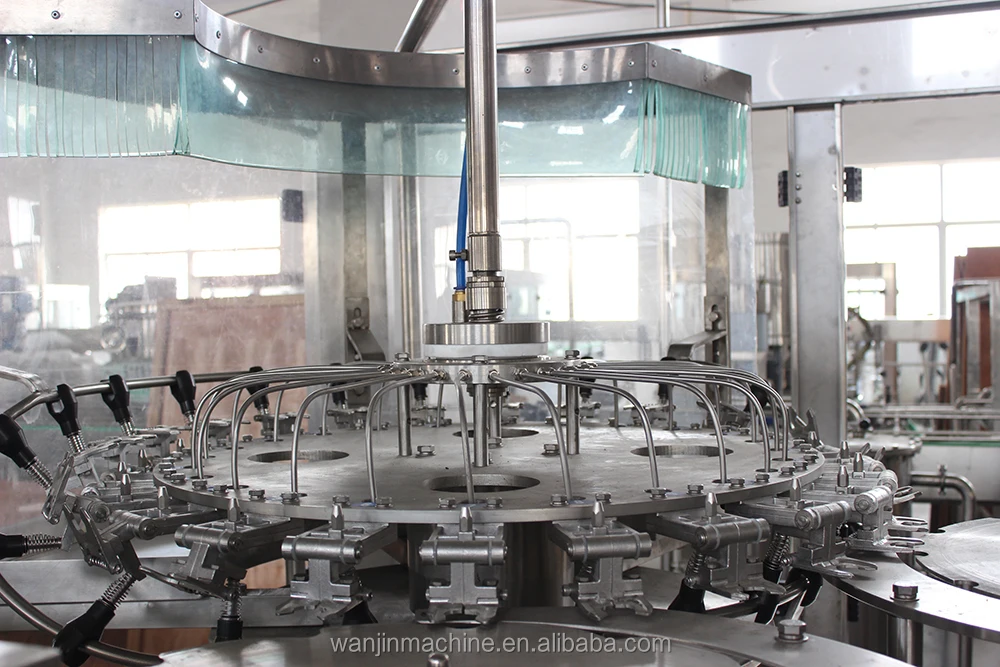

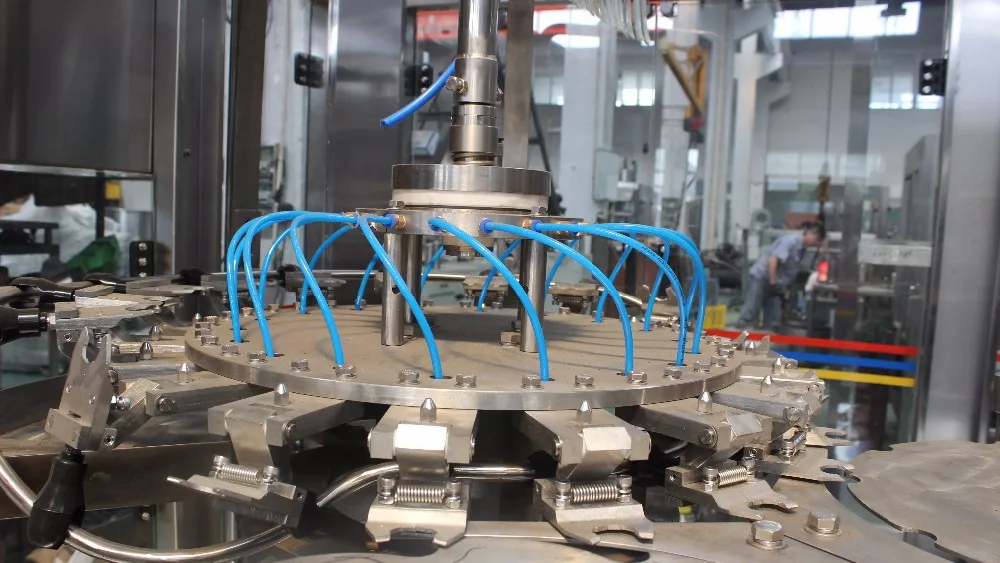

Washing part:

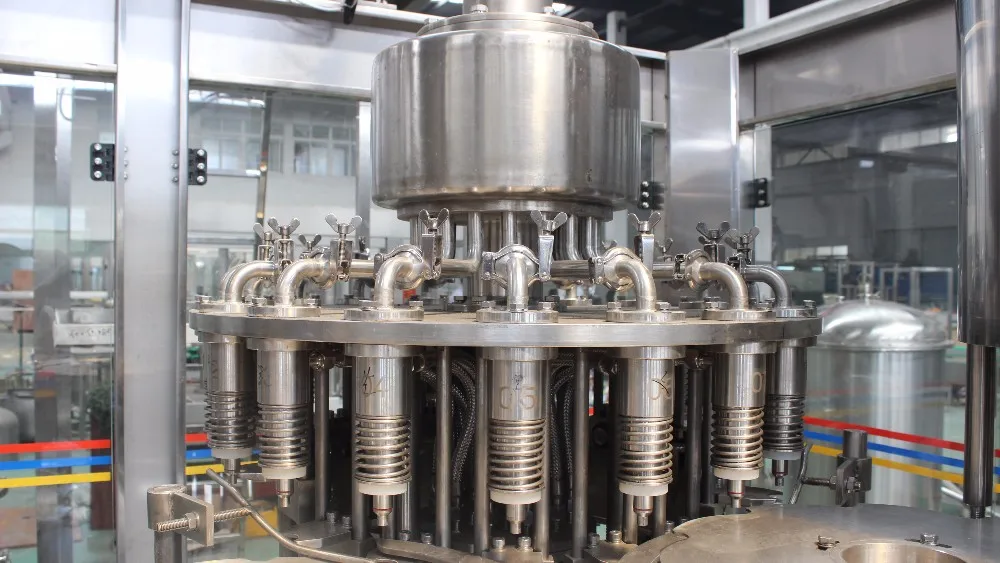

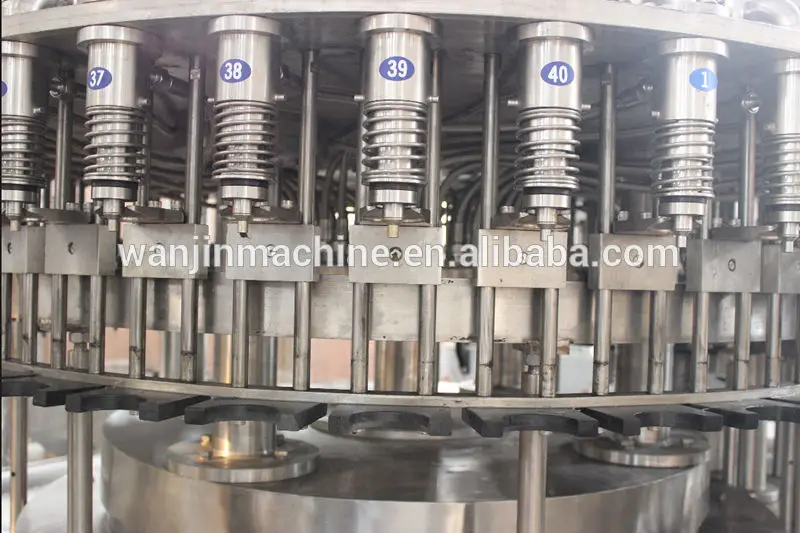

Filling part:

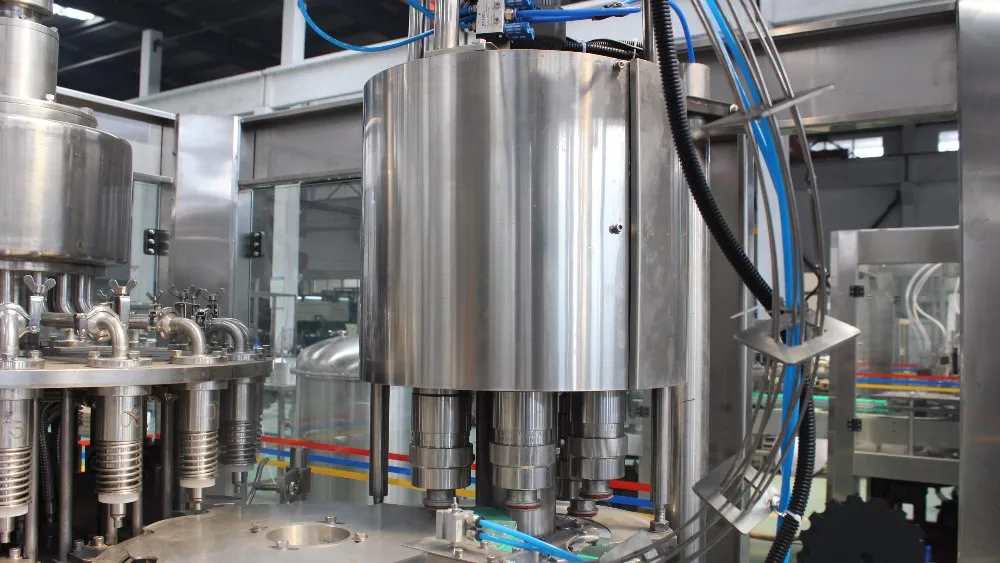

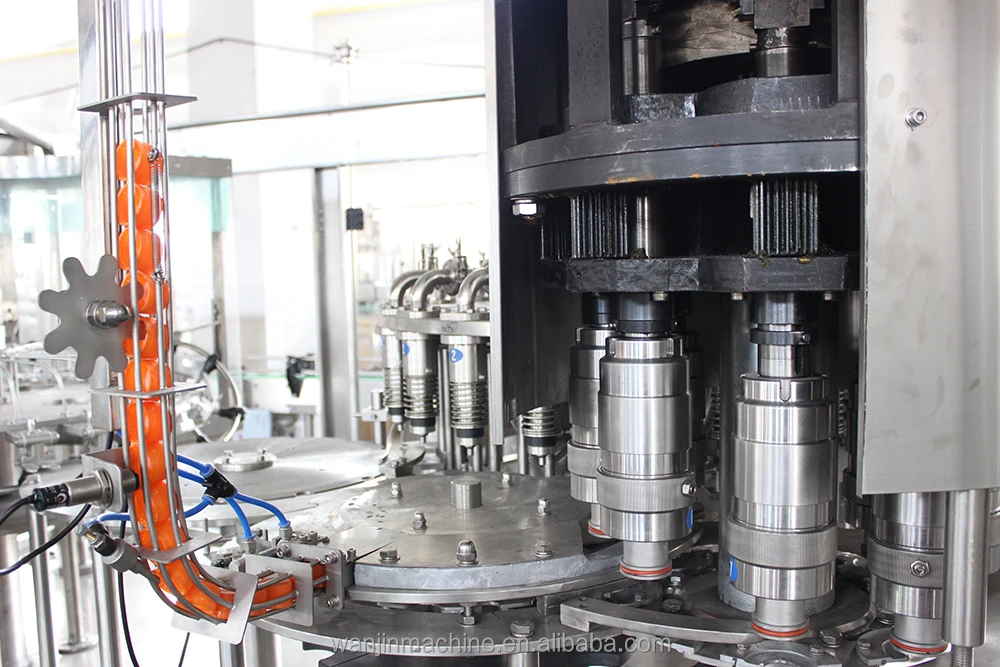

Capping part:







Juice filling machine technical parameters:

Technical Data
Model	RCGF14124	RCGFR18186	RCGFR24248	RCGFR32328
The number of Washing, Filling, Capping valve	14-12-4	18-18-6	24-24-8	32-32-8
Producing capacity: The number of bottle(500ml)/hour	3000-4000	5000-7000	8000-12000	12000-15000
Applicable bottle specifications (mm)	H=170-320 Φ=50-100 (330∼1500ml)
Pressure ( MPa)	0.25-0.3
General power (kw)	1.5+0.37	2.2+0.37	3+0.45+0.25	4+0.45+0.25
Overall dimension (mm) (L×W×H)	2300×1680×2650	2500×1760×2650	3100×2100×2650	3800×2800×2650
Weight(kg)	2600	3500	4800	6500



Spare parts list for oil filling machine:

Name of parts Producing area Programmed controller OMRON On-off device Taiwan Low-pressure breaker Siemens Fuse  Japan AC electromagnetic contractor Siemens contractor Siemens Heat-break device Siemens Multi-continuous electrical device Siemens Middle-continuous electrical device Japan Alarm Hang Zhou Speed adjusting device USA

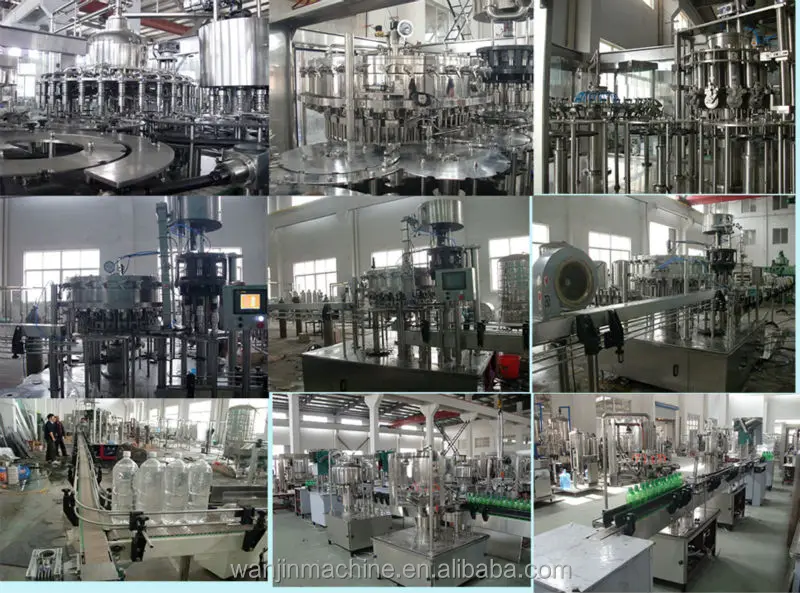

Processing:





packing:
