Product Overview

Description



PJK TOTAL STATION PTS120R RUIDE RTS862R total stations sokkia



 KEY ADVANTAGES FOR PJK TOTAL STATION PTS120R/PTS120:

1. Intelligent Online Troubleshooting


2. Integrated Optical, Mechanical and Electrical Precision Ranging System, Accuracy:2mm±2ppm


3. Reflector less Distance Measurement, Range Up To 350M


4. High Efficient Absolute Encode Angle Measuring System, Accuracy:2″


5. competitive promotion price less than 2000usd, the first 5 order per month, can send a free magellan handheld gps, full english;


6. Warranty : one year,

The PJK PTS120R/120 total station is share with the same hardware and software of ZTS120R/120, OEM made from ZTS120R/120, but take this you can get a much low price offer, but get the same quality and service. The PTS120R/120 total station is hot selling to Asia, Africa, many customer already use this model for last three years, and still not have any complaint about the quality. One year warranty against the factory failture, and if not able to fixed by us, we shall replace a new set to our customer too please. Get one ecomonic total station from us, you can full relax for the future days.



If you want to confirm any other detail about this total station, you are welcome to send us inquiry,and we shall response very quickly please. Expect for your mail, our best friends.

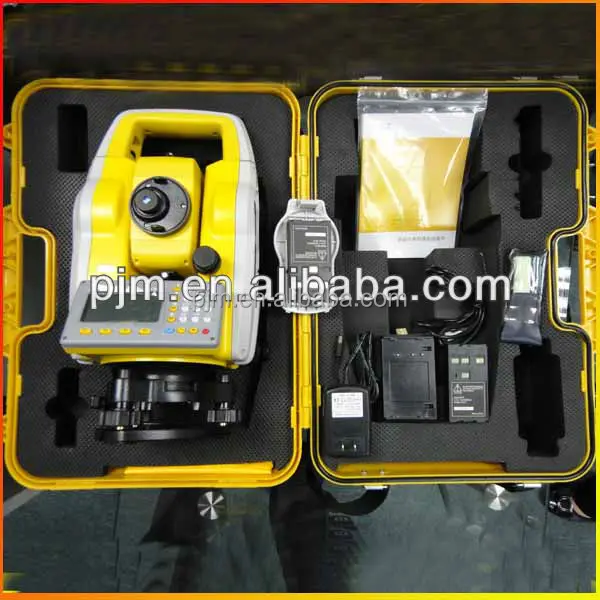

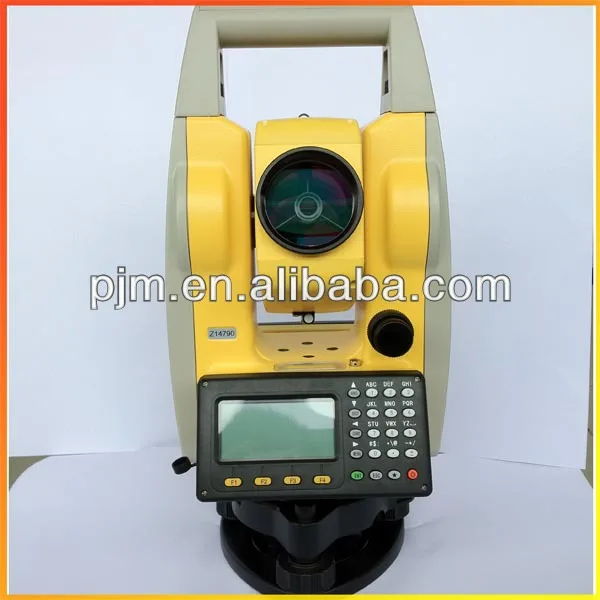

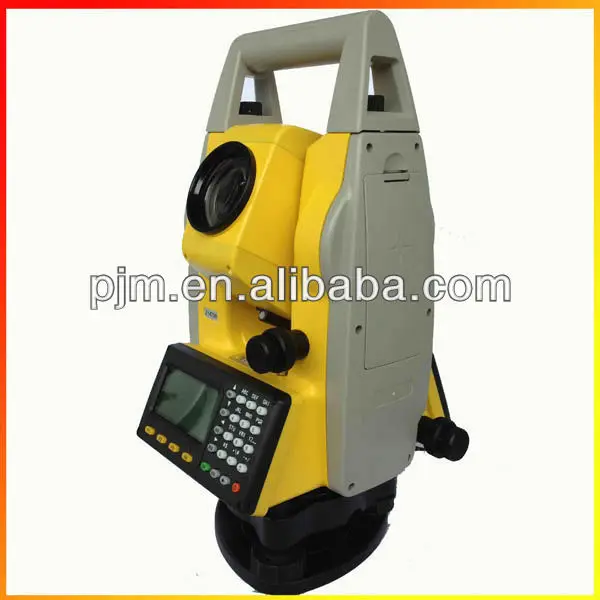

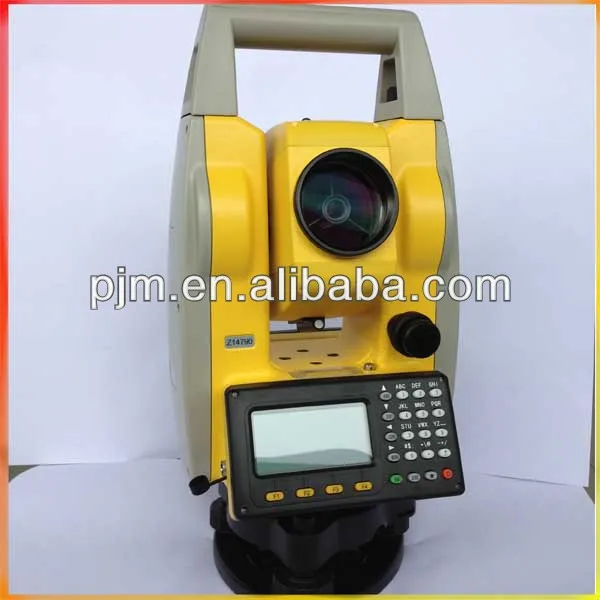

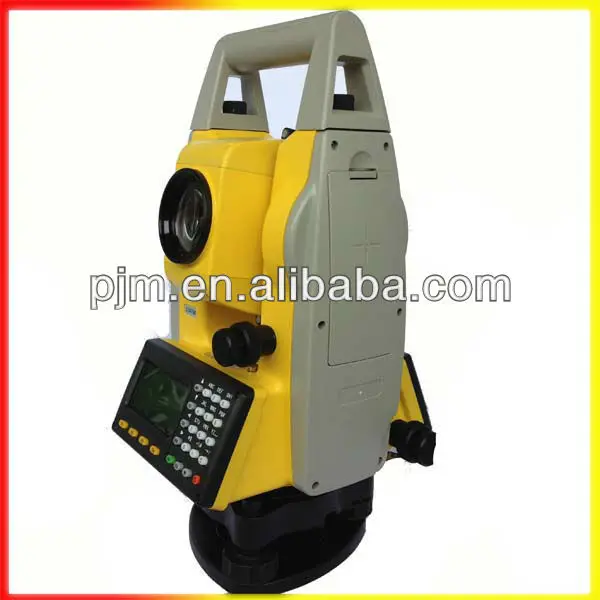

PJK total station pictures







Total station Advantage:



Multi-dot matrix LCD screen,simply operation interface



 PJK PTS-120/120R series total station price designed with multi-dot matrix LCD screen, which can show almost all of the measurement information at a glance. The big screen with lighting function can show the menu structure and practical measurement procedures more concisely and clearly. Both Face Alpha-numerical keyboards can realize your various measurement tasks fast and conveniently.



 Optical, mechanical and electrical integrated Precision ranging system

 PJK PTS 120R / PTS120 series total station integrated the high precision ranging system, which combined with high stability mechanical structure, and high integrated circuit design, can greatly improved the ranging accuracy and stability.



 Efficient absolute coding system

 Greatly improving the angle measuring accuracy and stability, as well as Instrument automation

ü        No need to initialize while opening the instrument;

ü        Capable to save the horizontal angle after shutdown, no need to reorient when restarting the instrument in the same station.

ü        Still retain the original information when restarting the instrument after suddenly power off.

 No prism Ranging technology

Slender laser beam precise ranging

ü        PJK PTS 120R /120 series total station designed with the slender laser beam precise ranging technology, which can pass through the objects, such as finedraw, nets grille etc. without impacts, shooting the target and getting the correct result fast and accurately.

ü        Convenient to make sure the coaxiality with sight axis and ranging axis.







Total station specification



Specification
Model
Angle Measurement(Hz,V)
Method		Absolute Reading
Minimum Reading		1″
Angle Accuracy		2″
Telescope
Magnification		30X
Field of View		1°30′
Shortest Focus Distance		1.5m
Reticle		Illuminated
Compensator
System		Integrated liquid uniaxial Compensator
Working Range		minus and plus 3′
Setting Accuracy		1″
Distance measurement
Reflector (LR)
Range	Single Prism	2500m
	Reflector(60mmx60mm)	800m
Accuracy(Fine/Coarse/Tracking)		2mm minus and plus 2ppm
Measurement Time	Repeat	1s
	Tracking	0.6s
Reflectorless (RL)
Range	White Target board	350m
	Single Prism	more than 7500m
Accuracy(short distance/tracking/prism)		3mm minus and plus 2ppm
Measurement Time(short distance/tracking/prism)		2s
General
Communication	Internal Data Memory	20000 Points
	Interface	RS232
	Data Format	ASCII
	Operation system	Real-time operating system
	Display	Graphics:192*96 pixels ,6 line*12 characters
	Keyboard	Both Face Alpha-numerical keyboard
Laser plummet	Type	Laser Point, Brightness Adjustable in steps
	Centering Accuracy	1 mm at 1.5m instrument height
Power supply	Battery Type	Lithium-Ion
	Voltage/Capacity	ZBA-400:7.4V 3000mAh
	Operating time with ZBA-400	16 hours
		24hous(Continuous Angle Measurement )
Weight (Incl. Battery &Tribrach)		5.5kg
Environmental	Operating temperature	-20°C~50°C
	Storage temperature	-40°C~'70°C
	Dust &Water proof  (IEC60529)	IP54





Payment terms: T/T IN ADVANCE, WESTER UNION, OR ECROW

Delivery time: ready stock, effect shipping within three days after received payment

Packing info: dim:53cm*35cm*43cm,net weight:10kg,  with two batteries





HOT SELLING NEWS:

By the way, we majorly deal with Trimble/Ashtech RTK GPS, high accuracy GIS DATA COLLECTOR, RUIDE RTS-862R total station, KOIZUMI digital planimeter KP-90N/KP-21C, laser theodolite, Magellan handheld gps,  if you also have interesting, please feel free to talk with us.



WHO WE ARE ?

Shenzhen Pengjin Technology Co.,Ltd, which is the owner of PJK brand land surveying instrument, the PJK brand covers total station, theodolite, level,RTK GPS, GIS, handheld GPS, Rebound tester, laser vertical collimator, laser rangefinder, laser swinger, laser line marking, laser telescope rangefinder,etc. Now we are looking for the international general agencies.
Recently we have many products which are on hot sale like RIDGID line detectors as well as the instruments of HiTarget, North, Kelida, SD, Ruide, GNSS, FOIF and so on. What's more, we have Trimble, Ashtech, LAIKA, TOPCON, SOKKIA, NIKON and surveying instrument which are on sale.
In addition, we also undertake projects like land survey and underground pipeline leak test as well as underground pipeline survey, etc.

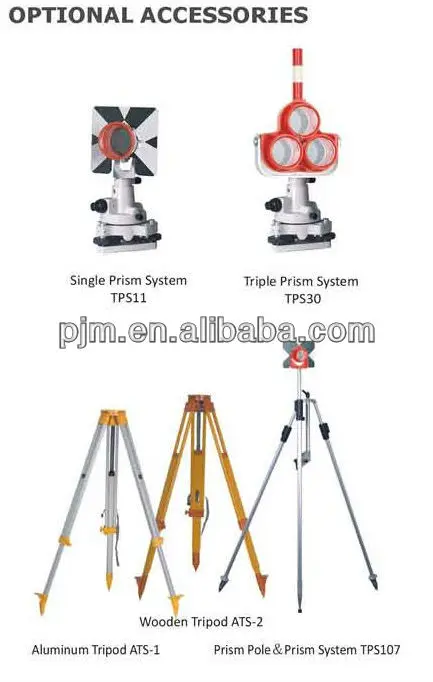

What type of accessories, we can supply for the total tation price:
