power distribution box terminal blocks

Product Overview

Description

Power distribution box terminal blocks :

Material :



• PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature:  -30°C to 110°C

• ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 100°C

• The pressure line screws on :  zinc-plated iron

• Rated Voltage:  250V-450V

• Color:  according to sample picture or customers' requirements



Specifications :

Itme NO.	Spec.	Rated current (A)	Rated voltage (V)	L1	L2	H	W	Max. section	Hole.Qty	Plastic Setting
	W*h			MM
207	6.5*12	125A	500V	67	48	50	45	35mm²	2*7	PA

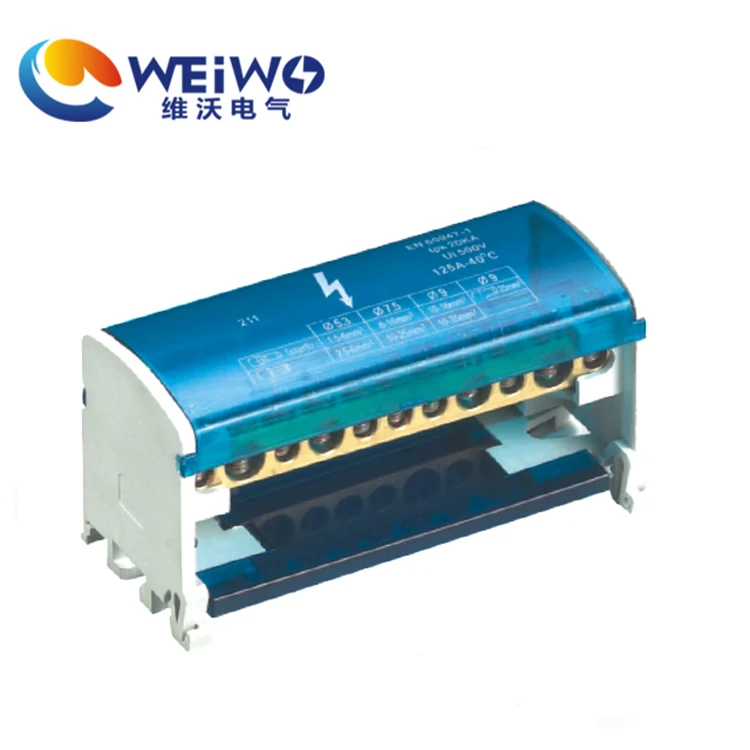

211	6.5*12	125A	500V	100	86	50	45	35mm²	2*11	PA

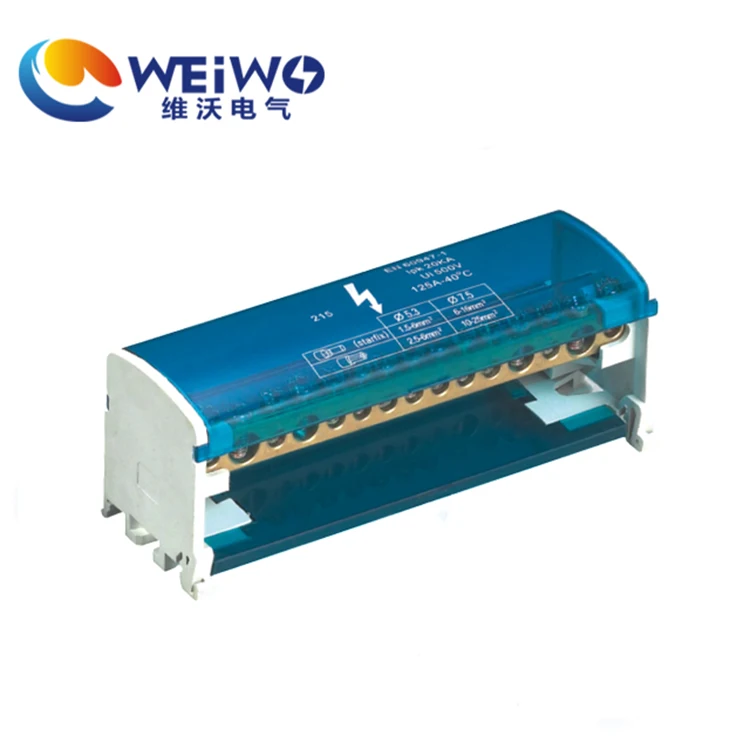

215	6.5*12	125A	500V	134	118	50	45	35mm²	2*15	PA

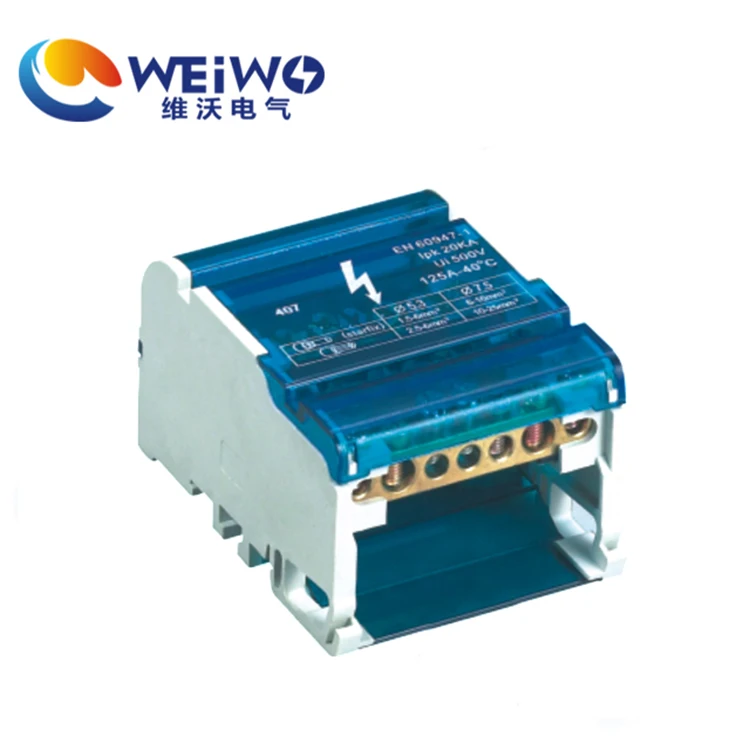

407	6.5*12	125A	500V	67	48	50	90	35mm²	4*7	PA

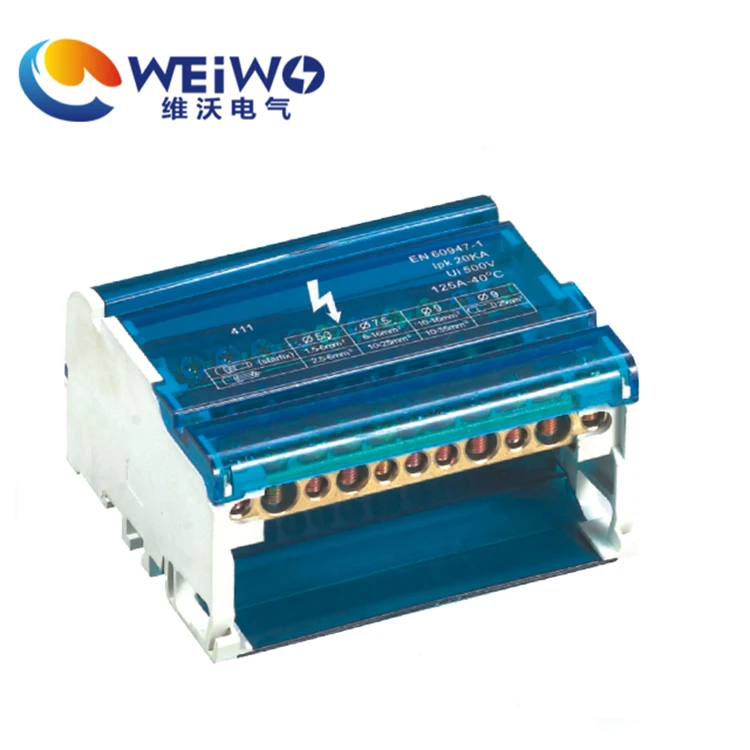

411	6.5*12	125A	500V	100	86	50	90	35mm²	4*11	PA

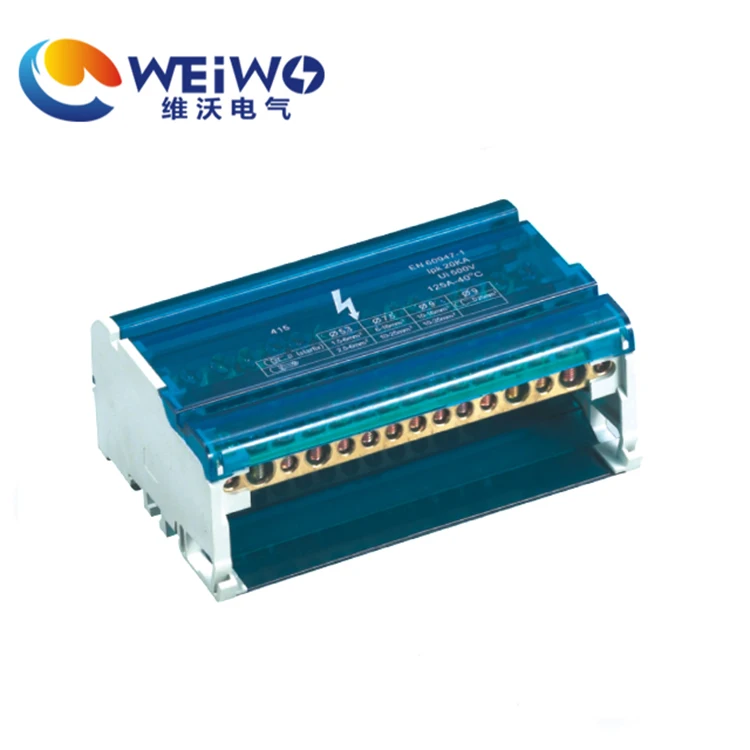

415	6.5*12	125A	500V	134	118	50	90	35mm²	4*15	PA
413	8*17	160A	500V	180	168	73	138	35mm²	4*13	PA





Drawings :











Exhibition :



1) High precision



2) Excellent inoxidability



3) Great ingredient accuracy and high intensity



4) High corrosion resistance



5) Our own mold workshop and injection molding workshop



6) OEM Service



7) Prompt Delivery



8) Small Order Accept



9) Tolerance: ± 0.3mm



10) Free sample



11) Certificate: CE&RoHS&Others
