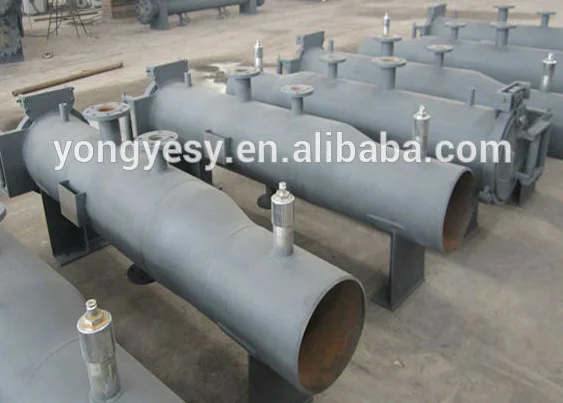

Pig launcher and receiver connected oil pipeline

Product Overview

Description

Launchers and receivers are used to launch and receive pigs during pigging operations. Certificates ISO & ASME U stamp.

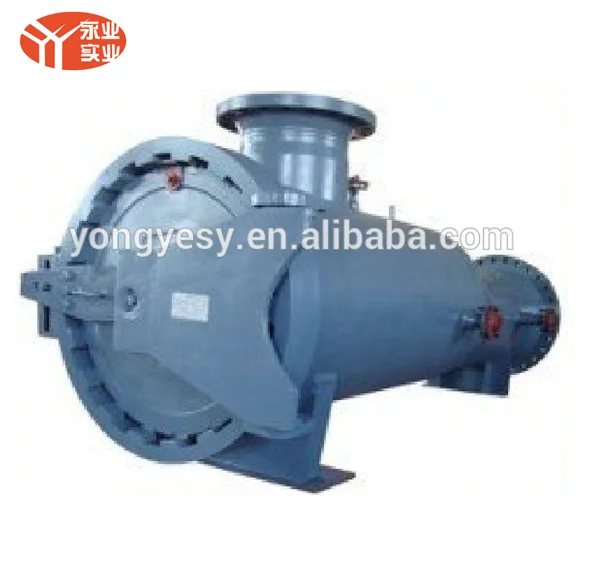

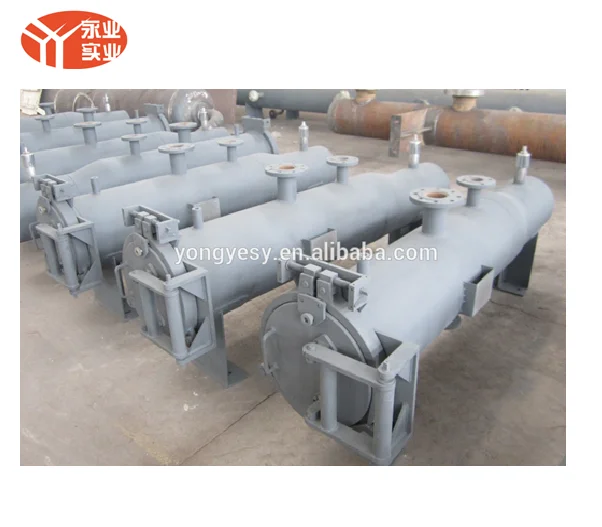

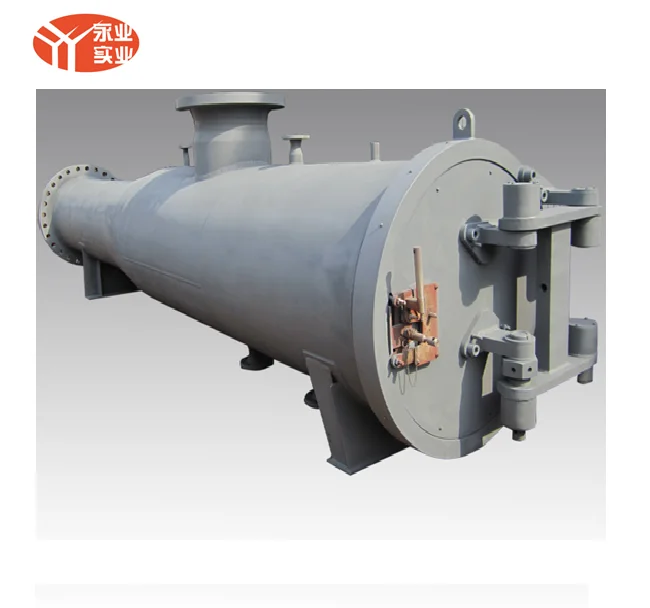

Pig launcher and pig receiver

Pig Receiver &Launcher are essential parts of pigging equipment, which is installed on both ends of pipeline to launch or receive the pigs. It consists of quick-opening closure, barrel, reducer, support saddle, etc. It could be divided into vertical and horizontal types. The vertical type is mainly used to launch and receive pipeline cleaning pig, and horizontal is for filter and the like.



• Size range from 3” to 56”.



• Class Rating from 150 – 2500.

• Materials – Carbon Steel, Stainless Steel, Monel.

• Option of Pig Signallers available.

• Quick Opening Closures with Safety Interlocks.

• Third party classification society approved.

• Design codes include ASME VIII DIV. I & ASME B31.3, GB150.

• Full material traceability available in accordance with EN 10204 3.1.B or 3.1.C.



* Applicable medium: crude oil, finished petroleum oil (gasoline, diesel), natural gas, coal gas, water.



Shenyang Yongye Industry Co., Ltd. founded in 1999,  specializes in designing and manufacturing the pipeline cleaning, interior coating, detecting and positioning devices, pressure piping components (insulating joints), pig launcher and receivers, quick opening closures, filter separators, heat exchangers, gas tanks, oil tanks, monel nickel copper alloy series.



      All products being widely used in oil field, petrochemical and natural gas industries both in domestic and abroad market. Yongye industry company has its own laboratory, Research and development team, professional technical team, all products designed as per GB Chinese standard or ASME code and manufactured strictly carry out ISO 9 0 0 0 system and HSE management system.



     Yongye welcome you to visit and would like to be your reliable business partner



We promise that:



                We answer and solve your questions and consult within 24 hours.



                We arrive to the domestic job site within 48 hours from the time you asked.



                Overseas job site service available.



                Service telephone: +86-24-88266563
