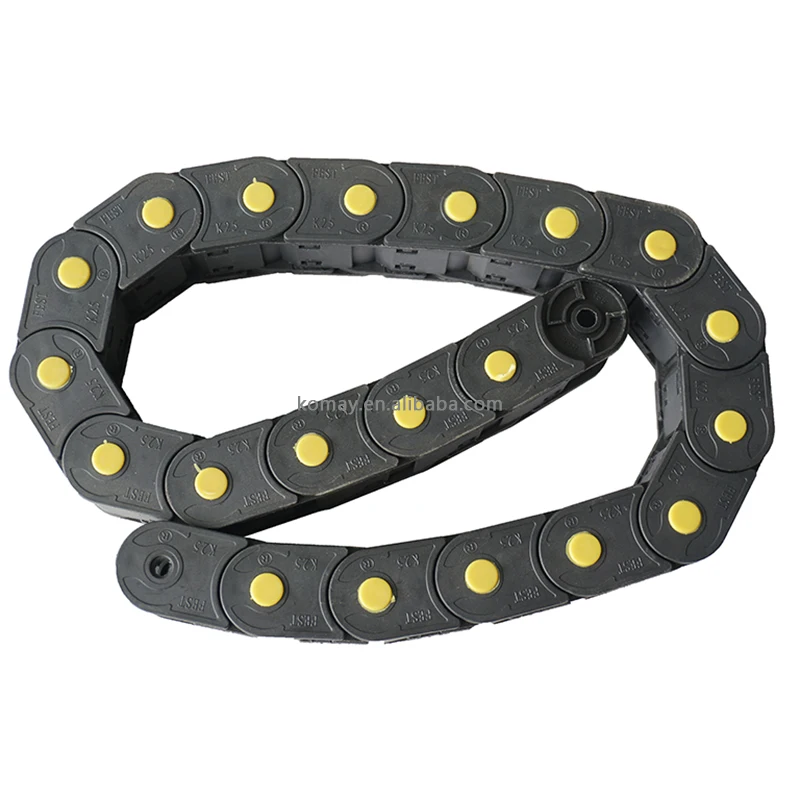

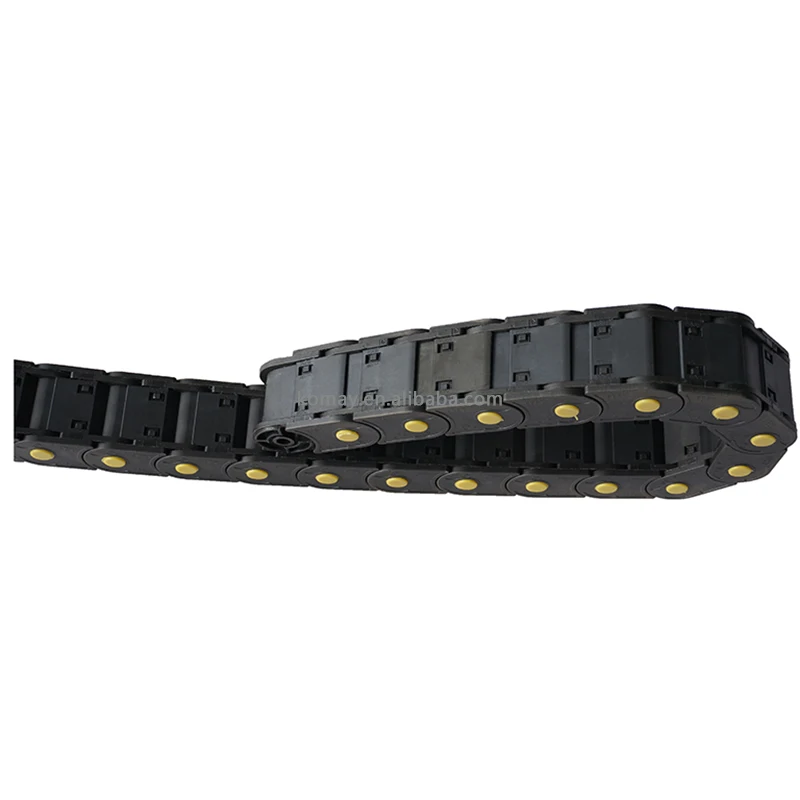

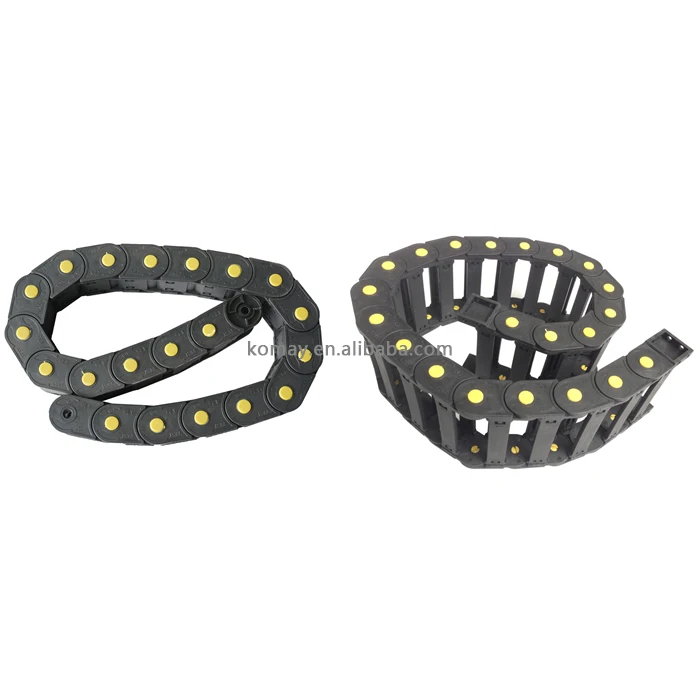

KOMAY K25 Series Plastic cable track,PVC cable chain,cable wire track

Share on (60058139865):


Price:$3.80 - $8.00

Quantity:


Product Overview

Description





Product Description


  25-38 drag chain.jpg












Technology


 Features and Applications:





  1. Cable towline is suitable for use in the occasion of the reciprocating movement. It can tow and protect the built-in cable, tubing and pipe.

  2. Each section of towline can be open. Easy installation and maintenance.

  3. Quiet running, wear-resistant and high-speed movement.


 k25 series cable energy chain.jpg














































Type



Inner width


(mm)



Outer width


(mm)



Bending radius(mm)



Pitch (mm)



Weight (kg)



2500.038.◊.0



38



54



55 75 100 125



45



1.05



2500.057. .0



57



73



55 75 100 125



45



1.15



2500.077. .0



77



93



55 75 100 125



45



1.30



2500.103. .0



103



119



55 75 100 125



45



1.40

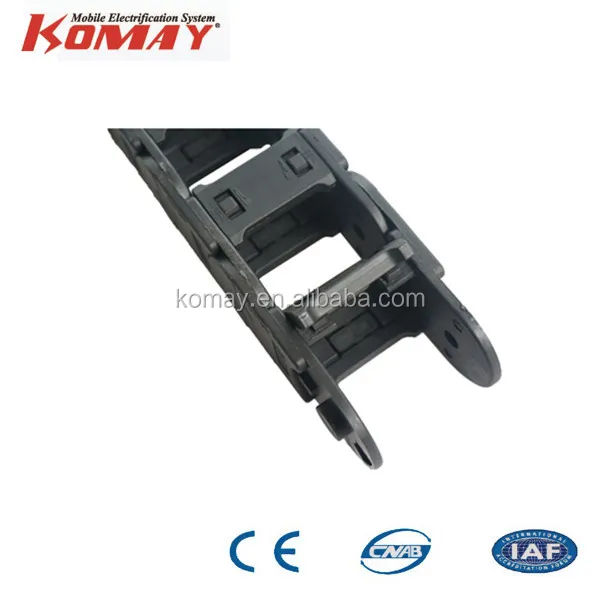

Structure:



  1. Looks like tanks chain, towline consists of many unit links which can move smoothly.

  2. The same series towline have the same inner high, outer high and pitch, but the chain width and bend radius can be different.

  3. Unit chain consists of left and right chain plate and upper and lower cover. Each section can be open. After opening the cover, we can put the cable, tubing and pipe into the towline.


Technical Data:



  1. Material: reinforced nylon with a high pressure and tensile load, a good toughness elastic wear resistance and flame retardancy. With a stable performance in high and low temperature, it can be used in outdoor.

  2. Anti patience: resistance to oil and salt along with acid and alkali.

  3. Running speed and acceleration: maximum speed can reach up to 5 m / sec, the maximum acceleration can be up to 5 m / sec 2 (specific speed and acceleration is depended on the operating conditions).

  4. Operation life: in the case of normal overhead use, it can be used for up to 500 million times( specific life is depended on the running situation)


 electric cable carrier.jpg






































Type



Inner width


(mm)



Outer width


(mm)



Bending radius(mm)



Pitch (mm)



Weight (kg)



2550.038◊.0



38



54



55 75 100 125



45



1.15



2550.057.◊.0



57



73



55 75 100 125



45



1.25



2550.077.◊.0



77



93



55 75 100 125



45



1.40

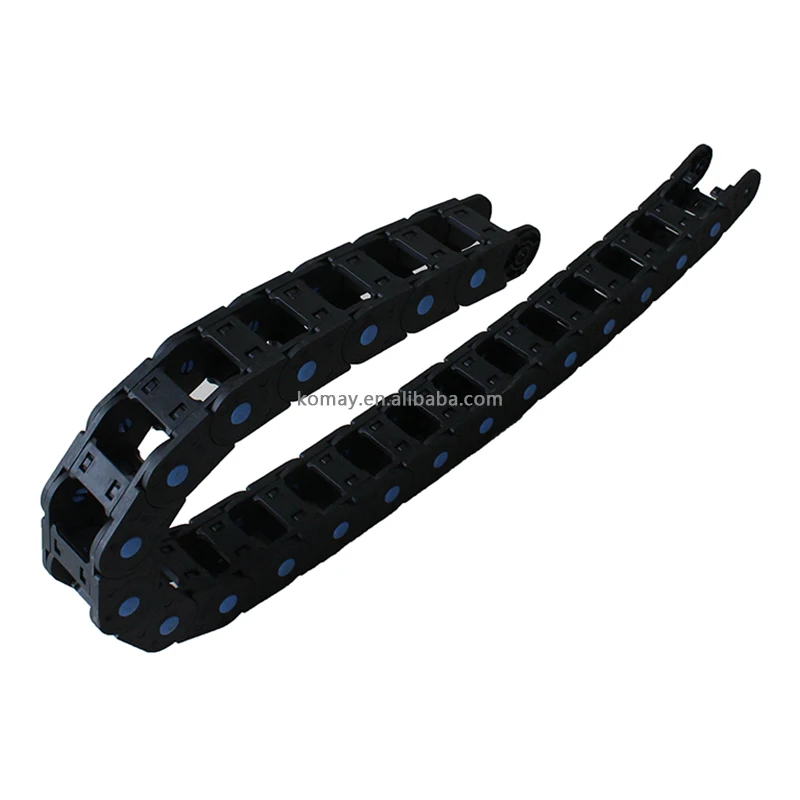

Detailed Images


 type 1.jpgtype 2.jpg


cable carrier.jpg

















Product Uses


 cable drag chain
