Product Overview

Description

 Introduction of  MJ162A multiple rip saw machine

It is specially designed for making rip cuts. The cutting edge of each tooth has a flat front edge and it is not angled forward or backward. This design allows each tooth to act like a chisel (as opposed to a knife as with the crosscut saw), which prevents the saw from following grain lines. By acting like a chisel, the saw can more easily cut across grain lines, which is necessary if a straight cut is to be achieved.
For these models, the feeding device is special track. The min. blade capacity is 4pcs, the max. blade capacity is 10pcs.



MJ162A multiple blades rip saw machineTechnical parameters:

MODEL	MJ162A	MJ153E
Max. cutting thickness: mm	75	85
Min. cutting thickness: mm	10	10
Max. cutting width: mm	200	365
Min. cutting length: mm	230	330
Saw blade diameter: mm	305	255-305
Saw blade motor: kw	22	7.5
Feeding motor : kw	1.5	0.75
Feeding speed: m/min	6-24	13.3-23.3
Dimension: mm	2140 x 1010 x 1660	1700X980X1390
Weight: kg	1800	980

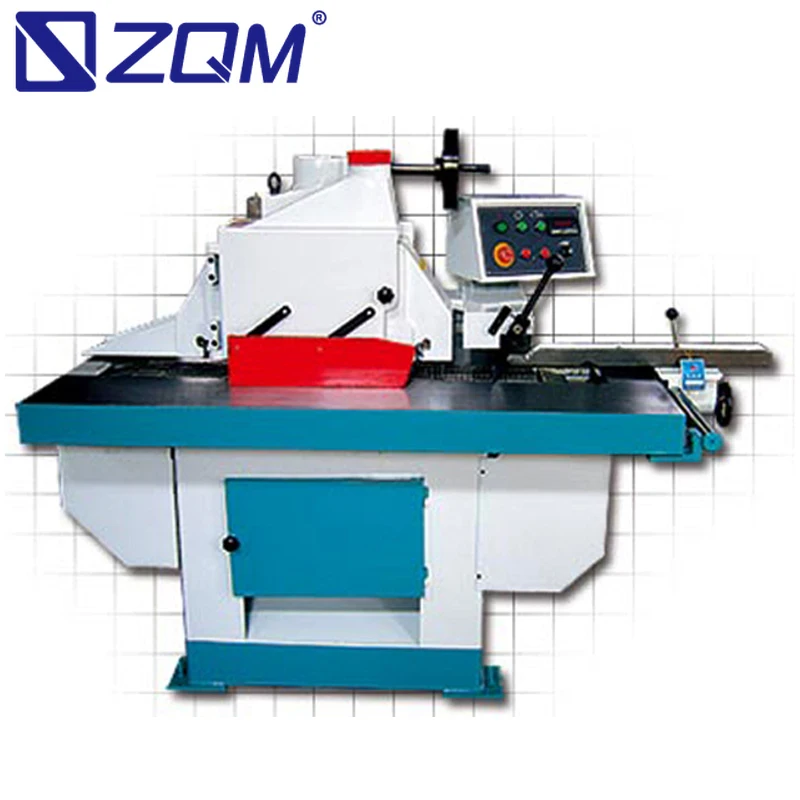

Please note: MJ153E model is single blade rip saw, MJ162A model is multiple blades rip saw.
