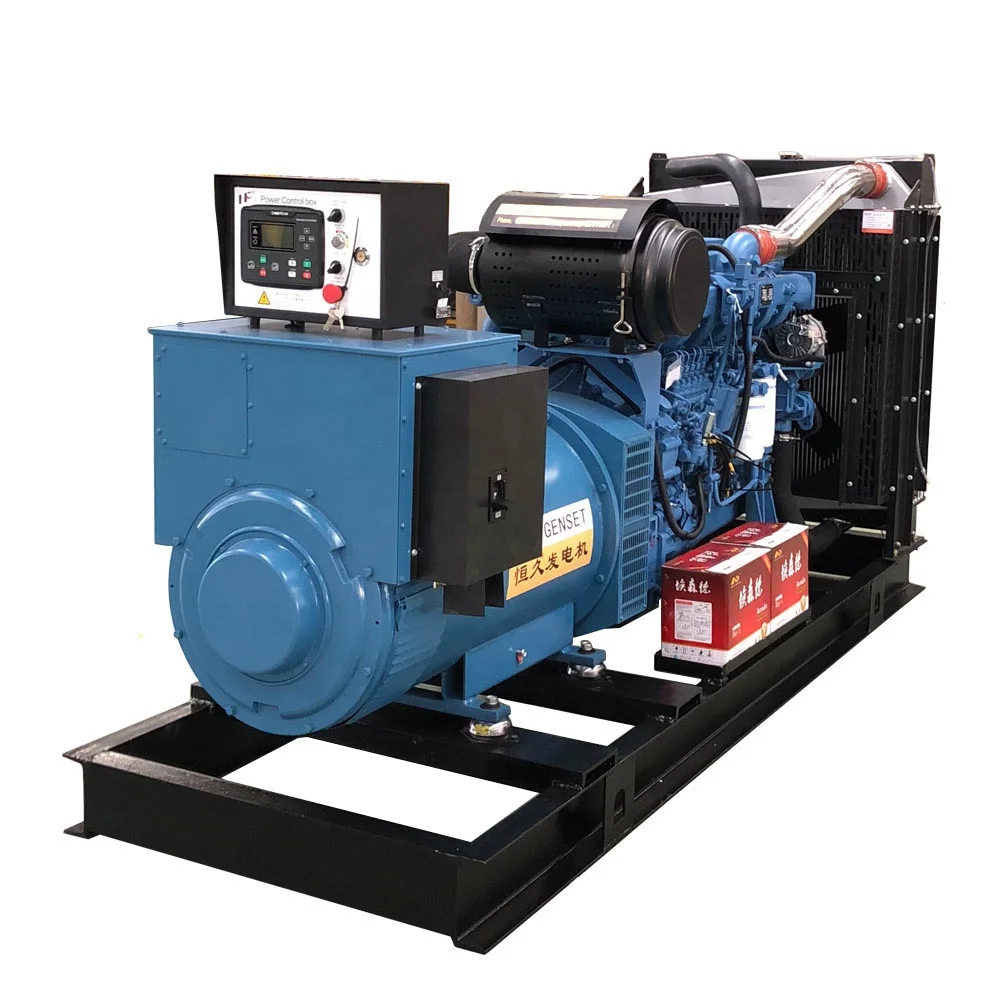

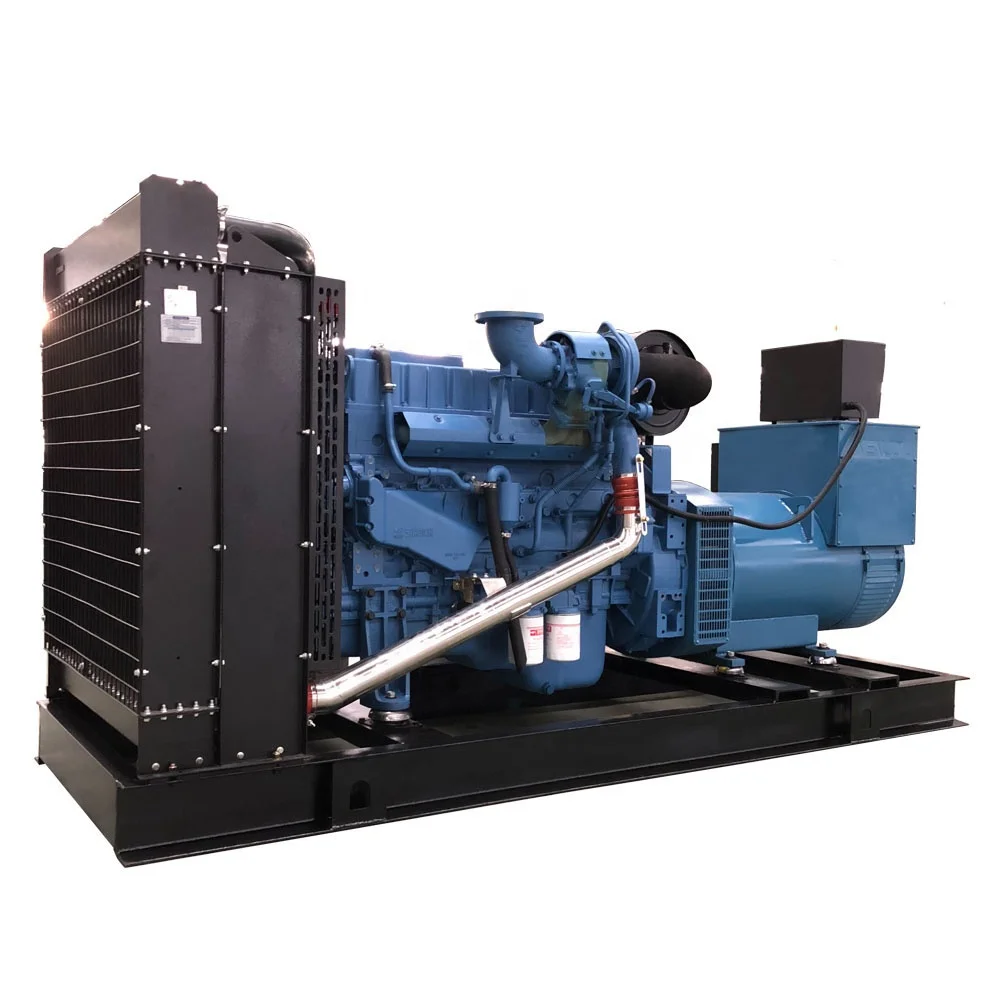

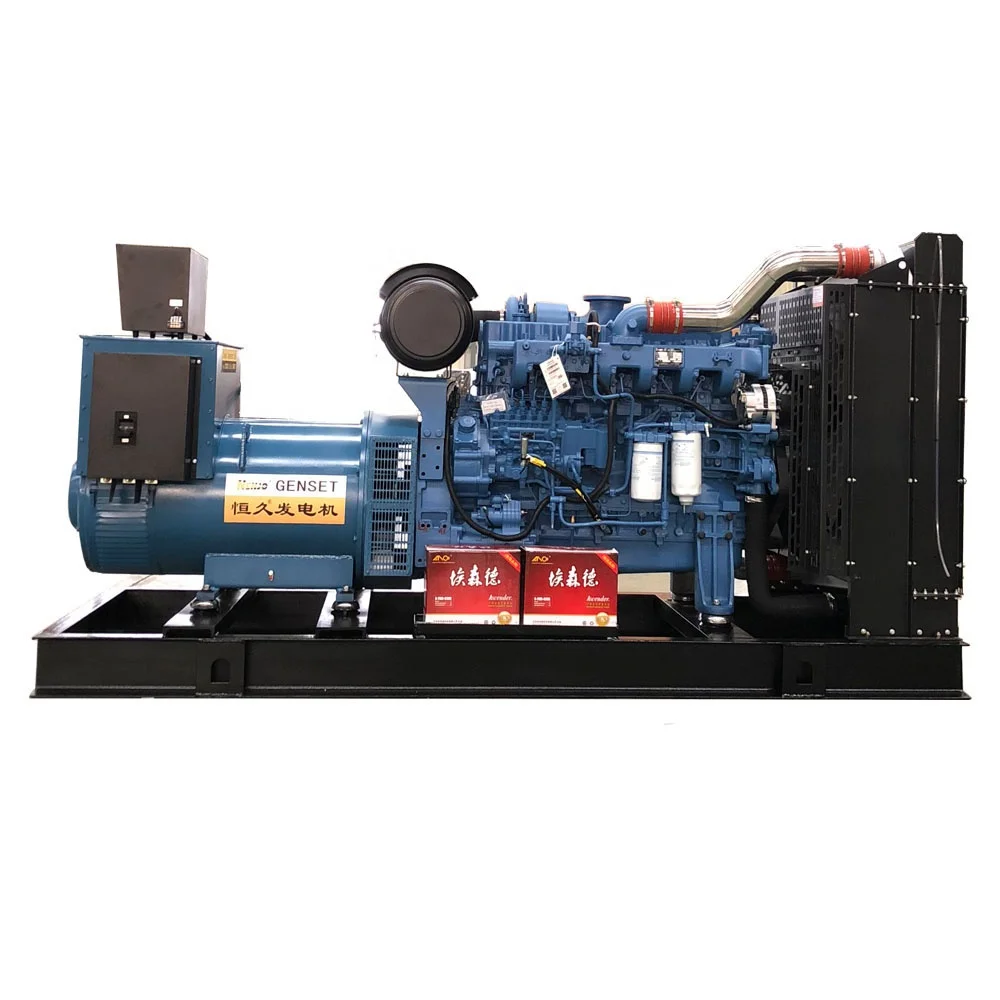

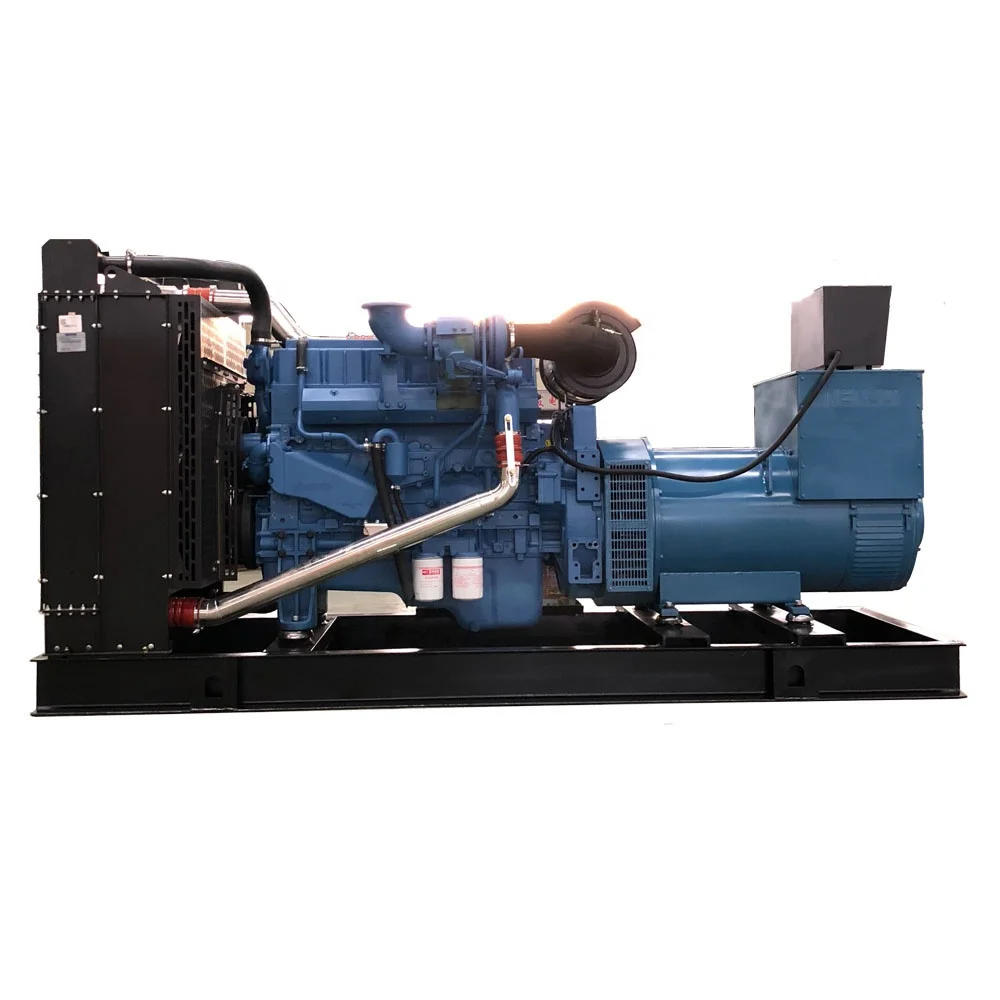

Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area
Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area
Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area
Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area
Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area
Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area
Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area

Global Warranty Continuous or Standby Work 2000kva Diesel Generator Set Price for The Industrial Area

Share on (60058680258):


Price:$120,000.00 - $180,000.00

Quantity:


Product Overview

Description



Product Description


                                                              Diesel Generator Set Data Sheet
Generator Model
GF1600YC
Power
1600kw/2000kva
Rated Voltage
400/230V
Frequency
50HZ
Power Factor
0.8(Lagging)
Dimension(L*W*H)
5600*2300*26000mm
Weight
13000kg
                                                                          Diesel Engine Data Sheet
Brand
Yuchai
Model
YC12V2700L-D31
Number of Cylinder
12
Speed
1500RPM
Cycle
Four Stroke
Cooling Method
Water Cooling
Bore*Stroke
200*210mm
Speed Governor
Electronic
Power
1985kw
Lubrication oil Capacity
79.17L
Fuel Consumption
≤203g/kwh
Starting Method
24V Electrical Starting
                                                                                Alternator Data Sheet
Brand
NENJO
Model
HJI-1600
Power
1600kw/2000kva
Connecting Type
3 Phase and 4 Wires
Number of Bearing
Single
Protection Grade
IP23
Insulation Class
H
Exciter Type
Brushless, Self-excited, AVR Controller
Altitude
≤1000M
                                                                                          Controller
Optional Controller Brand
Smartgen/Deepsea/ComAp etc.


Factory and Workshop






Control System


Manual Controller
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
Automatic controller
Brand: Smartgen, ComAp or Deepsea
- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.


ATS Control System(Suyang, Aisikai, Schneider，ABB)
- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;
Synchronous Parallel Controller
Brand: Smartgen, ComAp or Deepsea
- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..


Silent Canopy Details


-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-40-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user




Assembing Process




Packing & Shipping






Global service




Installation and Test Generator in Sri Lanka
Installation and Test Generator in Russia


Customer Visiting






Exhibition shows


Middle East Energy 2020, Dubai.
Machine and Electricity 2019,Vietnam.




Certificate(CE,ISO,CSA, CCS etc.)
