ZhengZhou STA high quality alumina NItride Substrate ceramic substrate

Product Overview

Description

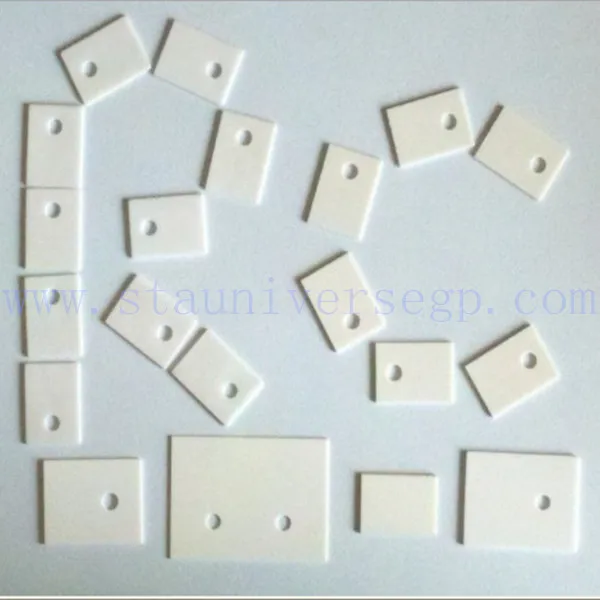

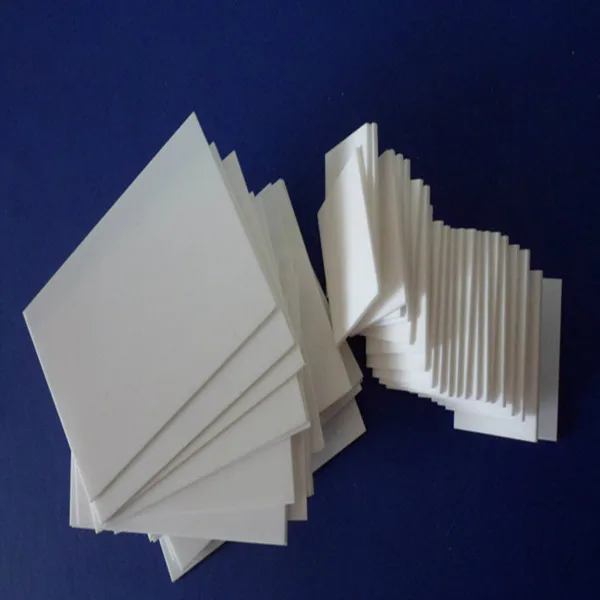

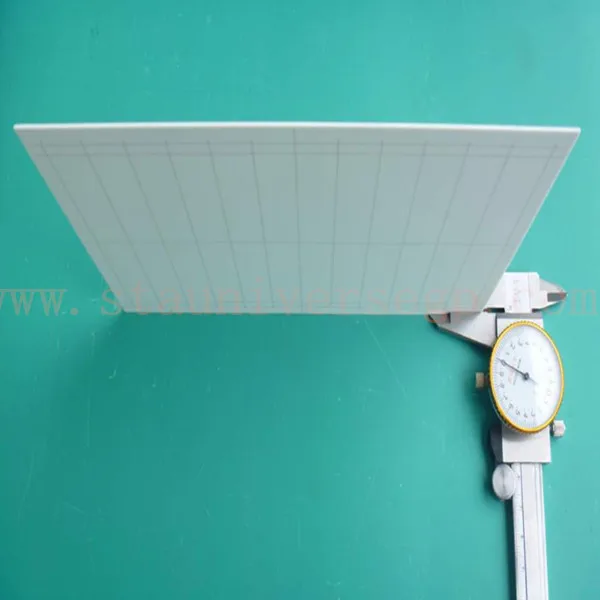

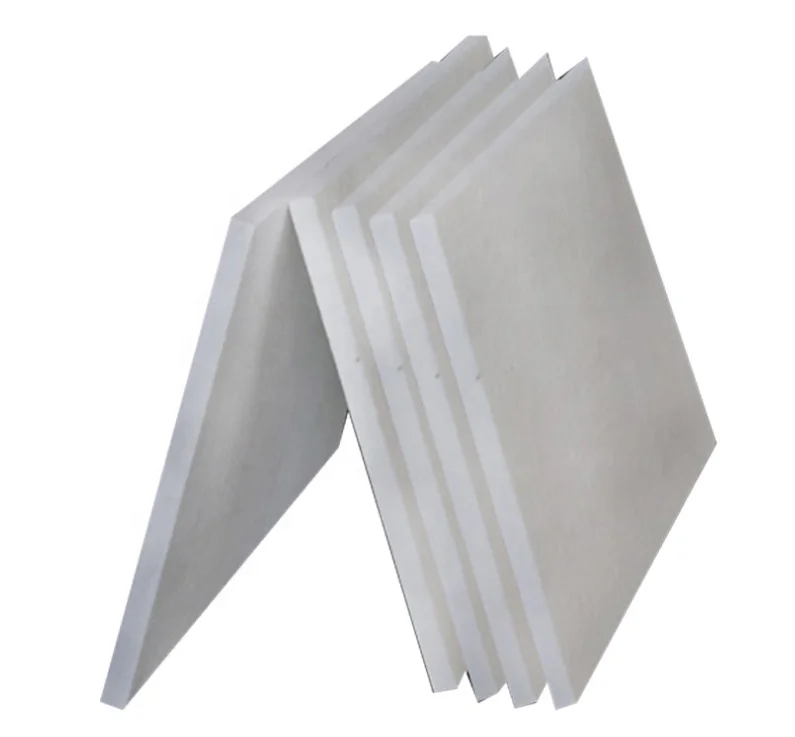

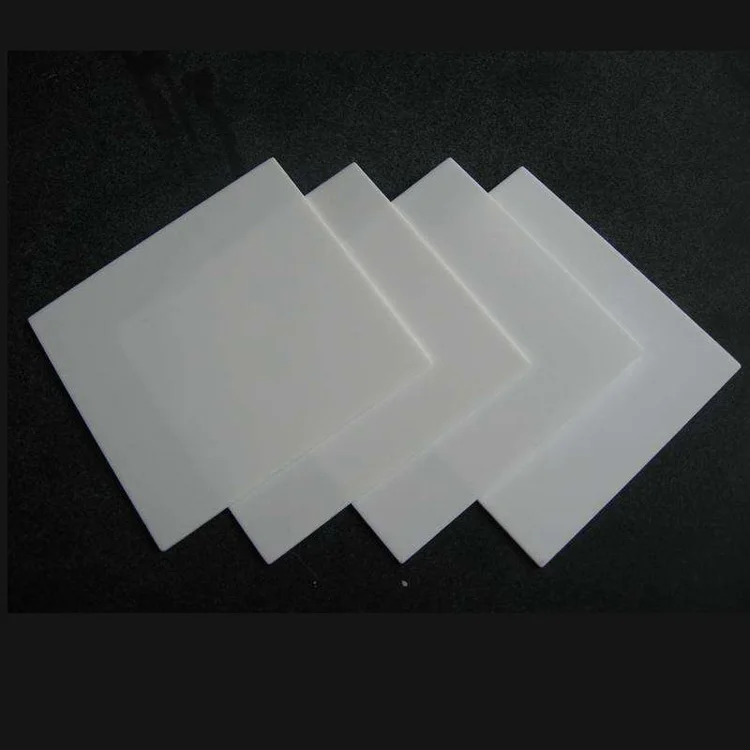

ZhengZhou STA  alumina NItride Substrate ceramic substrate with best price



The aluminum nitride ceramic plate has high thermal conductivity of more than 170W/m.k,

high density, low dielectric loss, good insulation and some other excellent properties.The ALN substrate is

 the best choice for a wide range of industrial insulating heat sink material of high power machinery

and equipments such as highfrequency equipment substrate, high power transistor  module substrate,

high density hybrid circuits, microwave power devices, power semiconductor devices, power electronic

devices, optoelectronic components, laser-semi-conductor, LED, IC products, and so on.



the technical data of the ALN plate



Property content	Property index
Density(g/cm3)	≥3.30 g/cm3
Water absorption (%)	0
Thermal conductivity(20°C, W/m.k)	≥170
Linear expansion coefficient (RT-400°C,10-6/°C)	4.4
Flexural strength (MPa)	≥330
Bulk resistance (Ω.cm)	≥1014
Dielectric constant(1MHz)	9.0
Dissipation factor (1MHz)	3×10-4
Dielectric strength (KV/mm)	≥15
Surface roughness Ra(μm)	0.3~0.5 (≤20nm)
Camber (~/25.4(length))	0.03~0.05
Appearance	Dense







 the detail size of the ALN plate





Thickness(mm)	Length*Width(mm)
0.385	2″* 2″ 50.8*50.8mm		3″* 3″ 76.2*76.2mm			4″* 4″ 101.6*101.6mm			4.5″* 4.5″ 114.3*114.3mm
0.5
0.635
1.0
	Diameter(mm)
1.0	Φ16 Φ19	Φ20 Φ26		Φ30 Φ35	Φ40 Φ45		Φ50 Φ52	Φ60		Φ75	Φ80
1.2
1.5
2.0
2.5
PS: Other dimensions which are not listed are available upon your requests.







Item		Standard values	Test method
Wall thinkness	100CPSI	0.45MM±0.03	vernier caliper
	200CPSI	0.36MM±0.03	vernier caliper
	300CPSI	0.28MM±0.03	vernier caliper
	400CPSI	0.21MM ±0.03	vernier caliper
Overall dimensions	OD:<100MM	±1.0MM	vernier caliper
	≥100MM	±1%	vernier caliper
	Height:<150	±1.0	vernier caliper
	≥150	±1%Height	vernier caliper
Internal crack			Bright light perspective





products showing
