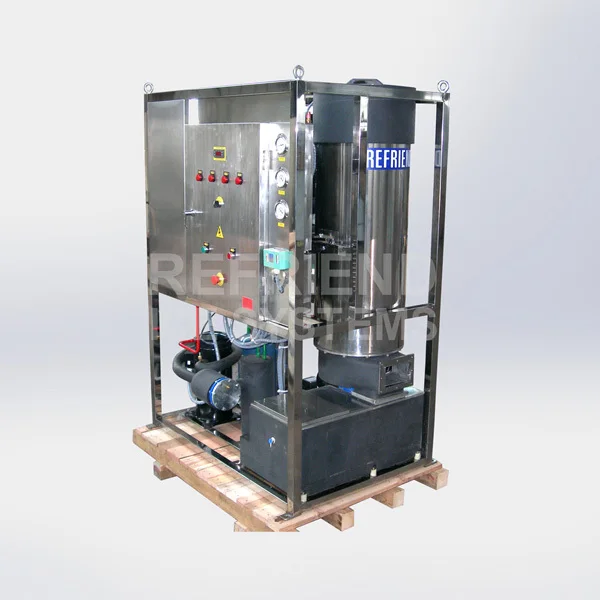

Industrial Tube ice Making Machine 1T

Product Overview

Description





1. Tube ice is very like a short hollow tube, is mainly for human consumption.

2. Our Tube ice machine can produce tube ice for 1T to 25T per day(24hours).

3. Tube Ice Diameter can be:  Φ22, Φ 25, Φ 29, Φ 32, Φ 35

4. Tube ice machine is designed with food grade, Ice tubes can be eaten











1. Tube Ice Machine is controlled by MITSUBISI PLC, easy to operation

2. All materials that touchs water are Food Grade, SS304, etc.

3. World-wide famous compressor: Bitzer or Boc

4. Schneider electric parts

5. Danfoss and Emerson Refrigeration parts

6. Refrigerant: R22 or R404a

7. Hot dip galvanized steel frame

8. Wooden Box(optional)

9. Complete Testing and its Report before shipment.









Model		Unit	LZ-1000W
Daily output		T/24hours	1
Ambient Temp.		℃	+32
Water Temp.		℃	+20
Compressor brand			Bitzer
Refrigerant			R404A / R22
Compressor  power		KW	4
Water pump  power		KW	0.45
Cutter motor power		KW	0.25
Install power		KW	8
Power Supply		380V/3P/50Hz	380V/3P/50Hz
Dimension	Length	mm	1200
	Width	mm	800
	Height	mm	1700
Weight		kg	480





















1. Engineer service overseas avaiable
2. One year warranty
3. Spare parts
4. Technical Documents
5. Online technical service
6. Wooden Package(Optional)
