Product Overview

Description



ISO solid carbide rod

specification:



We are the only one manufactory which can provide the cemented carbide rods with one straight cooland hold in China right now.



The Cemented carbide rods can be used for making varioius drill bits, automobile special cutter, printed circuit board ,special cutters, engine special cutters, horologe,processing special cutters, integral vertical milling cutter, graver and etc.

the cemented carbide rods can also be used for making of cemented carbide stamping head, core bar and perforation tools.

Besides, The cemented carbide rods are used for cutting aluminum alloy , cast iron , stainless steel , refractory alloy steel ,nickel-based alloy , titanium alloy and non-ferrous metal , various carbide grades with stable properties have been widely recongnized by worldwide tool makers. We can produced the ungrounded and grounded cemented carbide rods.



Grades,composition and properties:

GRADE	YG6X	ZK10UF	ZK20UF	ZK20SF	ZK30UF	ZK31UF	ZK30SF	ZK40SF
Chemical composition	6%Co-WC	6%Co-WC	8%Co-WC	8%Co-WC	10%Co-WC	10%Co-WC	10%Co-WC	12%Co-WC
ISO GRADE	K10	K05-K15	K20-K30	K20-K40	K20-K30	K20-K30	K20-K40	K40-K50
Density(g/cm3)	14.9	14.85	14.65	14.45	14.45	14.4	14.4	14.1
Hardness(HRA)	92.5	93	92.6	92.8	92	91.5	92.5	92.1
Strength(N/mm)	2500	2800	3200	3400	3500	4000	3600	3400
WC average grain size	1.0μm	0.6μm	0.6μm	0.4-0.5μm	0.6μm	0.7μm	0.4-0.5μm	0.4-0.5μm



SIZE:

Ø 1.0 h6 x 330+0.5 mm	Ø 1.0 +0.3 x 330+0.5 mm	Ø 1.3 +0.3 x 330+0.5 mm	Ø 1.7 +0.3 x 330+0.5 mm
Ø 2.0 h6 x 330+0.5 mm	Ø 2.0 +0.3 x 330+0.5 mm	Ø 2.3 +0.3 x 330+0.5 mm	Ø 2.7 +0.3 x 330+0.5 mm
Ø 3.0 h6 x 330+0.5 mm	Ø 3.0 +0.3 x 330+0.5 mm	Ø 3.3 +0.3 x 330+0.5 mm	Ø 3.7 +0.3 x 330+0.5 mm
Ø 4.0 h6 x 330+0.5 mm	Ø 4.0 +0.3 x 330+0.5 mm	Ø 4.3 +0.3 x 330+0.5 mm	Ø 4.7 +0.3 x 330+0.5 mm
Ø 5.0 h6 x 330+0.5 mm	Ø 5.0 +0.3 x 330+0.5 mm	Ø 5.3 +0.3 x 330+0.5 mm	Ø 5.7 +0.3 x 330+0.5 mm
Ø 6.0 h6 x 330+0.5 mm	Ø 6.0 +0.3 x 330+0.5 mm	Ø 6.3 +0.3 x 330+0.5 mm	Ø 6.7 +0.3 x 330+0.5 mm
Ø 7.0 h6 x 330+0.5 mm	Ø 7.0 +0.3 x 330+0.5 mm	Ø 7.3 +0.3 x 330+0.5 mm	Ø 7.7 +0.3 x 330+0.5 mm
Ø 8.0 h6 x 330+0.5 mm	Ø 8.0 +0.3 x 330+0.5 mm	Ø 8.3 +0.3 x 330+0.5 mm	Ø 8.7 +0.3 x 330+0.5 mm
Ø 9.0 h6 x 330+0.5 mm	Ø 9.0 +0.3 x 330+0.5 mm	Ø 9.3 +0.3 x 330+0.5 mm	Ø 9.7 +0.3 x 330+0.5 mm
Ø 10.0 h6 x 330+0.5 mm	Ø 10.0 +0.3 x 330+0.5 mm	Ø 10.3 +0.3 x 330+0.5 mm	Ø 10.7 +0.3 x 330+0.5 mm
Ø 11.0 h6 x 330+0.5 mm	Ø 11.0 +0.3 x 330+0.5 mm	Ø 11.3 +0.3 x 330+0.5 mm	Ø 11.7 +0.3 x 330+0.5 mm
Ø 12.0 h6 x 330+0.5 mm	Ø 12.0 +0.3 x 330+0.5 mm	Ø 12.3 +0.3 x 330+0.5 mm	Ø 12.7 +0.3 x 330+0.5 mm
Ø 13.0 h6 x 330+0.5 mm	Ø 13.0 +0.3 x 330+0.5 mm	Ø 13.3 +0.3 x 330+0.5 mm	Ø 13.7 +0.3 x 330+0.5 mm
Ø 14.0 h6 x 330+0.5 mm	Ø 14.0 +0.3 x 330+0.5 mm	Ø 14.3 +0.3 x 330+0.5 mm	Ø 14.7 +0.3 x 330+0.5 mm
Ø 15.0 h6 x 330+0.5 mm	Ø 15.0 +0.3 x 330+0.5 mm	Ø 15.3 +0.3 x 330+0.5 mm	Ø 15.7 +0.3 x 330+0.5 mm
Ø 16.0 h6 x 330+0.5 mm	Ø 16.0 +0.3 x 330+0.5 mm	Ø 16.3 +0.3 x 330+0.5 mm	Ø 16.7 +0.3 x 330+0.5 mm
Ø 17.0 h6 x 330+0.5 mm	Ø 17.0 +0.3 x 330+0.5 mm	Ø 17.3 +0.3 x 330+0.5 mm	Ø 17.7 +0.3 x 330+0.5 mm
Ø 18.0 h6 x 330+0.5 mm	Ø 18.0 +0.3 x 330+0.5 mm	Ø 18.3 +0.3 x 330+0.5 mm	Ø 18.7 +0.3 x 330+0.5 mm
Ø 19.0 h6 x 330+0.5 mm	Ø 19.0 +0.3 x 330+0.5 mm	Ø 19.3 +0.3 x 330+0.5 mm	Ø 19.7 +0.3 x 330+0.5 mm
Ø 20.0 h6 x 330+0.5 mm	Ø 20.0 +0.3 x 330+0.5 mm	Ø 20.3 +0.3 x 330+0.5 mm	Ø 20.7 +0.3 x 330+0.5 mm
Ø 21.0 h6 x 330+0.5 mm	Ø 21.0 +0.3 x 330+0.5 mm	Ø 21.3 +0.3 x 330+0.5 mm	Ø 21.7 +0.3 x 330+0.5 mm
Ø 22.0 h6 x 330+0.5 mm	Ø 22.0 +0.3 x 330+0.5 mm	Ø 22.3 +0.3 x 330+0.5 mm	Ø 22.7 +0.3 x 330+0.5 mm
Ø 23.0 h6 x 330+0.5 mm	Ø 23.0 +0.3 x 330+0.5 mm	Ø 23.3 +0.3 x 330+0.5 mm	Ø 23.7 +0.3 x 330+0.5 mm
Ø 24.0 h6 x 330+0.5 mm	Ø 24.0 +0.3 x 330+0.5 mm	Ø 24.3 +0.3 x 330+0.5 mm	Ø 24.7 +0.3 x 330+0.5 mm
Ø 25.0 h6 x 330+0.5 mm	Ø 25.0 +0.3 x 330+0.5 mm	Ø 25.3 +0.3 x 330+0.5 mm	Ø 25.7 +0.3 x 330+0.5 mm

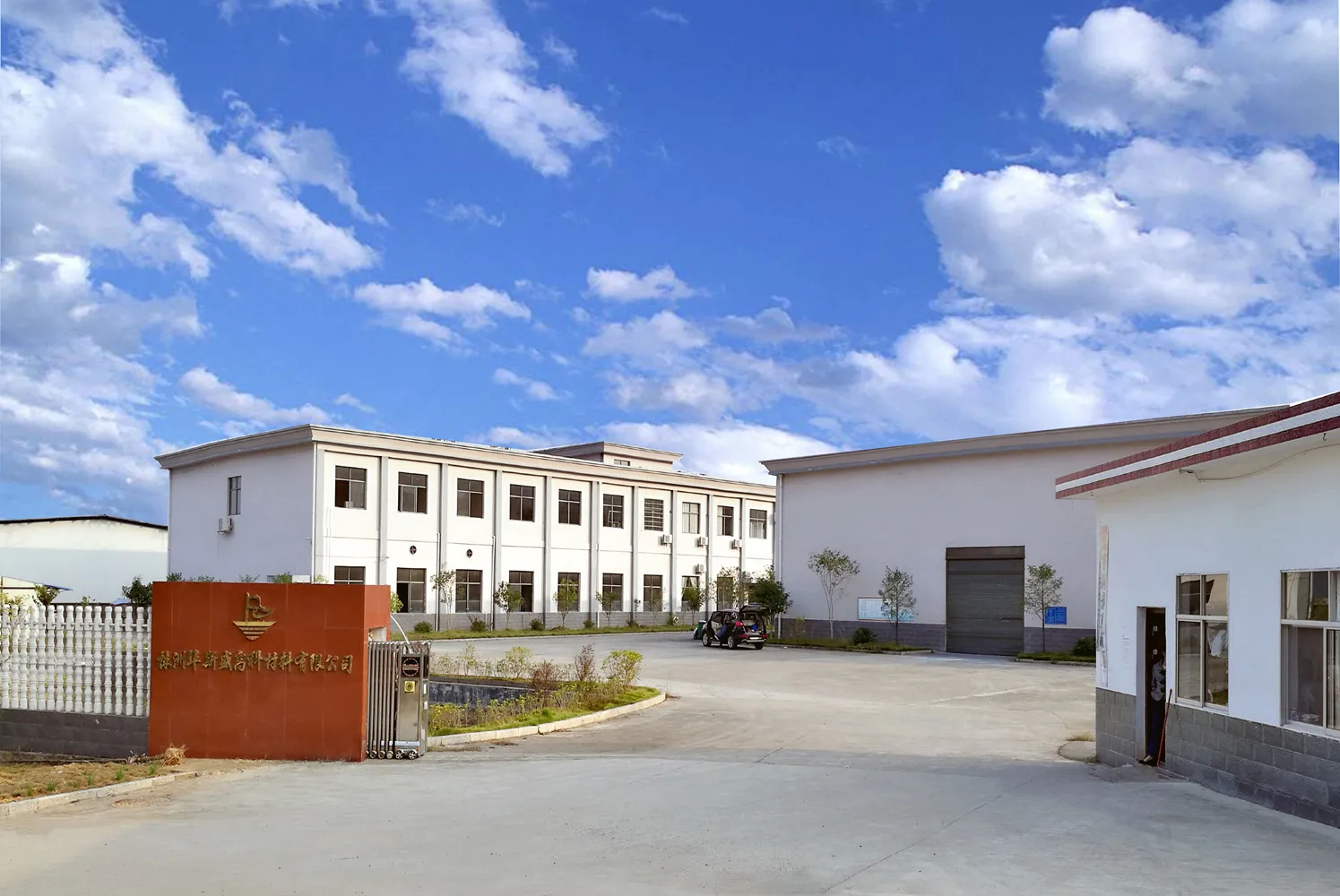

Factory photo:











Qualiy Index of National Test Standard







Analytica testig laboratory:

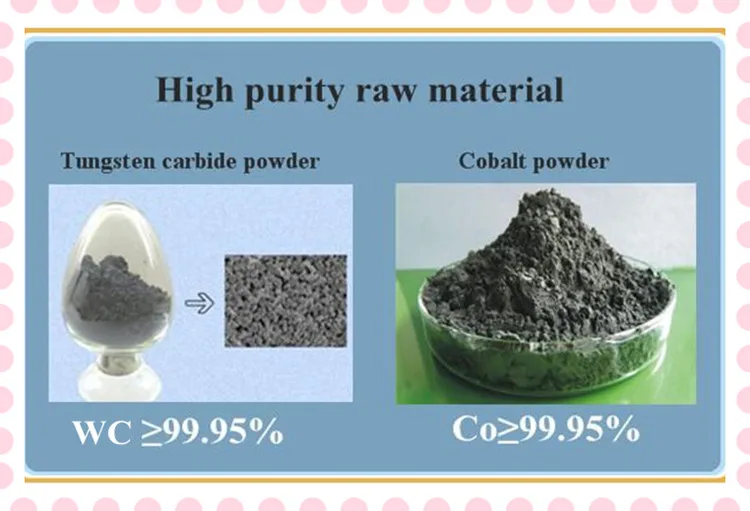

 High purity raw mteial:Tungsten cabide powder and Cobalt mterial

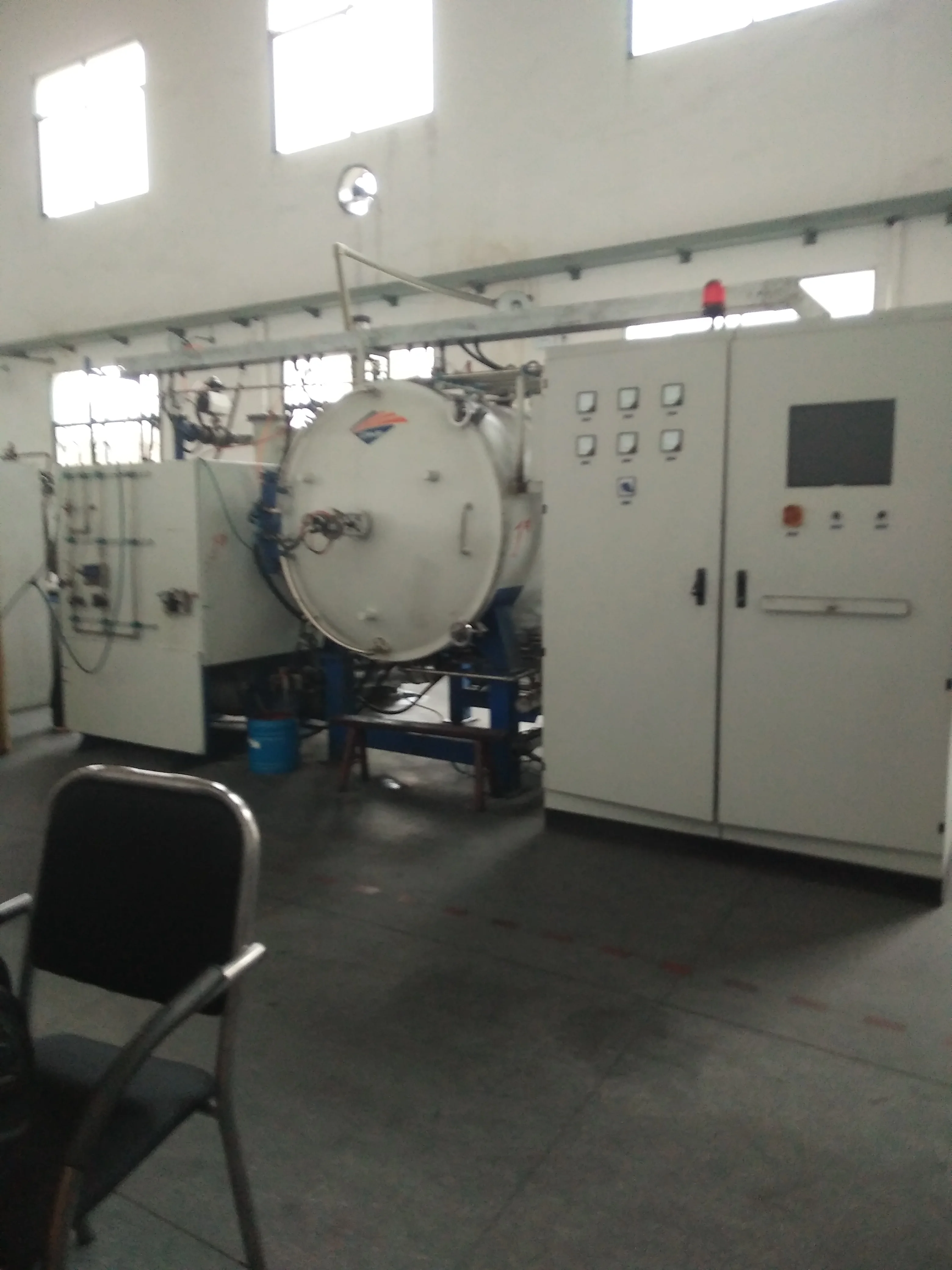

 High-precision technical equipment:1







Photo 2





  Photo 3





  Photo 4







  Photo 5





  Photo 6





13-levels quality control systerm:

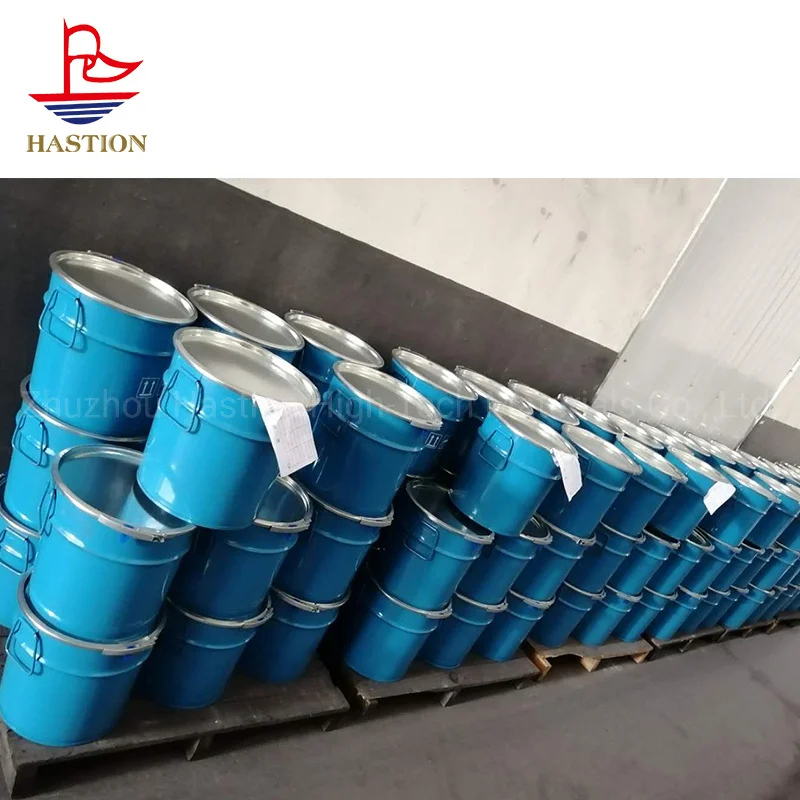

Packing and shipment:











SAFETY SALE SERVICE:
