Type 9NN. Duct heaters, Small size air duct square heaters
- Category: >>>
- Supplier: Jpci Controls (foshan Gaoming) Co. Ltd.
Share on (60059269397):
Product Overview
Description
Typical applications
Thin and compact air duct heaters, designed to be used in industrial or commercial air conditioning systems. Their design allows to mount them at the end of 125mm dia. air duct on existing circuits. One of their applications is to allow, without costly work, to boost air/air type heat pumps whose power is insufficient in extreme weather conditions. They are intended to be used by integrators in ventilated air ducts.
They are made of a stainless steel sheathed tubular heating element, mounted on an electro-galvanized steel or stainless steel frame. They can be supplied with or without electrical connection box.
They are supplied with 2 levels of temperature overheat protection
Main features
Frame: Galvanized steel sheet or 304 stainless steel
Safety thermostat N°1: automatic reset, open at 50°C, reset at 40℃
Safety thermostat N°2: Open at 95℃. Manual reset
Heating element: 8mm diameter sheathed tubular heating element, stainless steel 304L. (Other features, see page 7)
Power vs Heater surface loads and minimum flow :
-For 400W the surface load is 1.2W/cm², and minimum air velocity must be 0.5 m/s, i.e. a rate equal to or greater than 28m3/h in a dia. 125mm duct.
-For 600W the surface load is 1.8W/cm², and minimum air velocity must be 1.5 m/s, i.e. a rate equal to or greater than 84m3/h in a dia. 125mm duct.
-For 1200W the surface load is 3.6W/cm², and minimum air velocity must be 2.5 m/s, i.e. a rate equal to or greater than 140m3/h in a dia. 125mm duct.
Indicative values. Calculated so that the surface temperature of the heating elements does not exceed 300℃. It is up to the integrator to perform the appropriate checks and flow and temperatures reached in the application, so that they conform to the regulations and safety standards.
Voltage: 220/240V, 50/60Hz (110-120V on request)
Connection box(in models supplied with it): IP40 with M20 cable gland in PA66
Connection: ceramic terminal block 3x2.5mm²

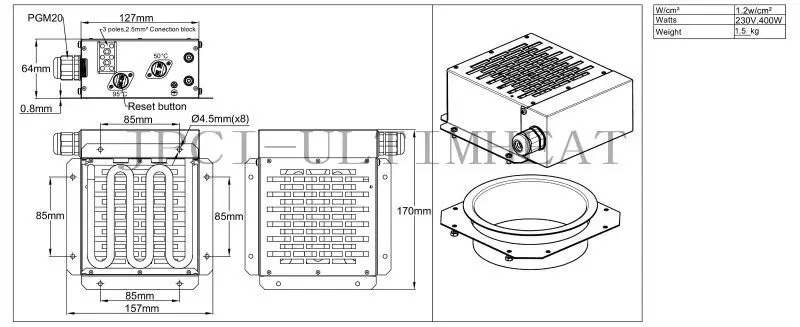

Mounting: on flat surface, with 8 screws. Also allows the mounting on a 125mm dia. metal duct with a collar lip diameter 144mm to 150mm. (See accessories hereunder)
Options: other surface load, other thermostats set point temperatures (MOQ apply)
References with zinc | References with | Power | Connection | Surface load | Surface load | Accessory
Bracket and collar tube for 125mm dia. duct (zinc plated steel) | |
9NNL128G23400BJ0 | 9NNL128423400BJ0 | 400 | No | 1.2 | 7.7 | ||
9NNL188G23600BJ0 | 9NNL188423600BJ0 | 600 | No | 1.8 | 11.6 | ||
9NNL368G23A20BJ0 | 9NNL368423A20BJ0 | 1200 | No | 3.6 | 23.2 | ||
9NNL188G23600BJC | 9NNL188423600BJC | 400 | Yes | 1.2 | 7.7 | ||
9NNL368G23A20BJC | 9NNL368423A20BJC | 600 | Yes | 1.8 | 11.6 | ||
9NNL188G23600BJC | 9NNL188423600BJC | 1200 | Yes | 3.6 | 23.2 | Reference | 9NNCT125 |
