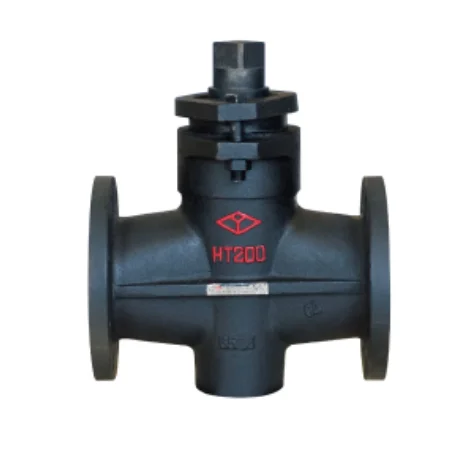

Cast Iron Plug valve Flange End Brass Plug pn10 X43W/T-10
Specifications:
Plug Valves are vlaves with cylindrical or conically-tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open. Plug valves are simple and often economical.
Product Description
1.Valve body: Grey iron
2.Gland: Grey iron
3.Plug: Grey iron/Brass
4.Usage: The valve is applicable to pipeline of oil,etc.Working temperature ≤ 100 ℃ ,it is be used to open or close the pipeline.
5.Nominal Pressure(MPa): 0.6/1.0
6.Strength(Water MPa): 0.9/1.5
7.Enclose (Water MPa): 0.76/1.1
Packaging & Shipping
Packaging: Plywood case
Shipping: Generally 20-30 days, it depend on your order qty
