China car wash equipment gantry type wash

Product Overview

Description

Car wash equipment



If you need the video of car washing process, please feel free to send inquiry to us, the video will be pleased to send for your reference. Thank you.



DAW300ST Automatic car washing machine is equipped with newgeneration car model detection technology which is featured as combination of various ways of car washing and fast speed of cleaning, the profiling airdry technology ensures the efficient drying; the combination of various ways of washing improves the washing speed; the hot-dip galvanized frame ensures a longer service time.



Main Futures:

1. Professional washes for cars, jeeps and all kinds of coaches below 9 seats;

2. Adopting advanced technology and full module design, this can be combined to more than ten different functions for different needs;

3. The main electrical components are imported from famous foreign factory, which can ensure safe and reliable;

4. Unique fault self-testing system; Waterproof motor; profiling powerful air-dry system

5. Adopting the advanced high pressure system; Pre- swing high pressure water wash does not hurt the car;

6. Hot-dip galvanizing (Zinc layer>70um) frame;

7. Maintenance-free of polymer materials roller and TN lifting mechanism;

8. Japanese EVA brushes to prevent injury car;



Technical Data:





Item	Model	DA-W300ST
Size	Machine size	L2510 x W3600 x H2850 mm
	Rail size	L8150 x W3200 mm
	Swing arm size	H2850 mm
	Washable car size	L5350 x W2150 x H2200 mm
Installation	Assembling range	L11000 x W3650 x 3300 mm
	Air supply	Pressure 0.6-0.8Mpa
	Total electrical capacity	12KW
Cost consumption	Total power	18KW
	Maximum operating power	16.6KW
	Various components Power	Top brush 0.3KWx1
		Side brush 0.3KWx2
		Small brush 0.2KWx2
		Conveyor Traveling 0.2KWx2
		Water Pump 0.75KWx1
		Dryer 3KWx2, 4kwx2
	Water consumption(one roll over wash)	70L
	Washable car	Car, jeep, coach below 9 seats
	Washing ways	1 roll over economy wash
		2 roll over standard wash
	Liquid using	shampoo
		wax
	Washing time	1 roll over wash: 3mins, 2 roll over wash: 5mins

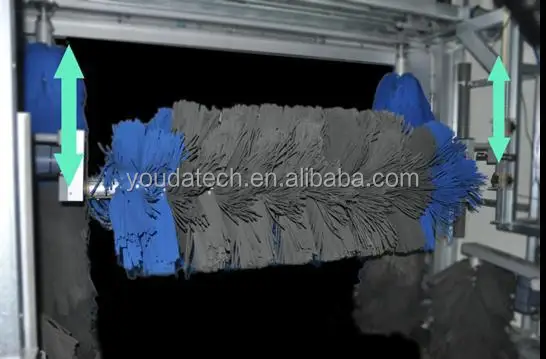

Japanese EVA brushes:

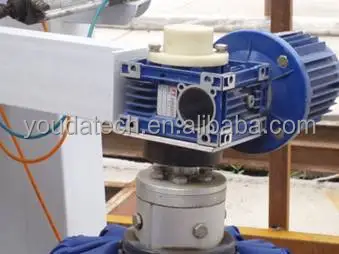

Motor:

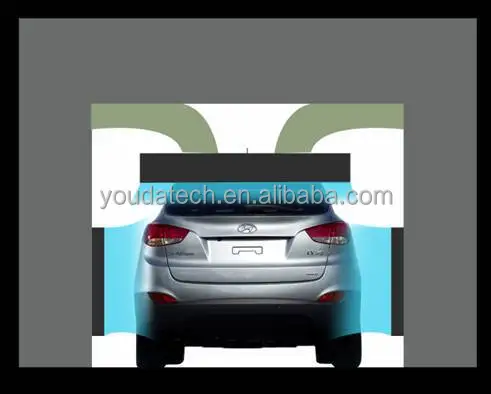

Dryer System:









Other models for your reference:



Touchless model: DA-W200ST



Tunnel model: DA-W900ST





If you are interested, please feel free to send us inquiry, the best quotation will be sent to you. Thank you.
