Household gas cooker stove pilot burner
US $2.00-$3.00

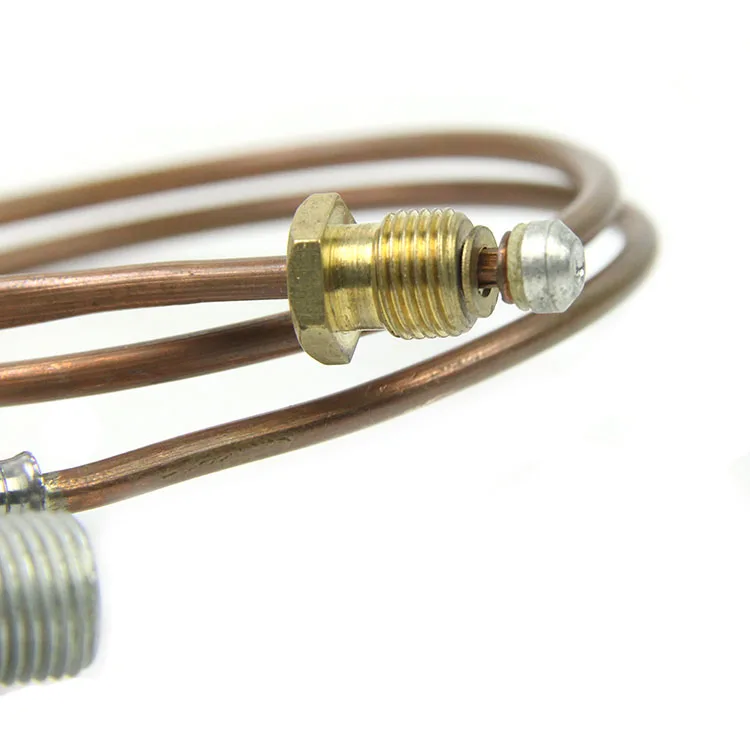

Universal Pilot Ignition Assembly,burner
- Category: Gas Heater Parts >>>
- Supplier: Ningbo Jiali Gas Appliance & Science And Technology Co. Ltd.
Share on (60059885600):
Product Overview
Description
Product Description

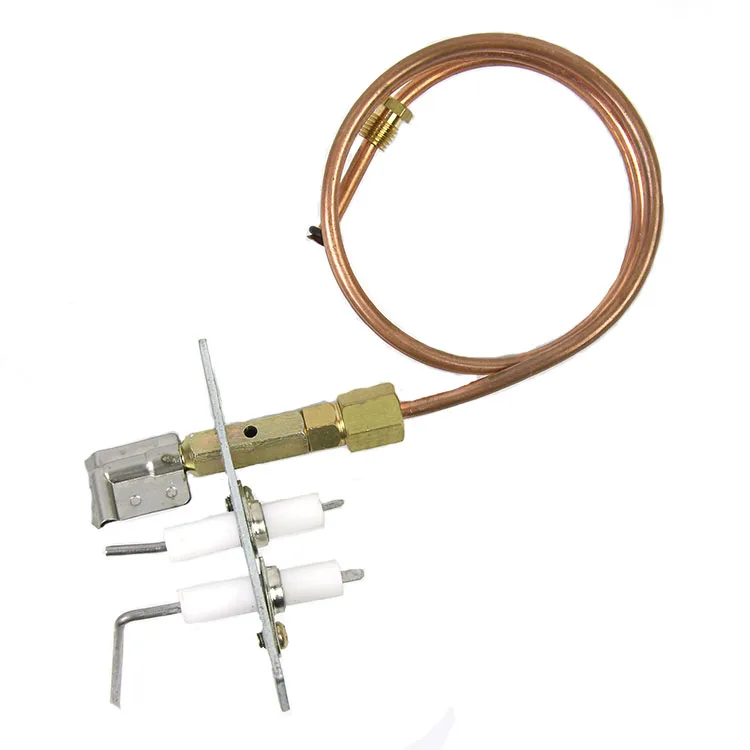

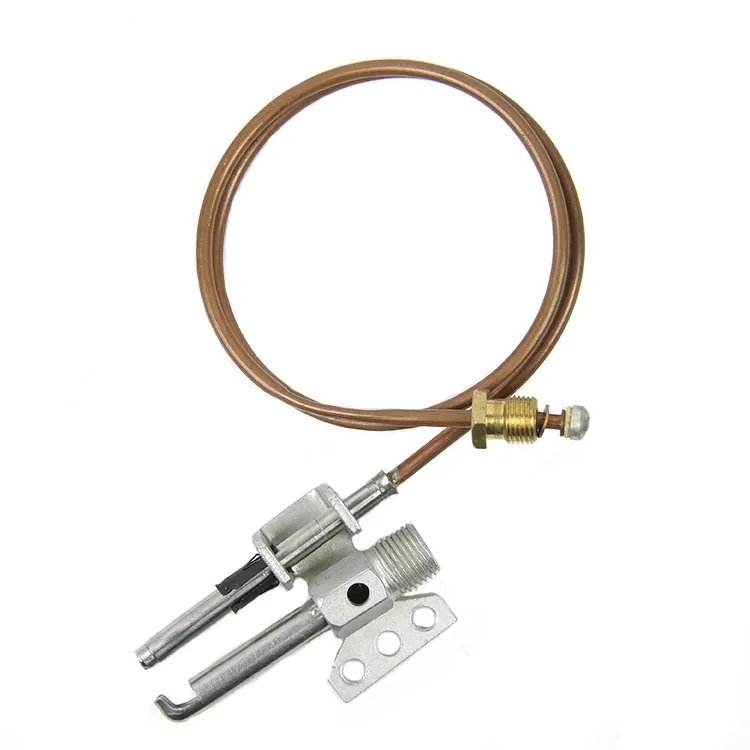

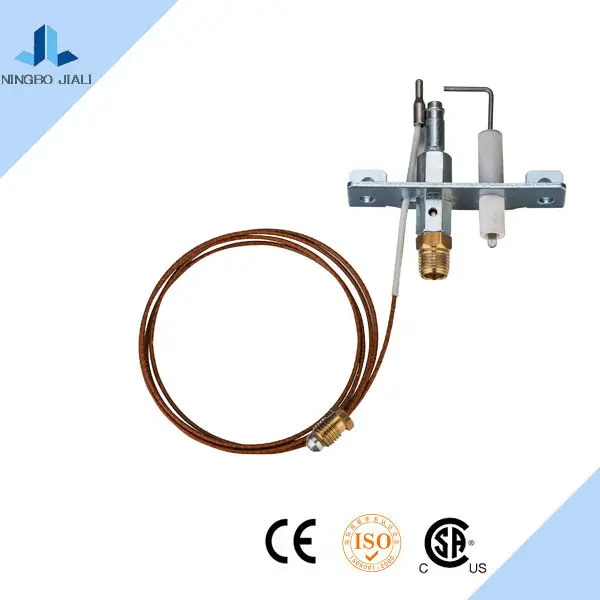

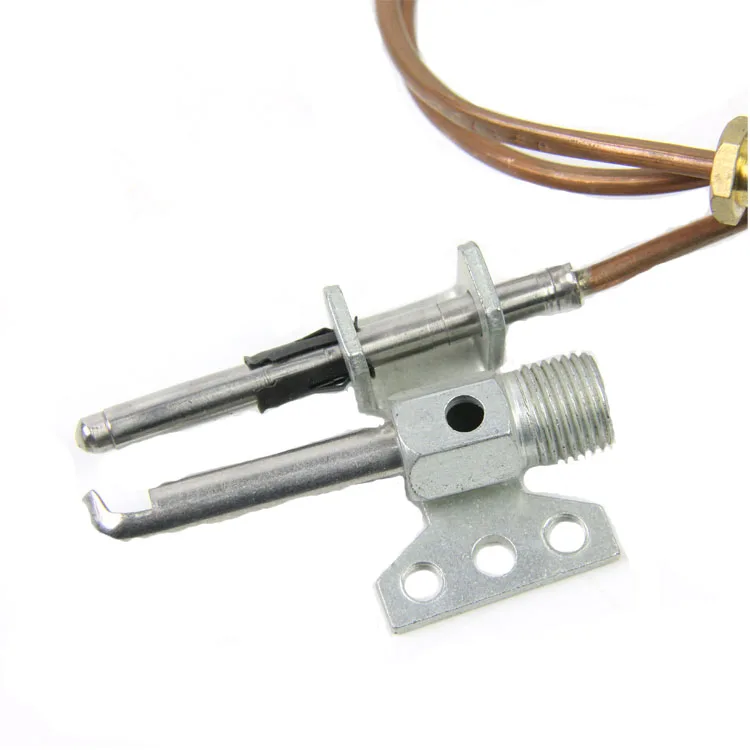

Universal Pilot Ignition Assembly burner
For this ODS ignition system we design for the gas heater ,normally we design according to customer's requirement .
In nowadays prople use gas more and more , we are the company who can help people to keep safe when they use gas for heating ,

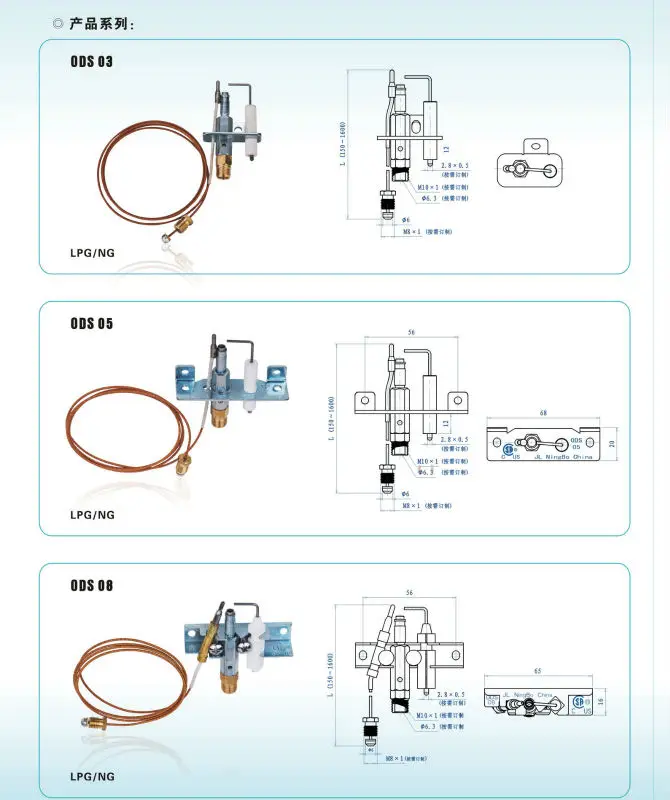

cooking .here you can check our different types ODS product
DETAILS
DATA
Technical parameter | |
Heating characteristic | ≥12mV (within 20s at 650°C) |
Cooling characteristic | ≤1.5mV(within 60s) |
Range of length | 150mm(5.9inch)~ 1800mm(71inch) |
Range of resistance | (10~50)±3 mΩ |
| |
Operating conditions: | |
Range of ambient temperatures: 0°C ~ 52°C (32°F to 125°F) | |
| |
Maximum operating temperatures: | |
Thermocouple Tip:750ºC / 1382°F | |
Thermocouple Wire:180ºC / 356°F | |
Cold Junction:150 ºC / 302°F Injector(Burner):750ºC / 1382°F | |

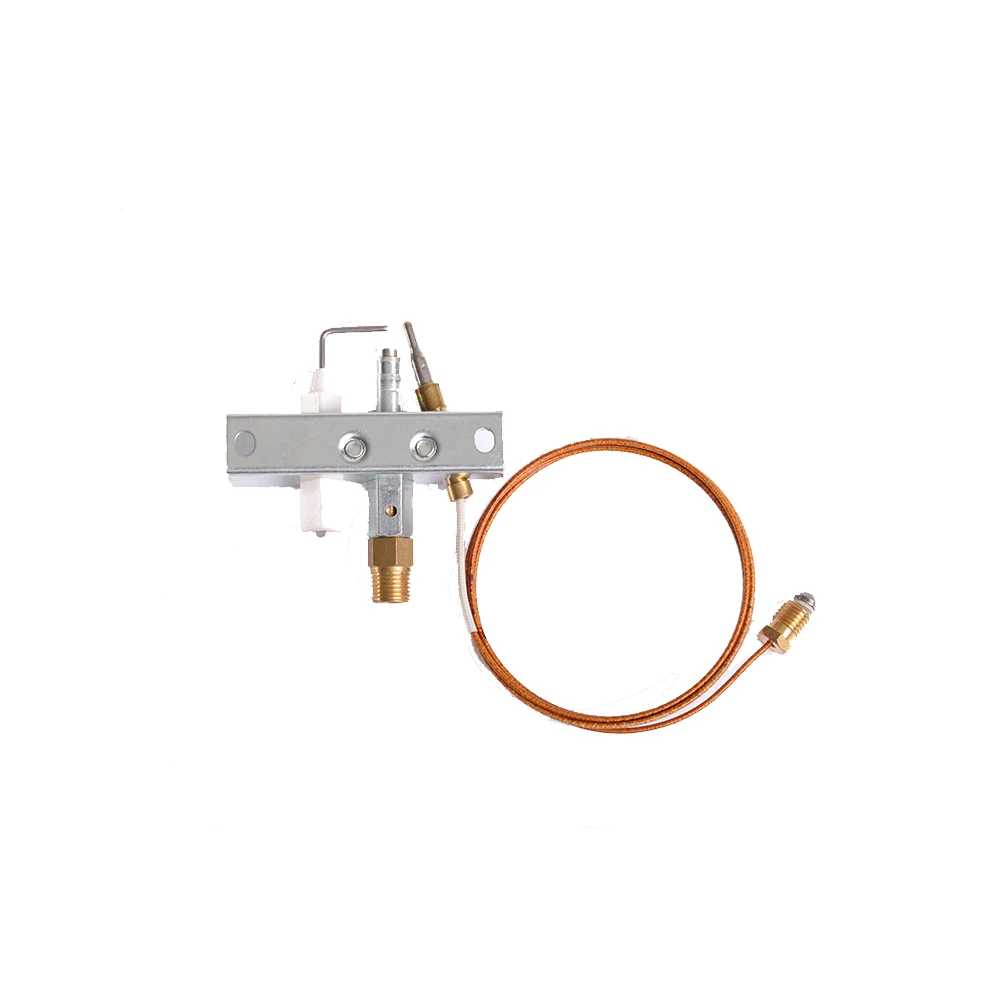

Universal Pilot Ignition Assembly burner
1,Working principle: ODS use thermocouple component as a sensor to search the temperature of pilot flame
in order to drive the electromagnetic valve,when the space is hypoxia(O-17%~19%),
the flame temperature is under 400°C,there is not enough potential to open the valve ,
so then the valve will be closed to keep safe .
2,Function: automatic ignition for gas appliance ,hypoxia protection.
3,Air source :NG,LPG
4,Output Potential: ≥12MV.
5,Injector : stainless steel/ruby/copper.
6,All design and production are may according to customer’s demand.
Technical parameters | |
Applicable gas species | LPG,NG,Propane & Butane |
CO2 | 0.8%-1.5% |
O2 | ≥19.0% |
CO | ≤50ppm |
Inner resistance | 5-50±3 mΩ |
No-load potential | ≥20mV(650℃) |
Connector | Nut (M8*1,M9*1) or others |
Axial tension 50N, sustain 1 min, no loose, no cut | |
The length according the client’s request | |
PRODUCT TESTING
CERTIFICATE
OTHER STYLES
APPLICATION
Packaging & Shipping
Universal Pilot Ignition Assembly burner
PACKING & SHIPPING | |
PCS/BOX | 25pcs/box |
BOX/CTN | 8box/ctn 200pcs/ctn |
CTN SIZE | 400*250*300 mm |
SHIPPING | By courier &By sea & By air |
DELIVERY | 10-25 days |
Company Information
About JIALI
Our Services
1.Inquiry response:Your inquires will be replied in 24hours.
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
More details, please contact Annie,thanks!
